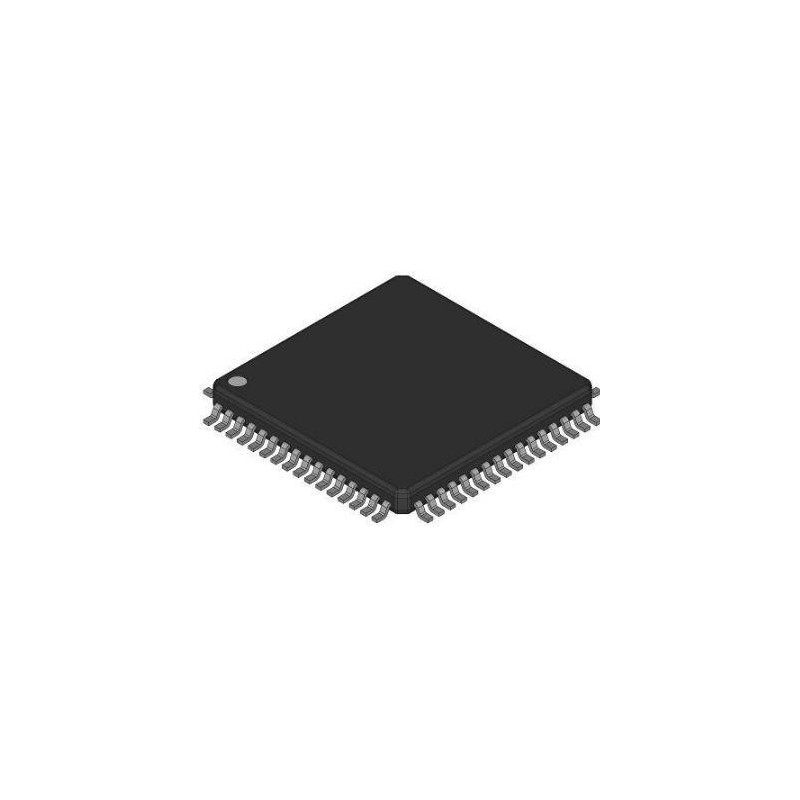

میکرو کنترلر STM32G474RET6 - اورجینال - New and original+گارانتی

میکروکنترلرSTM32G474RET6

The STM32G474xx is based on the powerful Arm® Cortex®-M4 32-bit RISC core.
The Cortex-M4 core has a single-precision FPU that supports all single-precision data processing instructions from the Arm as well as all other data types. A complete set of DSP instructions and an MPU are implemented.
Integrated high-speed memory (512-KB Flash and 128-KB SRAM), plus FSMC and Quad SPI Flash interface that are connected to 2 APB buses, 2 AHB buses and 1x 32-Bit multi-AHB bus matrix.
Built-in protection for embedded flash memory and SRAM.

Product Range:
    STM32 Family STM32G4 Series Microcontrollers
Architecture:
    ARM Cortex-M4
No. of Bits:
    32bit
CPU Speed:
    170MHz
Program Memory Size:
    512KB
RAM Memory Size:
    128KB
No. of Pins:
    64Pins
MCU Case Style:
    LQFP
No. of I/O's:
    52I/O's
Embedded Interface Type:
    CAN, I2C, I2S, SAI, SPI, UART, USART, USB
Supply Voltage Min:
    1.71V
Supply Voltage Max:
    3.6V
MCU Family:
    STM32
MSL:
    MSL 3 - 168 hours
