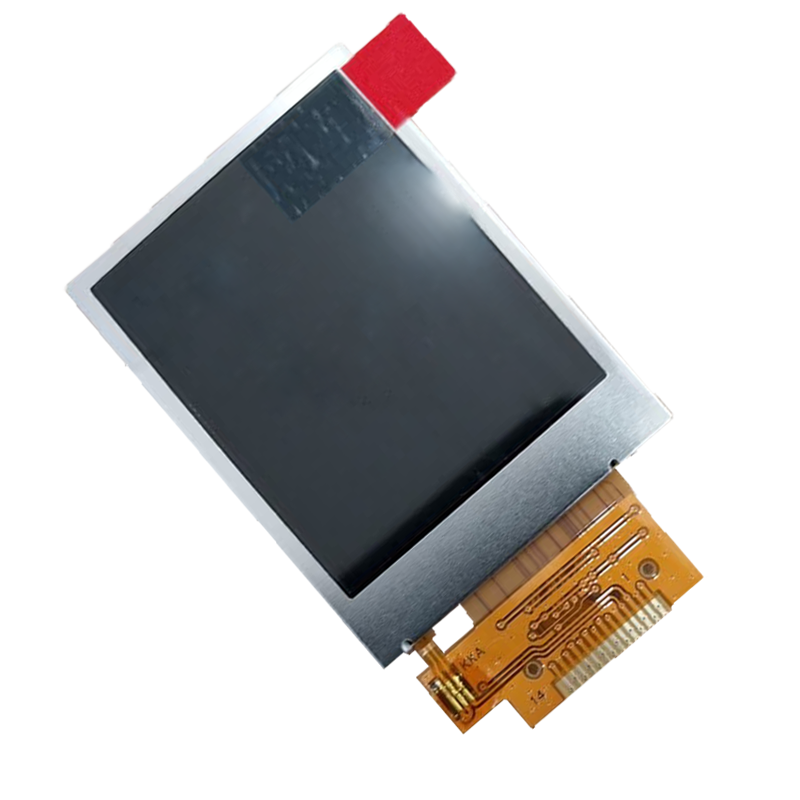

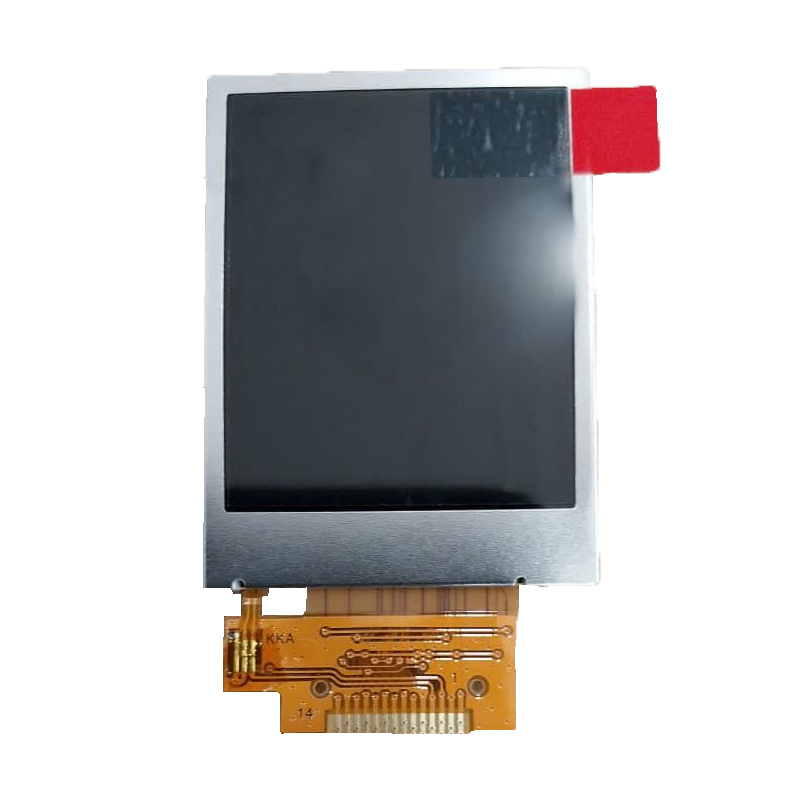

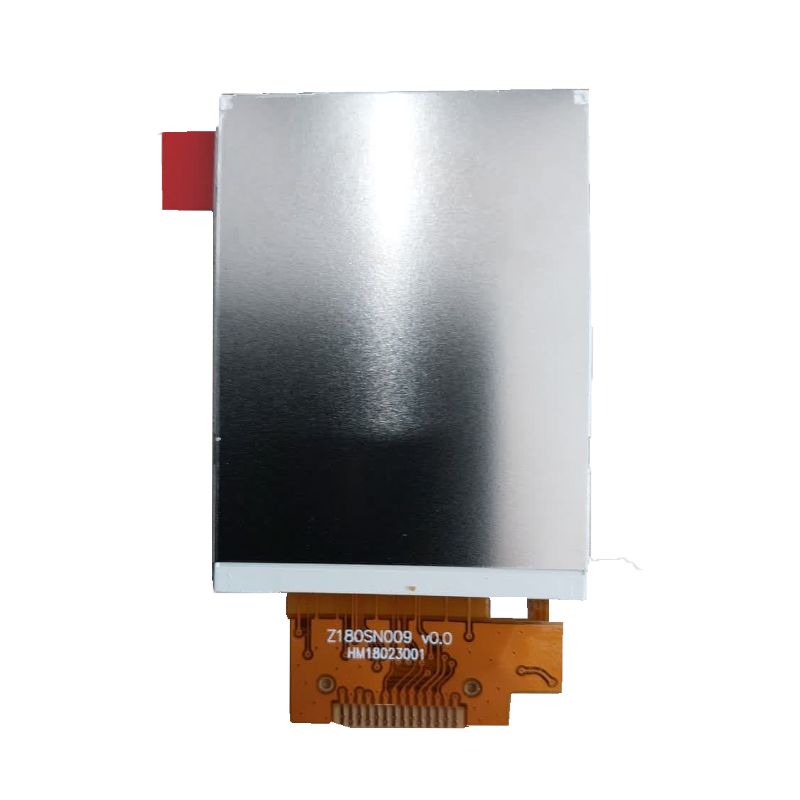

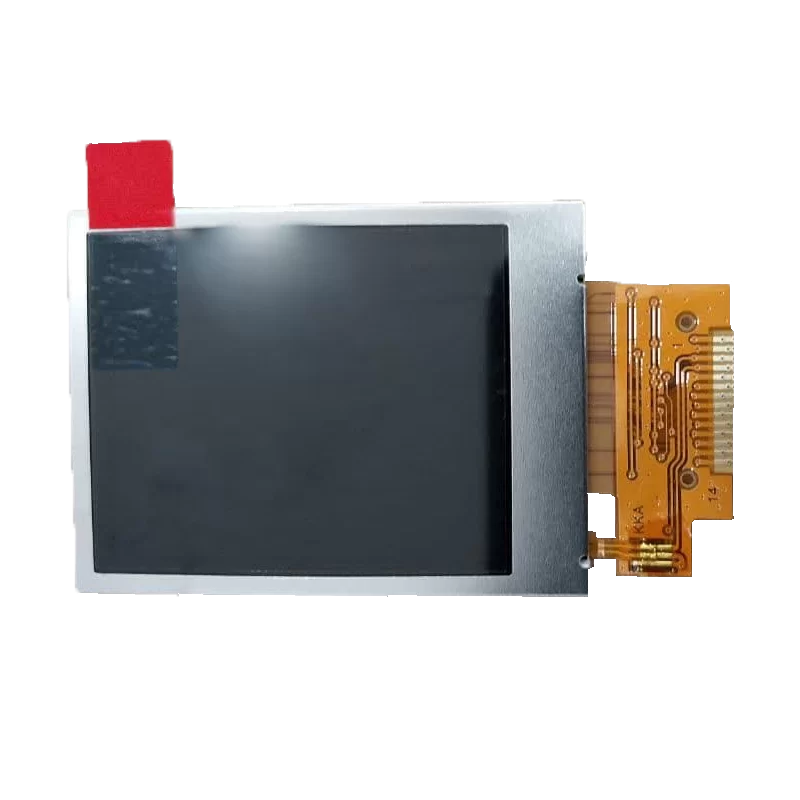

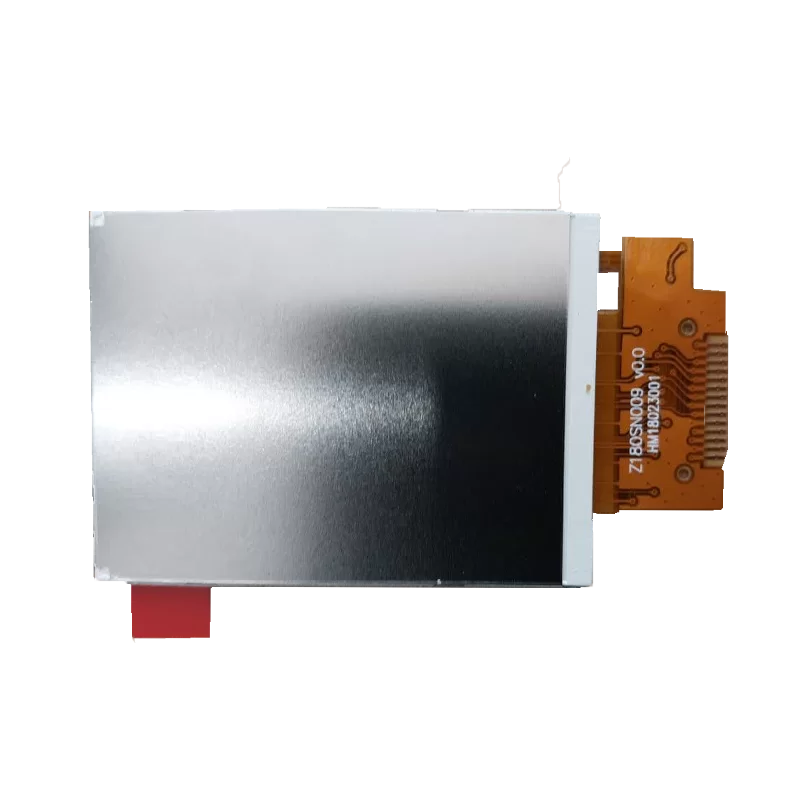

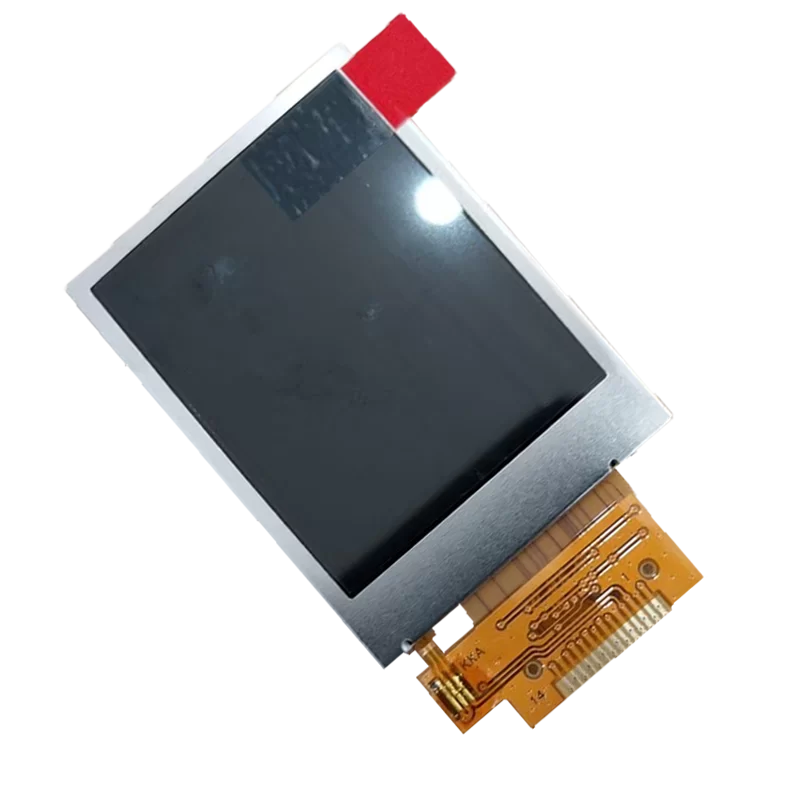

السیدی 1.8 اینچ TFT LCD 1.8 inch, 128x160 SPI - ST7735

1. PIN No.: 1, Symbol: NC, Description: No connection, Notes: (None)
2. PIN No.: 2, Symbol: GND, Description: Cathode of Backlight, Notes: (None)
3. PIN No.: 3, Symbol: LED-, Description: Anode of Backlight, Notes: (None)
4. PIN No.: 4, Symbol: LED+, Description: (Power supply 3.0-3.4V available), Notes: Ground
5. PIN No.:  reality5, Symbol: GND, Description: (Power supply), Notes: (None)
6. PIN No.: 6, Symbol: RESET, Description: LCM reset pin, signal is active low, Notes: (Connect to high level when not in use)
7. PIN No.: 7, Symbol: AO, Description: RS=0: Display data (RS=1: Instruction data), Notes: RS=0: Write data, RS=1: Write instruction
8. PIN No.: 8, Symbol: SDA, Description: Serial data input/output, Notes: (None)
9. PIN No.: 9, Symbol: SCK, Description: Serial clock signal, Notes: Power supply for LCM
10. PIN No.: 10, Symbol: VCC, Description: Power supply for LCM (2.8-3.3V), Notes: (None)
11. PIN No.: 11, Symbol: IOVCC, Description: (Power supply for I/O, Low enable), Notes: Chip select pin
12. PIN No.: 12, Symbol: CS, Description: (Chip select), Notes: (None)
13. PIN No.: 13, Symbol: GND, Description: Ground, Notes: (None)
14. PIN No.: 14, Symbol: NC, Description: No connection, Notes: (None)
