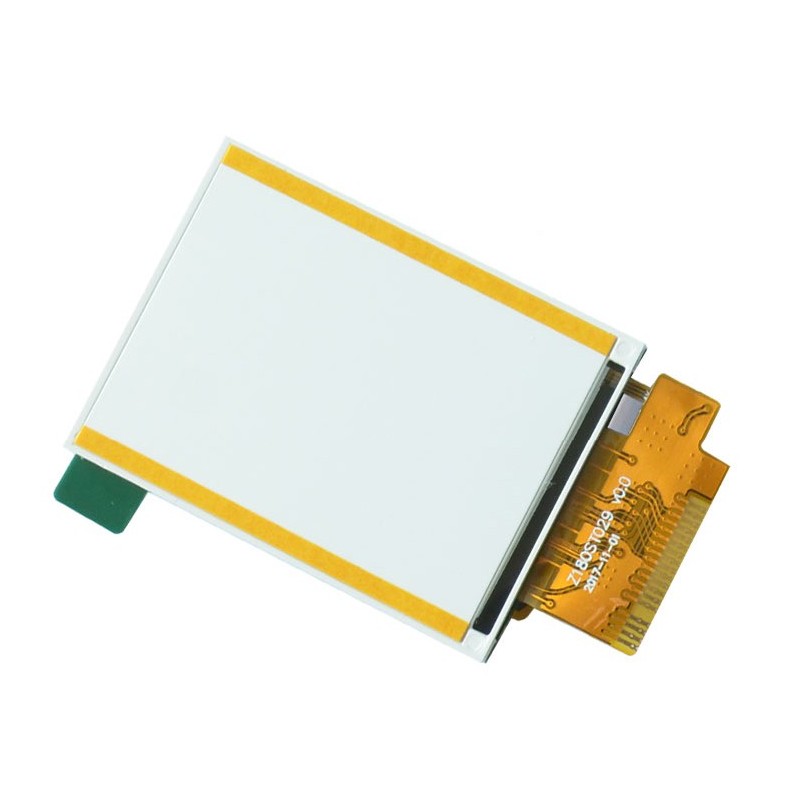

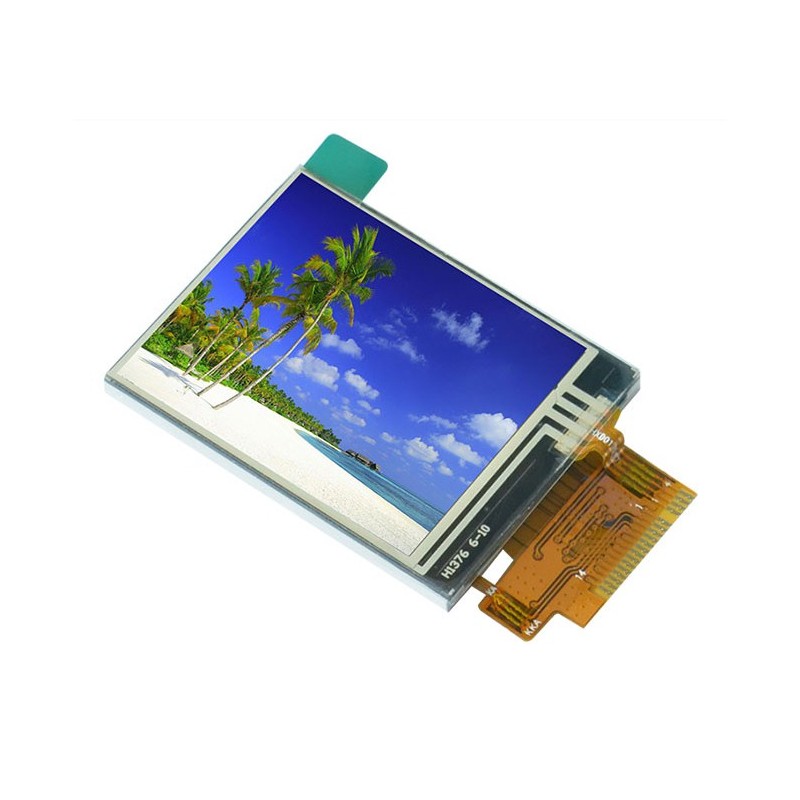

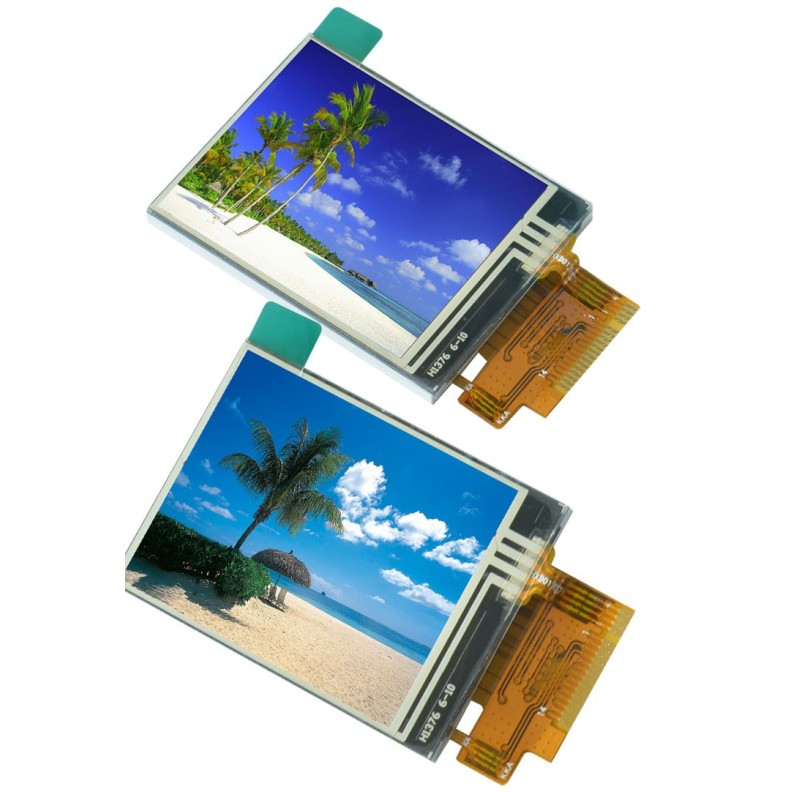

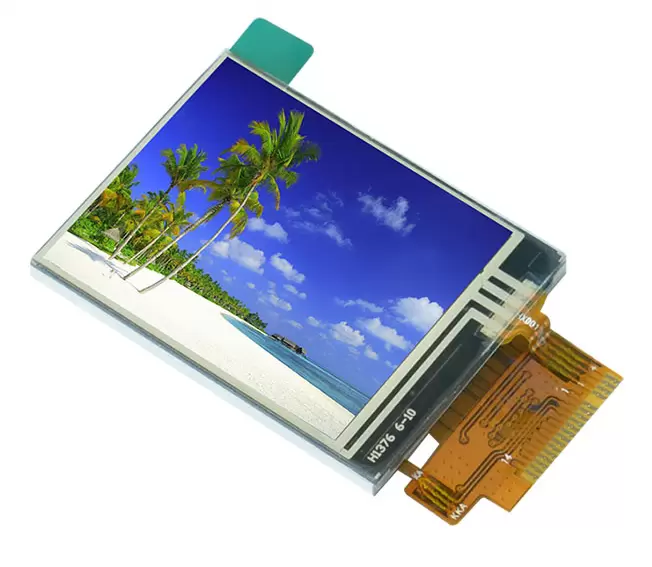

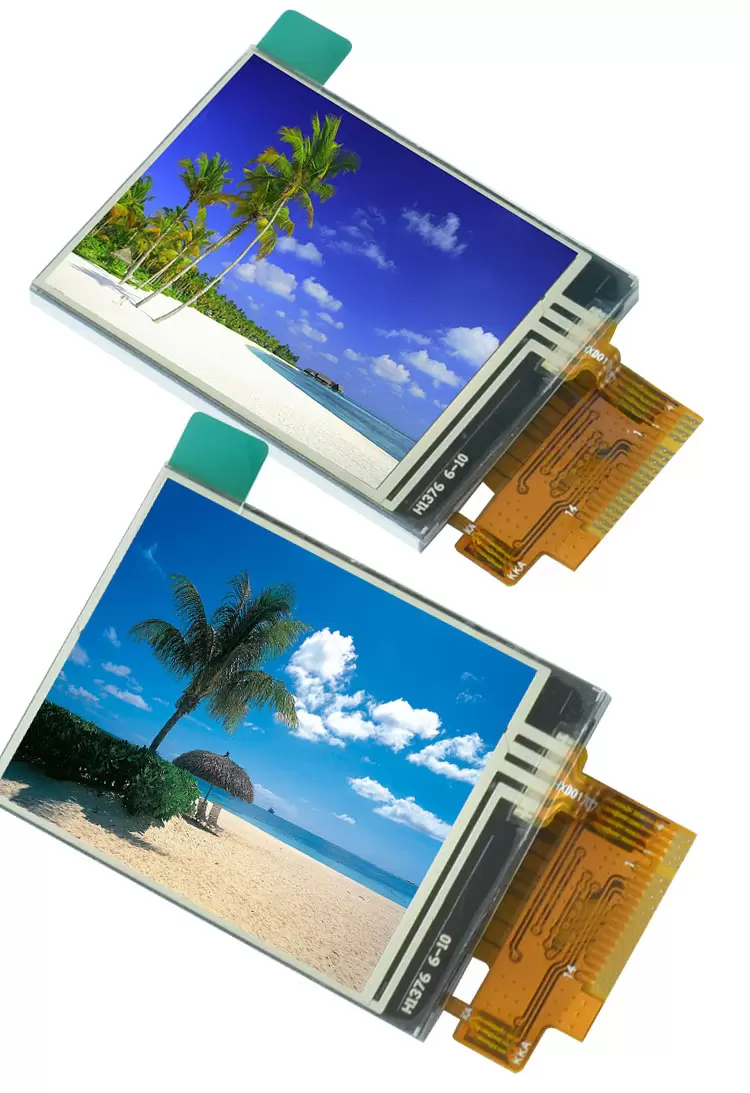

السیدی 1.8 اینچ با تاچ TFT LCD 1.8 inch with Touch, 128x160 SPI - ST7735

السیدی 1.8 اینچ با تاچ TFT LCD 1.8 inch با رزولیشن 128x160 و ST7735 و SPI interface

Size: 1.8 inches with touch
Material: TFT LCD full color
Resolution: 128*160 Display direction can be adjusted, square
Control chip: ST7735

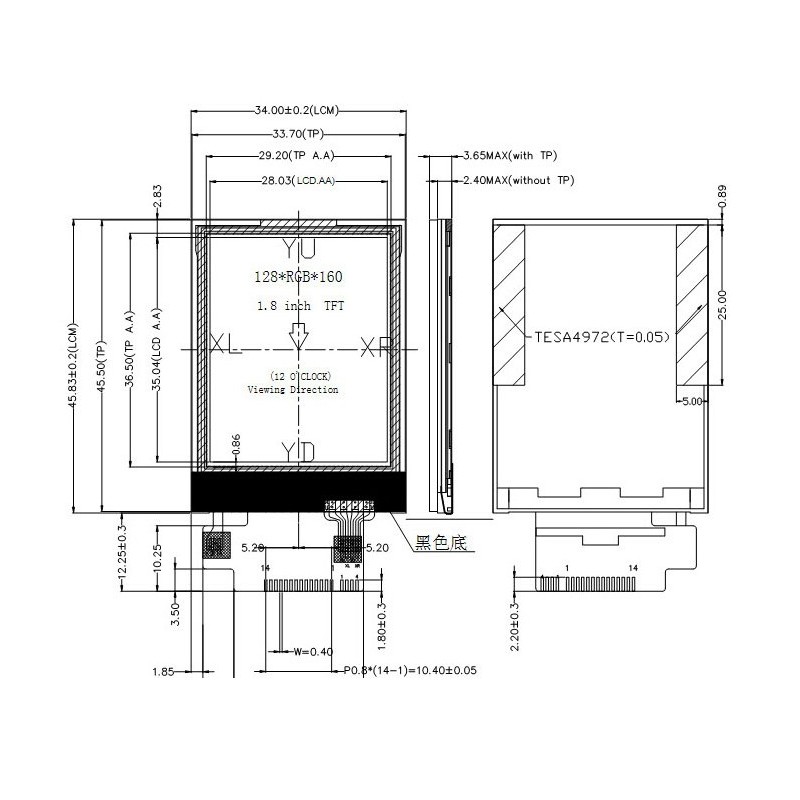

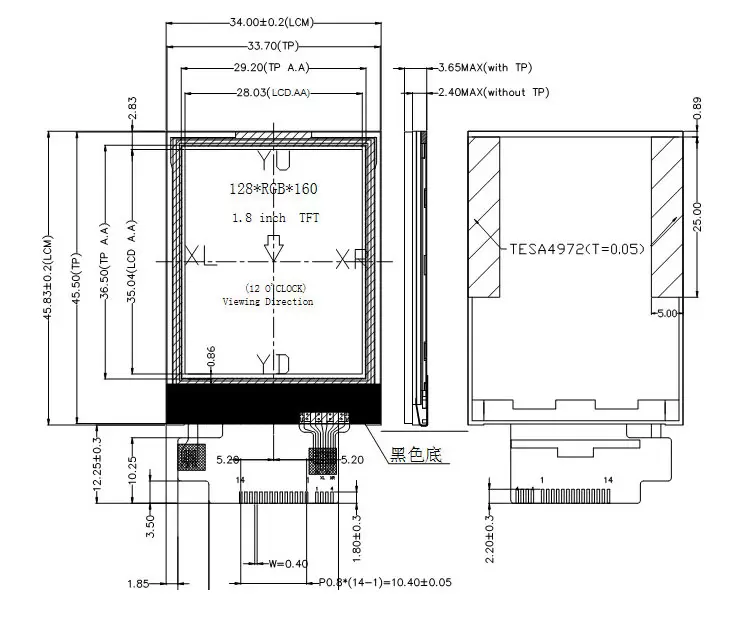

Display area: 28.03 x 35.04(mm)
Physical size: 34.00(W)*45.83(H)*2.25 (FPC not include)
Interface Type: 4-wire SPI interface
Number of pins: 18 Pin
Connection method: Welding type; directly welded to the PCB without a socket
Viewing direction: 12 O'CLOCK
temperature: -20~70  °c

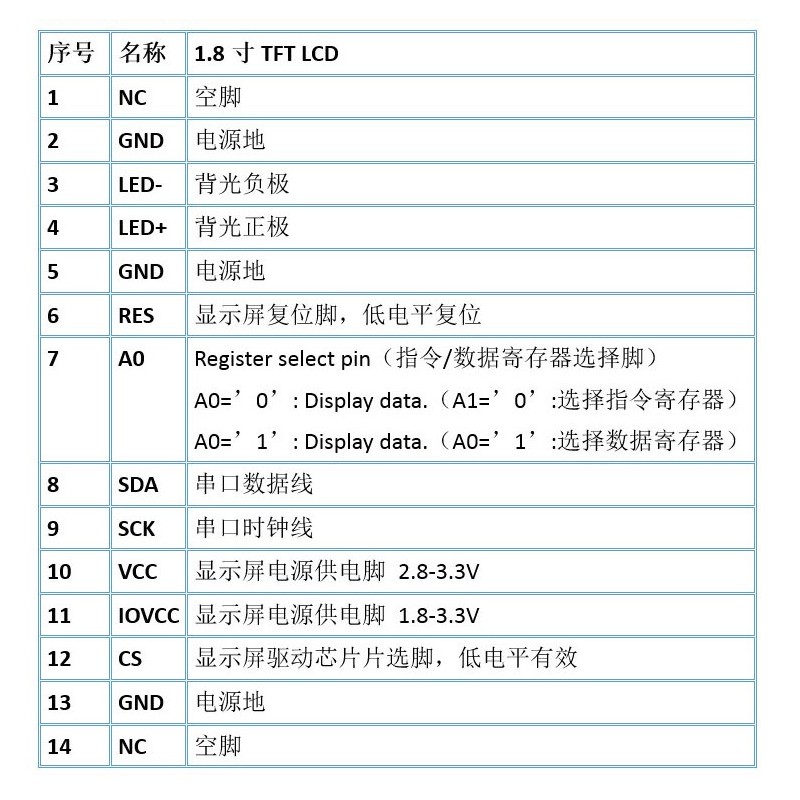

PIN No Symbol Description:
1. NC: Empty
2. GND: Power ground
3. LED-: backlight negative
4.LED+: Backlight positive
5. GND: Power ground
6. RES: Display reset pin, low level reset
7. A0: Register select pin (command/data register select pin)
    AO='0': Display data. (A1='0': select instruction register)
    AO='1': Display data (AO='1': select data register)
8. SDA:  Serial data line
9. SCK: Serial clock line
10. VCC: Display power supply pin 2.8-3.3V
11. IOVCC: Display power supply pin 1.8-3.3V
12. CS: Display driver chip chip selection pin, active low
13. GND: power ground
14. NC: Empty

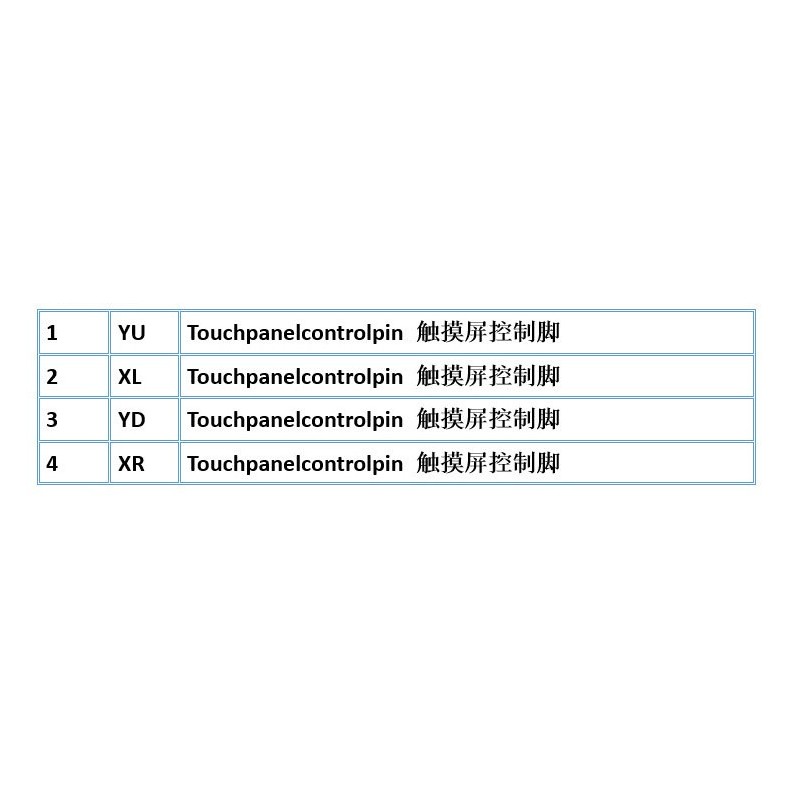

1. YU:  Touch panel control pin  Touch screen control feet
2. XL: Touch panel control pin  Touch screen control feet
3. YD: Touch panel control pin  Touch screen control feet
4. XR: Touch panel control pin  Touch screen control feet
