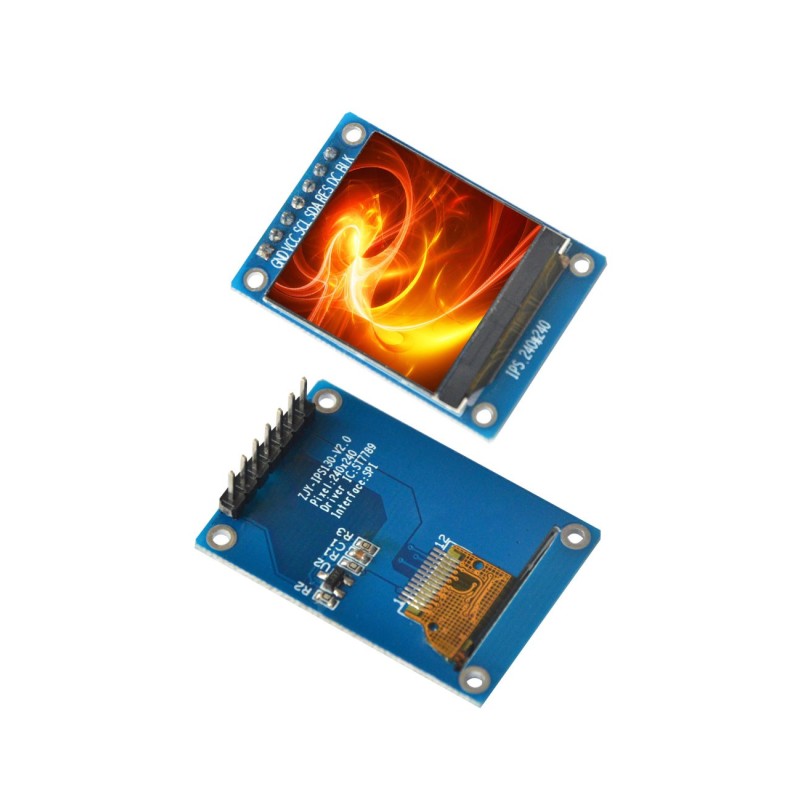

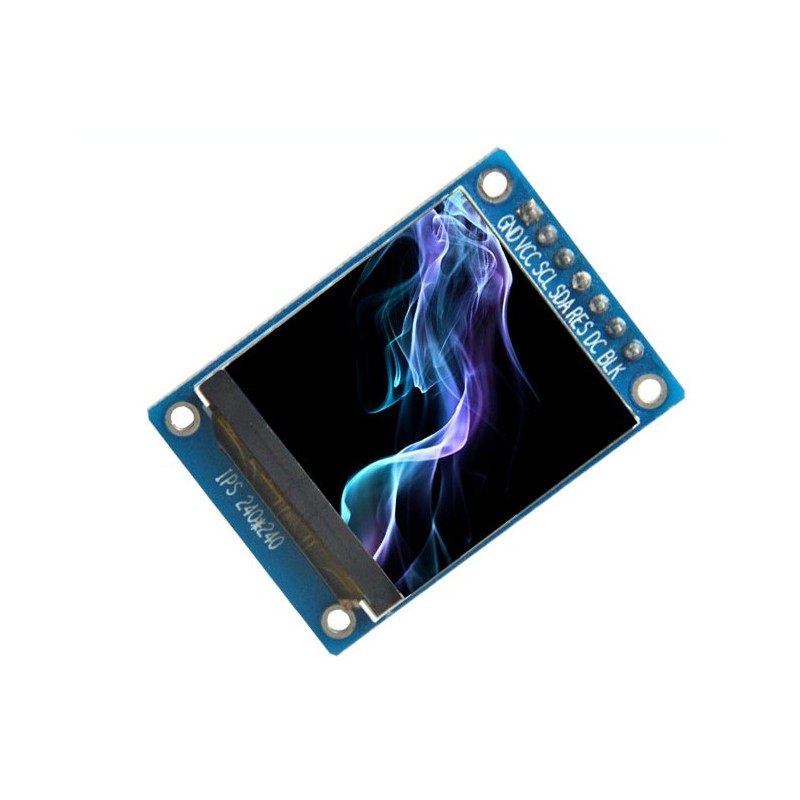

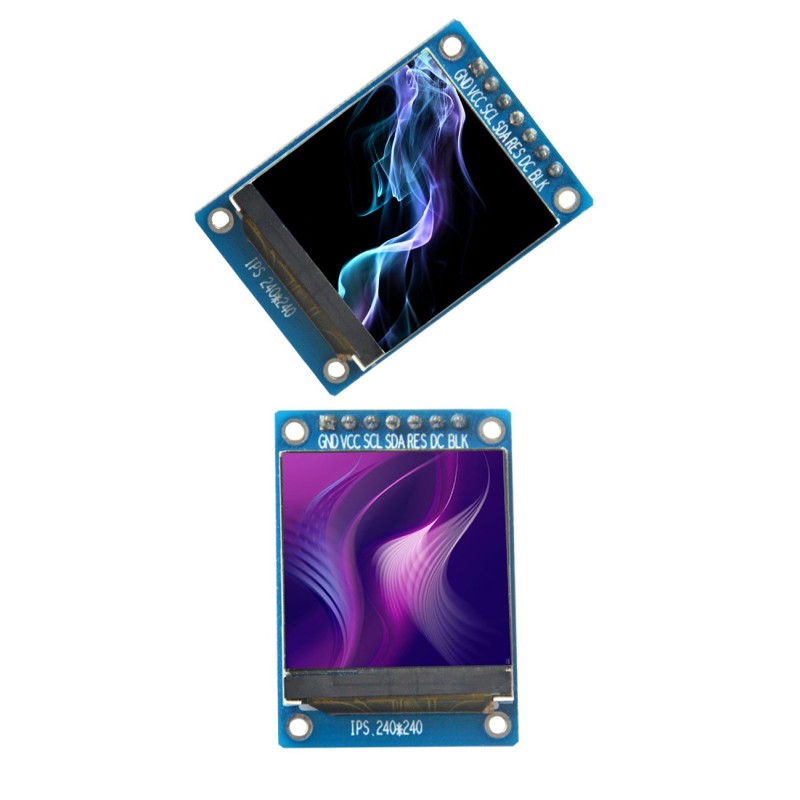

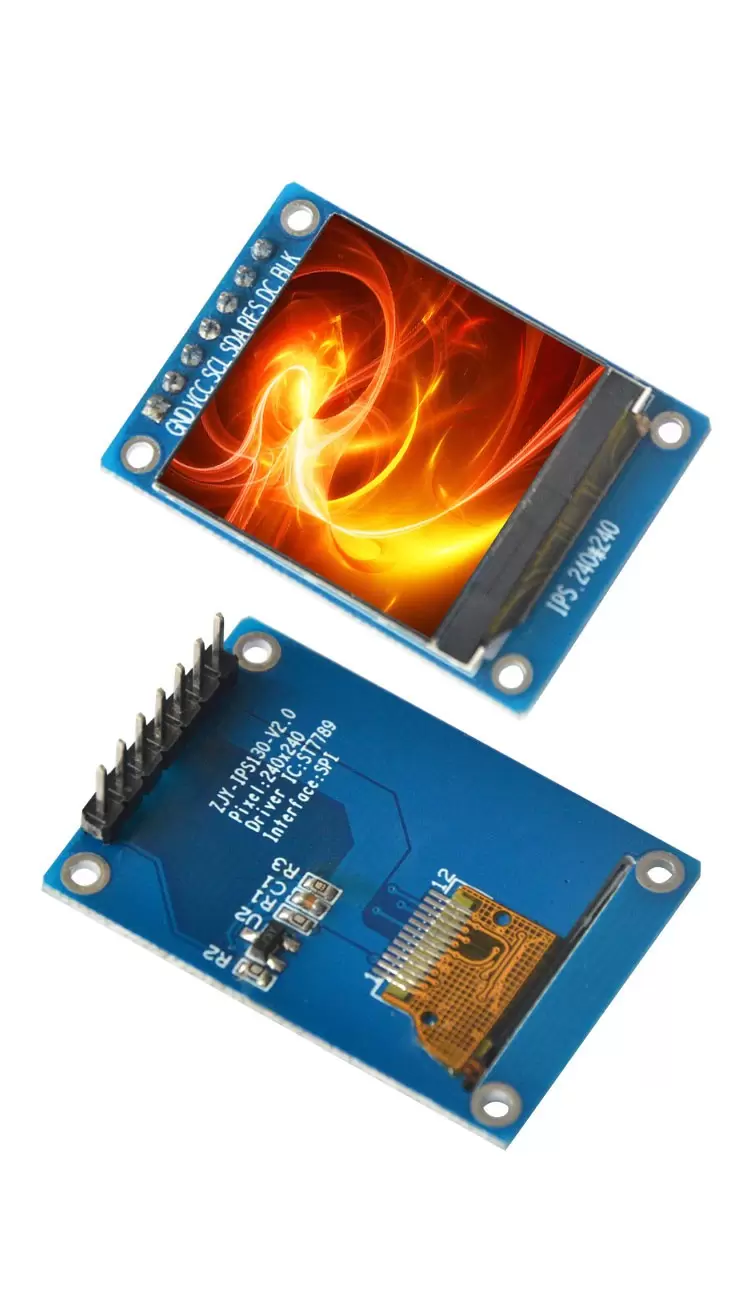

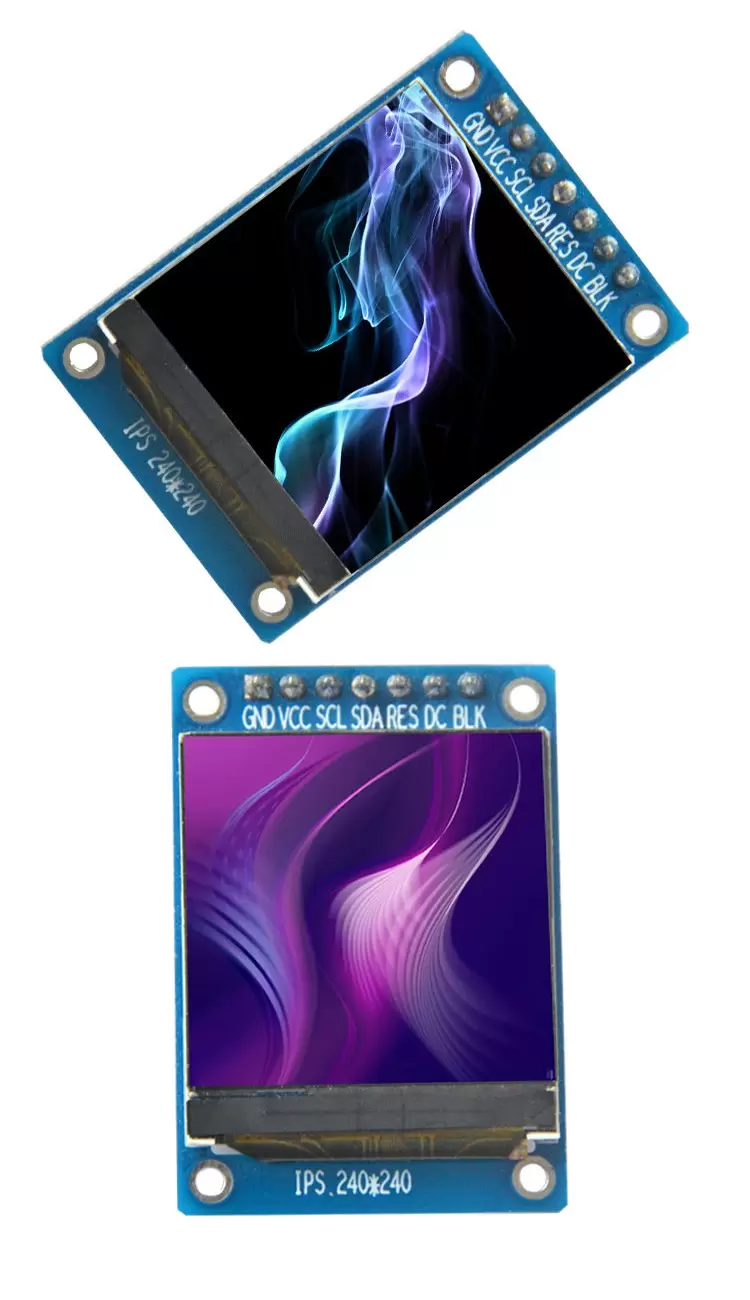

ماژول 1.3 اینچ 1.3inch LCD display Module IPS Screen, 240x240 SPI - ST7789

ماژول 1.3 اینچ  1.3inch LCD display Module ، با رزولیشن 240x240 و درایور ST7789 و SPI Interface

lcd size: 1.3inch
data: HD IPS color screen, color is more vivid than ordinary TFT LCD
resolution: 240(H)RGB X 240(V) display direction can be adjusted, square
Control chip : ST7789
Display area : 23.4 (H) X39.22(V) mm

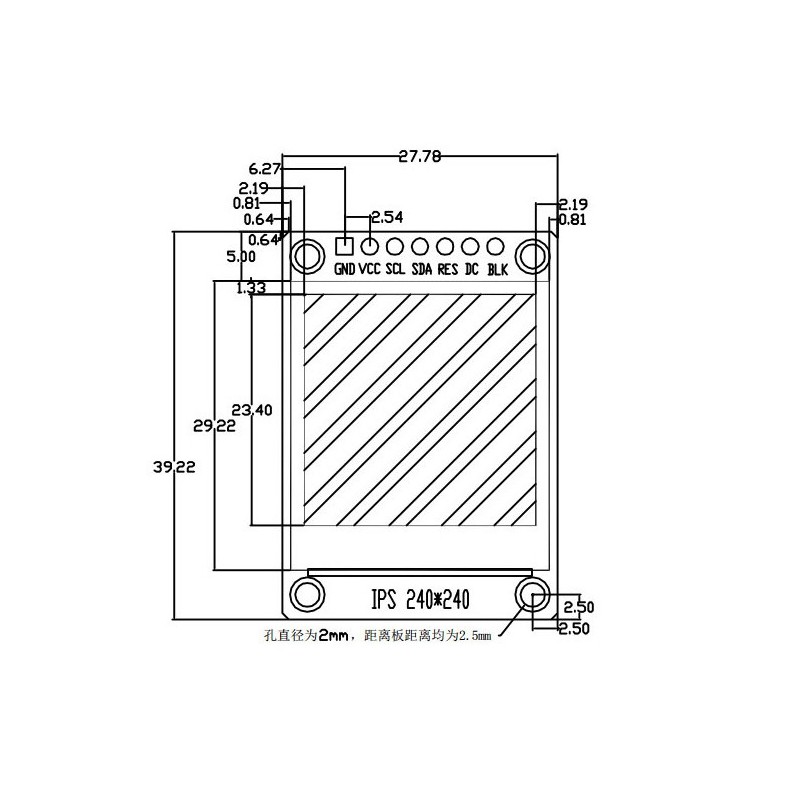

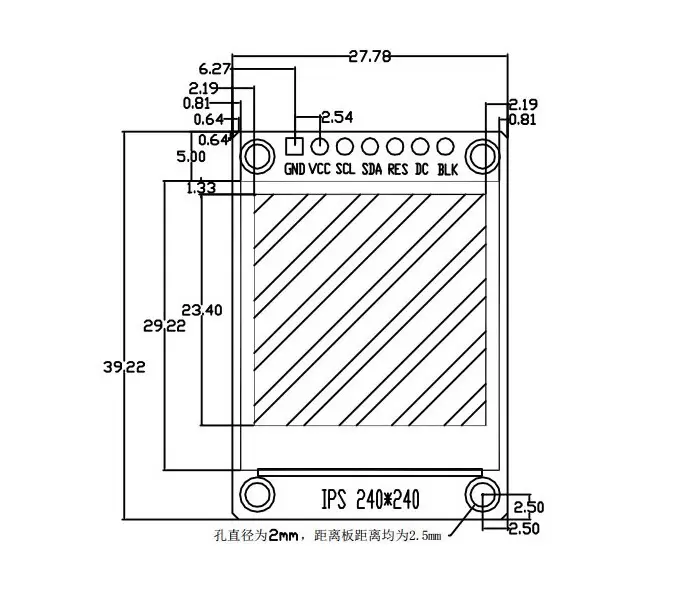

Physical size : 27.78(H) X 29.22(V)
Interface Type : 4-Wire SPI Interface
Number of pins : 7PIN
Viewing direction :Full view
operating temp : -20 ~ +70°c

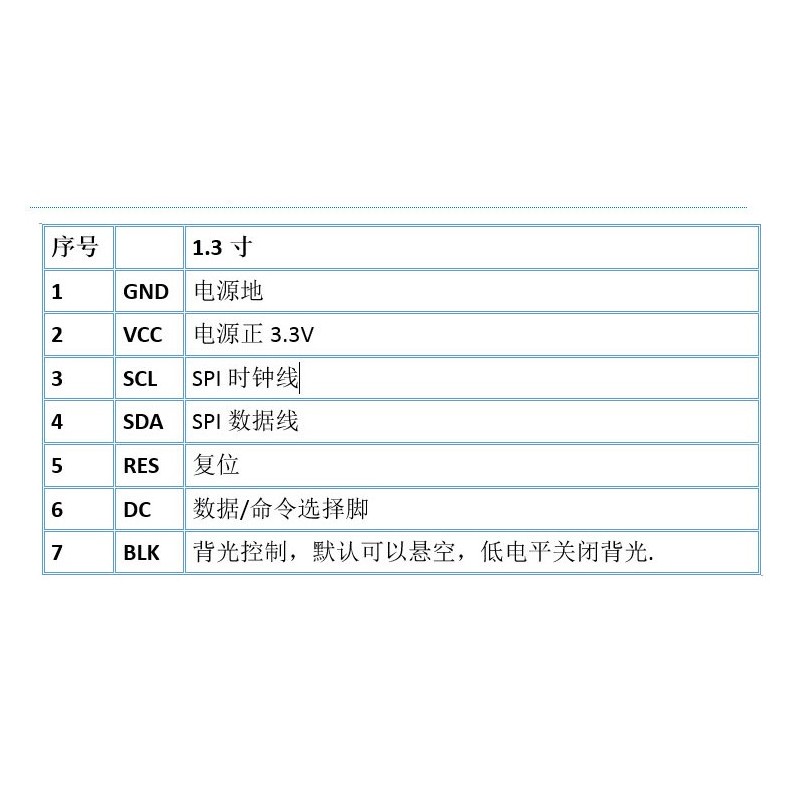

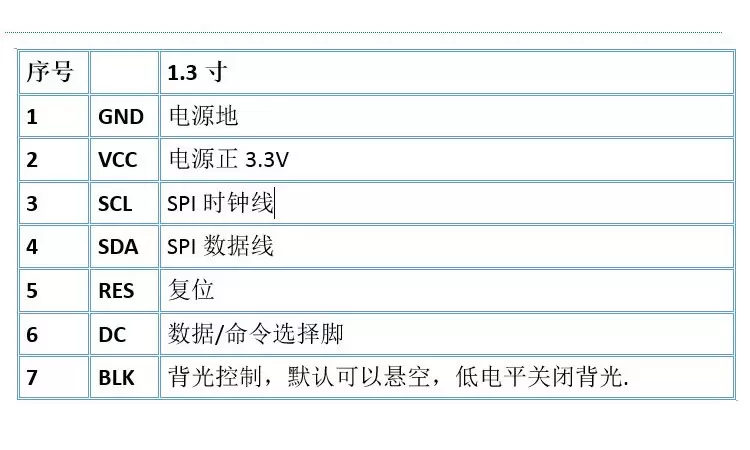

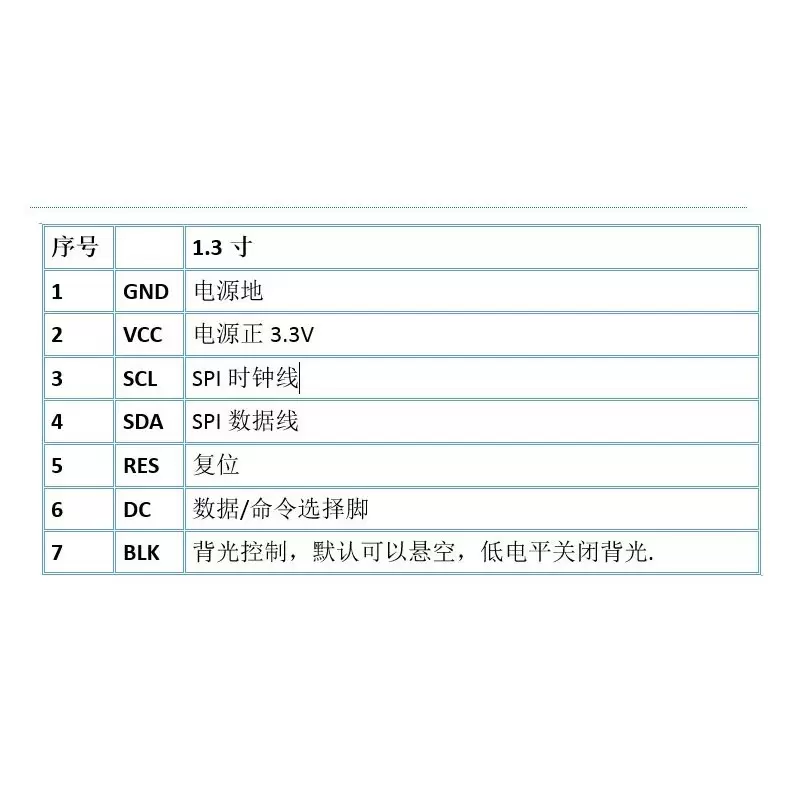

PIN No Symbol Description:
1> GND Ground
2> VCC Power 3.3V
3> SCL Serial clock pin.
4> SDA Serial data input
5> RES LCM Reset pin
This pin is reset signal input. When the pin is low, initialization of the chip is
executed. Keep this pin pull high during normal operation.
6> DC Data/Command Control
7> BLK Backlight control pin

1. GND - Ground
2. VCC - Power supply 3.3V
3. SCL - SPI clock
4. SDA - SPI data
5. RES - Reset
6. DC - Data/command
7. BLK - Backlight

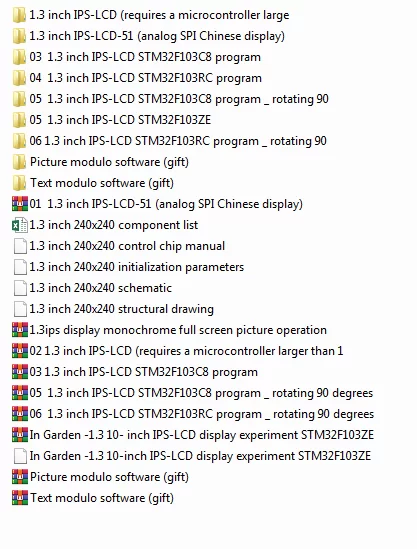

محتوای فایل  مربوط به مثال و document:
