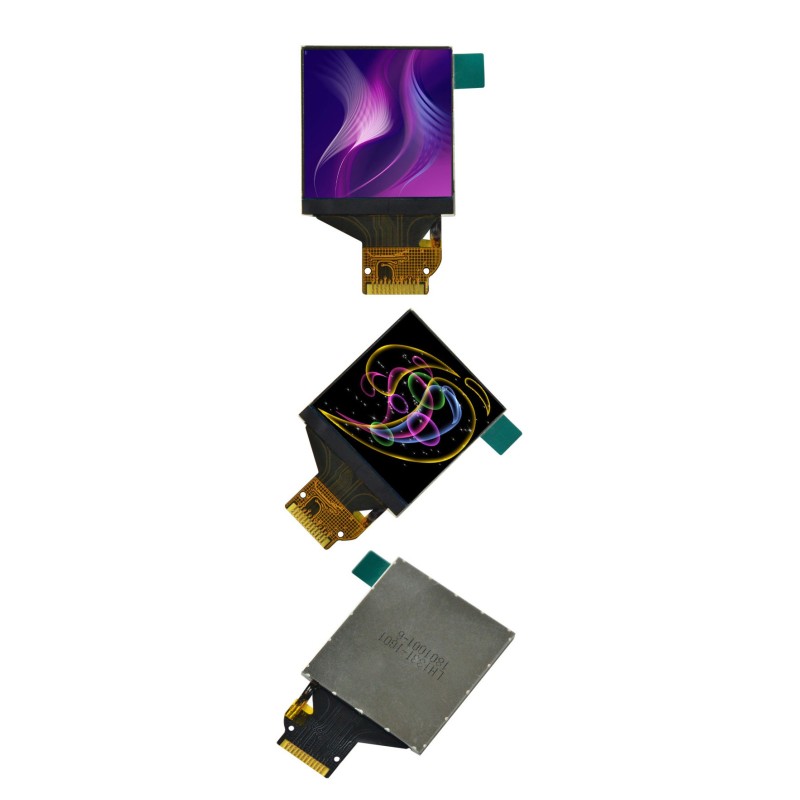

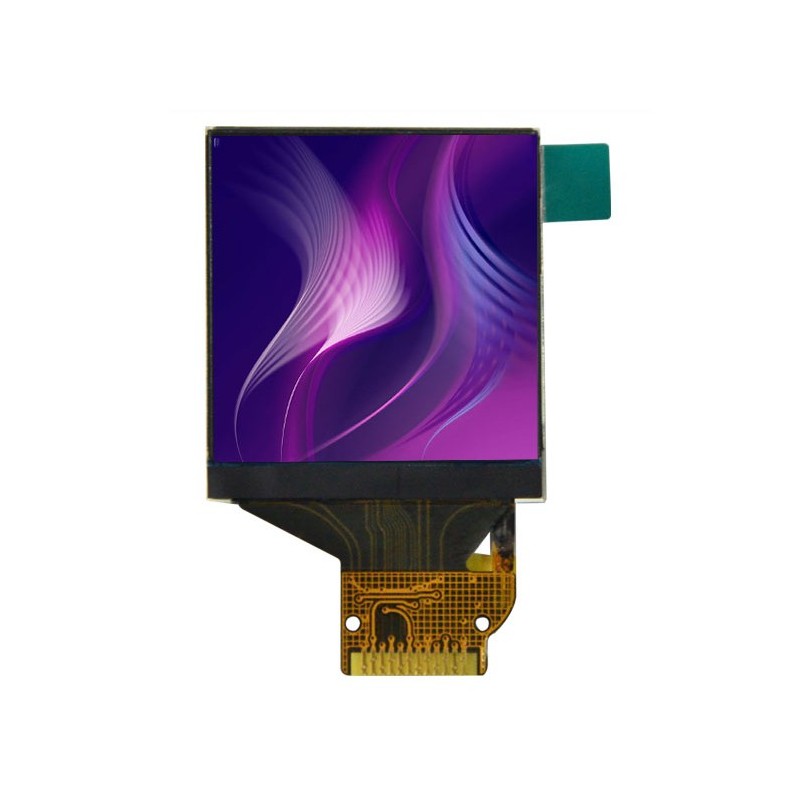

السیدی 1.3 اینچ TFT LCD 1.3inch IPS screen 240x240 SPI - ST7789

السیدی 1.3 اینچ با رزولیشن 240x240 و با درایور ST7789 و SPI Interface

lcd size: 1.3inch
data: HD IPS color screen, color is more vivid than ordinary TFT LCD
resolution: 240(H)RGB X 240(V) display direction can be adjusted, square
Control chip : ST7789
Display area : 23.4 (H) X 23.4(V) mm

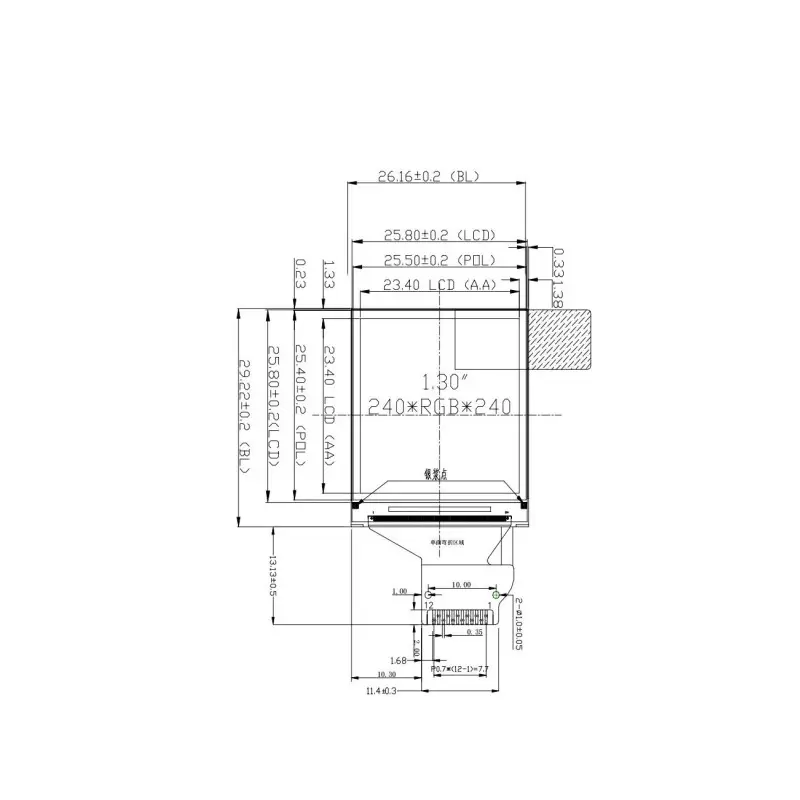

Physical size : 26.16(H) X 29.22(V)
Interface Type : 4-Wire SPI Interface
Number of pins : 12PIN
Viewing direction :Full view
operating temp : -20 ~ +70°c

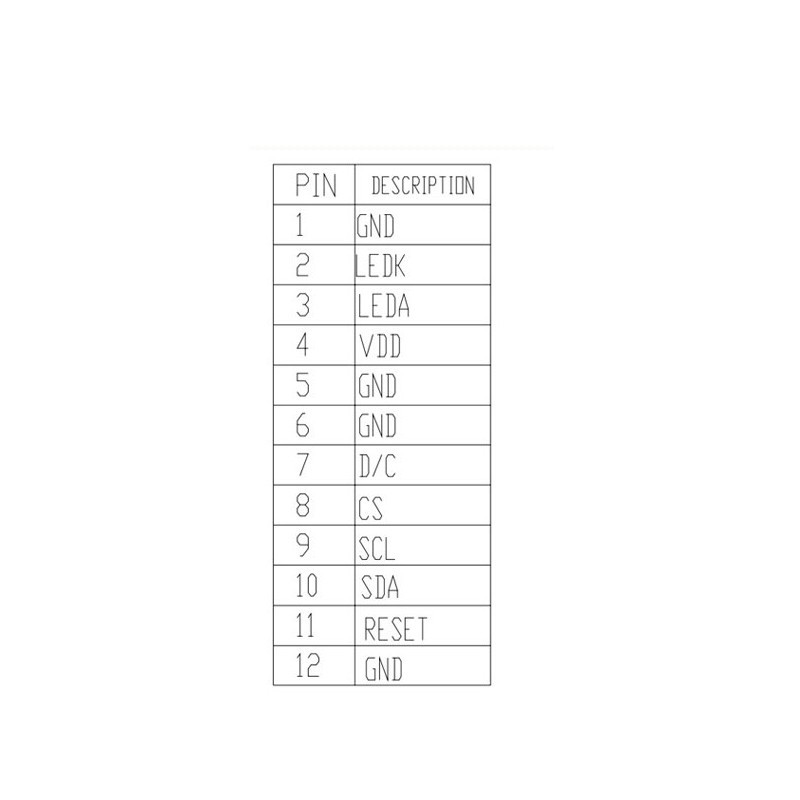

Pins:
GND: Power Ground
LEDK: LED Cathode
LEDA: LED Anode
VDD: Power Supply for Analog
D/C: Display Data/ command selection pin in 4-line serial interface
CS: Chip selection pin: Low enable, high disable
SCL: This pin is used to be serial interface clock
SDA: SPI interface input/output pin. The data is latched on the rising edge of the SCL signal.
RESET: This signal will reset the device and it must be applied to properly initialize the chip. Signal is active low.
