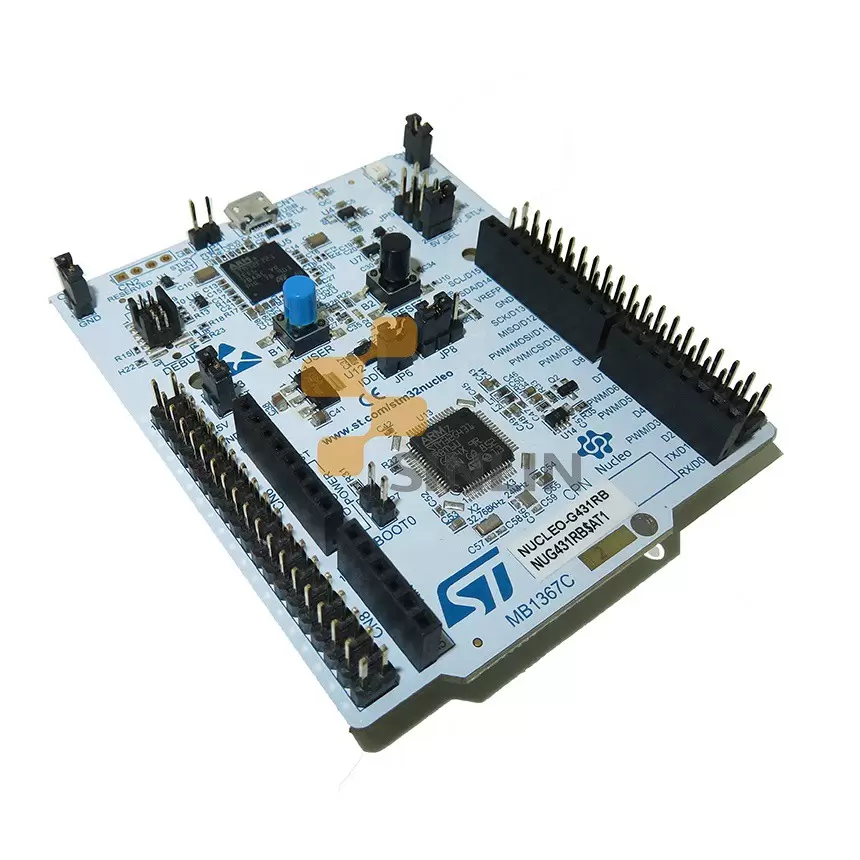

برد NUCLEO-G431RB

          Nucleo-XXXXRX
Product:
          Development Boards
Core:
          ARM Cortex M4
Tool Is For Evaluation Of:
          STM32
Brand:
          STMicroelectronics
Data Bus Width:
          32 bit
Product Type:
          Development Boards & Kits - ARM
Subcategory:
          Development Tools

    The STM32 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode

Key Features

    Common features
        STM32 microcontroller in LQFP64 package
        1 user LED shared with Arduino™
        1 user and 1 reset push-buttons
        32.768 kHz crystal oscillator
        Board connectors:Arduino™ Uno V3 expansion connectorST morpho extension pin headers for full access to all STM32 I/Os
        Flexible power-supply options: ST-LINK, USB VBUS or external sources
        On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port and debug port
        Comprehensive free software libraries and examples available with the STM32Cube MCU Package
        Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil® and GCC-based IDEs
    Board-specific features
        External SMPS to generate Vcore logic supply
        24 MHz HSE
        Board connectors:External SMPS experimentation dedicated connectorMicro-AB or Mini-AB USB connector for the ST-LINKMIPI® debug connector
        Arm® Mbed Enabled™ compliant
