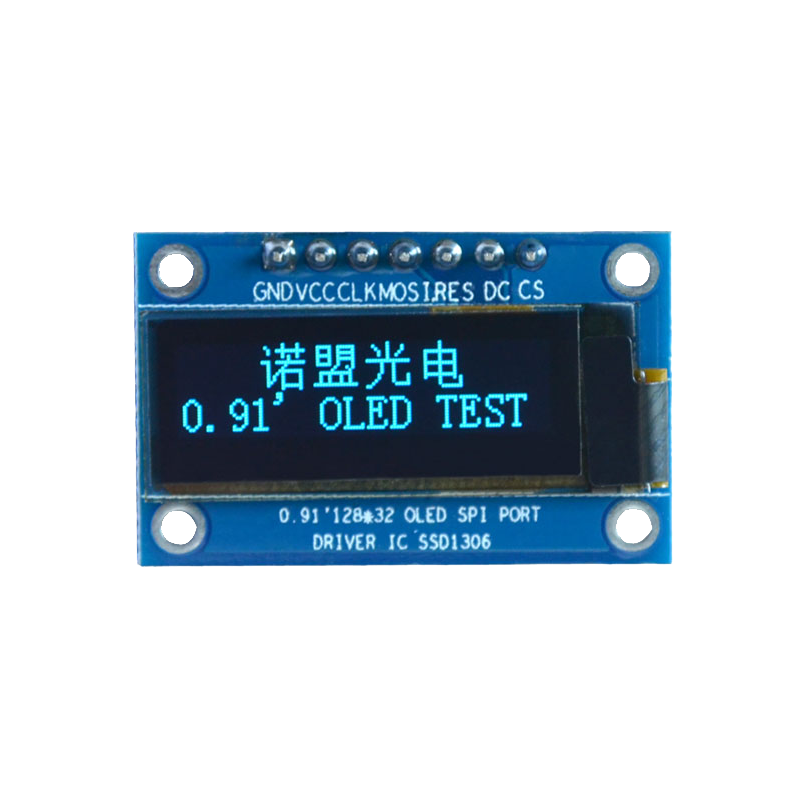

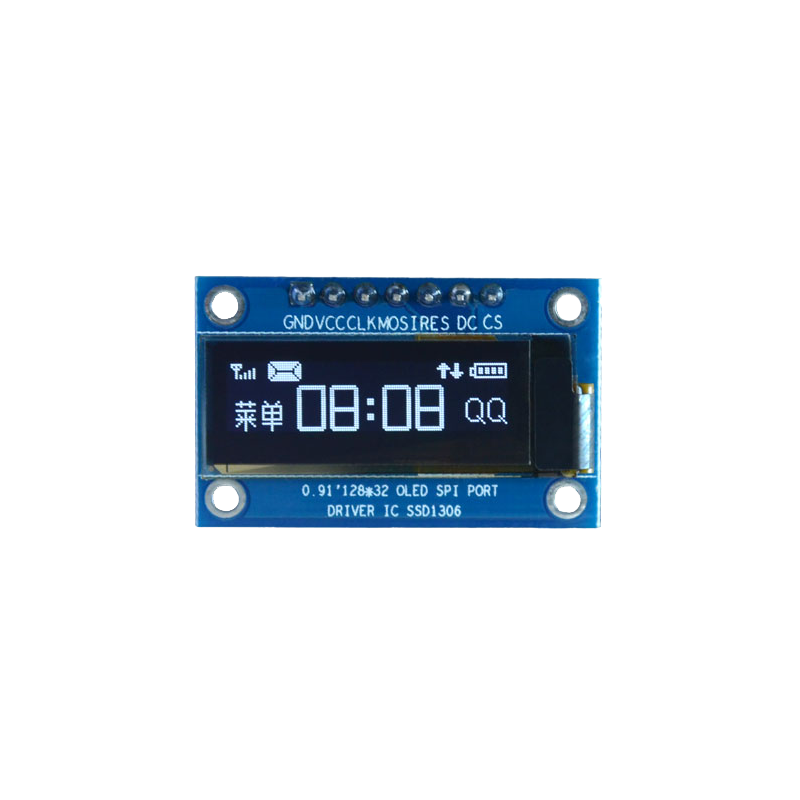

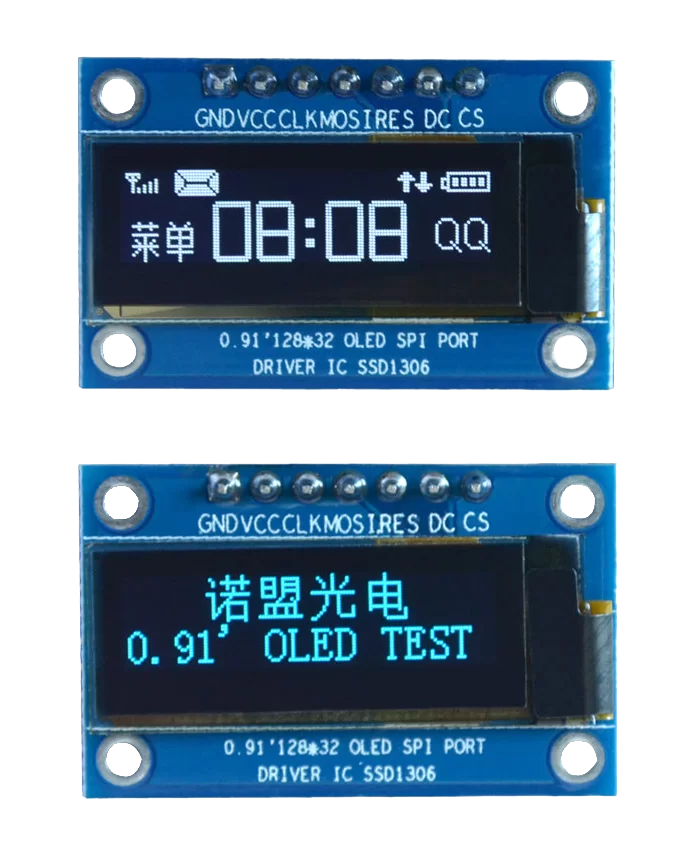

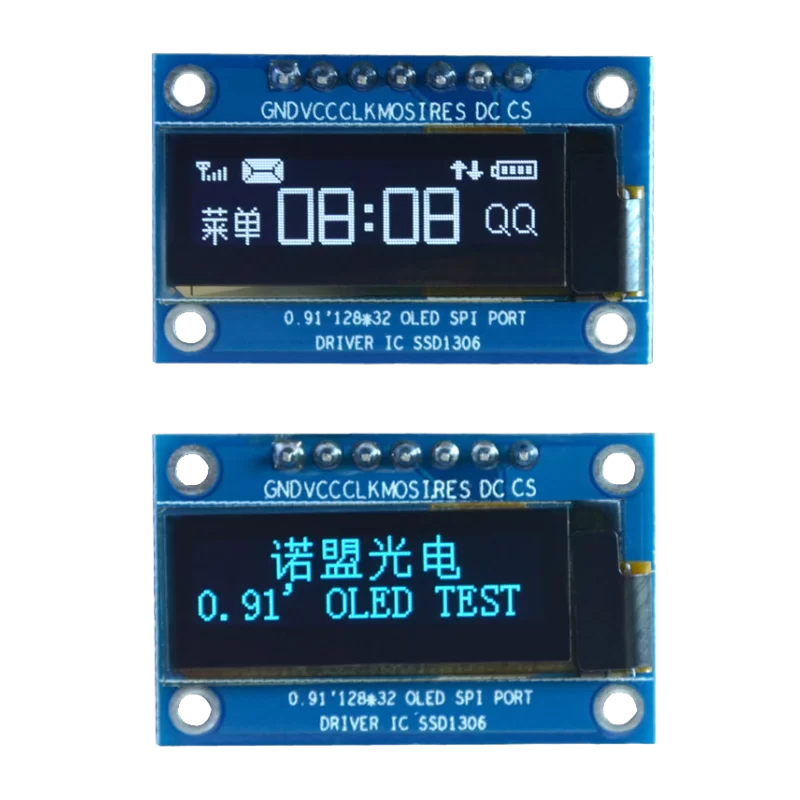

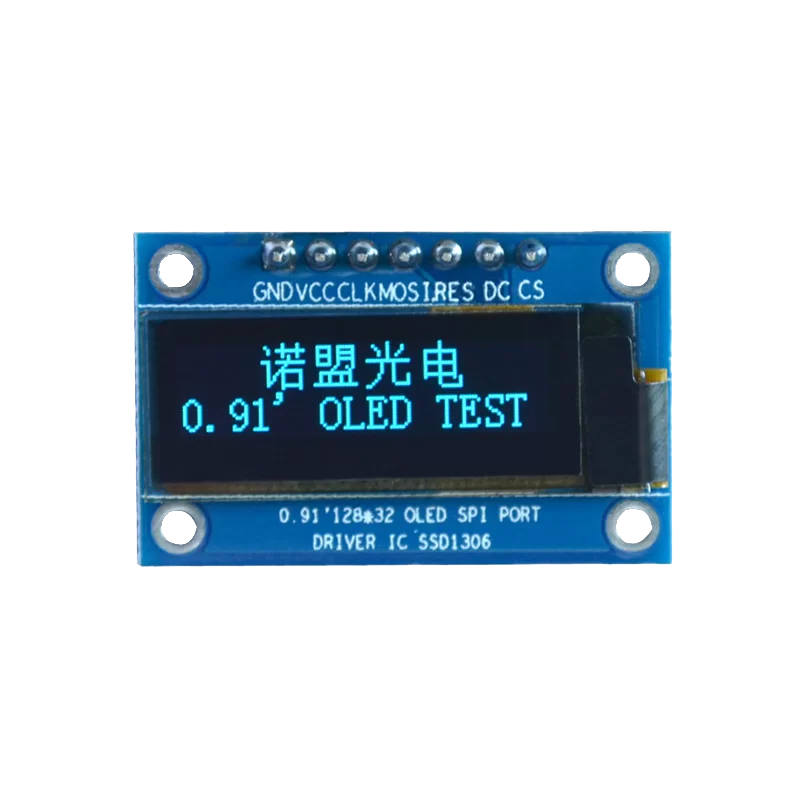

OLED 0.91 inch OLED Module Blue 128x32 SPI / SSD1306

با خرید این محصول 1 امتیاز وفاداری. سبد شما در مجموع 1 امتیاز وفاداری که می تواند به کوپن تخفیف تبدیل شود به ارزش 5,000 ریال.


نظر و رتبه بندی مشتریان

1426000

محصول جدید

1,514,000 ریال

ماژول OLED 0.91 inch Blue با رزولیشن 128x32 و با درایور SSD1306 و SPI Interface

ماژول OLED 0.91 inch Blue با رزولیشن 128x32 و با درایور SSD1306 و SPI Interface

Size: 0.91 inch
Control chip: SSD1306
Resolution: 128*32

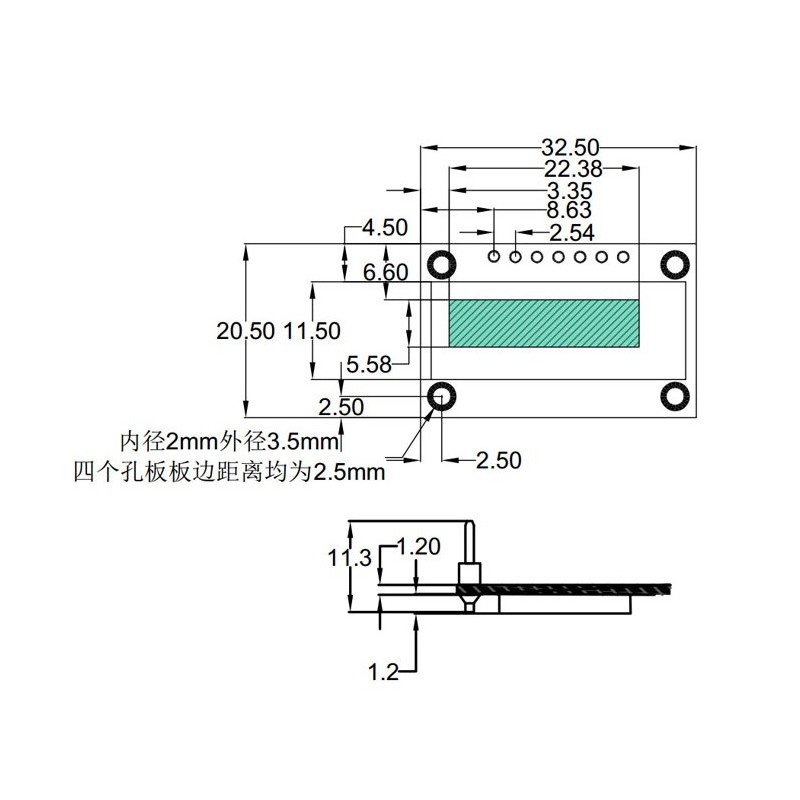

Display area: 22.384x5.584 (mm)
Physical size: 32.5x20.5 (mm)
Interface Type: SPI Interface
Number of pins: 7PIN
Display color: Blue
Working temperature: -40~85 degrees
Working voltage: 3.3~5V
Module weight: 49

1> GND (power supply)
2> VCC (power supply is 3.3~5V)
3> CLK (SPI clock line)
4> MOSI (SPI data line)
5> RES (OLED reset pin, low level reset)
6> DC (data / command selection foot)
7> CS (OLED SPI chip select, the bottom level is valid, if you do not want to use it must be grounded)

Important Note: OLED display is different from LCD; OLED is self-illuminating; therefore, there is no backlight, there will be no reaction when only power is applied; there must be a correct operation of the program to display, so please pay attention.

محتوای فایل مربوط به مثال و Document:

03- program source code:

سایز نمایشگر(اینچ)0.91
رزولیشین128x32
نمایش رنگآبی
نوع ارتباط (MCU)SPI
چیپ راه اندازSSD1306
