السیدی 0.96 اینچ TFT LCD 0.96inch IPS screen 160x80 RGB SPI - ST7735

السیدی 0.96 اینچ با رزولیشن 160x80 و با درایور ST7735 و SPI Interface

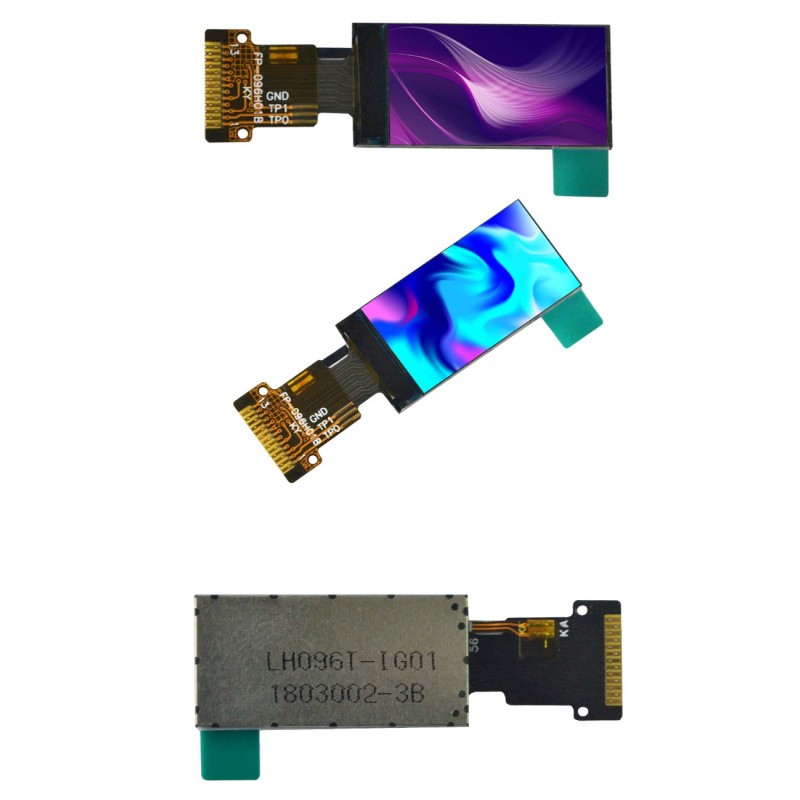

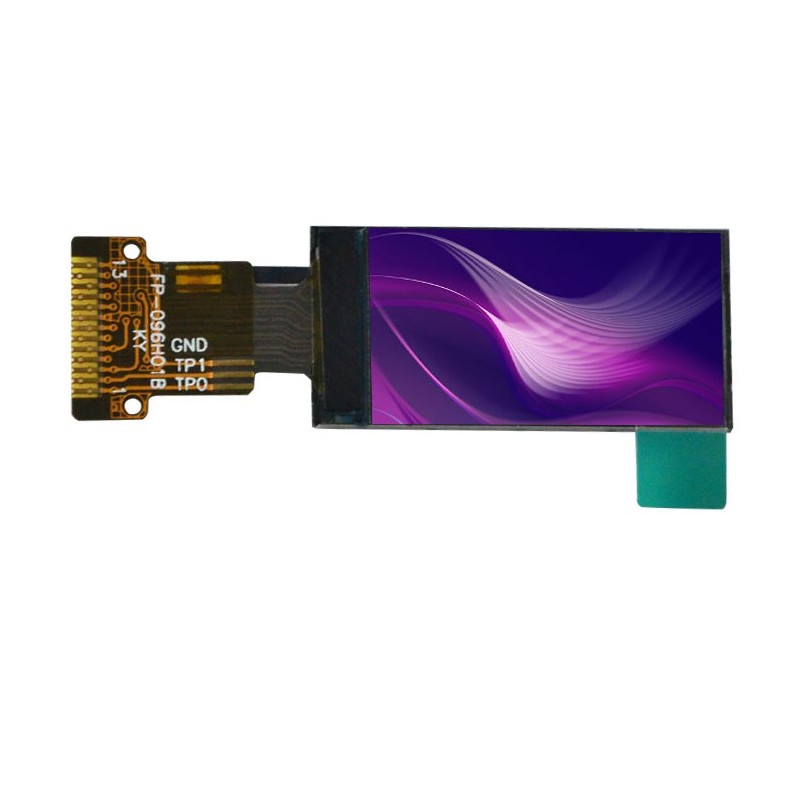

ER-TFT0.96-1 is 80x160 dots 0.96 " color tft lcd module display with ST7735S controller ,superior display quality, Full viewing angle,angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 4-wire serial spi interface. with FPC-Soldering is easily to assemble or remove.Lanscape

Product introduction:

Size: 0.96 inch
data: HD IPS color screen, color is more vivid than ordinary TFT LCD
Resolution:160*80 display direction can be adjusted
Control chip :ST7735

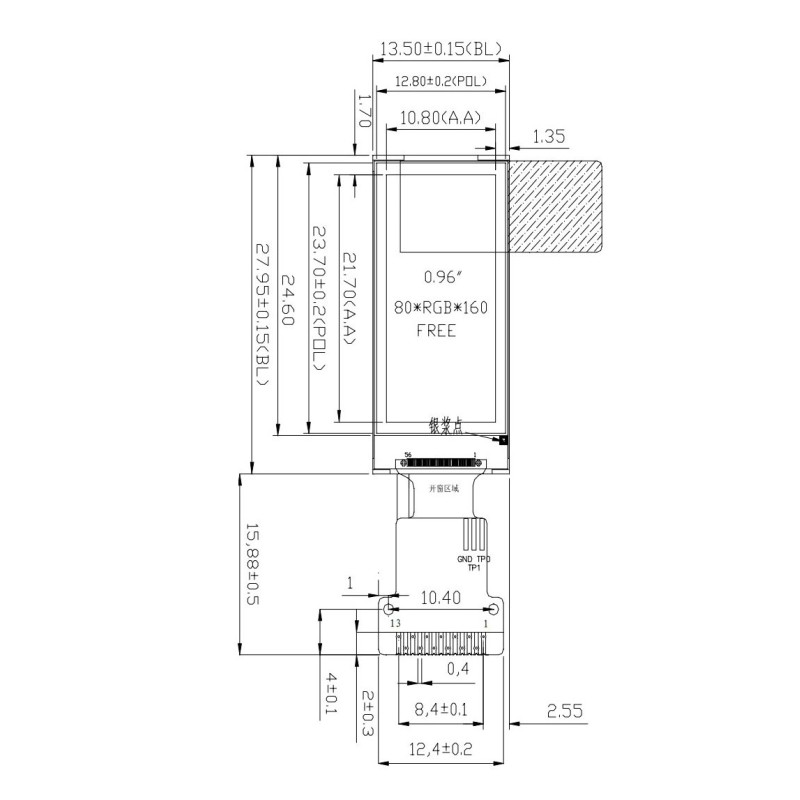

Display area:10.8x21.7 (mm)
Physical size:13.5 x27.95 (mm)
Interface Type: 4-wire SPI interface

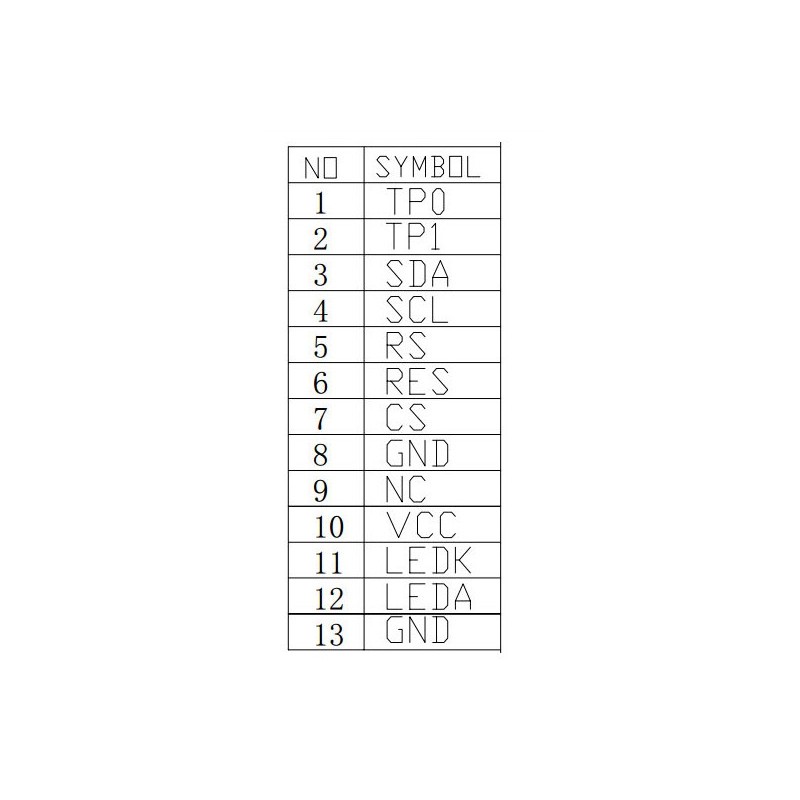

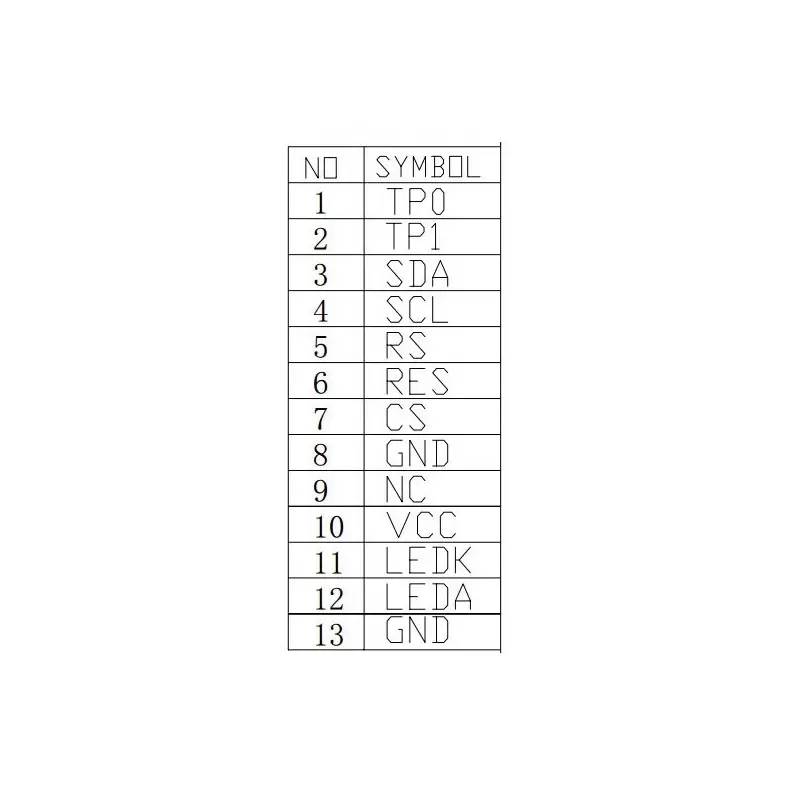

Number of pins:13PIN
Viewing direction: Full view
Working temperature : -20~70

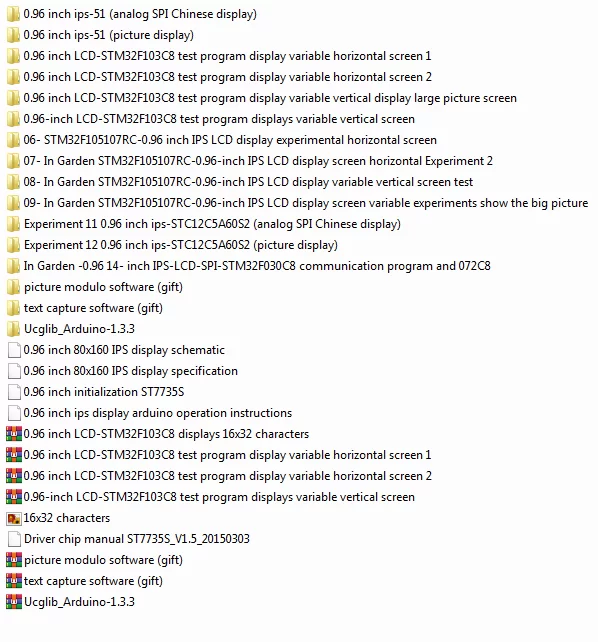

محتوای مربوط به مثال و document:
