برد NUCLEO-G070RB

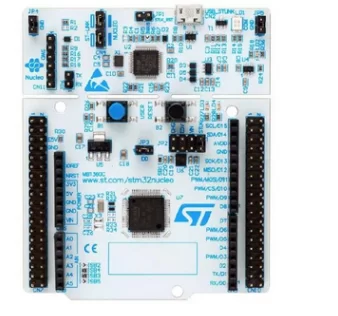

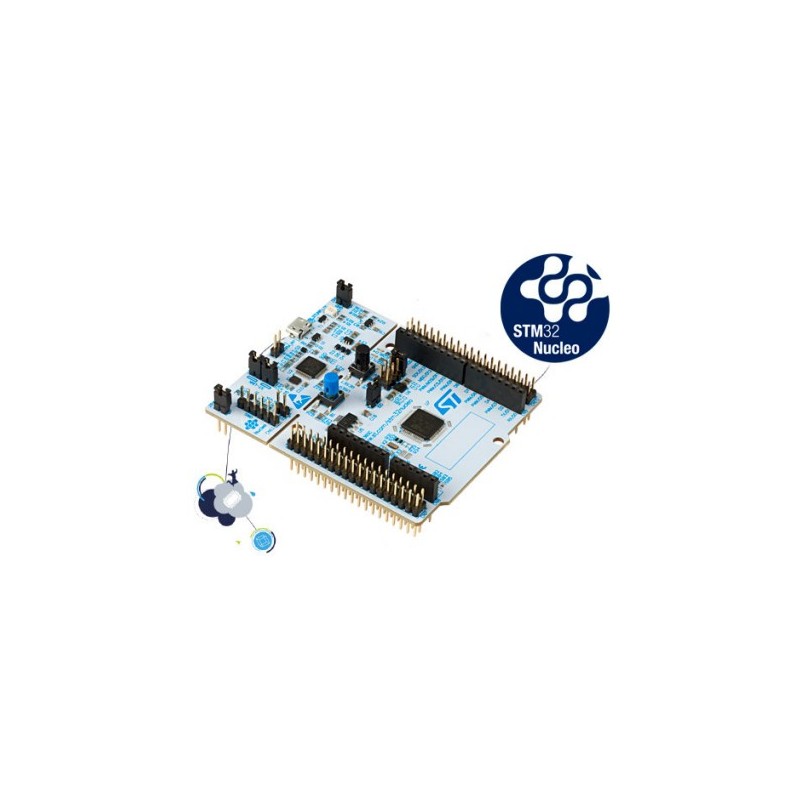

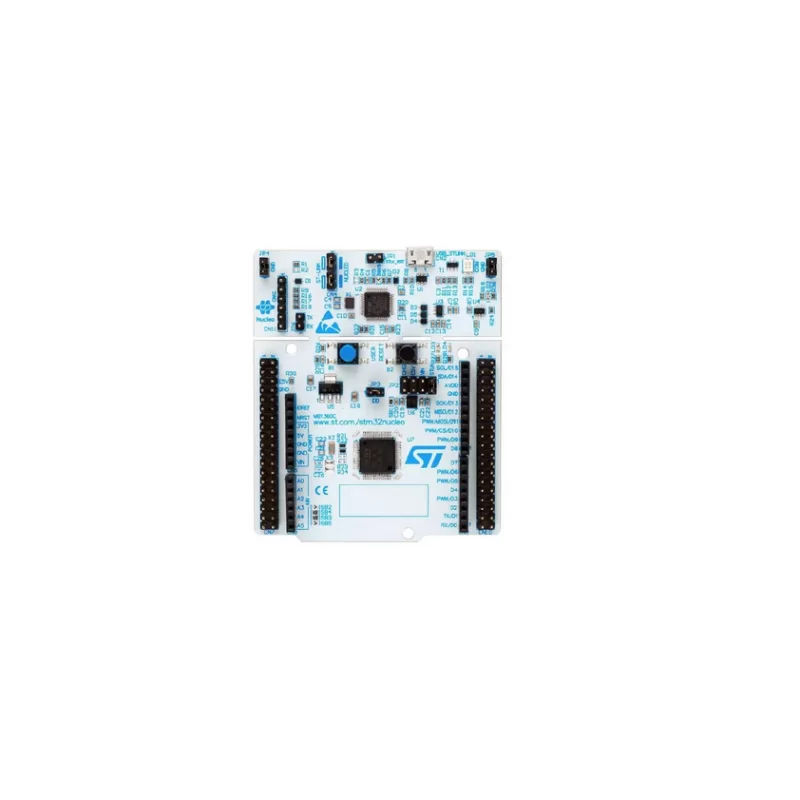

برد NUCLEO-G070RB

NUCLEO-F070RB- Development Boards & Kits - ARM 16/32-BITS MICROS

The STM32 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode.


The Arduino™ Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Key Features

    Common features
        STM32 microcontroller in LQFP64 package
        1 user LED shared with Arduino™
        1 user and 1 reset push-buttons
        32.768 kHz crystal oscillator
        Board connectors:Arduino™ Uno V3 expansion connectorST morpho extension pin headers for full access to all STM32 I/Os
        Flexible power-supply options: ST-LINK, USB VBUS or external sources
        On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port and debug port
        Comprehensive free software libraries and examples available with the STM32Cube MCU Package
        Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil® and GCC-based IDEs
    Board-specific features
        External SMPS to generate Vcore logic supply
        24 MHz HSE
        Board connectors:External SMPS experimentation dedicated connectorMicro-AB or Mini-AB USB connector for the ST-LINKMIPI® debug connector
        Arm® Mbed Enabled™ compliant

Categories:
     Development Boards, Kits, Programmers
        Evaluation Boards - Embedded - MCU, DSP
Manufacturer :
     STMicroelectronics
Series :
        STM32G0
Part Status :
    Active
Board Type :
    Evaluation Platform
Type :
    MCU 32-Bit
Core Processor :
    ARM® Cortex®-M0+
Operating System :
    -
Platform :
    Nucleo-64
Utilized IC / Part :
    STM32G070
Mounting Type :
    Fixed
Contents :
    Board(s)



Microcontroller features


Manufacturer:
STMicroelectronics
Product Category:
ARM Microcontrollers - MCU
RoHS:
 Details

Series:
STM32G070RB
Mounting Style:
SMD/SMT
Package / Case:
LQFP-64
Core:
ARM Cortex M0+
Program Memory Size:
128 kB
Data Bus Width:
32 bit
ADC Resolution:
12 bit
Maximum Clock Frequency:
64 MHz
Number of I/Os:
59 I/O
Data RAM Size:
36 kB
Operating Supply Voltage:
2 V to 3.6 V
Minimum Operating Temperature:
- 40 C
Maximum Operating Temperature:
+ 85 C
Product:
       MCU

Program Memory Type:
       Flash

Brand:
       STMicroelectronics

Data RAM Type:
       SRAM

Interface Type:
      I2C, SPI, USART

Analog Supply Voltage:
       2 V to 3.6 V

Moisture Sensitive:
        Yes

Number of ADC Channels:
       19 Channel

Number of Timers/Counters:
       5 Timer

Product Type:
        ARM Microcontrollers - MCU

Subcategory:
       Microcontrollers - MCU

Supply Voltage - Max:
      3.6 V

Supply Voltage - Min:
        2 V

Tradename:
         ARM

Watchdog Timers:
         Watchdog Timer




توضیحات بیشتر رو میتوانید از این سایت دریافت کنید.

Nucleo pinout:

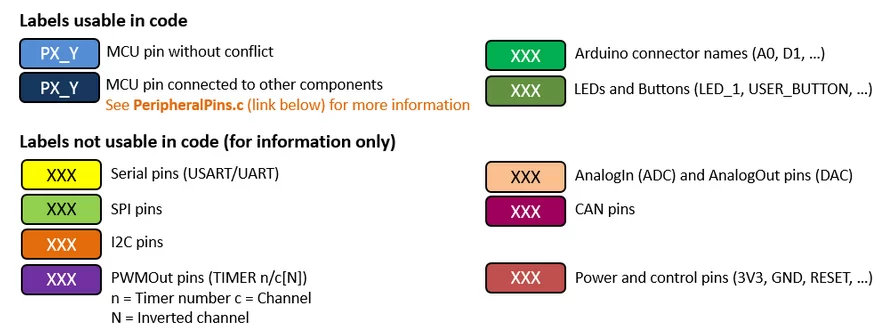

Pins Legend

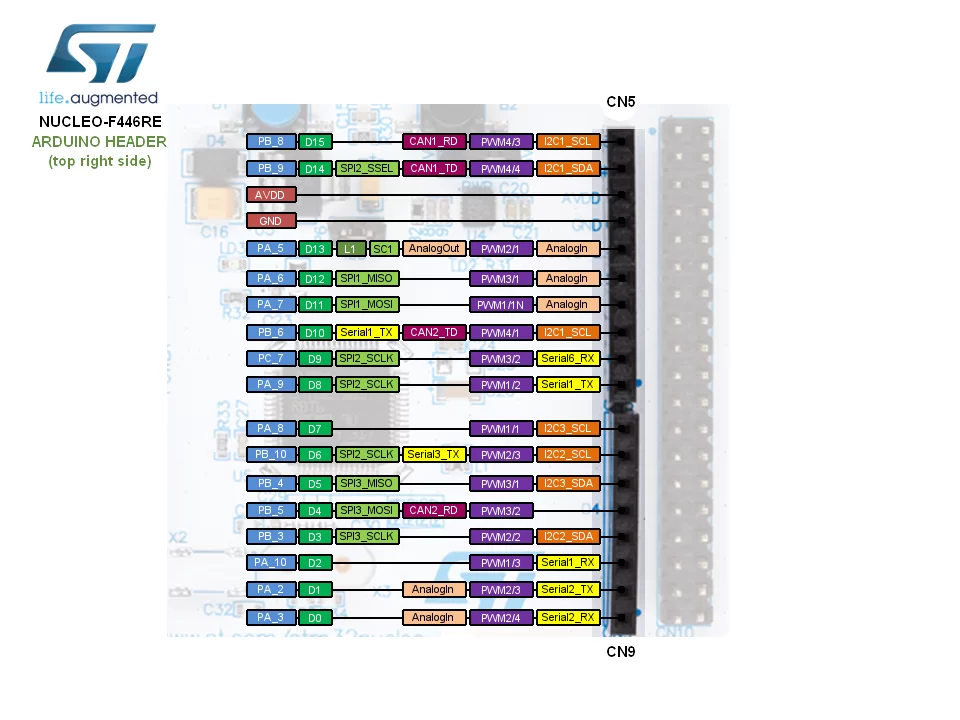

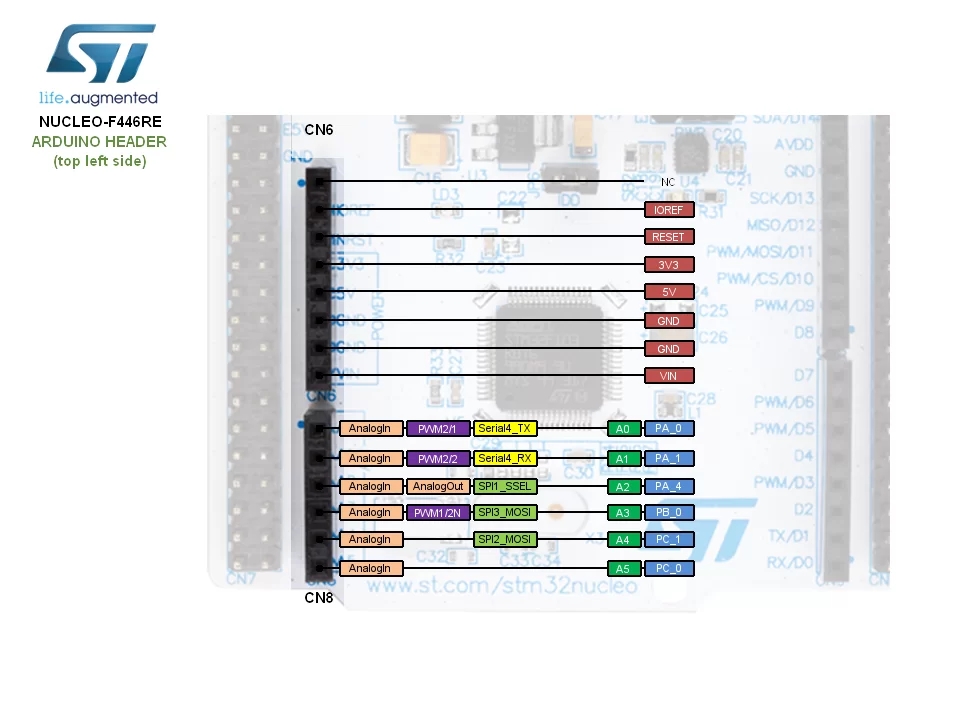

Arduino-compatible headers:

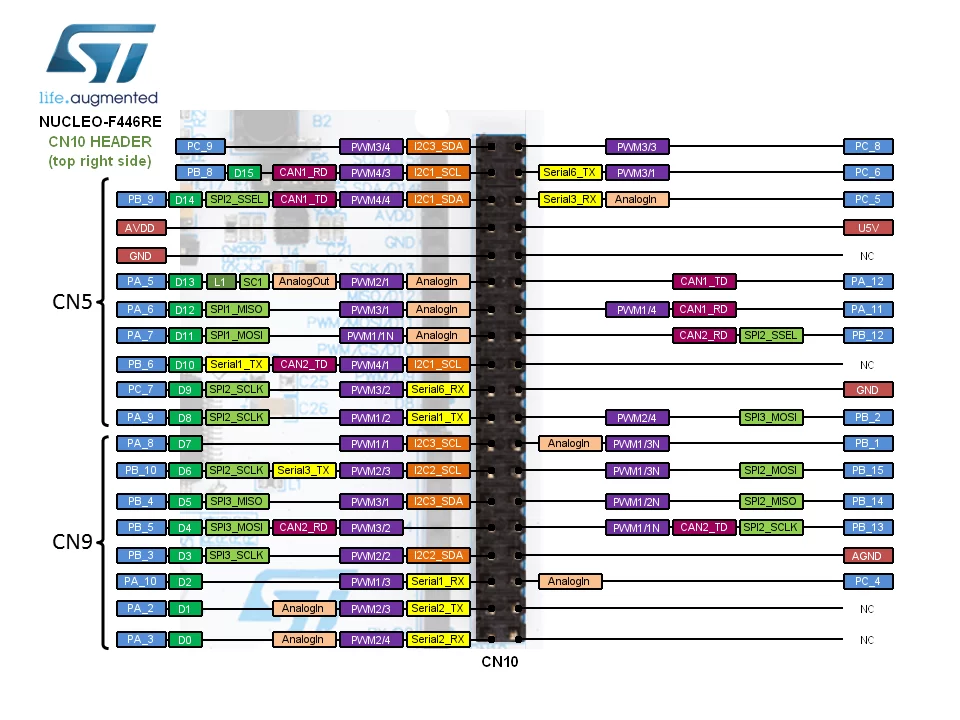

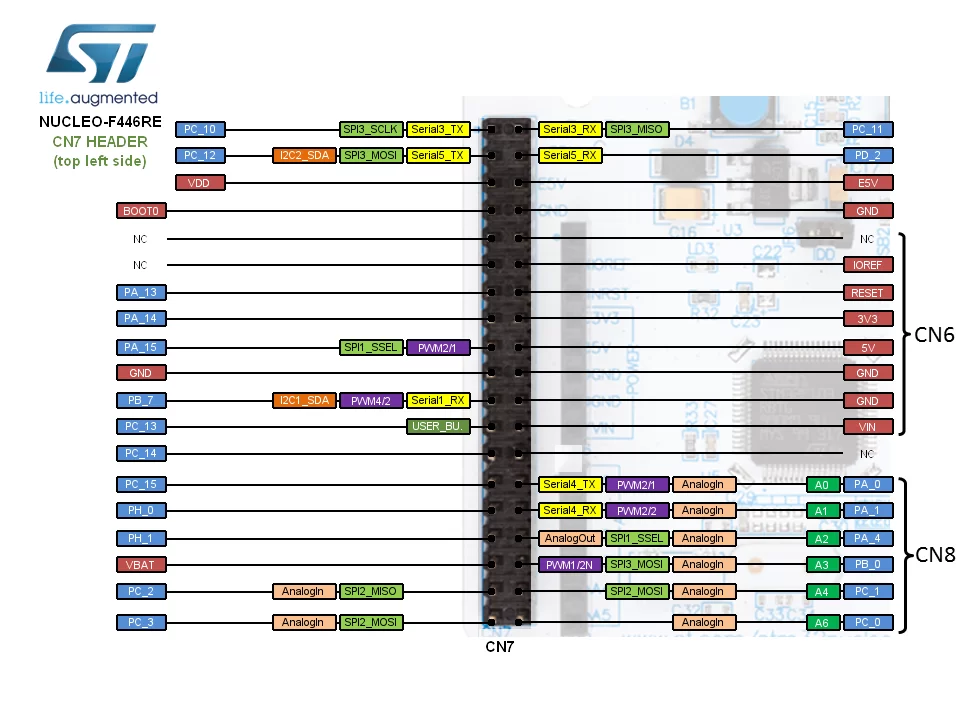

Morpho headers:

These headers give access to all STM32 pins
