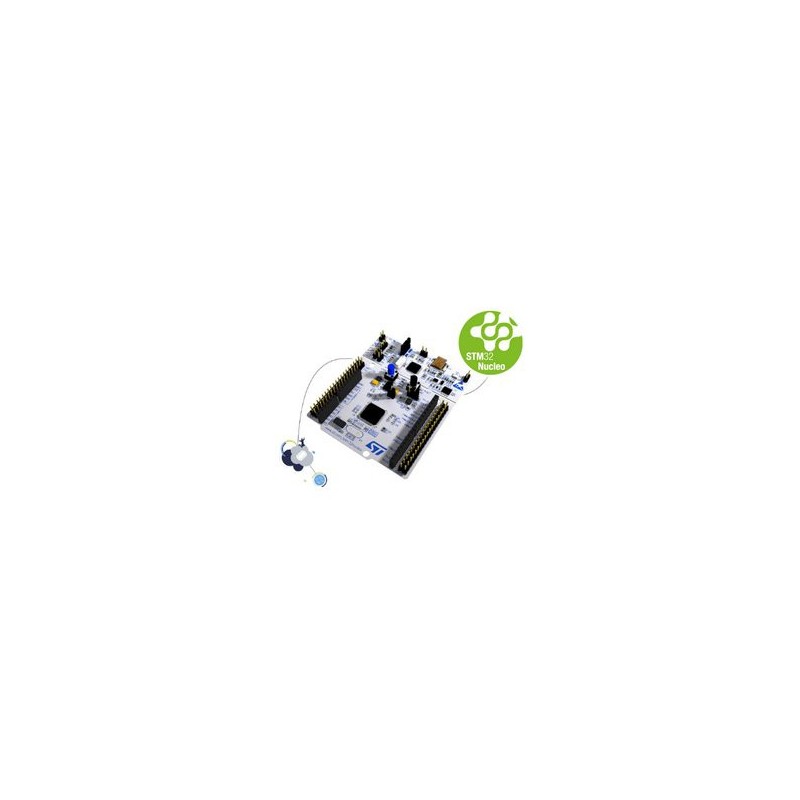

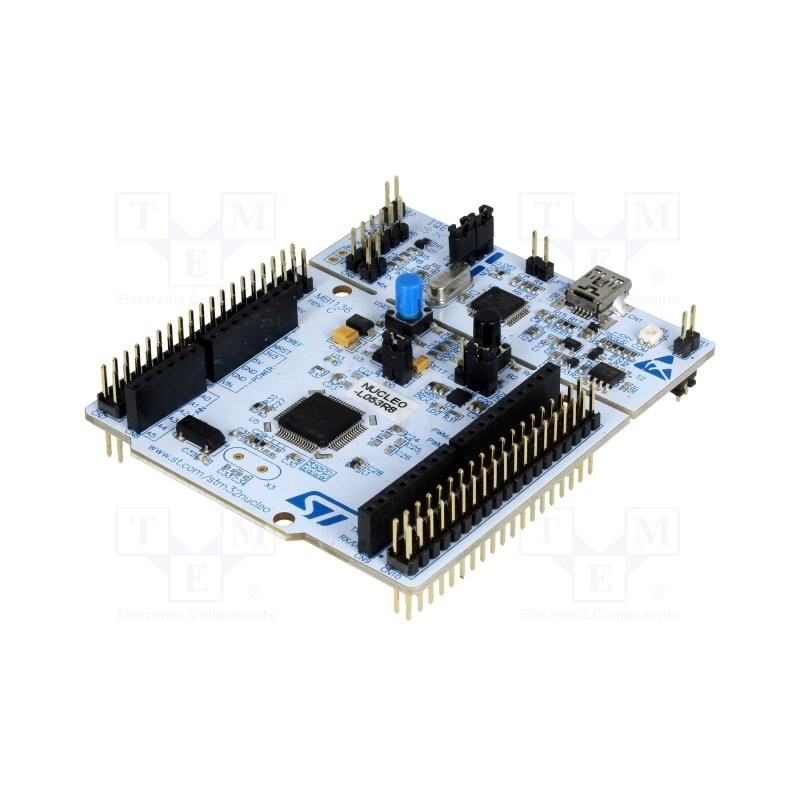

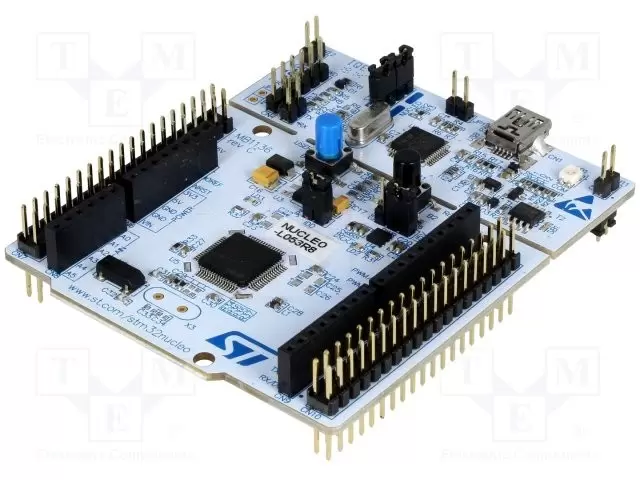

برد NUCLEO-L053R8

با خرید این محصول 13 امتیاز وفاداری. سبد شما در مجموع 13 امتیاز وفاداری که می تواند به کوپن تخفیف تبدیل شود به ارزش 65,000 ریال.


نظر و رتبه بندی مشتریان

1028000

محصول جدید

13,800,000 ریال

برد NUCLEO-L053R8

NUCLEO-L053R8 -Development Boards & Kits - ARM STM32 Nucleo-64 development board with STM32L053R8 MCU, supports Arduino and ST morpho connectivity

Manufacturer:
     STMicroelectronics
Product Category:
    Development Boards & Kits - ARM
Series:
       NUCLEO-L053R8
Product:
       Development Boards
Core:
       ARM Cortex M0
Tool Is For Evaluation Of:
       STM32L053R8T6
Description/Function:
    STM32 nucleo board
Brand:
       STMicroelectronics
Interface Type:
       USB
Data Bus Width:
      32 bit
For Use With:
      STM32L
Operating Supply Voltage:
      3.3 V, 5 V, 7 V to 12 V
Product Type:
      Development Boards & Kits - ARM
Subcategory:
      Development Tools
Tradename:
      NUCLEO

Affordable and flexible platform to ease prototyping using a STM32L053R8T6 microcontroller.
Overview

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

Microcontroller features

  • STM32L053R8T6 in LQFP64 package
  • ARM®32-bit Cortex®-M0+ CPU
  • 32 MHz max CPU frequency
  • VDD from 1.65 V to 3.6 V
  • 64 KB Flash
  • 8 KB SRAM
  • GPIO (51) with external interrupt capability
  • 12-bit ADC with 16 channels
  • 12-bit DAC with 1 channel
  • RTC
  • Timers (5)
  • I2C (2)
  • USART (3)
  • SPI (2)
  • USB 2.0 full-speed

Nucleo features

  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
    • Power management access point
  • User LED (LD2)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage (USB Disk drive) for drag'n'drop programming
    • Debug port

توضیحات بیشتر رو میتوانید از این سایت دریافت کنید.

Board pinout:

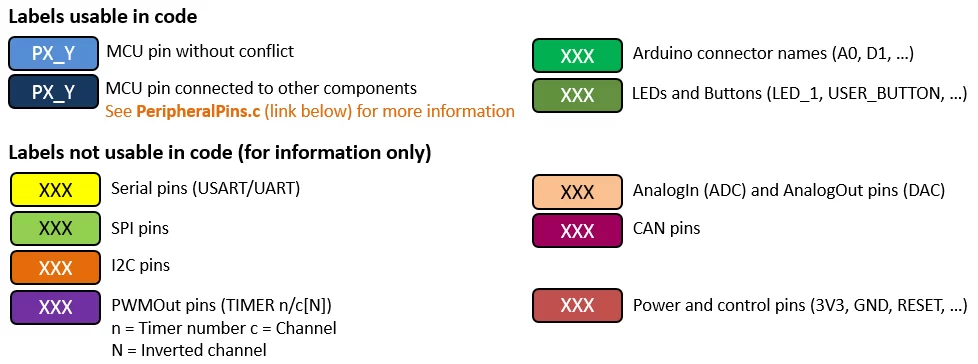

Pins Legend

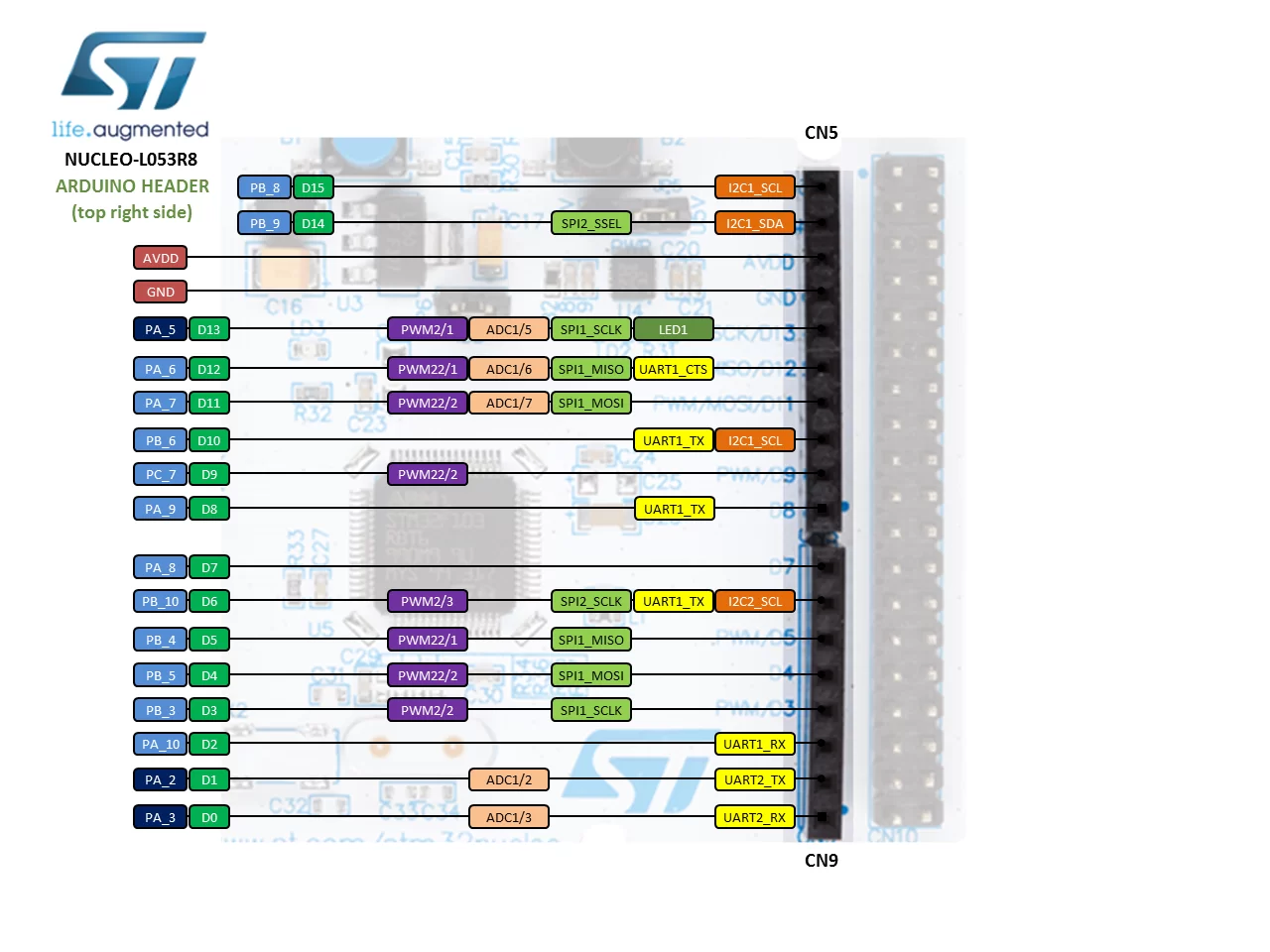

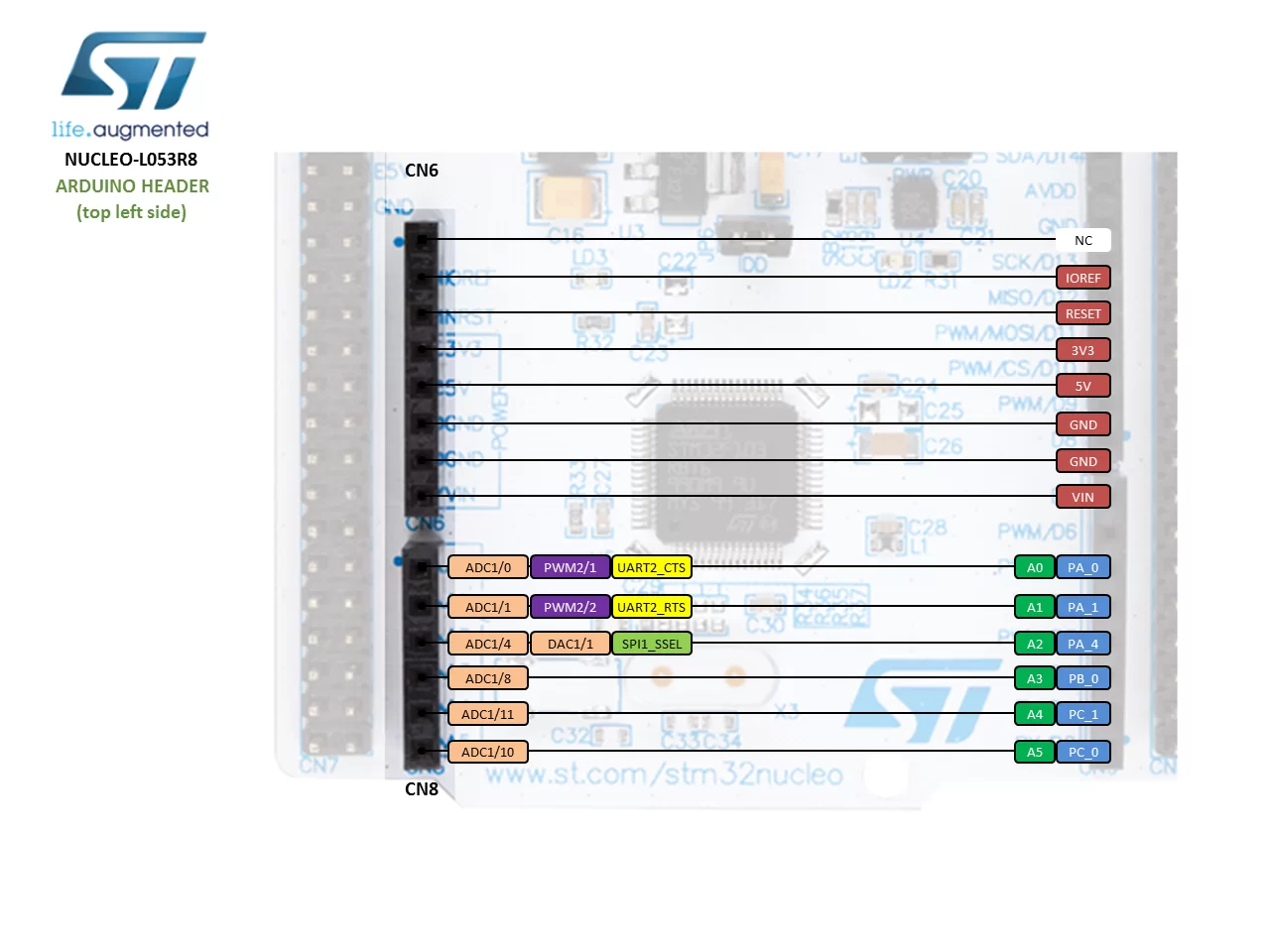

Arduino-compatible headers:

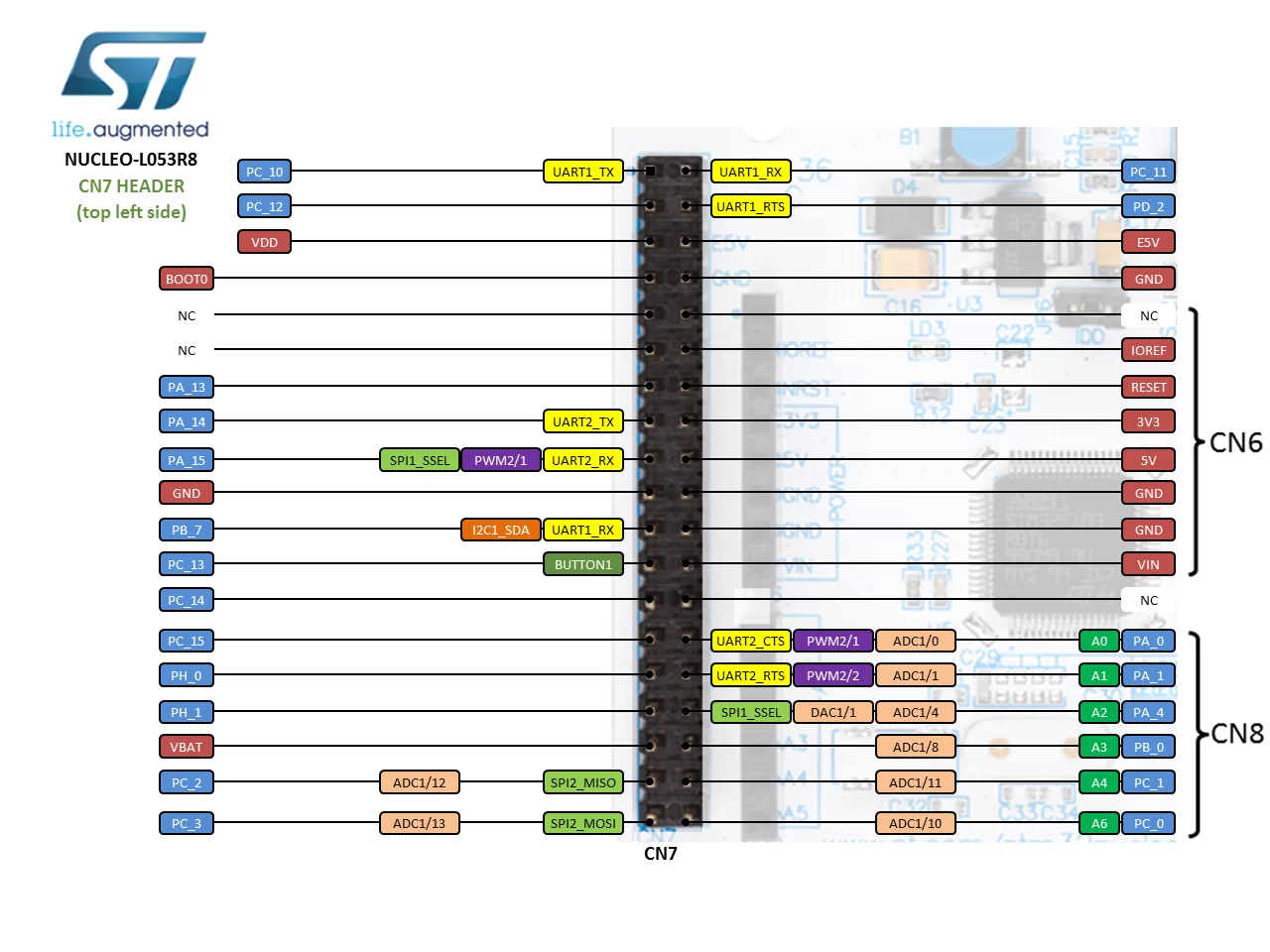

Morpho headers:
These headers give access to all STM32 pins.

نظرات

ثبت نام مورد نیاز نمی باشد!

2 سوال(ها) پاسخ داده خواهد شد

اگر سوال و یا نظری دارید مطرح نمائید

(اختیاری)
*(برای دریافت پاسخ مورد نیاز می باشد)
  • ارسال شده توسط sadra
    در 07/01/1399
    سلام میبخشید این برد اصلی خود st هست؟ پاسخ:
    سلام بله
  • ارسال شده توسط حسین بیگی
    در 25/06/1398
    سلام این برد همراه خودش پروگرمر دارد یا ما باید از پروگرمر های مانند ST و .. استفاده کنیم؟ پاسخ:
    سلام این برد همراه با پروگرمر هست
