برد stm32H750VBT6 board

از جدیدترین محصولات تولید شده شرکت st میکروکنترلر های سری H می باشد. این میکروها از میکروهای بسیار خاص و پر سرعت این شرکت هستند و خرید آنها مستقیم از شرکت st با شرایط خاص می باشد .

سرعت این میکرو تا 480 مگا هرتز می رسد که مشخصات آن در زیر می توانید ببینید:

STM32H750xB devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating at up to 480 MHz. The Cortex® -M7 core features a floating point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. STM32H750xB devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.

STM32H750xB devices incorporate high-speed embedded memories with a Flash memory of 128 Kbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.
All the devices offer three ADCs, two DACs, two ultra-low power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor control, five low-power timers, a true random number generator (RNG), and a cryptographic acceleration cell. The devices support four digital filters for external sigma-delta modulators (DFSDM). They also feature standard and advanced communication interfaces.

Key Features

    Core
        32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
    Memories
        128 Kbytes of Flash memory
        1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain
        Dual mode Quad-SPI memory interface running up to 133 MHz
        Flexible external memory controller with up to 32-bit data bus:
            SRAM, PSRAM, NOR Flash memory clocked up to 133 MHz in synchronous mode
            SDRAM/LPSDR SDRAM
            8/16-bit NAND Flash memories
        CRC calculation unit
    Security
        ROP, PC-ROP, active tamper, secure firmware upgrade support, Secure access mode
    General-purpose input/outputs
        Up to 168 I/O ports with interrupt capability
    Reset and power management
        3 separate power domains which can be independently clock-gated or switched off:
            D1: high-performance capabilities
            D2: communication peripherals and timers
            D3: reset/clock control/power management
        1.62 to 3.6 V application supply and I/Os
        POR, PDR, PVD and BOR
        Dedicated USB power embedding a 3.3 V internal regulator to supply the internal PHYs
        Embedded regulator (LDO) with configurable scalable output to supply the digital circuitry
        Voltage scaling in Run and Stop mode (6 configurable ranges)
        Backup regulator (~0.9 V)
        Voltage reference for analog peripheral/VREF+
        Low-power modes: Sleep, Stop, Standby and VBAT supporting battery charging
    Low-power consumption
        VBAT battery operating mode with charging capability
        CPU and domain power state monitoring pins
        2.95 μA in Standby mode (Backup SRAM OFF, RTC/LSE ON)
    Clock management
        Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 kHz LSI
        External oscillators: 4-48 MHz HSE, 32.768 kHz LSE
        3× PLLs (1 for the system clock, 2 for kernel clocks) with Fractional mode
    Interconnect matrix

    4 DMA controllers to unload the CPU
        1× high-speed master direct memory access controller (MDMA) with linked list support
        2× dual-port DMAs with FIFO
        1× basic DMA with request router capabilities
    Up to 35 communication peripherals
        4× I2Cs FM+ interfaces (SMBus/PMBus)
        4× USARTs/4x UARTs (ISO7816 interface, LIN, IrDA, up to 12.5 Mbit/s) and 1x LPUART
        6× SPIs, 3 with muxed duplex I2S audio class accuracy via internal audio PLL or external clock, 1x I2S in LP domain (up to 150 MHz)
        4x SAIs (serial audio interface)
        SPDIFRX interface
        SWPMI single-wire protocol master I/F
        MDIO Slave interface
        2× SD/SDIO/MMC interfaces (up to 125 MHz)
        2× CAN controllers: 2 with CAN FD, 1 with time-triggered CAN (TT-CAN)
        2× USB OTG interfaces (1FS, 1HS/FS) crystal-less solution with LPM and BCD
        Ethernet MAC interface with DMA controller
        HDMI-CEC
        8- to 14-bit camera interface (up to 80 MHz)
    11 analog peripherals
        3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
        1× temperature sensor
        2× 12-bit D/A converters (1 MHz)
        2× ultra-low-power comparators
        2× operational amplifiers (7.3 MHz bandwidth)
        1× digital filters for sigma delta modulator (DFSDM) with 8 channels/4 filters
    Graphics
        LCD-TFT controller up to XGA resolution
        Chrom-ART graphical hardware Accelerator™ (DMA2D) to reduce CPU load
        Hardware JPEG Codec
    Up to 22 timers and watchdogs
        1× high-resolution timer (2.1 ns max resolution)
        2× 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input (up to 240 MHz)
        2× 16-bit advanced motor control timers (up to 240 MHz)
        10× 16-bit general-purpose timers (up to 240 MHz)
        5× 16-bit low-power timers (up to 240 MHz)
        2× watchdogs (independent and window)
        1× SysTick timer
        RTC with sub-second accuracy and hardware calendar
    Cryptographic acceleration
        AES 128, 192, 256, TDES,
        HASH (MD5, SHA-1, SHA-2), HMAC
        True random number generators
    Debug mode
        SWD & JTAG interfaces
        4-Kbyte Embedded Trace Buffer
    96-bit unique ID

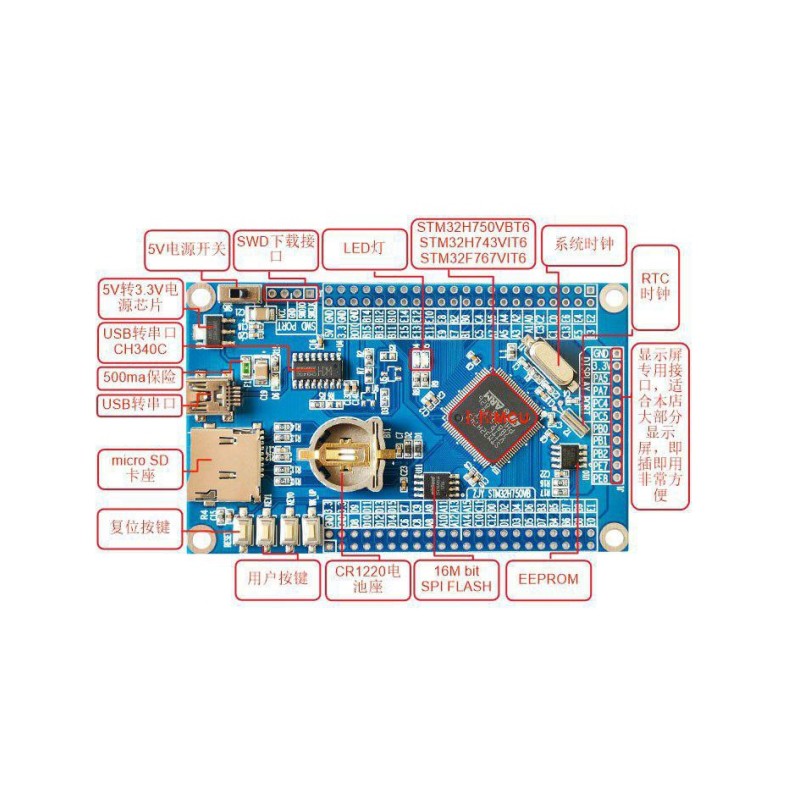

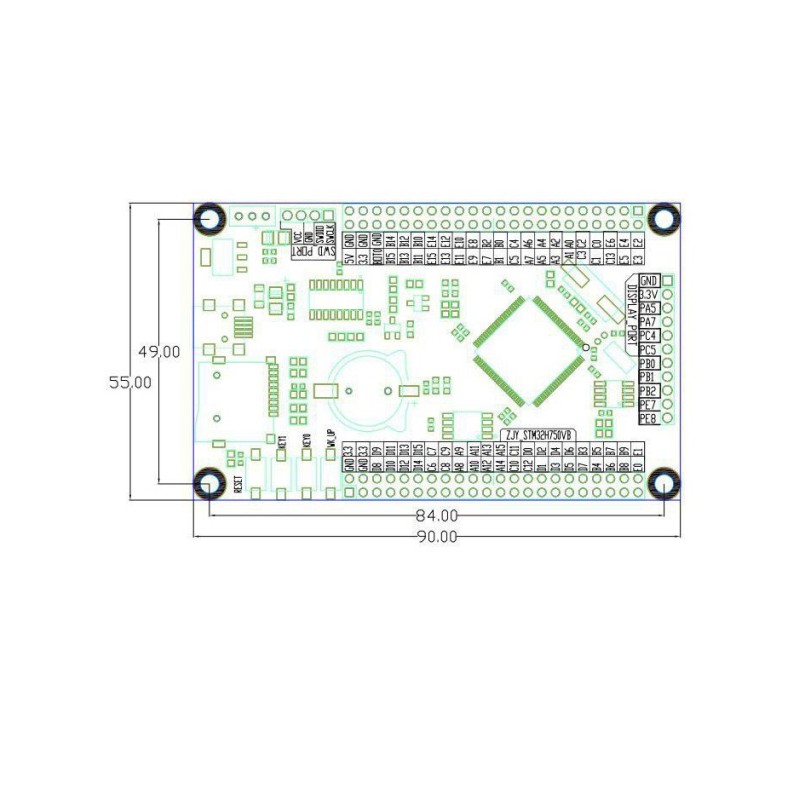

1-Board STM32F767VI/ STM32H743VI/ STM32H750VB chip 100pin
LQFP package , three chip as needed to select
2-Use usb powered
3- board USB turn serial chip CH340, can be serial communication
4- .2road coler LED all pull, you can use this to observe the program running
5- .4 high quality independent button

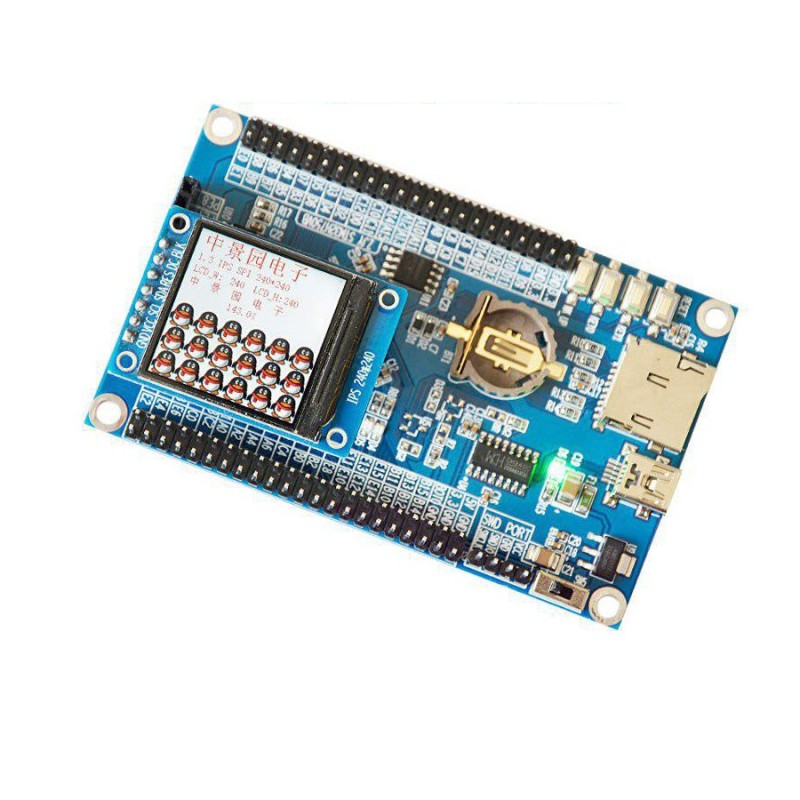

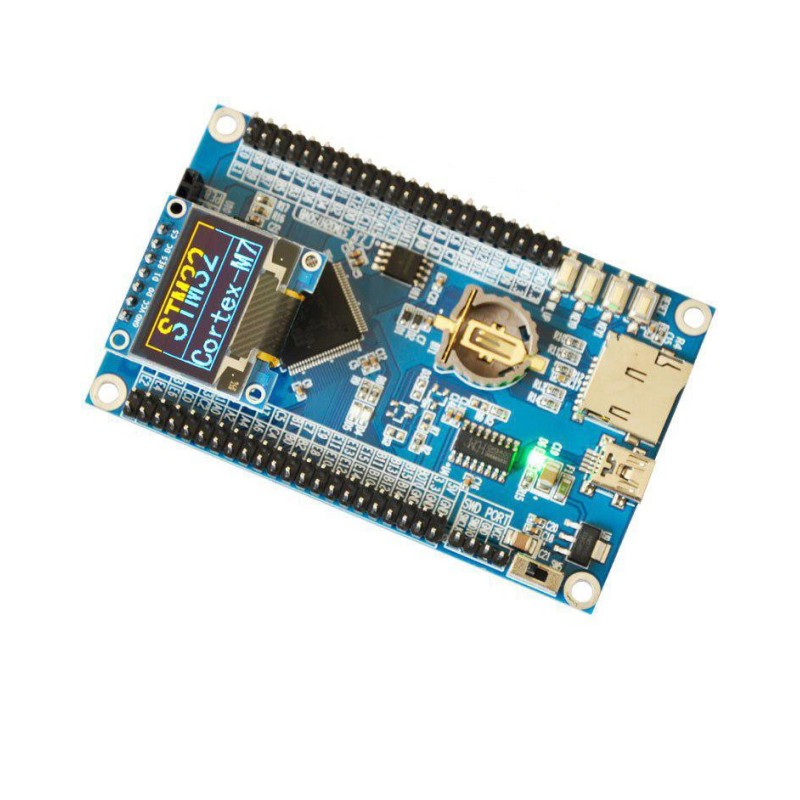

6- board OLED ,LCD display dedicated interface for our most display
7-out to provide 3.3 v and 5v power pin
8-voltage 3.3v

لیست موارد موجود در دانلود ویژه:

01-Chip data sheet
02-Modification method description
02-Schematic diagram + structure diagram
03-development board supporting reference program
Stm32h7 series official package library file _cad
Ultra Librarian package generation tool

توجه داشته باشید مثالهای و stm32H743vit6 وstm32H750VBT6   یکی می باشد.

لیست مثال ها:

Development board experiment:
01- 0.96 inch LCD display STM32H750_SPI routine
01-LED experiment
02-button experiment
03-Serial communication experiment
04-External Interruption Experiment
05-Independent Watchdog Test
06-window watchdog experiment
07-Timer interrupt experiment
08-PWM output experiment
09-Input capture experiment
10-IIC reading and writing AT24CXX experiment
11-SPI read and write W25X16 experiment
12-SD card experiment
13-RTC experiment
14-ADC experiment
15-DAC experiment

Display routine
LCD display:
01- 0.96IPS Display STM32H750_SPI Routine
02- 1.14IPS Display STM32H750_SPI Routine
03- 1.3LCD Display STM32H750_SPI Routine
03- 1.3LCD Display STM32H750_SPI with Font Routine
04- 1.44LCD Display STM32H750_SPI Routine
05- 1.8LCD Display STM32H750_SPI with Font Routine
06- 1.8LCD Display STM32H750_SPI Routine
07- 2.4LCD Display STM32H750_SPI Routine
07- 2.4LCD display STM32H750_SPI with font routine
08- 2.8LCD Display STM32H750_SPI Routine
08- 2.8LCD Display STM32H750_SPI with Font Routine
09- 3.2LCD Display STM32H750_SPI Routine
09- 3.2LCD Display STM32H750_SPI with font routine

OLED display:
01- 0.96OLED Display STM32H750_IIC Routine
01- 0.96OLED Display STM32H750_SPI Routine
01- 0.96OLED display STM32H750_SPI with font routine
01- 1.3OLED Display STM32H750_IIC Routine
02- 1.3 OLED display STM32H750_SPI with font routine
02- 1.3OLED Display STM32H750_SPI Routine
03- 1.54OLED Display STM32H750_IIC Routine
03- 1.54OLED Display STM32H750_SPI Routine
04- 1.09OLED Display STM32H750_SPI Routine
04- 1.09OLED display STM32H750_SPI with font routine
