برد NUCLEO-H723ZG

NUCLEO-H723ZG - STM32 Nucleo-144 development board with STM32H723ZG MCU, supports Arduino, ST Zio and morpho connectivity

Category
    Development Boards, Kits, Programmers
    Evaluation Boards - Embedded - MCU, DSP
Mfr
    STMicroelectronics
Series
    STM32H7
Package
    Bulk
Product Status
    Active
Type
    MCU 32-Bit
Core Processor
    ARM® Cortex®-M7
Platform
    Nucleo-144
Utilized IC / Part
    STM32H723
Mounting Type
    Fixed
Contents
    Board(s)
Board Type
    Evaluation Platform
Operating Syst  -
Interconnect System
    Arduino R3 Shield, ST Morpho, ST Zio
Suggested Programming Environment
    IAR EW, Keil MDK, STM32Cube
Base Product Number
    STM32H723

Description

The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ST Zio connector, which extends the ARDUINO® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

All features
Common features
            STM32 microcontroller in an LQFP144 package
            3 user LEDs
            2 user and reset push-buttons
            32.768 kHz crystal oscillator
            Board connectors:
                SWD
                ST Zio expansion connector including ARDUINO® Uno V3
                ST morpho expansion connector
            Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
            On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
            Comprehensive free software libraries and examples available with the STM32Cube MCU Package
            Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Board-specific features
            External or internal SMPS to generate Vcore logic supply
            Ethernet compliant with IEEE-802.3-2002
            USB OTG full speed or SNK/UFP (full-speed or high-speed mode), depending on the USB connector type
            Board connectors:
                USB with Micro-AB or USB Type-C®
                Ethernet RJ45

Hardware

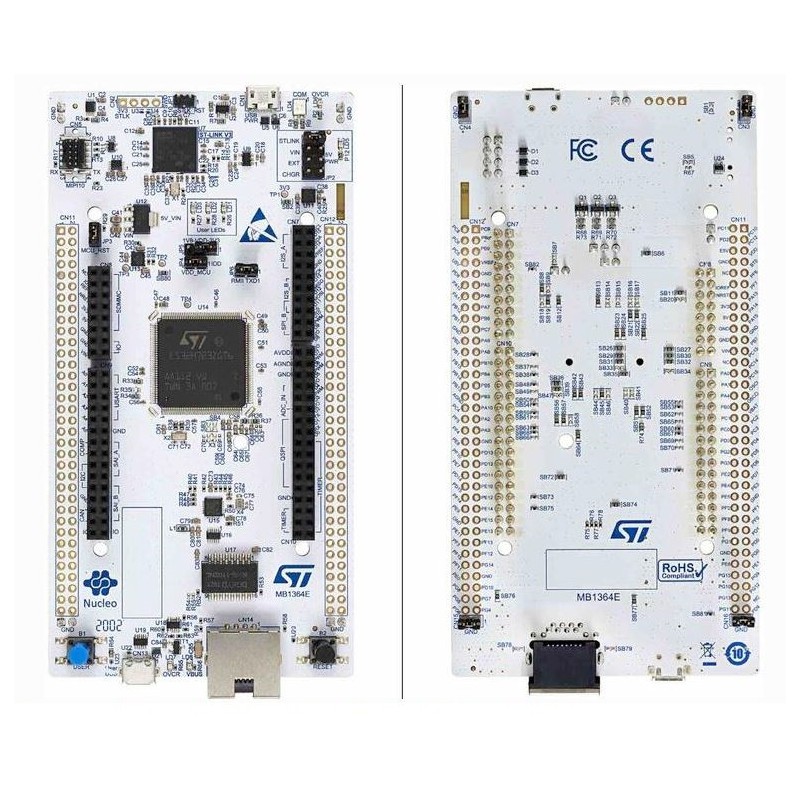

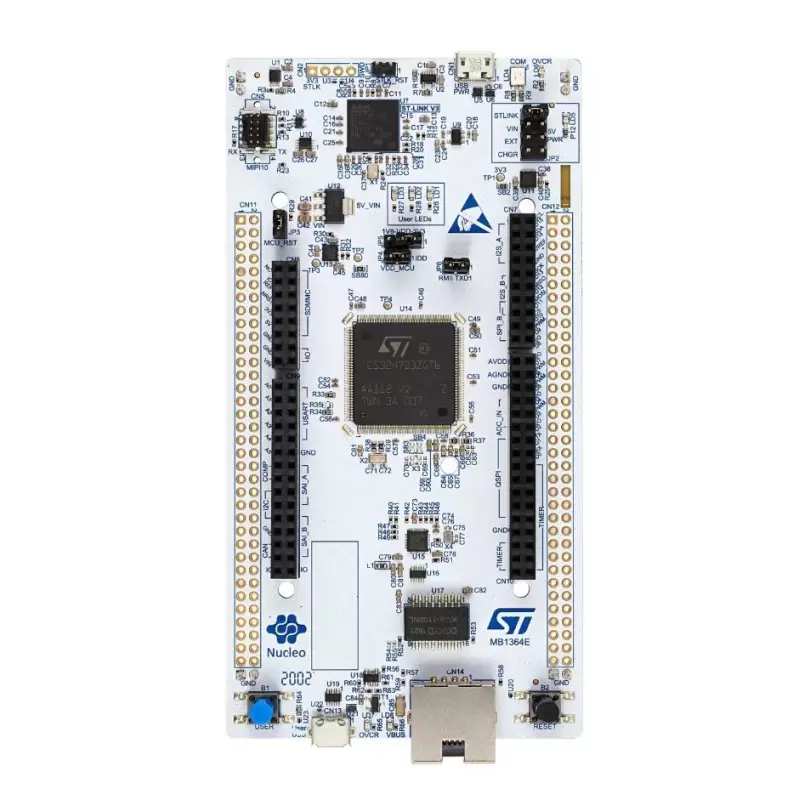

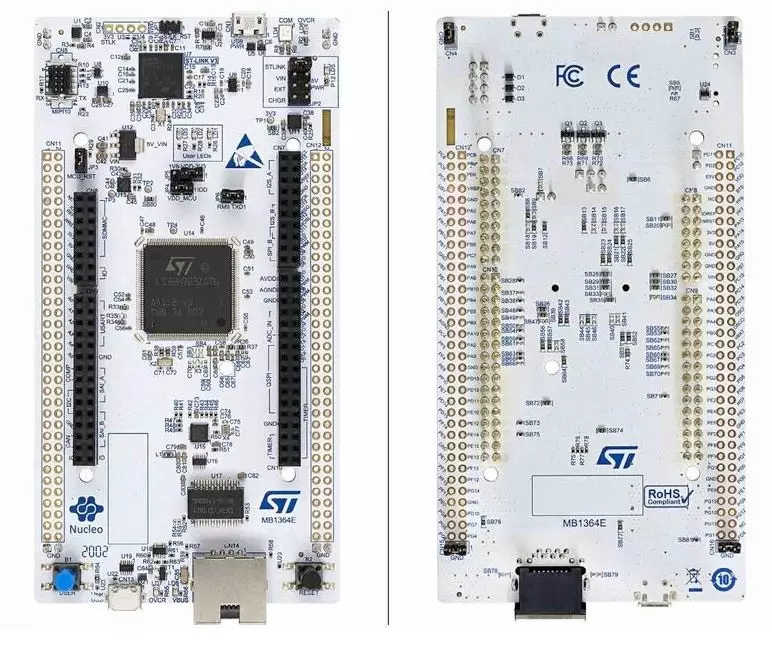

Nucleo H723ZG provides the following hardware components:

    STM32H723ZG in LQFP144 package
    ARM 32-bit Cortex-M7 CPU with FPU
    Chrom-ART Accelerator
    Hardware JPEG Codec
    550 MHz max CPU frequency
    VDD from 1.62 V to 3.6 V
    1 MB Flash
    562 kB SRAM max (376 kb used currently)
    High-resolution timer (2.1 ns)
    32-bit timers(2)
    16-bit timers(12)
    SPI(6)
    I2C(4)
    I2S (3)
    USART(4)
    UART(4)
    USB OTG Full Speed and High Speed(1)
    USB OTG Full Speed(1)
    CAN-FD(2)
    SAI(2)
    SPDIF_Rx(4)
    HDMI_CEC(1)
    Dual Mode Quad SPI(1)
    Camera Interface
    GPIO (up to 114) with external interrupt capability
    16-bit ADC(3) with 36 channels / 3.6 MSPS
    12-bit DAC with 2 channels(2)
    True Random Number Generator (RNG)
    16-channel DMA
    LCD-TFT Controller with XGA resolution

توضیحات بیشتر را میتوانید از سایت ST دریافت کنید.
