ST-LINK V2 (EN) STM Programmers & Debuggers کیفیت بالا و قابلیت اپدیت اورجینال

این پروگرامر از کیفیت بالایی برخوردار میباشد و قابلیت آپدیت شدن را دارد. این پروگرامر اورجینال میباشد. (تاریخ آپدیت 19-04-2023)

پروگرامر و دیباگر مخصوص میکروکنترلرهای خانواده stm

قابلیت کار با کامپایلرهای keil,IAR

پشتیباتی از تمامی خانواده میکروکنترلر های stm

STM8A,STM8L,STM8S

STM32F,STM32L,STM32W,STM32H

برای اطلاعات بیشتر میتوانید به سایت www.waveshare.com مراجعه فرمایید.

Description

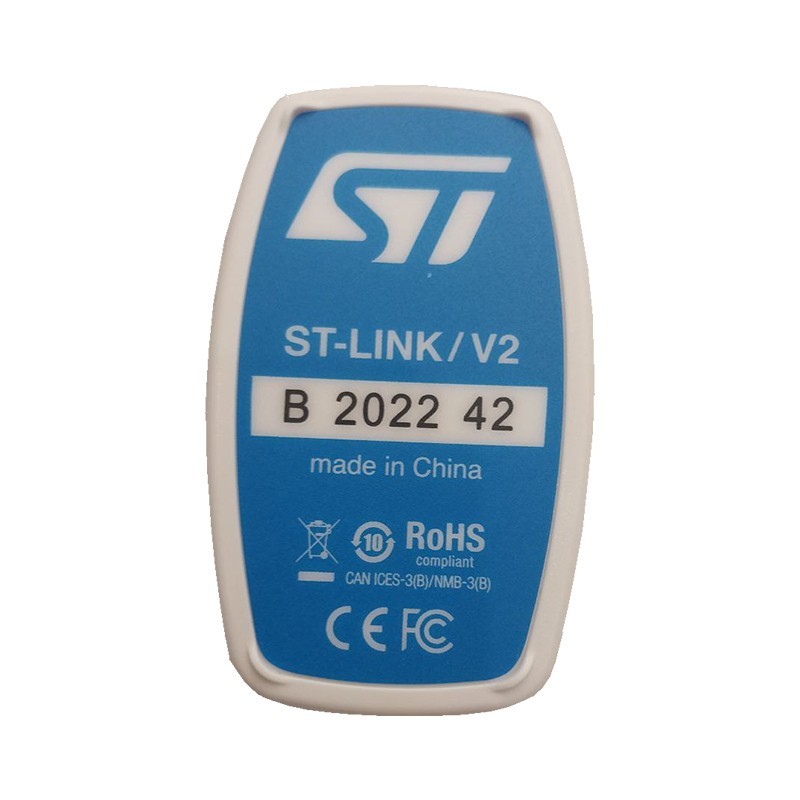

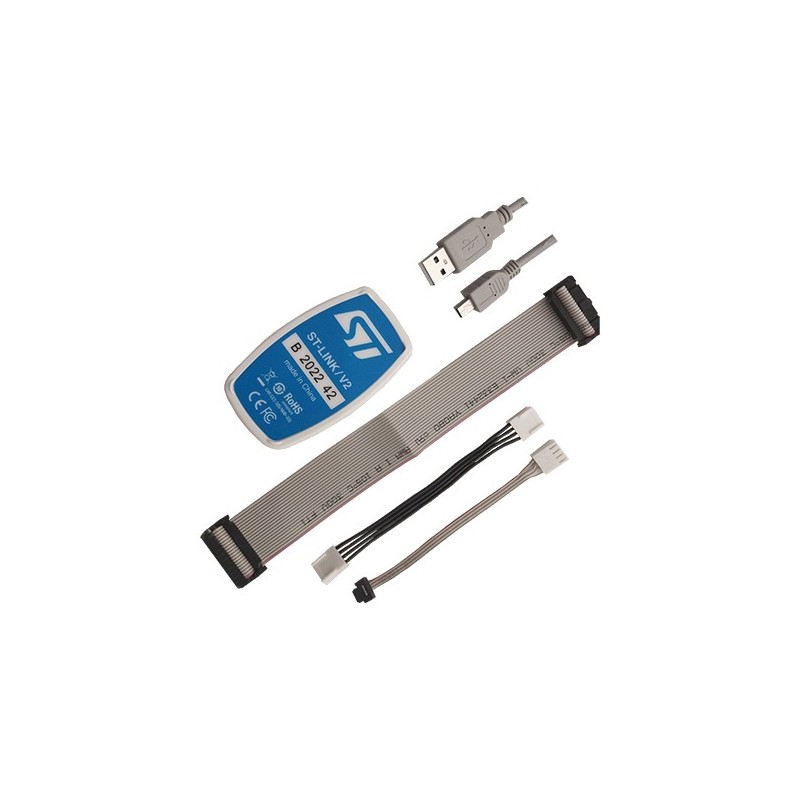

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full speed interface to communicate with STMicroelectronic's ST Visual Develop (STVD) or ST Visual Program (STVP) software.

STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.
Key Features

    5 V power supplied by a USB connector
    USB 2.0 full speed compatible interface

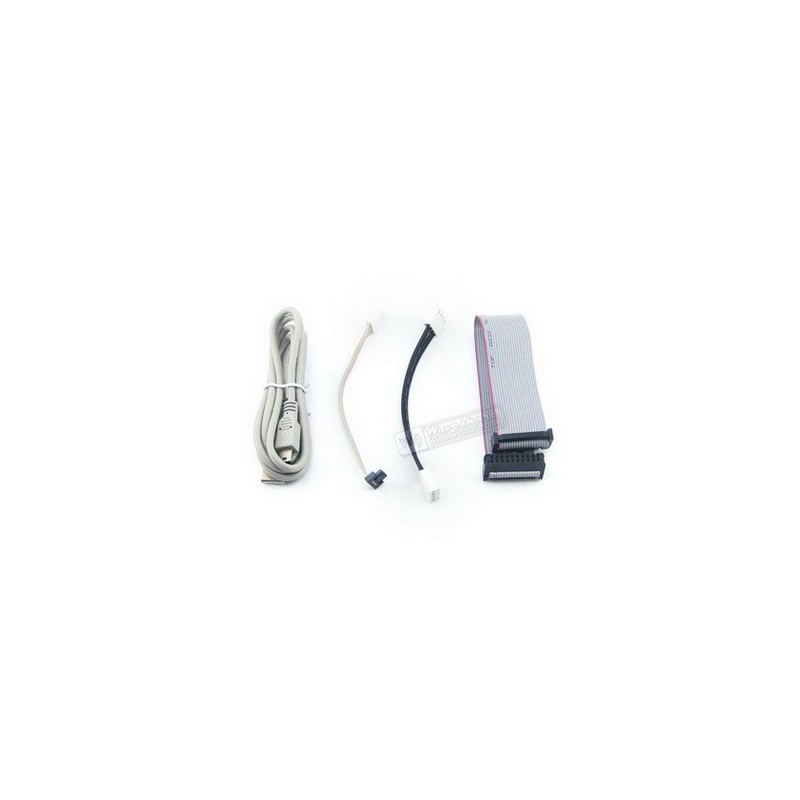

    USB standard A to mini B cable
    SWIM specific features
        1.65 V to 5.5 V application voltage supported on SWIM interface
        SWIM low-speed and high-speed modes supported
        SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
        SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
        SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
    JTAG specific features
        1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
        JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
    Direct firmware update feature supported (DFU)
    Status LED which blinks during communication with the PC
    Operating temperature 0 to 50 °C
