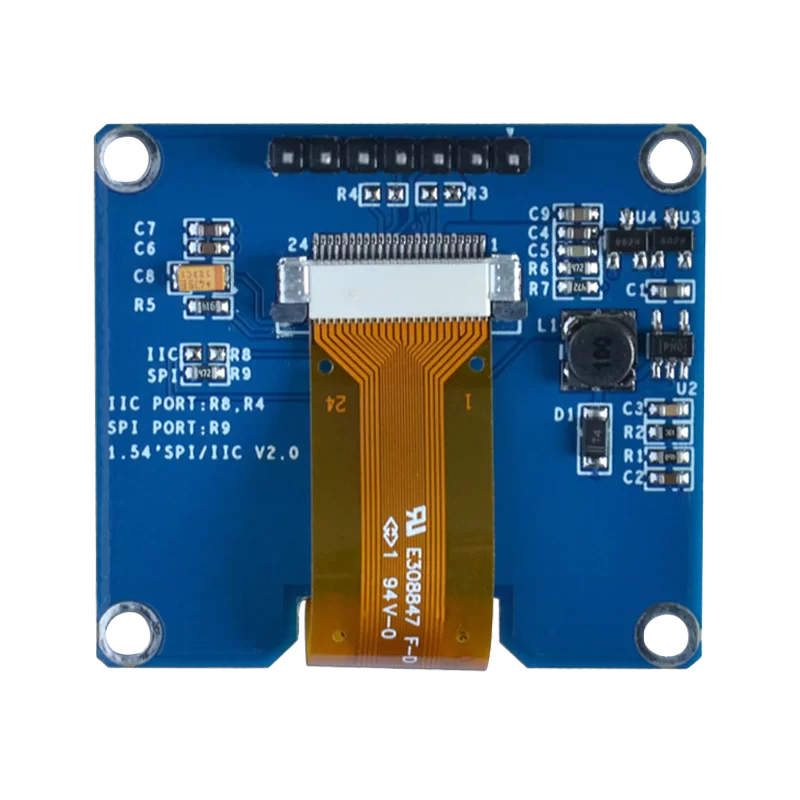

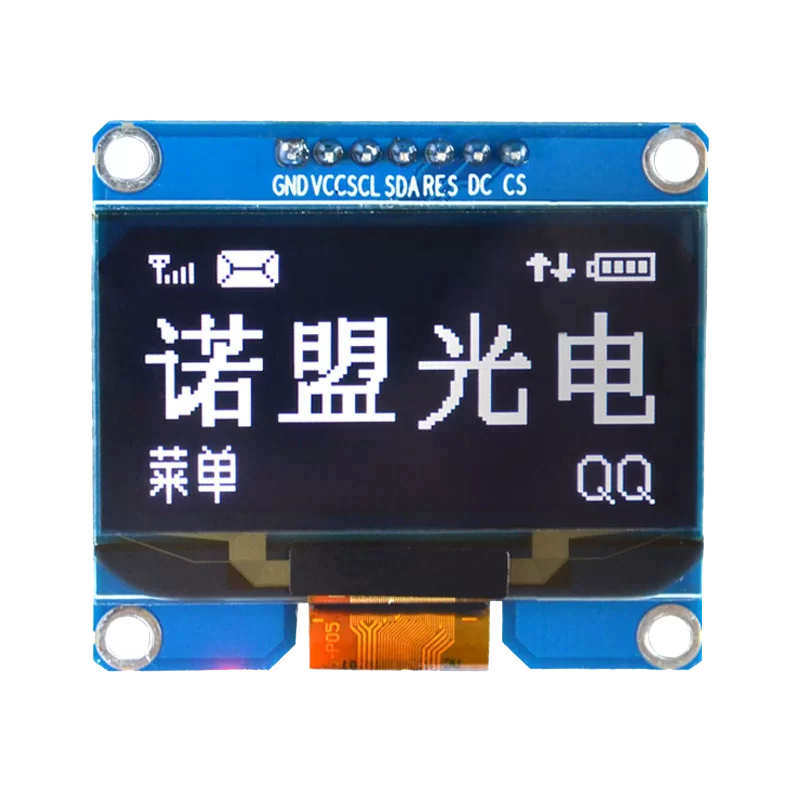

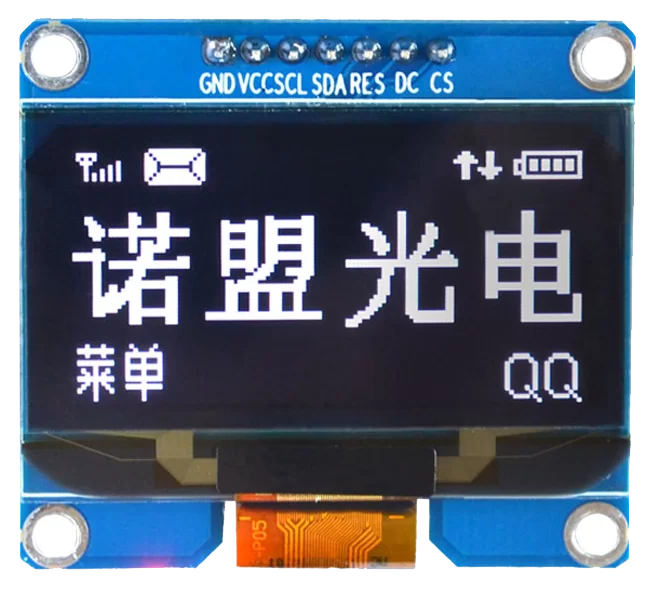

OLED 1.54 inch OLED Module White 128x64 IIC SPI / SSD1309

ماژول OLED 1.54 inch White با رزولیشن 128x64 و با درایور SSD1309 و IIC-SPI Interface

Size: 1.54 inch
Resolution: 128*64
Control chip: SSD1309

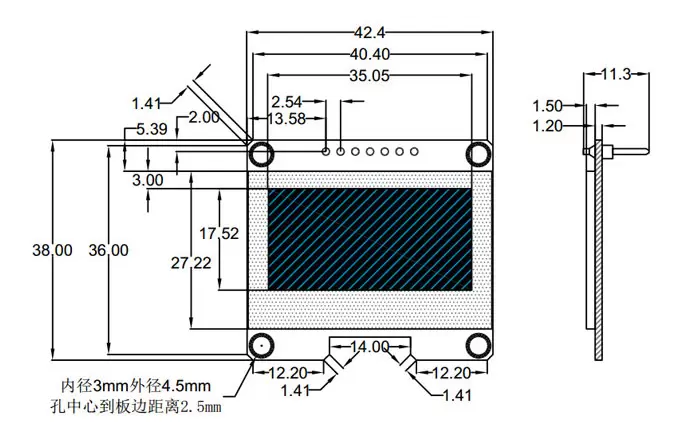

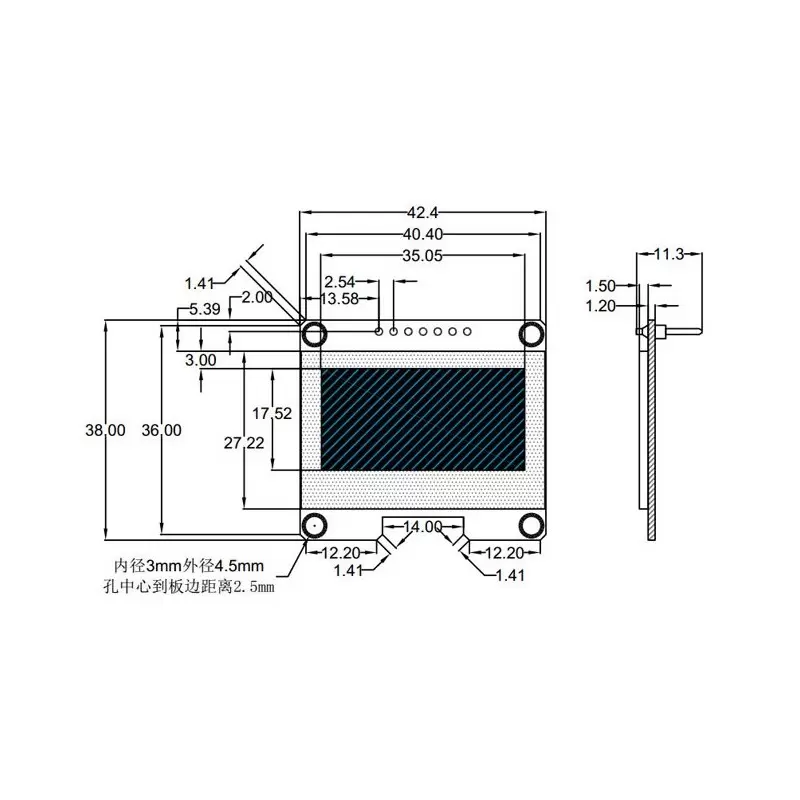

Display area: 35.05x17.52 (mm)
Physical size: 42.4x38 (mm)
Interface type: IIC/SPI interface

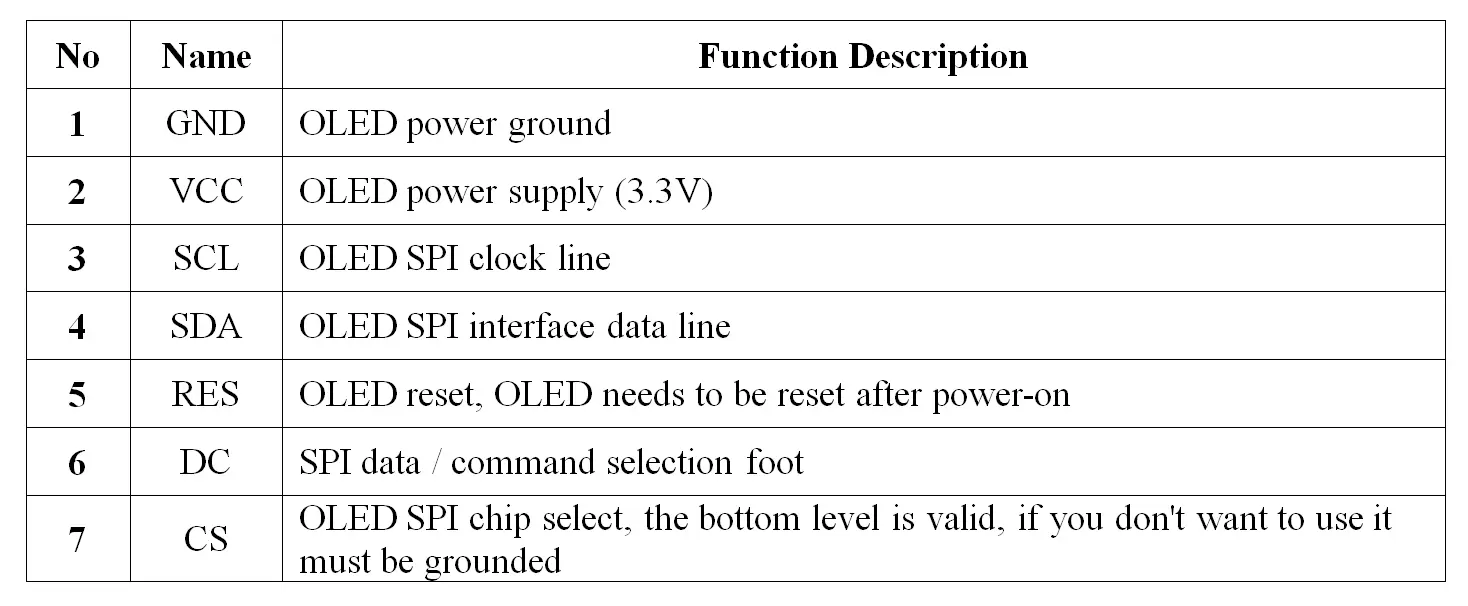

Number of pins: 7PIN
Display color: White
Working voltage: 3.3V
Working temperature: -40~70 degrees
Module weight: 10g

Important Note: OLED display is different from LCD; OLED is self-illuminating; therefore, there is no backlight, and no phenomenon can be seen when only power is applied; there must be a correct operation of the program to display it.

محتوای فایل مربوط به مثال و Document:

03- Reference program:
