OLED 1.54 inch OLED Module Yellow 128x64 SPI / SSD1309

ماژول OLED 1.54 inch Yellow با رزولیشن 128x64 و با درایور SSD1309 و SPI Interface

ادامه مطلبنمایش کمتر
8,722,000 ریال بدون مالیات
کد QR را برای باز کردن این صفحه بر روی تلفن همراه خود اسکن کنید.
مرجع:
1327000
اضافه به مقایسه0
افزودن به علاقه‌مندی‌ها
محصولات پیشنهادی
توضیحات

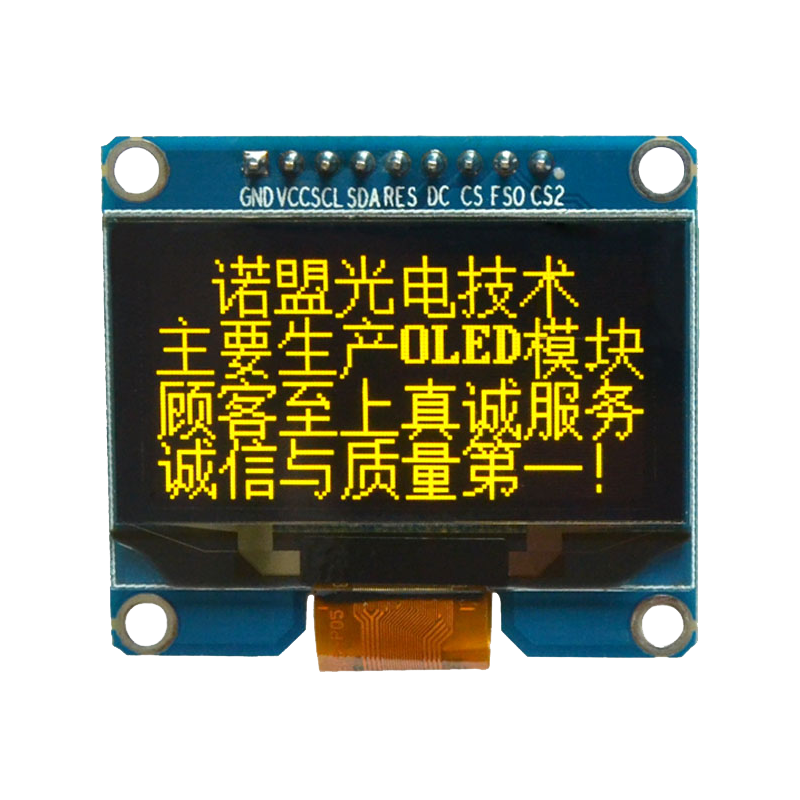

ماژول OLED 1.54 inch Yellow با رزولیشن 128x64 و با درایور SSD1309 و SPI Interface

Size: 1.54 inch
Resolution: 128*64
Control chip: SSD1309

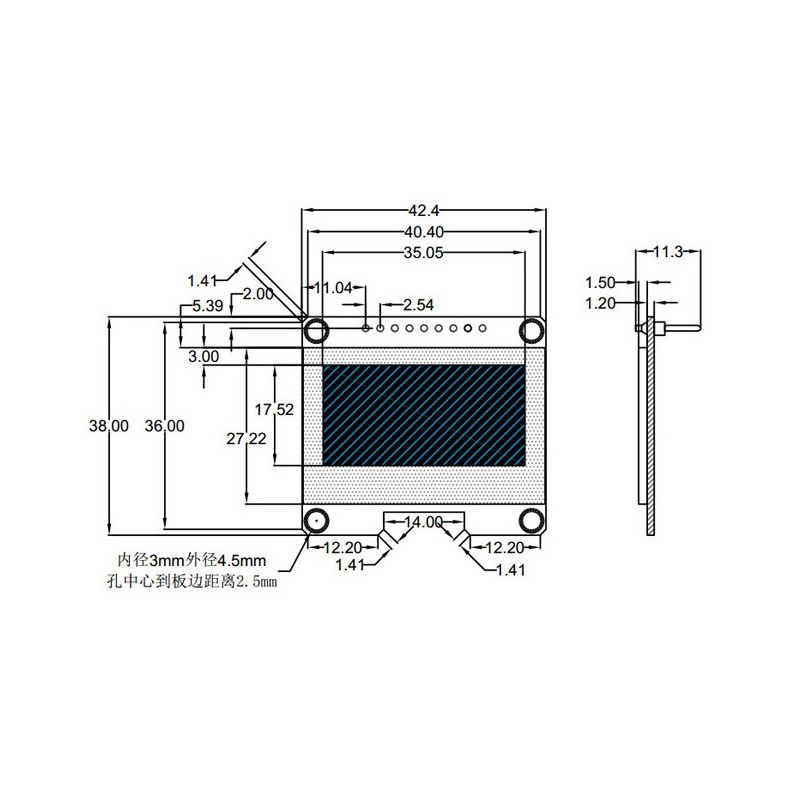

Display area: 35.05x17.52 (mm)
Physical size: 42.4x38 (mm)
Interface type: 4-wire SPI interface

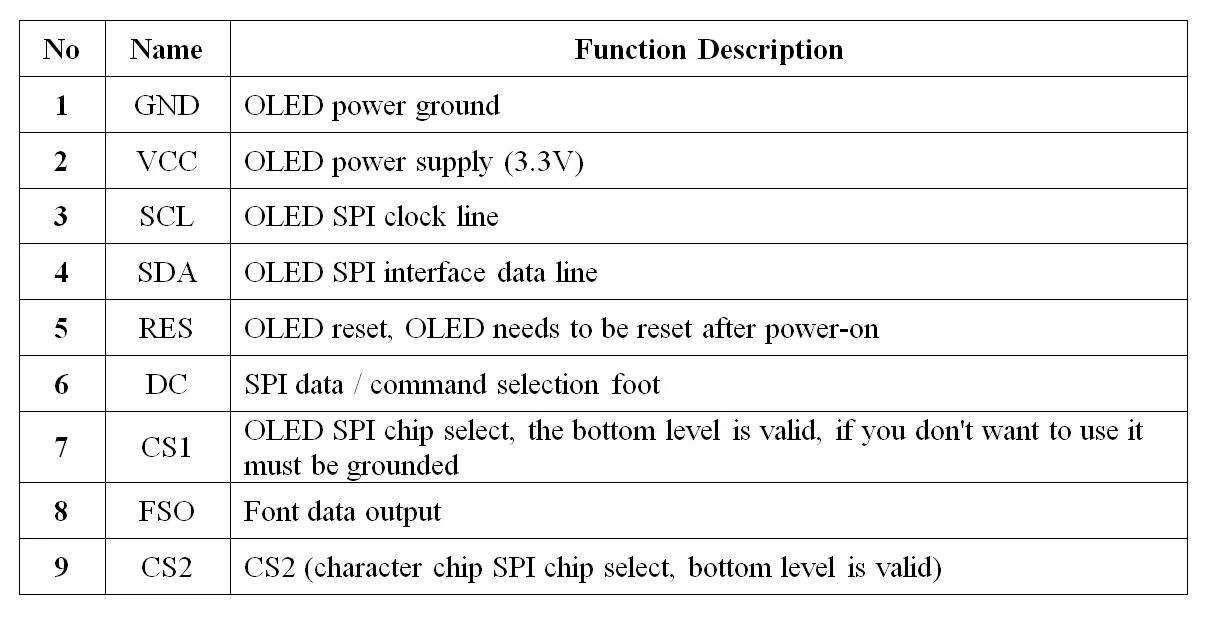

Number of pins: 9PIN
Display color: Yellow
Working voltage: 3.3V
Module weight: 10g

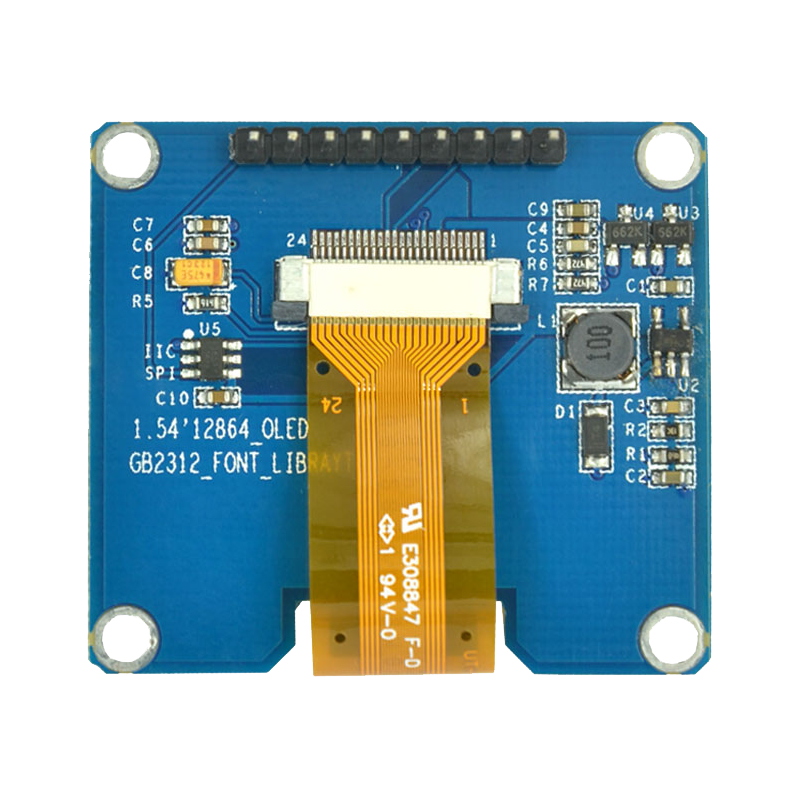

Font chip: GT20L16S1Y
GB2312 character set (6763 Chinese characters): 15x16 dot matrix
ASCII character set (6 sets): 5x778x16 dot matrix
Disposition method: fixed horizontal row
Bus interface: SPI serial bus
Support GB2312 national standard simplified Chinese characters (including the legal authorization of the National Beacon Committee), ASCII characters
Working temperature: -40~70 degrees
Module weight: 5g

Important Note: The OLED display is different from the LCD; the OLED is self-illuminating, so there is no backlight. The screen will not react if only the power is applied; there must be a correct operation of the program to display it.

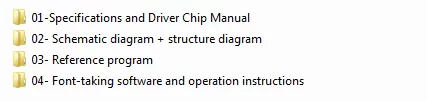

محتوای فایل مربوط به مثال و Document:

03- Reference program:

ادامه مطلبنمایش کمتر
جزئیات محصول
1327000

مشخصات

سایز نمایشگر(اینچ)
1.54
رزولیشین
128x64
نمایش رنگ
زرد
نوع ارتباط (MCU)
SPI
چیپ راه انداز
SSD1309
