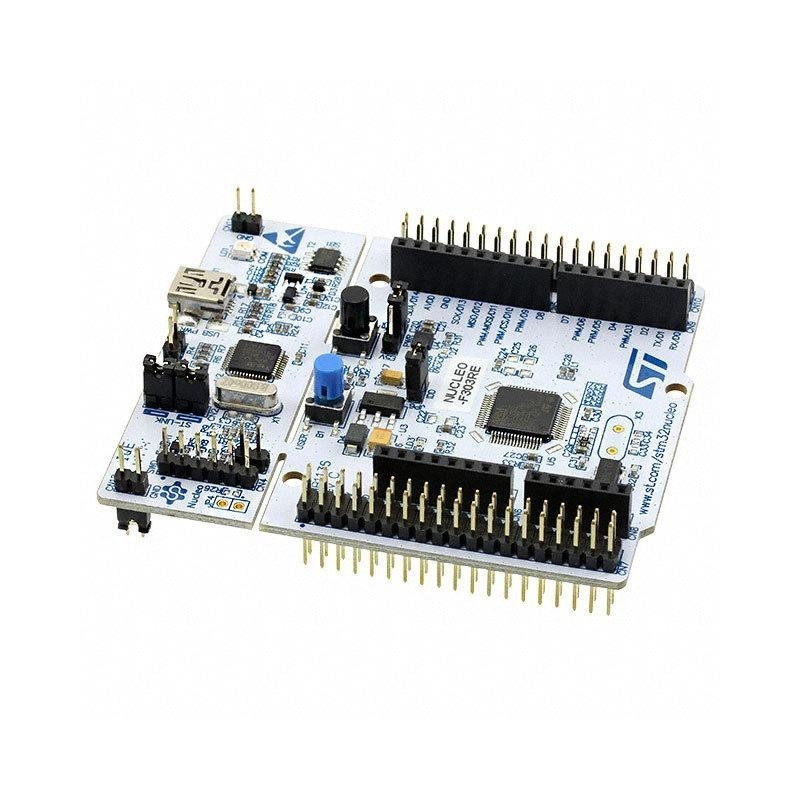

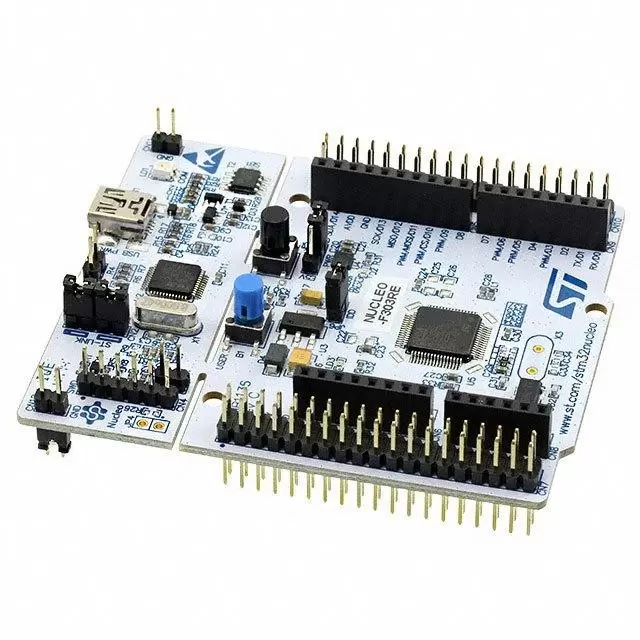

برد NUCLEO-F303RE

NUCLEO-F303RE - Development Boards & Kits - ARM STM32 Nucleo-64 development board with STM32F303RE MCU, supports Arduino and ST morpho connectivity

Affordable and flexible platform to ease prototyping using a STM32F303RET6 microcontroller.
Manufacturer:
         STMicroelectronics
Product Category:
       Development Boards & Kits - ARM
Series:
         NUCLEO-F303RE
Product:
         Development Boards
Core:
         ARM Cortex M4
Tool Is For Evaluation Of:
       STM32F303RET6
Description/Function:
        STM32 nucleo board
Brand:
         STMicroelectronics
Interface Type:
         USART, USB
Data Bus Width:
         32 bit
For Use With:
         STM32F
Operating Supply Voltage:
         3.3 V, 5 V, 7 V to 12 V
Product Type:
         Development Boards & Kits - ARM
Subcategory:
         Development Tools
Tradename:
         NUCLEO

Overview

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

Microcontroller features

    STM32F303RET6 in LQFP64 package
    ARM®32-bit Cortex®-M4 CPU
    72 MHz max CPU frequency
    VDD from 2.0 V to 3.6 V
    512 KB Flash
    80 KB SRAM
    GPIO (51) with external interrupt capability
    12-bit ADC (4)
    12-bit DAC (2)
    RTC
    Timers (10)
    I2C (3)
    USART (5)
    SPI (4)
    USB 2.0 full-speed
    CAN

Nucleo features

    Two types of extension resources
        Arduino Uno Revision 3 connectivity
        STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
    On-board ST-LINK/V2-1 debugger/programmer with SWD connector
        Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
    Flexible board power supply
        USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
        Power management access point
    User LED (LD2)
    Two push buttons: USER and RESET
    USB re-enumeration capability: three different interfaces supported on USB
        Virtual Com port
        Mass storage (USB Disk drive) for drag'n'drop programming
        Debug port

توضیحات بیشتر رو میتوانید از این سایت دریافت کنید.

Nucleo pinout:

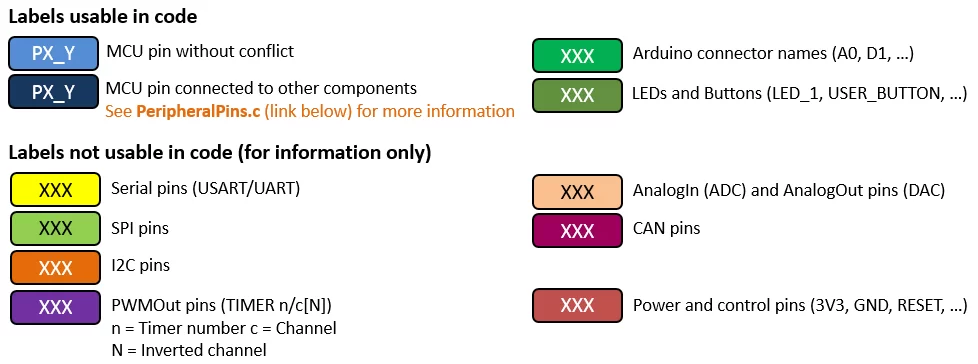

Pins Legend

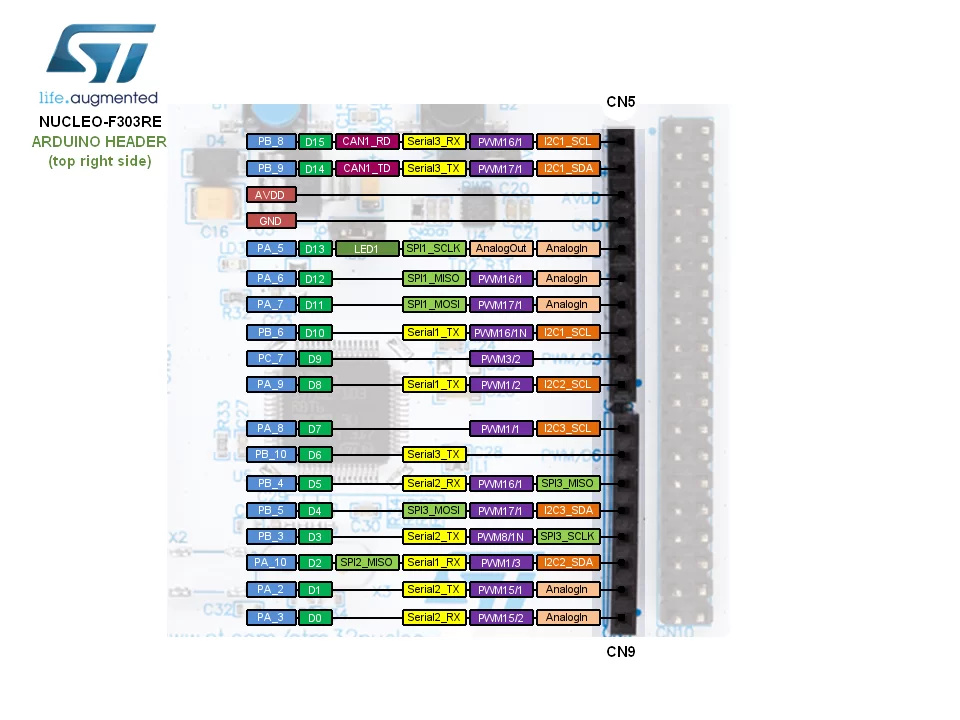

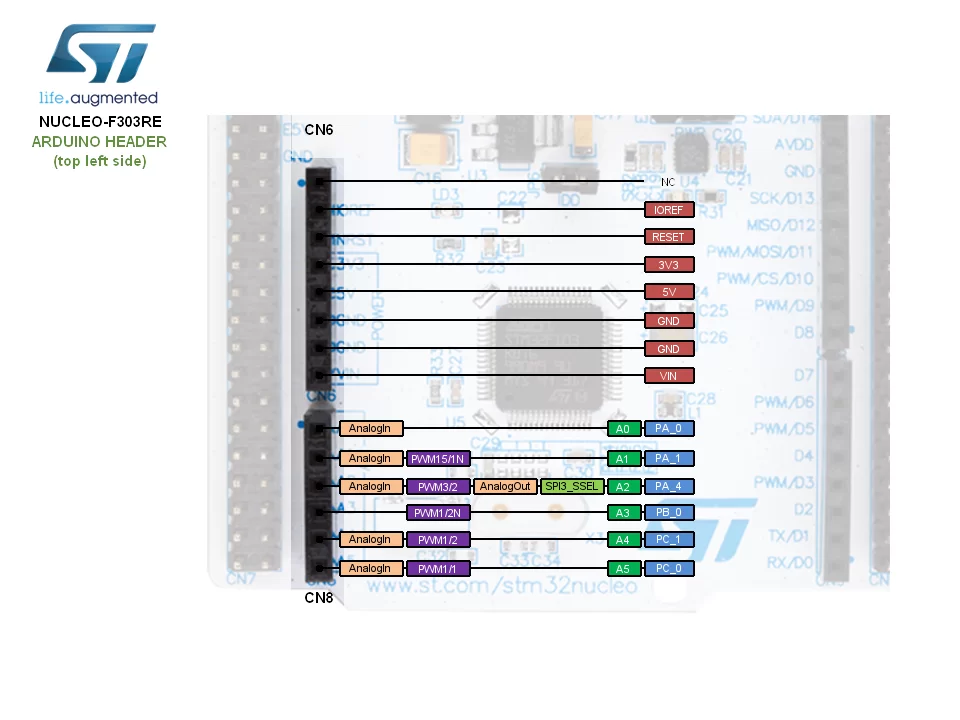

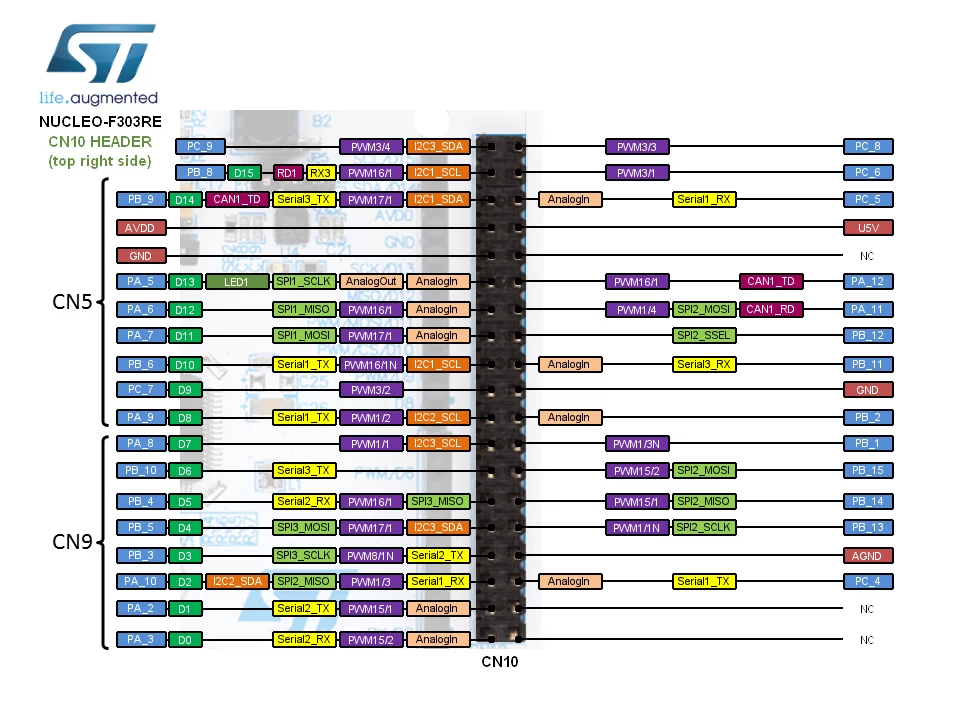

Arduino-compatible headers:

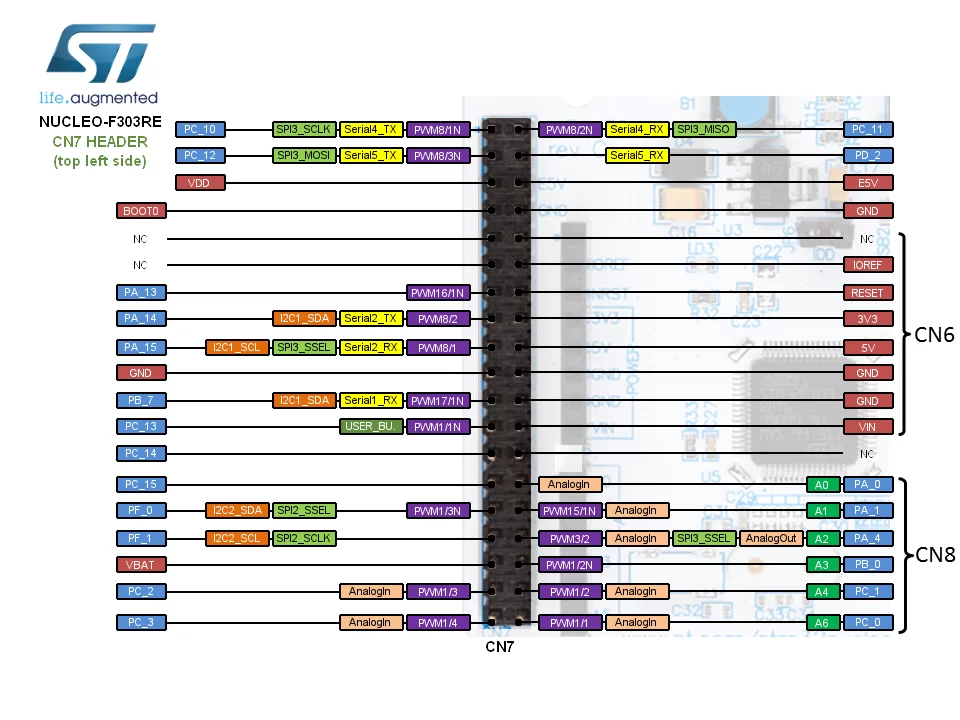

Morpho headers:
These headers give access to all STM32 pins.
