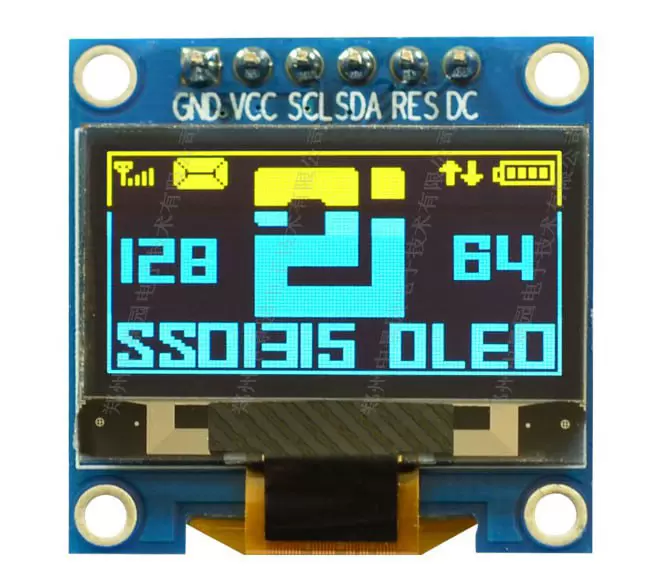

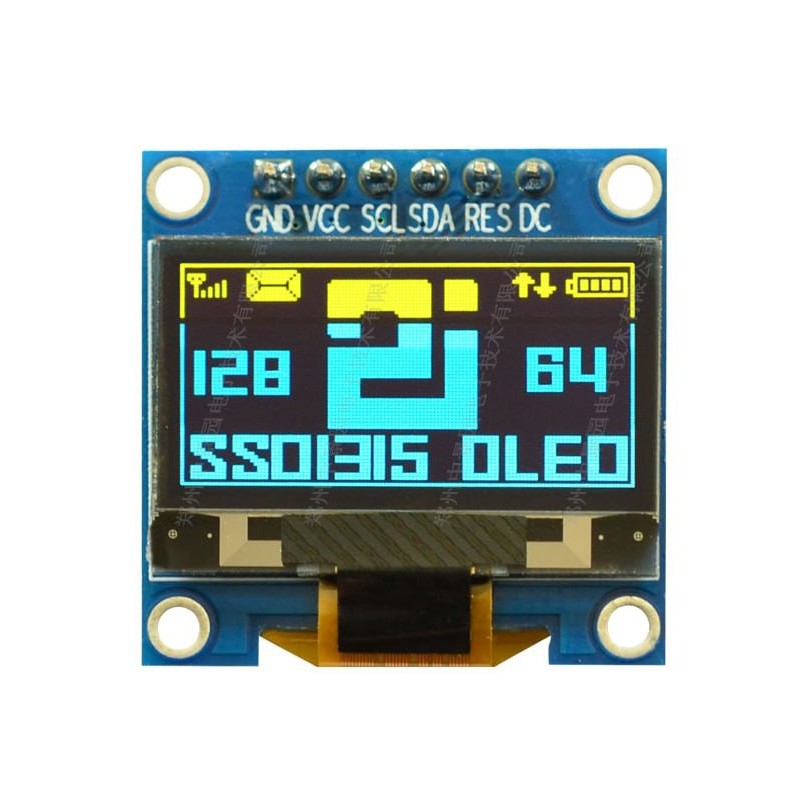

OLED 0.96 inch OLED display module 128x64 SSD1306 IIC SPI / Yellow & Blue

ماژول OLED 0.96 inch Yellow & Blue  با رزولیشن 128x64  با درایور SSD1306 و IIC-SPI Interface

Size: 0.96 inch
Control chip: SSD1306
Resolution: 128*64
Display area: 21.744x10.864 (mm)

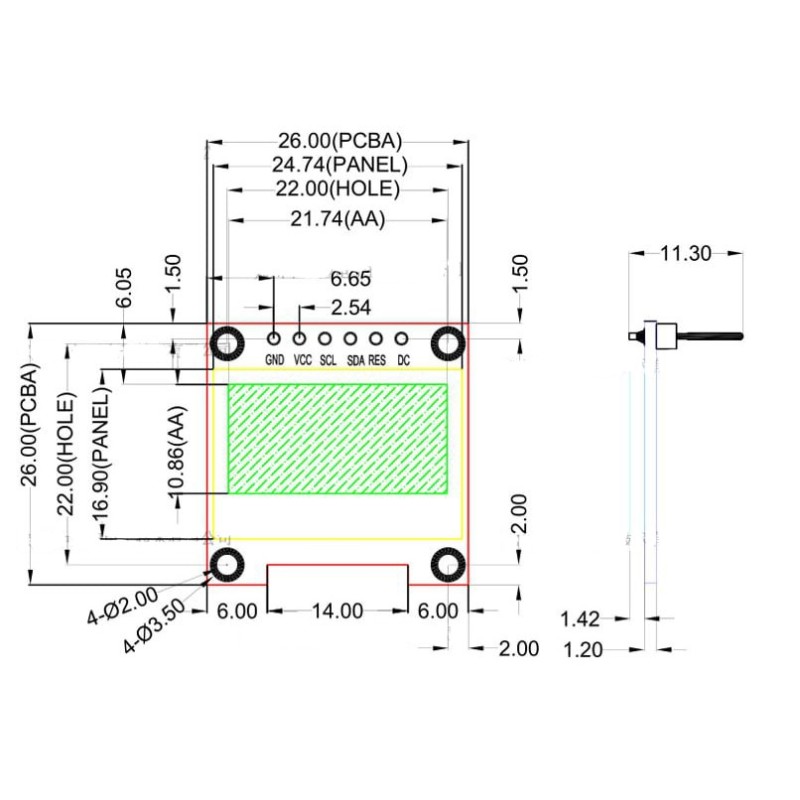

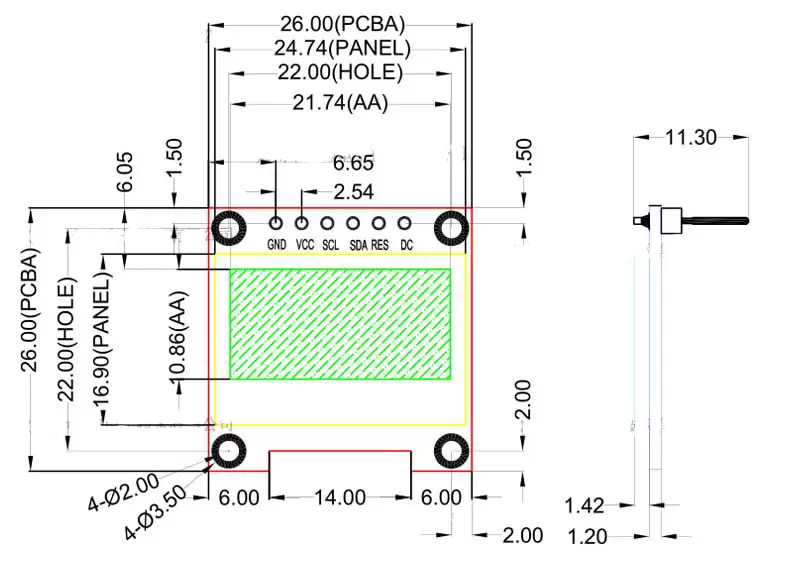

Physical size: 27.3x27.8 (mm)

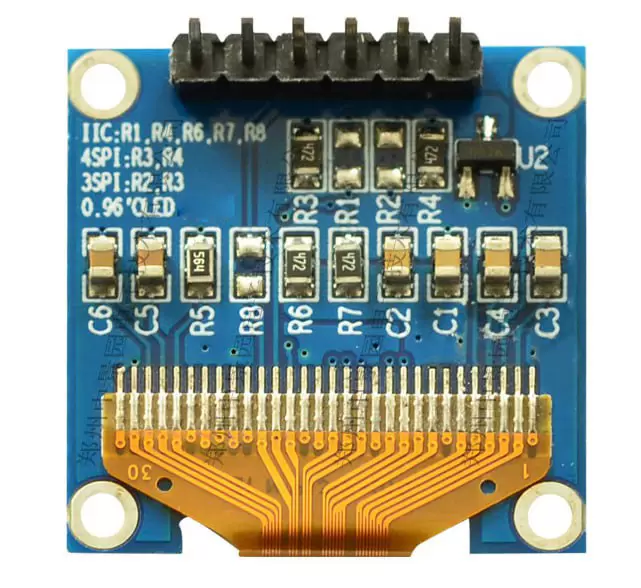

Interface Type:Interface type: 4-wire SPI, 3-wire SPI, IIC interface (default 4-wire SPI interface, available

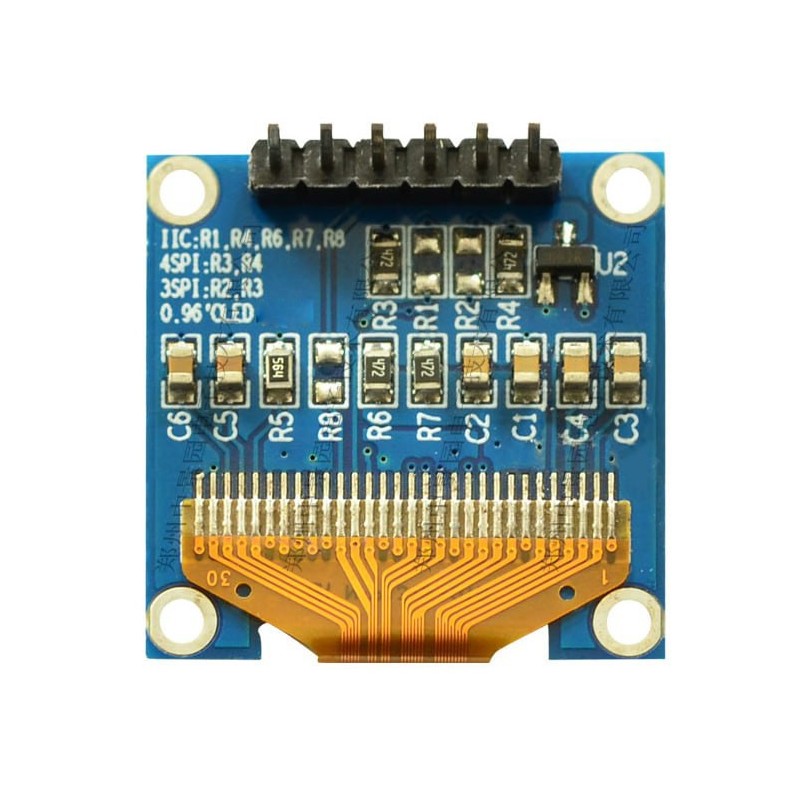

(Switch the rear resistance position to adjust other interfaces)
Number of pins: 6PIN
Display color: Yellow & Blue
Working temperature: -40~85 degrees
Working voltage: 3.3~5V

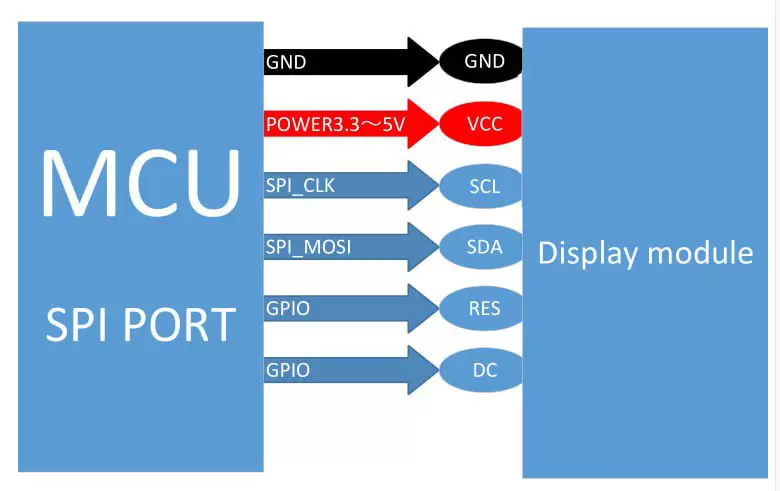

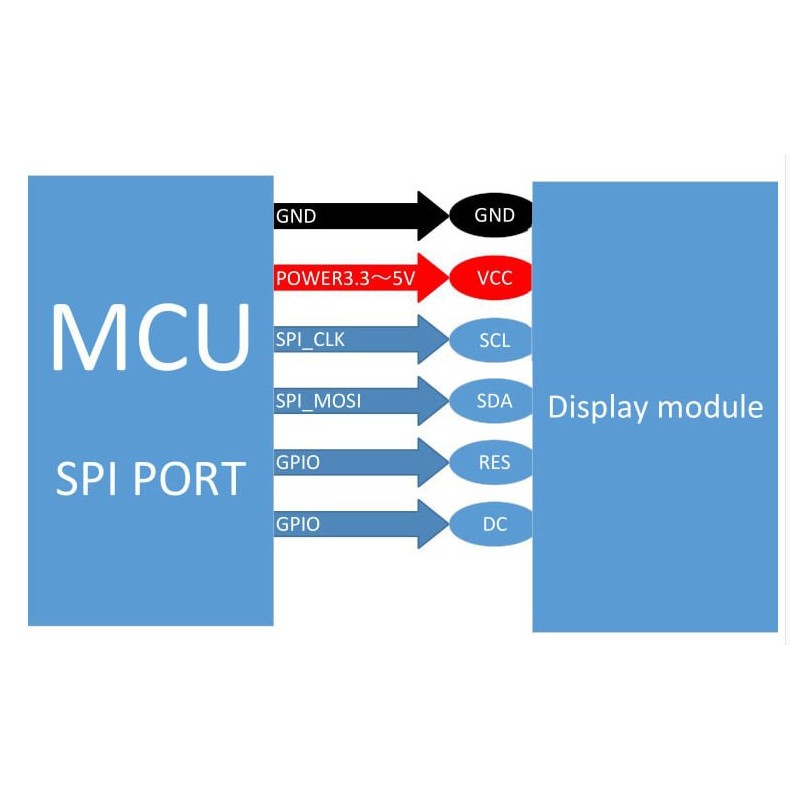

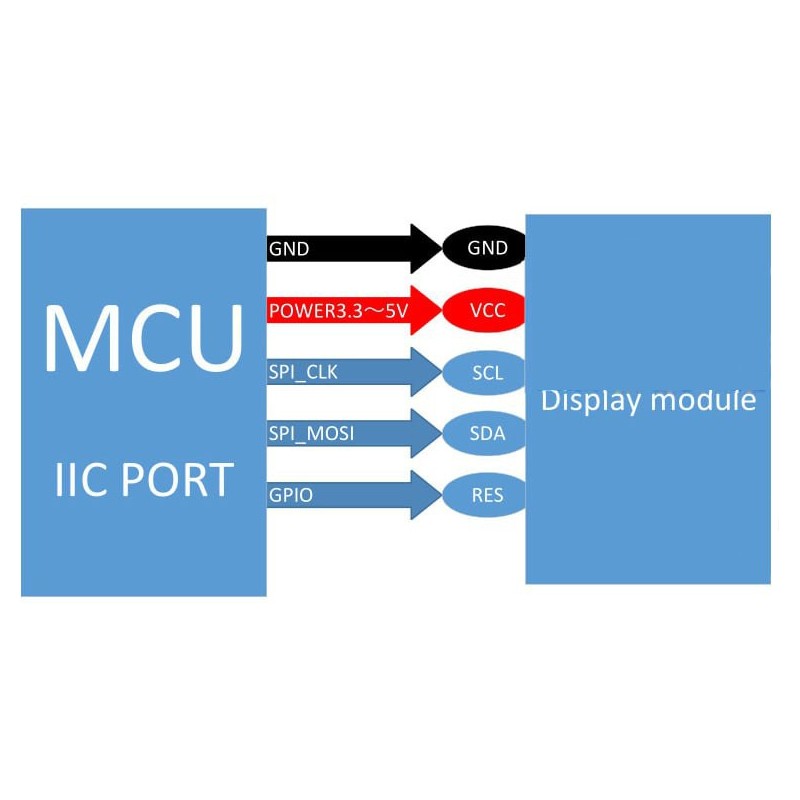

Interface Definition

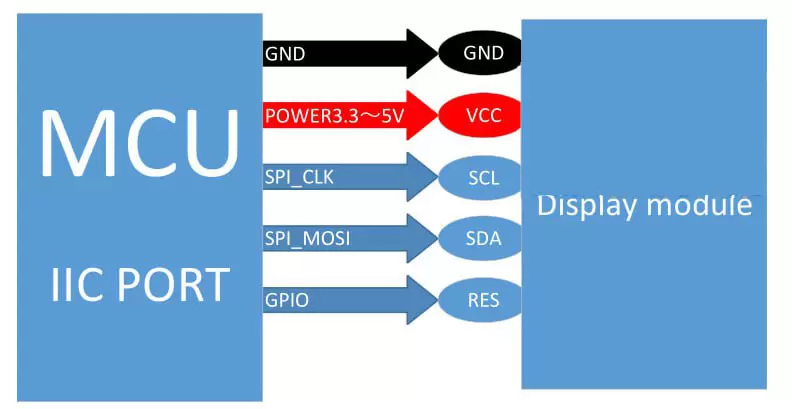

1> GND (Power ground)
2> VCC (Power supply3.3~5V)
3> SCL (SPI clock line when SCL,SPI interface, IIC clock line when IIC interface)
4>SDA (SPI data line for SPI interface ,IIC data line for IIC interface)
5> RES (OLED reset,OLED needs to be reset once after power-on)
6> DC (SPI data / command selection pin, used to set IIC address when IIC interface)

Important note: OLED displays are different from LCDs; OLEDs are self-illuminating; so there is no backlight, and the screen will not react when only power is applied; there must be a correct operation of the program to display them. Please pay attention to this.
