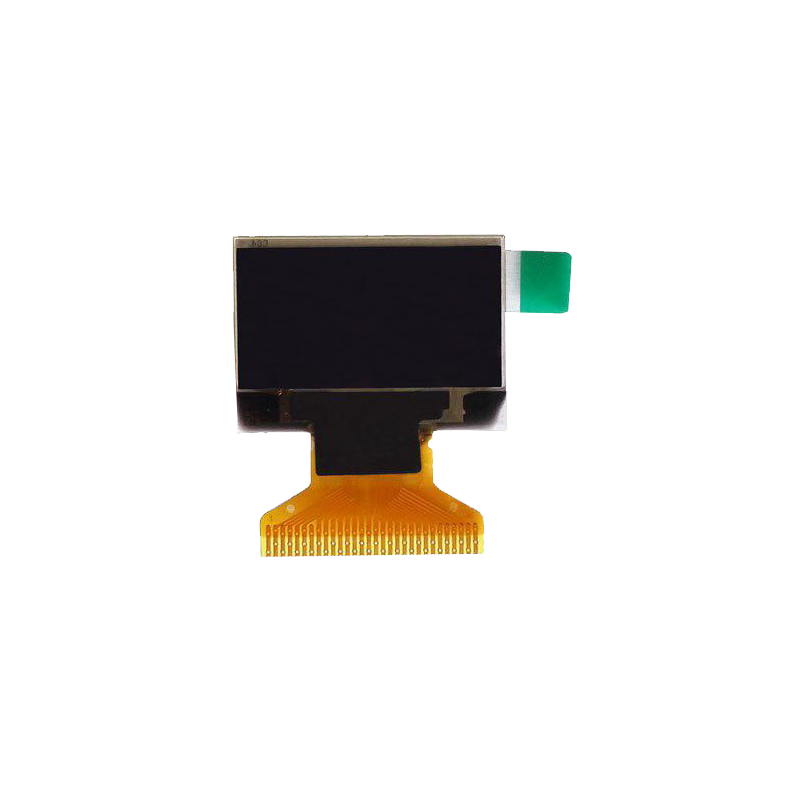

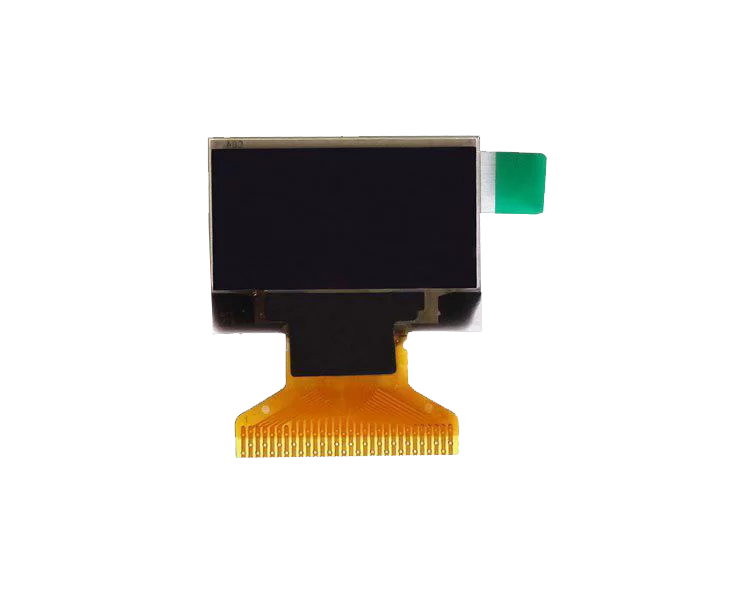

OLED 0.96 inch display 128x64 Blue IIC SPI Parallel / SSD1306

OLED 0.96 inch Blue با رزولیشن 128x64 و با درایور SSD1306  و IIC/SPI/Parallel Interface

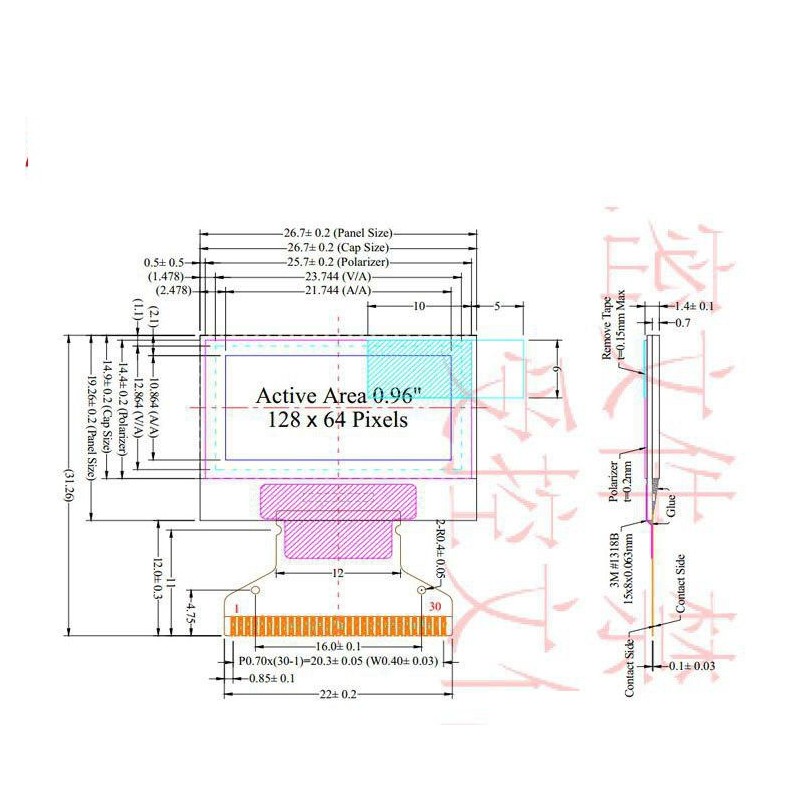

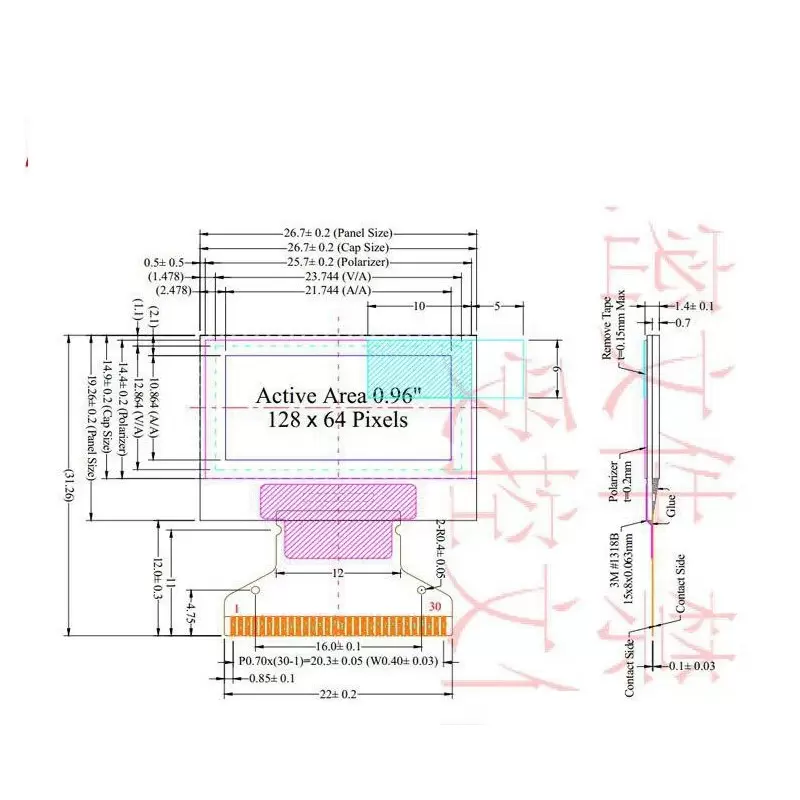

display erea  :21.744*10.864 mm
display erea  :26.70*19.26*1.4 mm
interface type  : 8-bit68xx/80xx parallel,3/4wire SPI,IIC interface

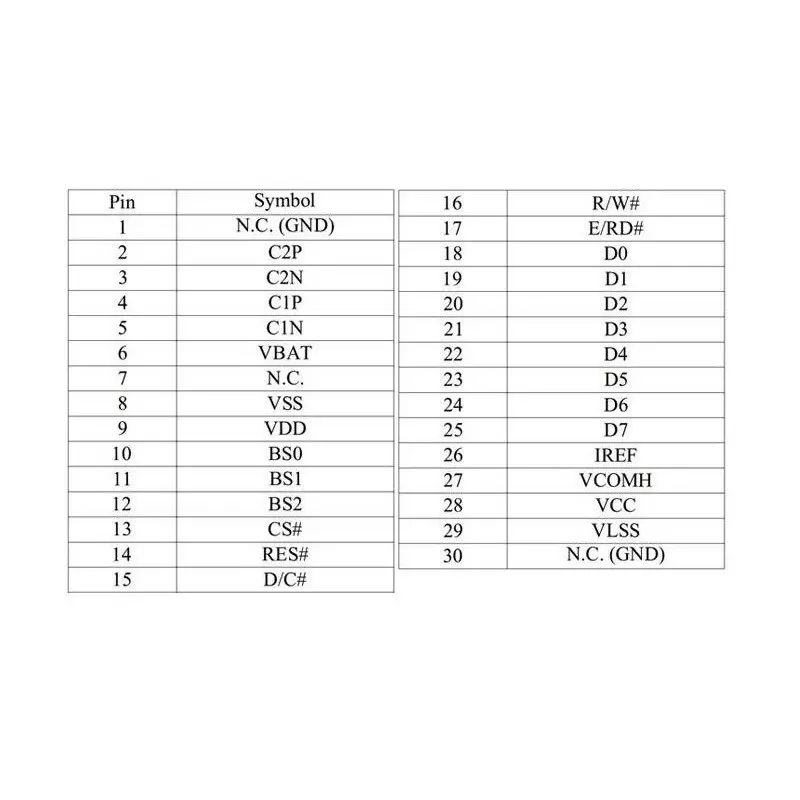

pin number  : 30pin
show color  : blue
pixcle size  : 0.154 *.0154 mm
temperature  : -40 _85
voltage   : 3.3v

لیست مثال ها و موارد موجود در دانلود ویژه:

01- 0.96OLED display schematic
01- Add a new dot drawing line program OLED_0.96 display
02- 0.96OLED Display Data Sheet
03- 0.96OLED display test program
04- OLED anti-white display technical information
05- font-taking software and operation instructions
05- SPI interface arduino connection method
06- Description of the use of IIC interface for seven-pin 0.96-inch OLED
07- 0.96 inch OLED use document novice must see V2.0
09- gift HD 0.96 and 1.3 inch IPS color display data
10- 0.96 inch OLED module structure
0.96 inch oled display Chinese operation method
Medium-sized garden text model description

0.96 OLED Display Test Program:
01- 0.960LED display_arduino_IC_routine
02- 0.96 inch OLED-SPI STM32F407 program - directly with the development board
02- 0.96OLED Display_arduino_SPI_Routine
03- 0.960LED Display_C51 Series_IC_Routine Recommended
04- 0.96OLED Display_C51 Series_SPI_Routine
05- 0.960LED Display STC89C52RC Series_SPI_Routine
06- 0.96 inch OLED SPI interface STM8L051F3 system reference program
07- 0.96 inch OLED IIC interface STM8L051F3 system reference program
08- 0.960LED Display STM8S103K3T6_SPI_Routine
09- 0.96OLED Display_C8051F020 Series_IIC_Routine
10- 0.960LED Display_C8051F020 Series_SPI_Routine
11- 0.960LED Display_C8051F340 Series_IIC_Routine
12- 0.96OLED Display_C8051F340 Series_SPI_Routine
13- 0.960LED Display_MSP430 Series_IIC_Routine
14- 0.960LED Display_MSP430 Series_SPI_Routine
15- STM32F030-0.96 inch OLED-IC communication program
16- STM32F030-0.96 inch OLED-SPI communication program
17- 0.960LED Display STM8 Series_IC_Routine
18- 0.96OLED Display_STM8 Series_SPI_Routine
19- 0.960LED Display STM32F103C8_IC_V1.0
20- 0.960LED Display STM32F103RC_IC_V1.0
23- 0.960LED Display STM32F103ZET6_IIC_V1.0
24- 0.960LED Display STM32ZET Series_SPI_Routine
25- Display STM32F103C8 Series_SPI_Routine
Display_STM32_F103C8 Series 3 Line SPI_Routine
