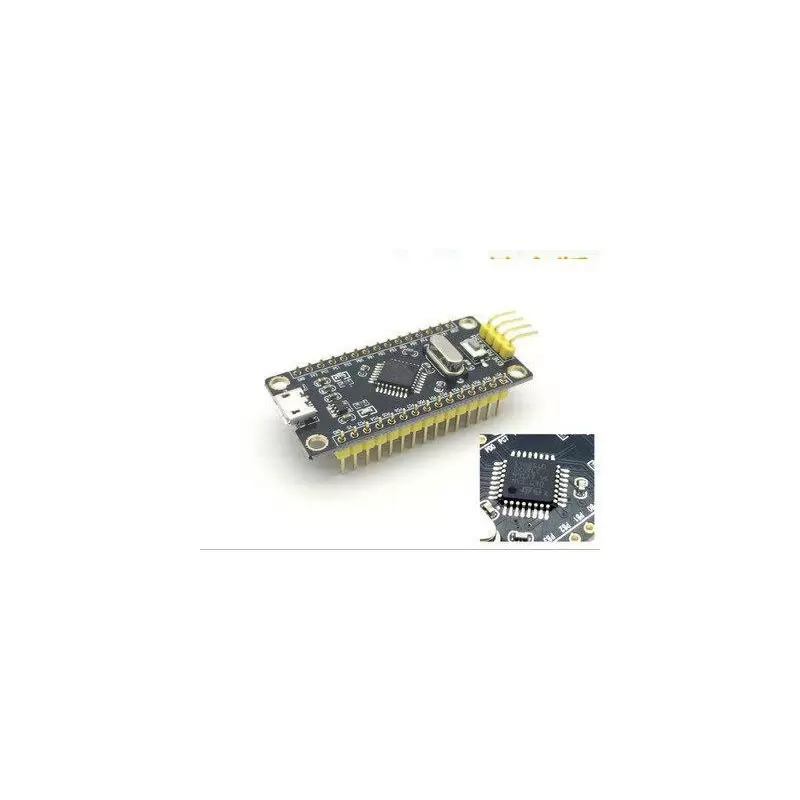

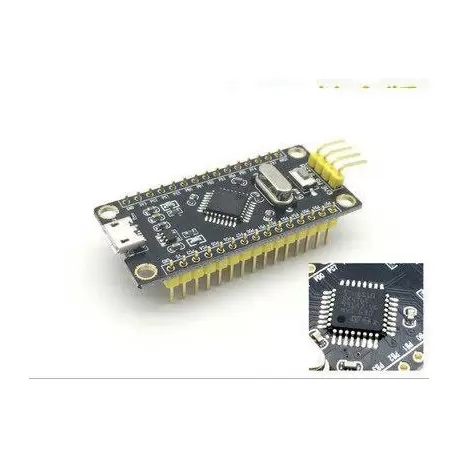

مینی برد STM8S_MiniKit STM8S105K4T6C

he main chip STM8S105K4T6 core board at the factory each pre-programmed the test program, after the power LED lights will even blink, and in order to detect whether the development board is working properly.
The board uses the SWIM interface for debugging and online debugging
Delivery default no solder pin (but the distribution pin need to self-welding!)
Chip Model: STM8S105K4T6

Chip characteristics
Kernel
  Advanced STM8 kernel, with three levels of Harvard
structure

  extended instruction set
Memory
  Medium density program and data memory:
  up to 32K bytes of Flash ; 10K times erase after 55 ° C environment, the data can be saved for 20 years
  Data memory: up to 1K bytes of true data EEPROM ; up to 30 million erase
  RAM : up to 2K bytes
Clock, reset and power management

  3.0 ~ 5.5V operating voltage
  Flexible clock control, 4 main clock sources
Low power crystal oscillator
 External clock input
 User adjustable internal 16MHz RC
 Internal Low Power 128kHz RC
  Clock security system with clock monitoring
  Power management:
  Low power mode ( wait, active shutdown, shutdown )
 The peripherals can be turned off separately
Always turn on low power consumption and power down reset

Interrupt management
 Nested interrupt controller  with 32 interrupts
 6 external interrupt vectors, up to 37 external interrupts

Timers
  2 th 16 -bit general purpose timer with 2 + 3 th CAPCOM channels (the IC , -OC  or  PWM)
  Advanced control timer: 16 bits . 4 th CAPCOM channels . 3 complementary outputs, dead-time insertion and flexible synchronization
  with . 8 bit prescaler . 8 -bit Basic Timer
  Auto wakeup timer
  2 watchdog timer: window watchdog and standalone watchdog

Communication Interface
  with synchronous clock output of UART  , smart cards, infrared IrDA , the LIN interfaces
  SPI interface up to 8Mbit / s
  I 2 C interface up to 400Kbit / s analog-to-digital converter Analog-to-digital converter (ADC)
  10 bit, ± 1LSB of the ADC , up to 10 channels, scan mode and analog watchdog feature

I / O   port
  48 has up packaged chips on the pin 38 is th the I / O , including 16 high sink current output
  very strong I / O design, the reverse current has a very strong capacity

Development support
  single line interface module (SWIM) and debug module (DM) for easy on-line programming and non- intrusive debugging
