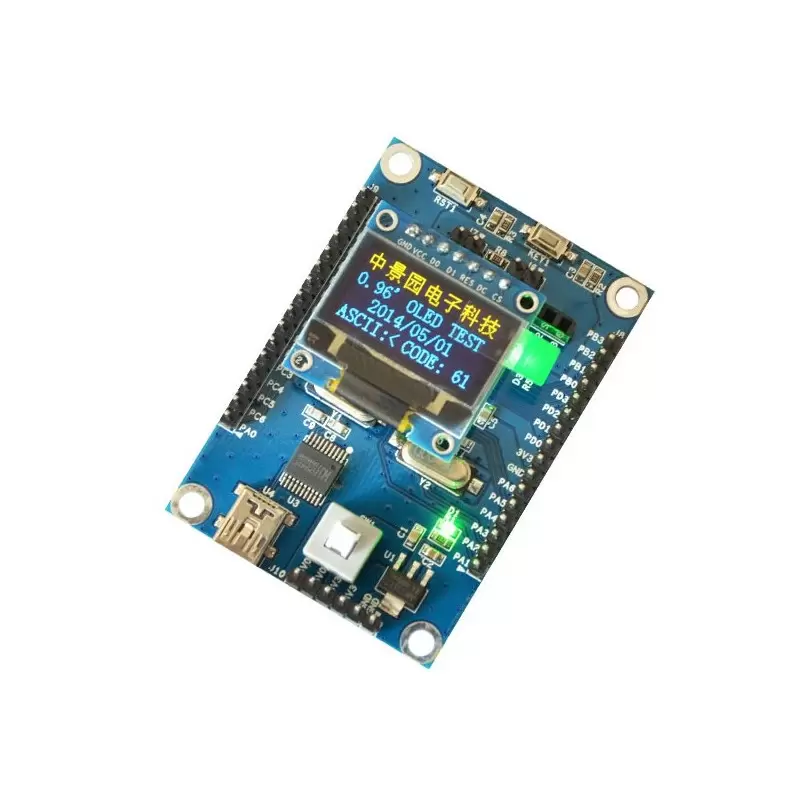

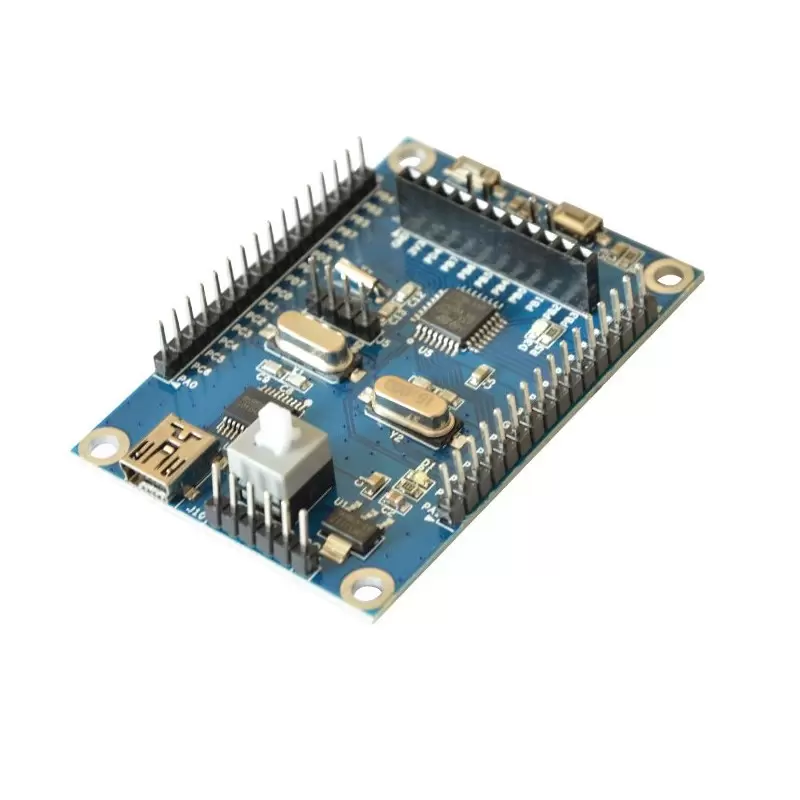

برد STM8L152K4 development board

با خرید این محصول 10 امتیاز وفاداری. سبد شما در مجموع 10 امتیاز وفاداری که می تواند به کوپن تخفیف تبدیل شود به ارزش 50,000 ریال.


نظر و رتبه بندی مشتریان

1439000

محصول جدید

10,080,000 ریال

برد STM8L152K4 development board

برد STM8L152K4 development board


  CPU: STM8L152K4T6
 Whether with USB to TTL: with, CH34OT
Whether with OLED screen: no screen (please contact customer service if necessary); provide reference program
STM8L152K4T6 low-power chip development board, adhere to original intensive work
A large number of spot, automatic placement machine production, to ensure delivery speed and quality
Use the official serial programming software to directly burn code
Routine: Library function in IAR development environment
Schematic: PDF format
Manual: STM8L051 series chip complete manual, STM8L051 chip manual, STM8L low power manual, all in English
Development environment: IAR installation file, STVD installation file, serial port programming software, serial port driver, library, emulator driver.
Power supply mode: Mini USB interface power, SWIM emulator interface power, pin header power

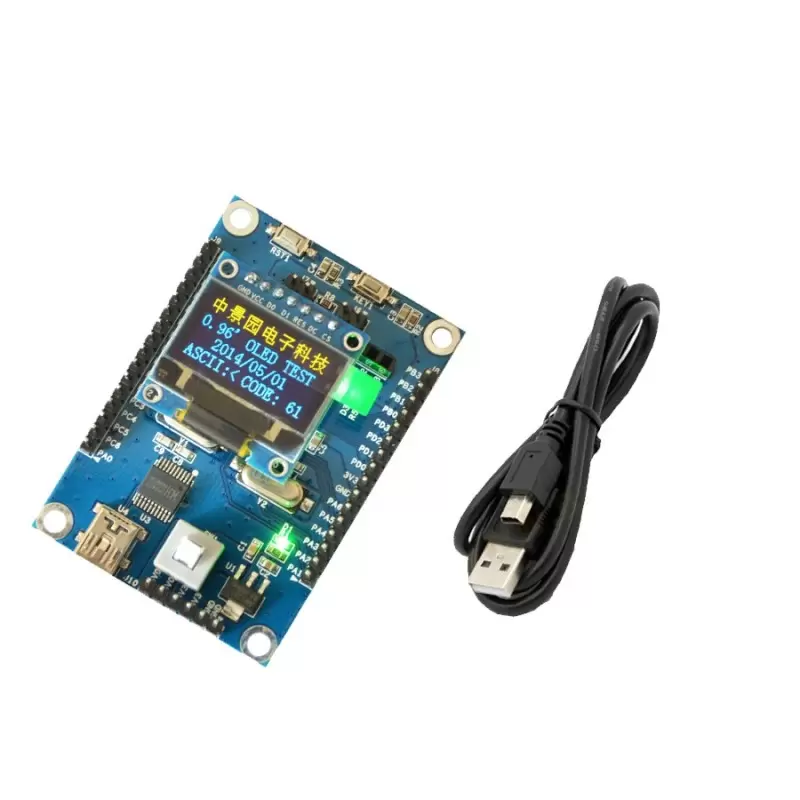

Delivery list: STM8L low-power development board, one high-quality data line, no OLED display
STLINK V2 emulator: For your convenience, you can purchase our STM8 emulator, our emulator onboard 5V 3.3V output, onboard interface protection, onboard overcurrent protection, can simulate
A large number of spot, automatic placement machine production, to ensure delivery speed and quality
Use the official serial programming software to directly burn code

مشخصات میکروی آن  را در زیر می توانید ببینید:

 The medium-density STM8L151x4/6 and STM8L152x4/6 devices are members of the STM8L ultra-low-power 8-bit family. The medium-density STM8L15x family operates from 1.8 V to 3.6 V (down to 1.65 V at power down) and is available in the -40 to +85 °C and -40 to +125 °C temperature ranges.

The medium-density STM8L15x ultra-low-power family features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations.
The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive In-Application debugging and ultra-fast Flash programming.
All medium-density STM8L15x microcontrollers feature embedded data EEPROM and low-power, low-voltage, single-supply program Flash memory.
They incorporate an extensive range of enhanced I/Os and peripherals.
The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.
Six different packages are proposed from 28 to 48 pins. Depending on the device chosen, different sets of peripherals are included.
All STM8L ultra-low-power products are based on the same architecture with the same memory mapping and a coherent pinout.

Key Features

    Operating conditions
        Operating power supply range 1.8 V to 3.6 V (down to 1.65 V at power down)
        Temp. range: - 40 °C to 85, 105 or 125 °C
    Low power features
        5 low power modes: Wait, Low power run (5.1 μA), Low power wait (3 μA), Active-halt with full RTC (1.3 μA), Halt (350 nA)
        Consumption: 195 μA/MHz + 440 μA
        Ultra-low leakage per I/0: 50 nA
        Fast wakeup from Halt: 4.7 μs
    Advanced STM8 core
        Harvard architecture and 3-stage pipeline
        Max freq. 16 MHz, 16 CISC MIPS peak
        Up to 40 external interrupt sources
    Reset and supply management
        Low power, ultra-safe BOR reset with 5 selectable thresholds
        Ultra-low-power POR/PDR
        Programmable voltage detector (PVD)
    Clock management
        1 to 16 MHz crystal oscillator
        32 kHz crystal oscillator
        Internal 16 MHz factory-trimmed RC
        Internal 38 kHz low consumption RC
        Clock security system
    Low power RTC
        BCD calendar with alarm interrupt
        Auto-wakeup from Halt w/ periodic interrupt
    LCD: up to 4x28 segments w/ step-up converter
    Memories
        Up to 32 KB of Flash program memory and 1 Kbyte of data EEPROM with ECC, RWW
        Flexible write and read protection modes
        Up to 2 Kbyte of RAM
    DMA
        4 channels; supported peripherals: ADC, DAC, SPI, I2C, USART, timers
        1 channel for memory-to-memory

    12-bit DAC with output buffer
    12-bit ADC up to 1 Msps/25 channels
        T. sensor and internal reference voltage
    2 ultra-low-power comparators
        1 with fixed threshold and 1 rail to rail
        Wakeup capability
    Timers
        Two 16-bit timers with 2 channels (used as IC, OC, PWM), quadrature encoder
        One 16-bit advanced control timer with 3 channels, supporting motor control
        One 8-bit timer with 7-bit prescaler
        2 watchdogs: 1 Window, 1 Independent
        Beeper timer with 1, 2 or 4 kHz frequencies
    Communication interfaces
        Synchronous serial interface (SPI)
        Fast I2C 400 kHz SMBus and PMBus
        USART (ISO 7816 interface and IrDA)
    Up to 41 I/Os, all mappable on interrupt vectors
    Up to 16 capacitive sensing channels supporting touchkey, proximity, linear touch and rotary touch sensors
    Development support
        Fast on-chip programming and non intrusive debugging with SWIM
        Bootloader using USART
    96-bit unique ID


لیست موارد موجود در دانلود ویژه:

لیست مثال ها:



نظرات

ثبت نام مورد نیاز نمی باشد!

1 سوال(ها) پاسخ داده خواهد شد

اگر سوال و یا نظری دارید مطرح نمائید

(اختیاری)
*(برای دریافت پاسخ مورد نیاز می باشد)
  • ارسال شده توسط داریوش
    در 24/04/1399
    سلام این برد با Display عرضه میشود؟ پاسخ:
    سلام این بردها تک هستند و برای نمایشگر باید جدا گانه تهیه فرمایید
