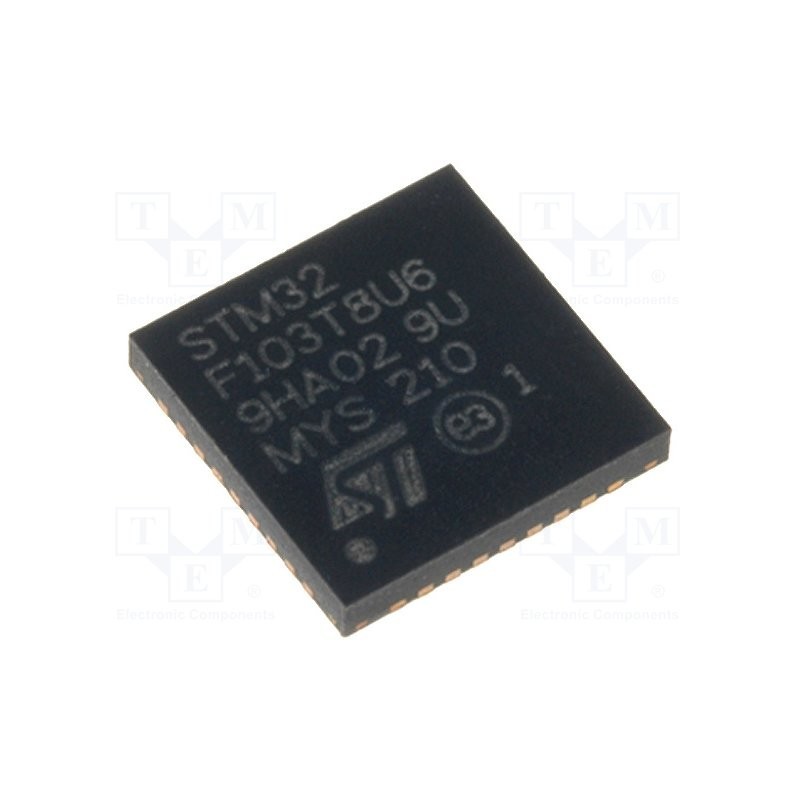

میکروکنترلر STM32F103T8U6 / اورجینال New and original+گارانتی

The STM32F103T8U6 is a part of STM32 Series Medium-density performance line ARM-based 32-bit Microcontroller with 64 or 128 KB Flash, USB, CAN, 7 timers, 2 ADCs, 9 communication interfaces. The STM32F103xx medium-density performance line family incorporates the high-performance ARM Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

Part Number:
    STM32F103T8U6
Manufacturer:
   STMicroelectronics
Sub Category:
    Microcontrollers
Clock Frequency Max:
    16.0 MHz
Reach Compliant:
    Yes
Package Shape:
    SQUARE
Eu Ro Hs Compliant:
    Yes
Terminal Form:
    NO LEAD
Qualification Status:
    Not Qualified
Jesd 609 Code:
    e3
Moisture Sensitivity Level:
    3
Cpu Family:
   CORTEX-M3
Adc Channels:
    YES
Surface Mount:
    YES
Power Supplies:
    2.5/3.3
Rom Words:
    65536
Terminal Pitch:
    0.5 mm
Microprocessor Microcontroller Peripheral Ic Type:
    MICROCONTROLLER, RISC
Pwm Channels:
    YES
Dac Channelsl:
    NO
Mfr Package Description:
    6 X 6 MM, 0.50 MM PITCH, VFQFPN-36
Dma Channels:
    YES
Ram Bytes:
    20480.0
Peak Reflow Temperature Cel:
    260
Terminal Finish    Matte Tin:
 (Sn) - annealed
Number Of Terminals:
    36
Terminal Position:
    QUAD
Status:
    Active
Description:
    32-BIT, FLASH, 72MHz, RISC MICROCONTROLLER, QCC36
Rom Programmability:
    FLASH
Operating Temperature Min:
    -40.0 Cel
Supply Voltage Max:
    3.6 V
Speed:
    72.0 MHz
Temperature Grade:
    INDUSTRIAL
Time Peak Reflow Temperature Max S:
    NOT SPECIFIED
Supply Voltage Min:
    2.0 V
Part Category:
    Microprocessors/Microcontrollers/Peripheral ICs
Supply Voltage Nom:
    3.3 V
Operating Temperature Max:
    105.0 Cel
Supply Current Max:
    50.0 mA
Length:
    6.0 mm
Technology:
    CMOS
Seated Height Max:
    1.0 mm
Number Of IO Lines:
    26.0
Package Code:
    HVQCCN
Bit Size:
    32
