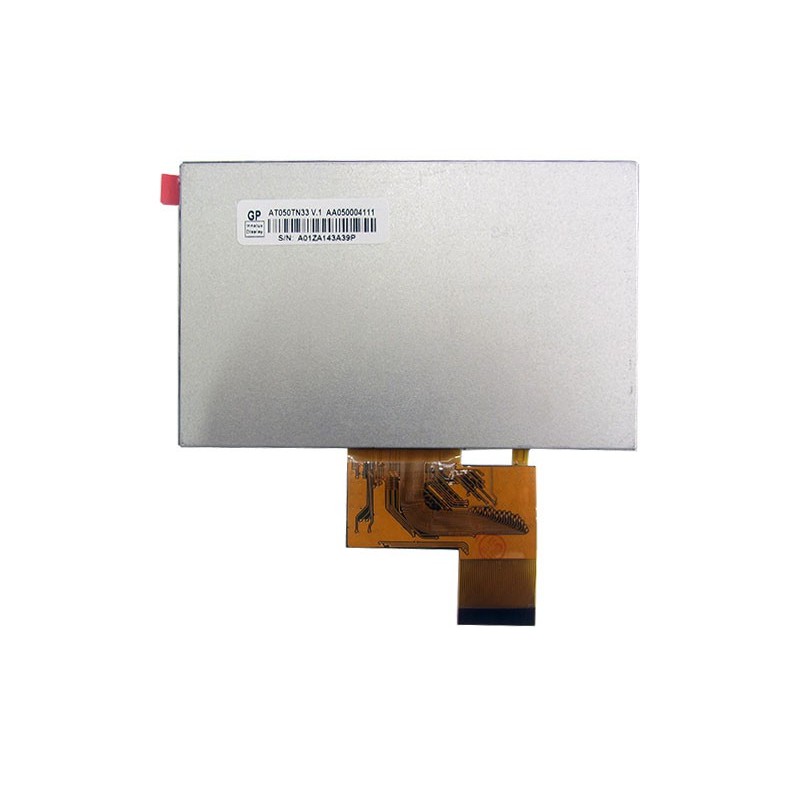

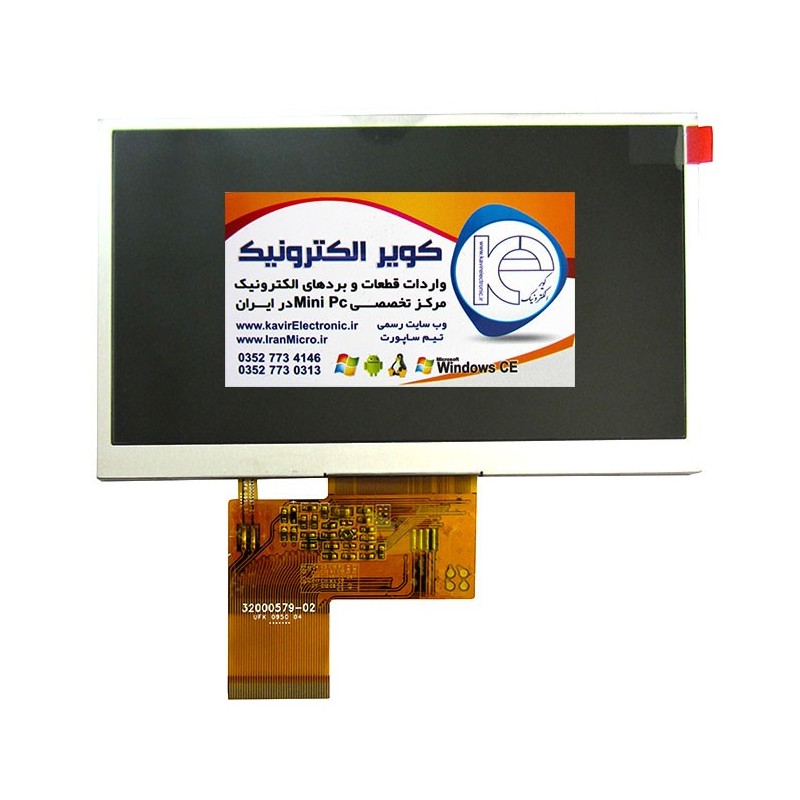

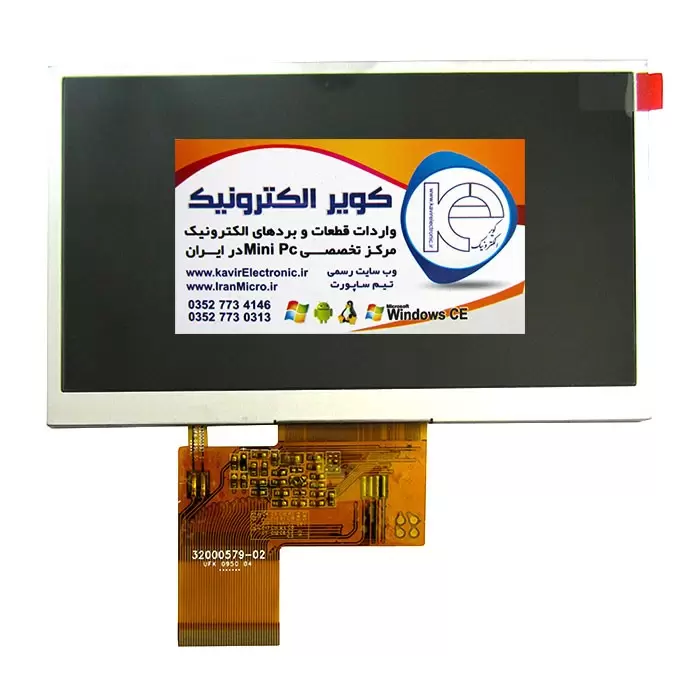

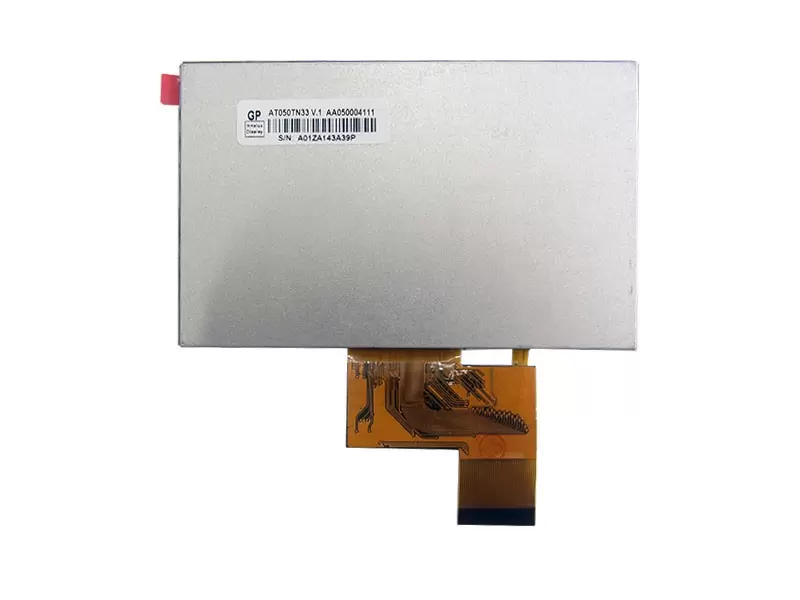

السیدی 5.0 اینچ اورجینال INNOLUX رزولیشن 272*480 بدون تاچ AT050TN33 V.1 tft 5 inch گرید +A

این السیدی 5 اینچ از کیفیت خوبی برخودار می باشد و کپی اینولوکس می باشد.

این السیدی گرید A میباشد. توضیحات در مورد مشخصات گرید بندی السیدی و ال ای دی ها را میتوانید در مقاله زیر مشاهده کنید.
برای مشاهده مقاله گرید اینجا کلیک کنید.

Basic Information

Panel Brand: INNOLUX

Panel Model: AT050TN33 V.1

Model Alias: AT050TN33 V1

Panel Type: a-Si TFT-LCD , Panel

Application: Portable Navigation Device, Pocket TV, MP4 PMP, Automotive Display

Operating Temperature: -20 ~ 70 °C=

Storage Temperature: -30 ~ 80 °C

Specific Feature: Antiglare Sureface, Landscape type, White LED Backlight, Wide Aspect Ratio

Mechanical Features

Panel Size: 5.0 inch

Dot Resolution: 480(RGB)×272 (WQVGA)

Pixel Configuration: RGB Vertical Stripe

Pixel Density: 109 PPI

Aspect Ratio: 16:9 (H:V)

Form Factor: Flat Rectangle Display

Dot Pitch: 0.077×0.231 mm (H×V)

Pixel Pitch: 0.231×0.231 mm (H×V)

Weight: 65g (Typ.)

Surface: Antiglare

Active Area: 110.88×62.832 mm (H×V)

Bezel Area: 113.90×65.85 mm (H×V)

Outline Dimension: 120.7×75.8 mm (H×V)

Outline Depth: 3.1±0.2 mm

Landscape or Portrait: Landscape type

Touch Panel: Without

Optical Features

Display Mode: TN, Normally White, Transmissive

Brightness: 350 cd/m² (Typ.)

Contrast Ratio: 500 : 1 (Typ.) (Transmissive)

Display Color: 16.7M (8-bit)

Color Gamut: 50% NTSC (CIE1931)

Response Time: 10/15 (Typ.)(Tr/Td)

Viewing Angle: 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)

Viewing Direction: 6 o'clock

White color Chromaticity: Wx:0.310; Wy:0.330

White Variation: 1.33/1.43 (Typ./Max.)(9 points)

Electronics Feature

Reverse Scan: No

Total Power Consumption: 855mW (Typ.)

Time Controller (T-CON): Embedded T-CON

Backlight System

Lamp Position: Edge light type

Lamp Type: WLED

Lamp Amount: 6S2P

Lamp Shape: Array

Lamp Life Time: 20K(Min.) (Hours)

Lamp Voltage: 19.8±1.2V

Lamp Current: 40±4mA

Lamps Power Consumption: 792mW (Typ.)

Interface Type: Included in panel signal interface

Lamp Driver Board: No

Signal Interface

Signal Category: TTL

Signal Class: Parallel RGB (1 ch, 8-bit)

Input Voltage for Panel: 3.3V (Typ.)

Input Current for Panel: 19/25mA (Typ./Max.)

Panel Power Consumption: 63mW (Typ.)

oltage for Display Signals: GND≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD

Interface Type: FPC

Signal Interface: Brand    Model    Pin Pitch    Pins    Amount    Configuration

                                   0.5 mm     40 pins     1 pcs     DRGB-40P1C8B-085A
