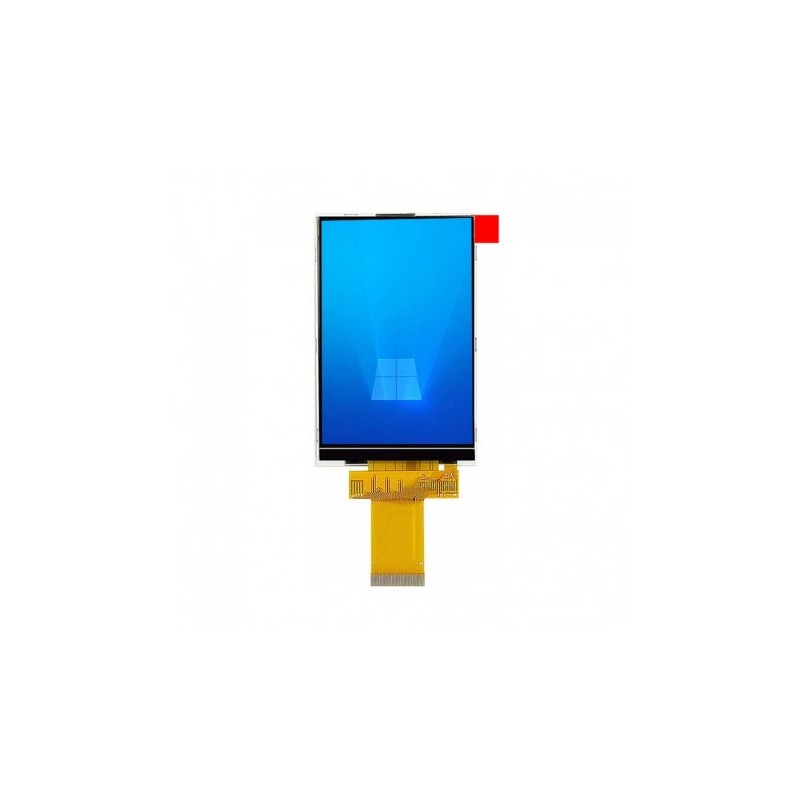

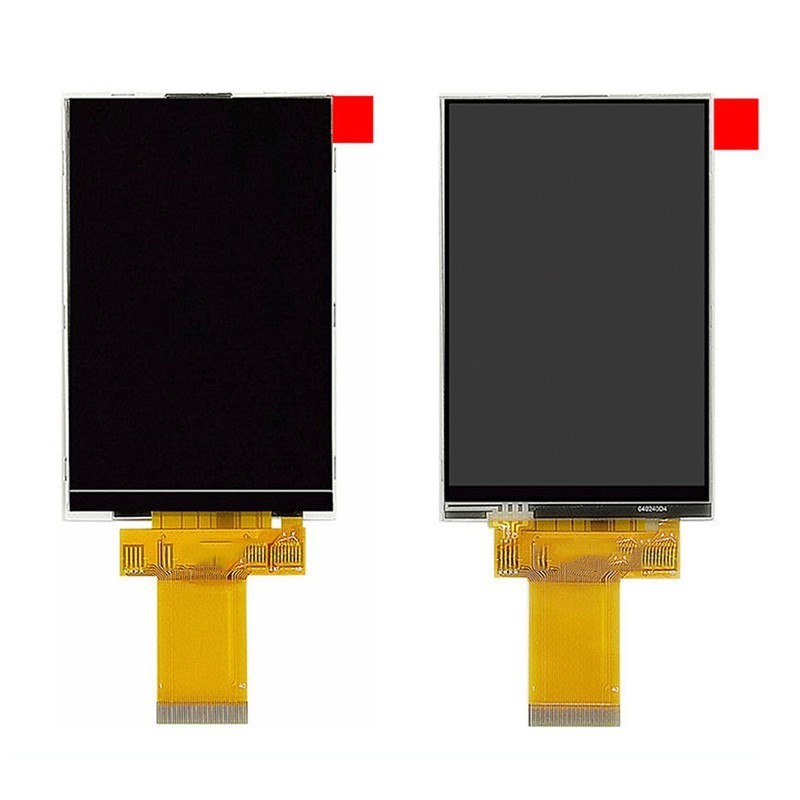

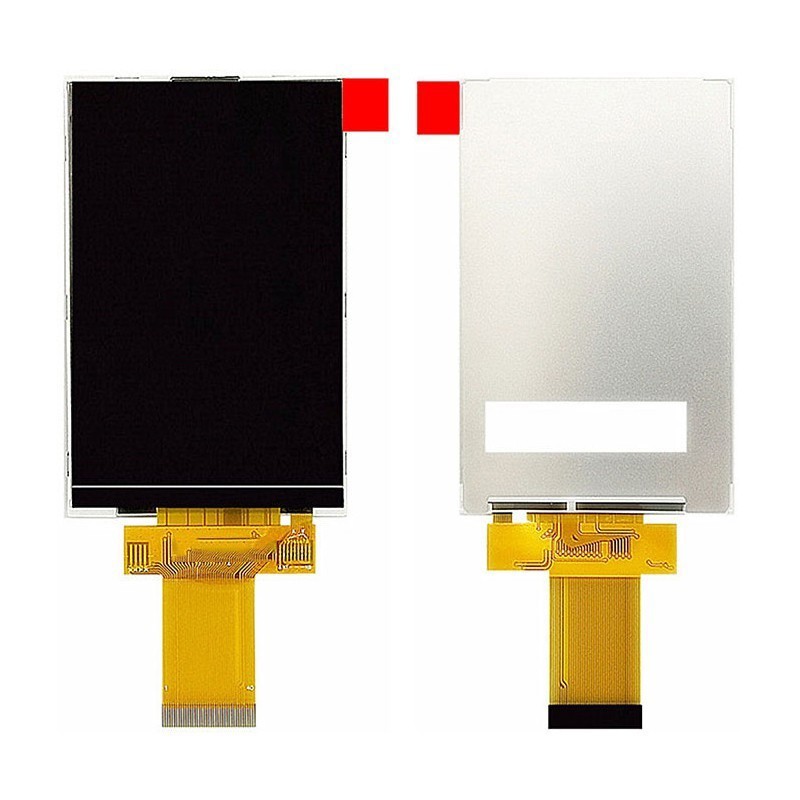

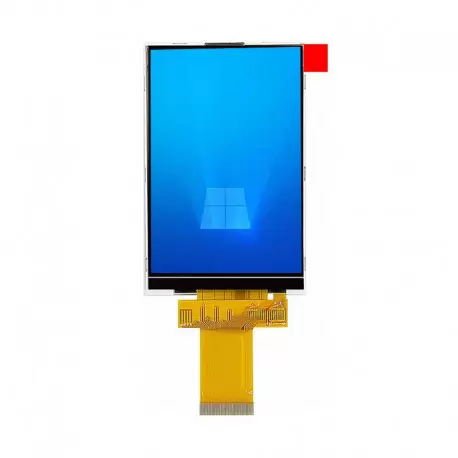

السیدی 4.0 اینچ TFT LCD 4 inch - 320x480 Without Touch - 3 Line-SPI/4 Line-SPI/8bit/16bit interface - ili9488

السیدی 4.0 اینچ بدون تاچ TFT LCD 4 inch - Without Touch -  ili9488 با رزولیشن 320x480

این السیدی قابلیت اتصال به سوکت 40 پین را دارا می باشدو قابلیت راه اندازی به صورت Parallel و SPI است

Pin 1: XL
Pin 2: YU
Pin 3: XR
Pin 4: YD
Pin 5: GND
Pin 6: VDDI
Pin 7: VDDA
Pin 8: TE
Pin 9: CSX/SPI_CS
Pin 10: DCX/SPI-4
Pin 11: WRX/SPI SCL
Pin 12: RDX
Pin 13: SPI_SDI/SDA
Pin 14: SPI_SDO
Pin 15: RESET
Pin 16: GND
Pin 17: DB0
Pin 18: DB1
Pin 19: DB2
Pin 20: DB3
Pin 21: DB4
Pin 22: DB5
Pin 23: DB6
Pin 24: DB7
Pin 25: DB8
Pin 26: DB9
Pin 27: DB10
Pin 28: DB11
Pin 29: DB12
Pin 30: DB13
Pin 31: DB14
Pin 32: DB15
Pin 33: LED-A
Pin 34: LED-K
Pin 35: LED-K
Pin 36: LED-K
Pin 37: GND
Pin 38: IM0
Pin 39: IM1
Pin 40: IM2

Size: 4.0 inch
Material: TFT LCD
Control chip:  ili9488
Resolution: 320xRGBx480 The display direction can be adjusted, both horizontal and vertical

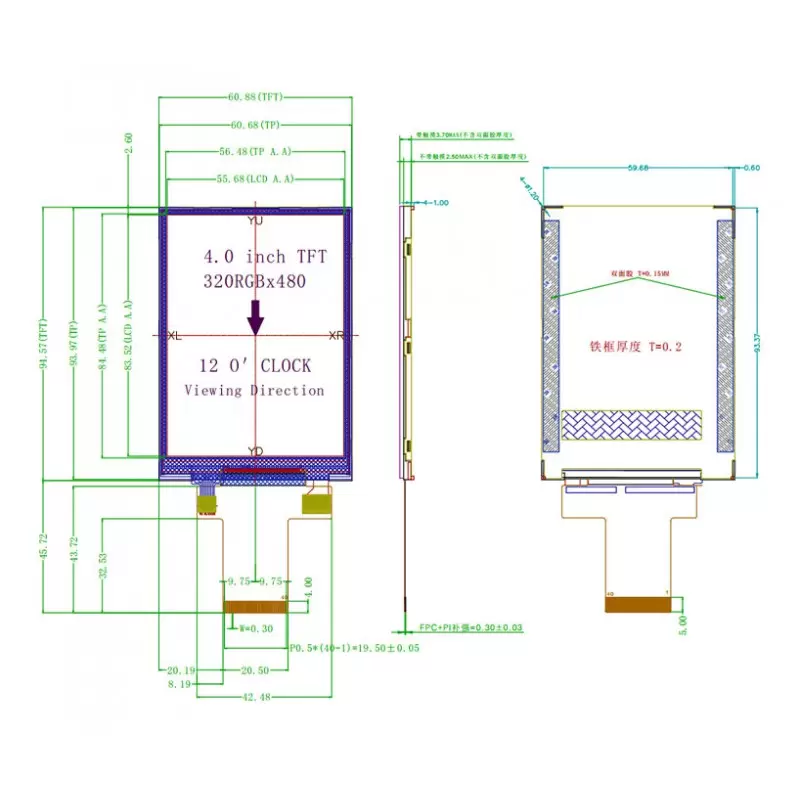

Display area: 55.68(W)*83.52 (H)mm
Dimension: 60.88(W)*94.57(H)*3.70(T)
Interface Type: 3 Line-SPI/4 Line-SPI/8bit/16bit interface
Backlight type: LED*8
Voltage: 2.8V~3.3V
Current: 120ma
Power consumption: 0.43W
Working temperature: -20~70 degrees
Viewing direction: 12 o'clock
Touch type: With Touch
Number of pins: 40PIN (0.5mm pitch FPC socket)
