السیدی 4.0 اینچ با تاچ TFT LCD 4.0 inch with capacitive touch - 320x480- SPI / Pararllel - ST7796U

السیدی 4.0 اینچ با تاچ TFT LCD 4.0 inch with capacitive touch - 320x480- SPI / Pararllel -

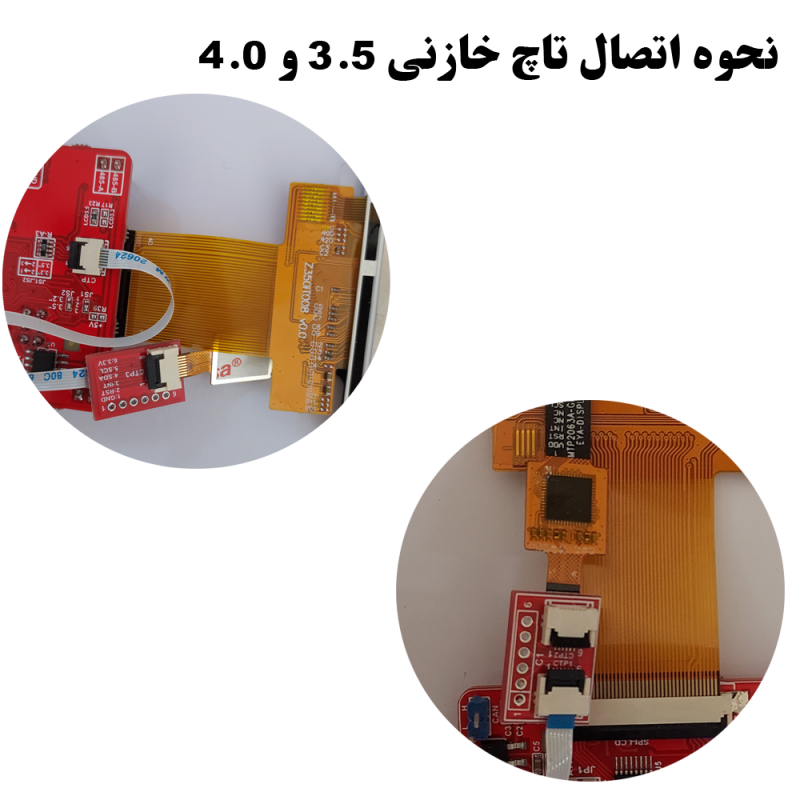

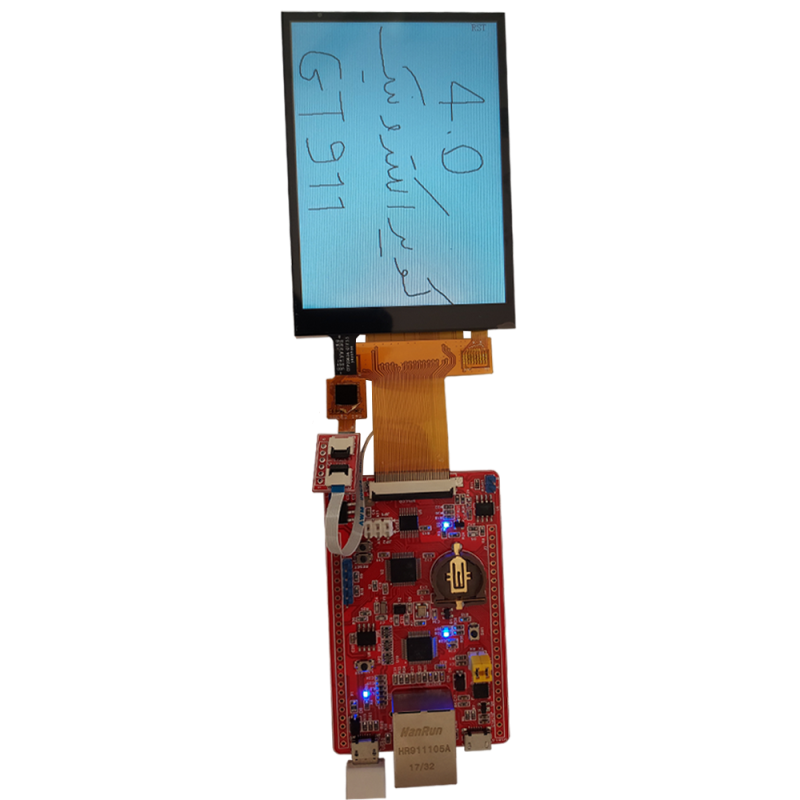

این السیدی برای اتصال نیاز به یک رابط دارد که برای خرید این رابط به محصولات پیشنهادی مراجعه کنید  و همچنین این السیدی  با برد STM 32F103C8T6 راه اندازی می شود و مثال های موجود برای این برد می باشد .

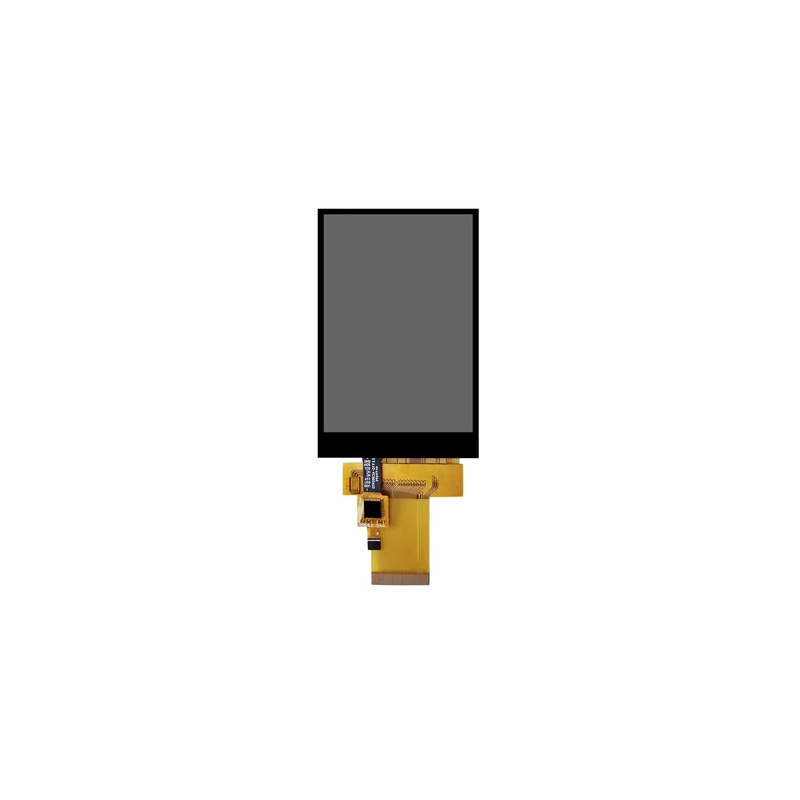

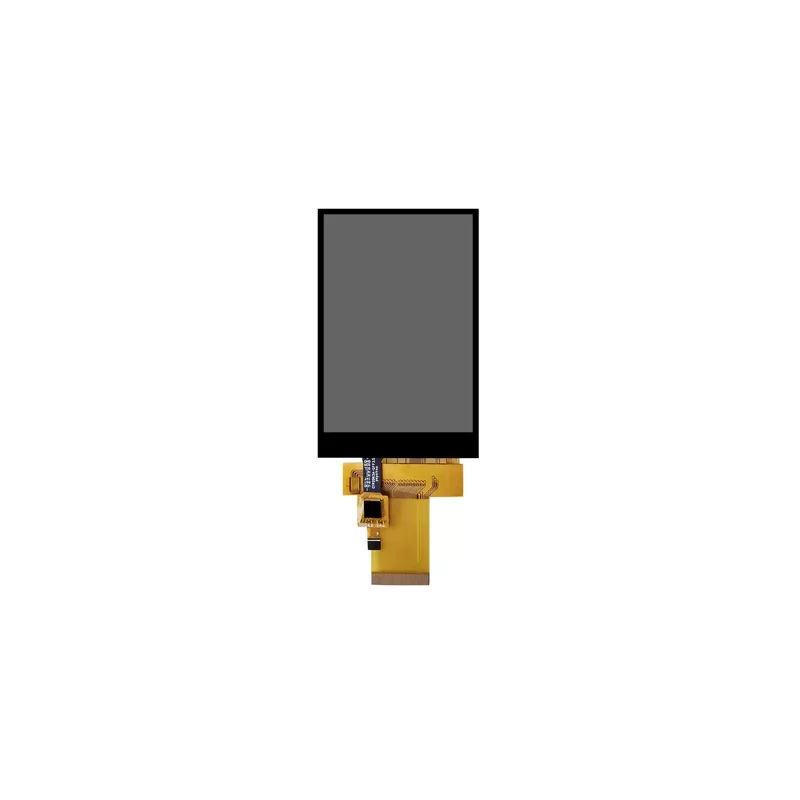

- Product type: 4-inch TFT screen
- Resolution: 320 x RGB x 480
- Interface: RGB565
- Processor: 3 sets SPI (1/4 set, SPI 1/11/MCU-8, 位/1/MCU-16 位/1)
- Storage: ST7796U/ILI9488
- Memory: GT911
- Operating voltage: 5V
- Working temperature: 60.88°C (94.57°F) to 65°C (149°F)
- Storage temperature: 60.88°C (94.57°F) to 65°C (149°F)
- Humidity: 12% (relative humidity)
- Material: Not specified/Industrial grade flame retardant material

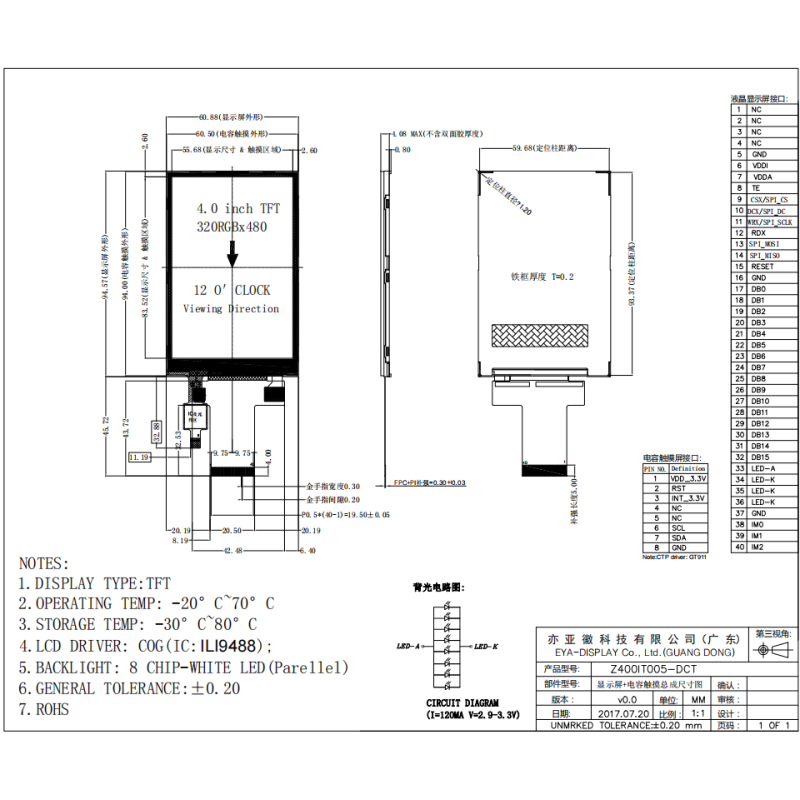

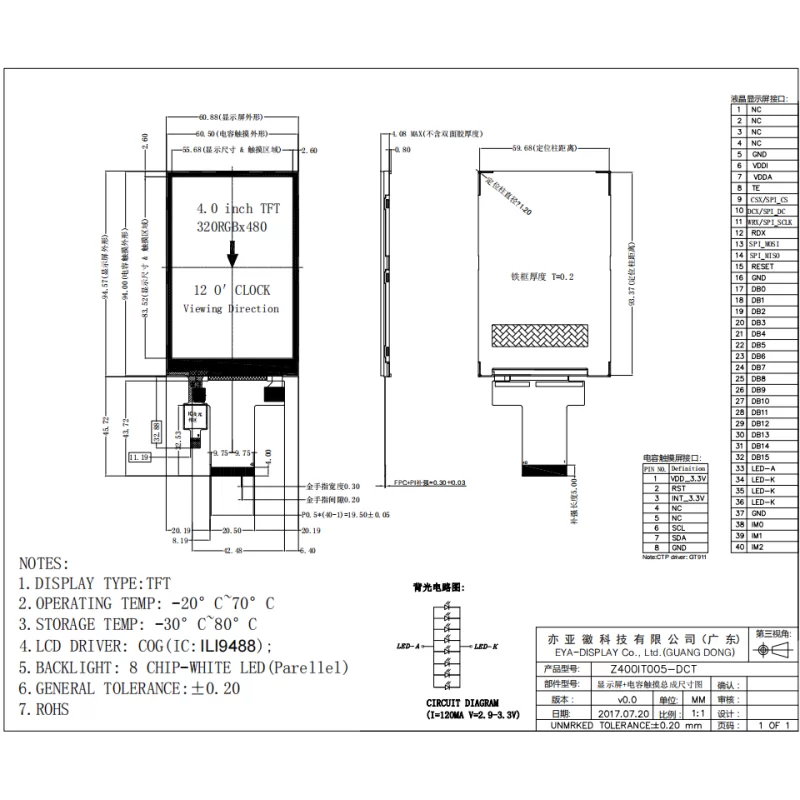

- Pin number 1-4: NC (Not Connected)
- Pin 5: GND
- Pin 6: VDD
- Pin 7: VDDI
- Pin 8: TE
- Pin 9: CSX, SPI_CS
- Pin 10: DCX, SPI_DC
- Pin 11: WRX, SPI_SCL
- Pin 12: RDX
- Pin 13: SPI_MOSI
- Pin 14: SPI_MISO
- Pin 15: RESET
- Pin 16: GND
- Pin 17-32: DB0-DB15
- Pin 33: LED-A
- Pin 34-36: LED-K
- Pin 37: GND
- Pin 38: IM0
- Pin 39: IM1
- Pin 40: IM2
- Pin 41: GND
- Pin 42: NC

- Function description:
  - NC: Not Connected
  - GND: Ground
  - VDD: Power supply (1.8V to 3.3V)
  - VDDI: Interface power supply (1.8V to 3.3V)
  - TE: Tear effect signal
  - CSX, SPI_CS: Chip select
  - DCX, SPI_DC: Data/command selection
  - WRX, SPI_SCL: Write clock
  - RDX: Read signal
  - SPI_MOSI: Master out slave in
  - SPI_MISO: Master in slave out
  - RESET: Reset
  - DB0-DB15: Data bus
  - LED-A: LED anode
  - LED-K: LED cathode
  - IM0, IM1, IM2: Interface mode selection
  - 0: 0
  - 1: 1

- Remarks:
  - NC: Not Connected
  - GND: Ground
  - VDD: Power supply (1.8V to 3.3V)
  - VDDI: Interface power supply (1.8V to 3.3V)
  - TE: Tear effect signal
  - CSX, SPI_CS: Chip select
  - DCX, SPI_DC: Data/command selection
  - WRX, SPI_SCL: Write clock
  - RDX: Read signal
  - SPI_MOSI: Master out slave in
  - SPI_MISO: Master in slave out
  - RESET: Reset
  - DB0-DB15: Data bus
  - LED-A: LED anode
  - LED-K: LED cathode
  - IM0, IM1, IM7: Interface mode selection
  - 0: 0
  - 1: 1
  - MCU 8-bit: MCU 8-bit interface
  - MCU 16-bit: MCU 16-bit interface
  - RGB: RGB interface
  - SPI: SPI interface
