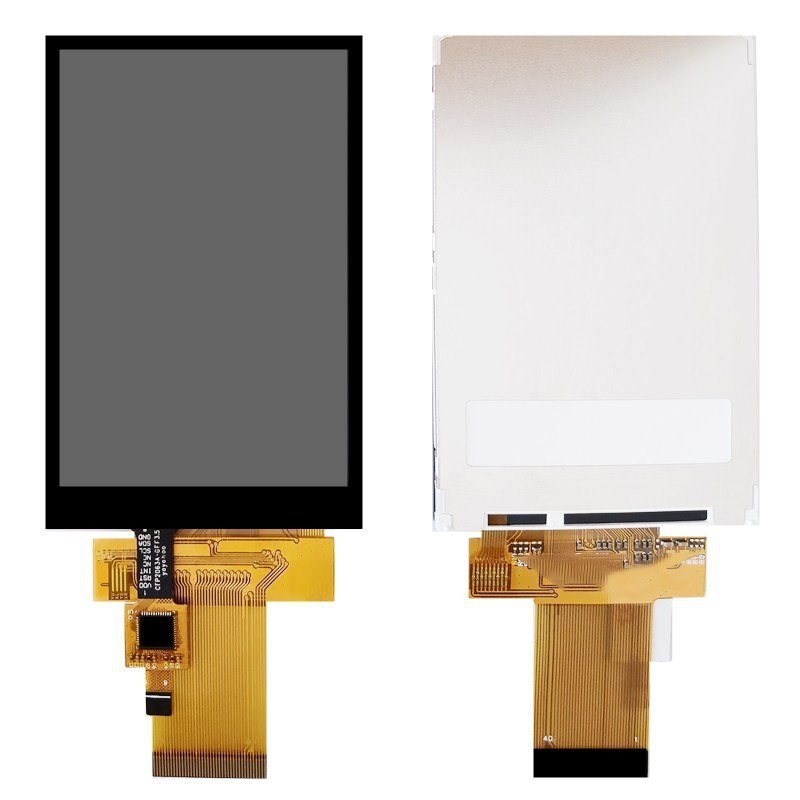

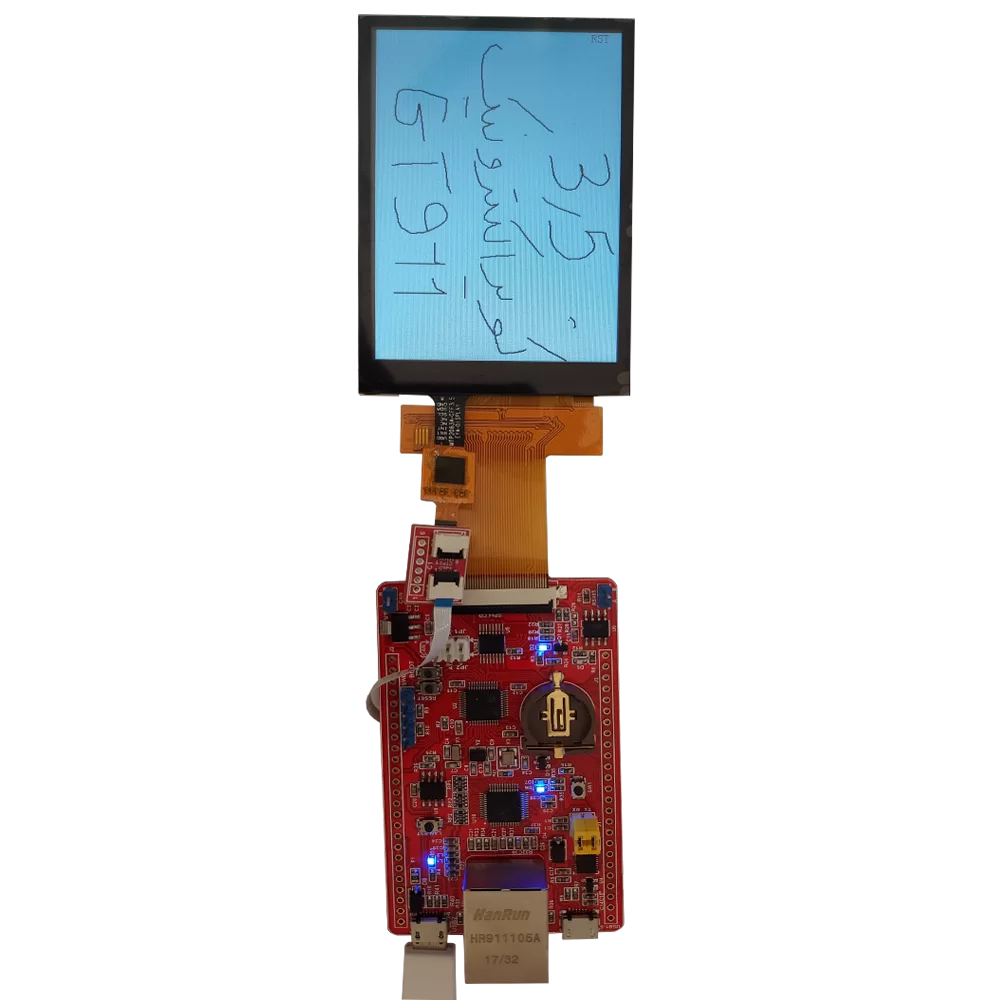

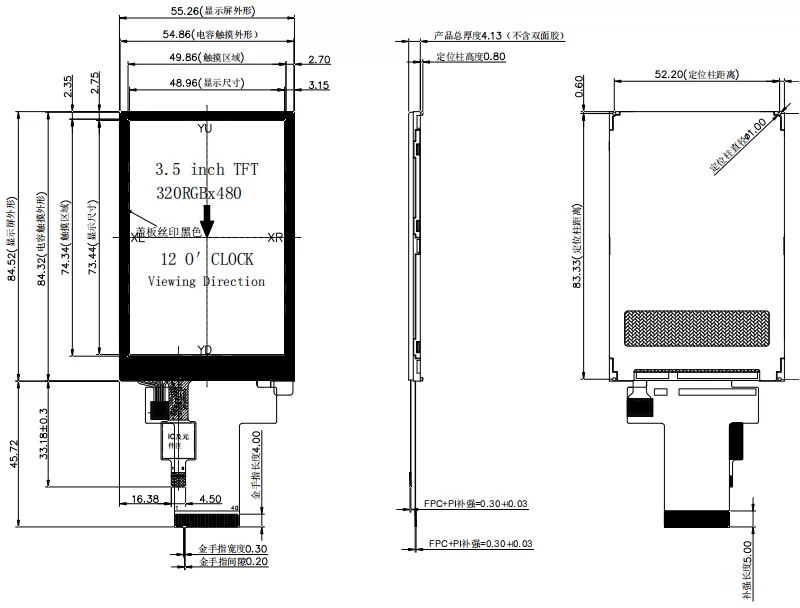

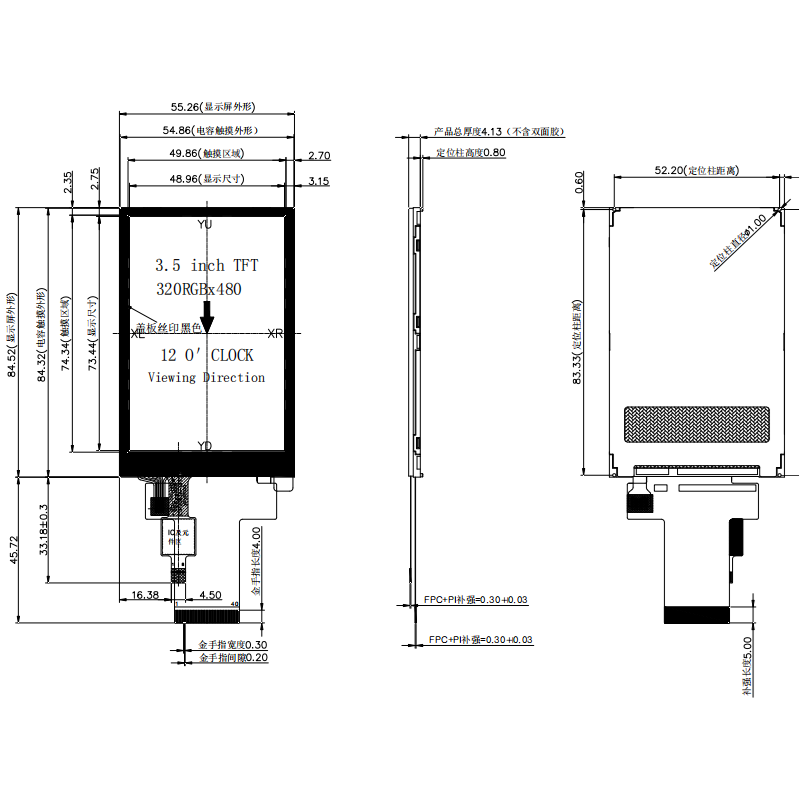

السیدی 3.5 اینچ با تاچ TN 3.5-inchTFT LCD with capacitive touch - 320x480 - SPI/Pararllel - ILI9488

السیدی 3.5 اینچ با تاچ TN 3.5-inchTFT LCD  with  capacitive touch - 320x480 - SPI/Pararllel - ILI9488

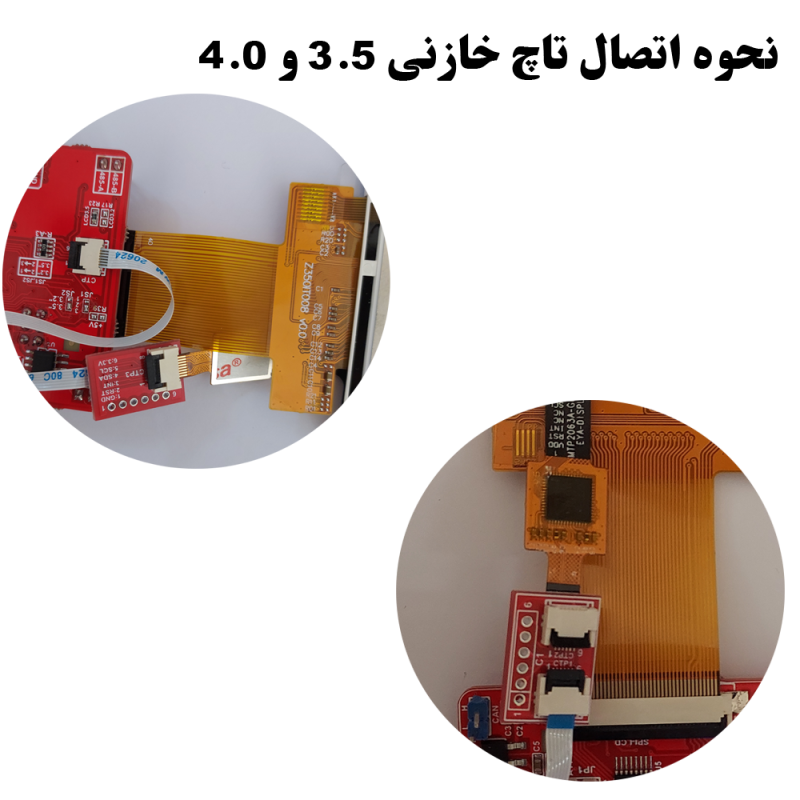

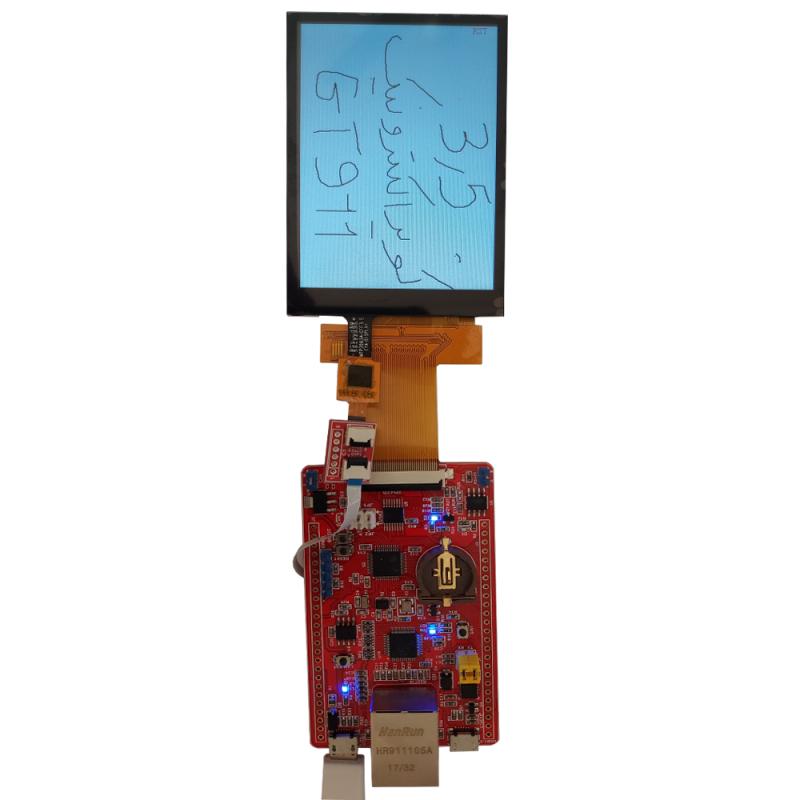

این السیدی برای اتصال نیاز به یک رابط داردپارت نامبر    Z350IT008 V0.0 موجود می باشد .که برای خرید این رابط به محصولات پیشنهادی مراجعه کنید  و همچنین این السیدی  با برد STM 32F103C8T6 راه اندازی می شود و مثال های موجود برای این برد می باشد .

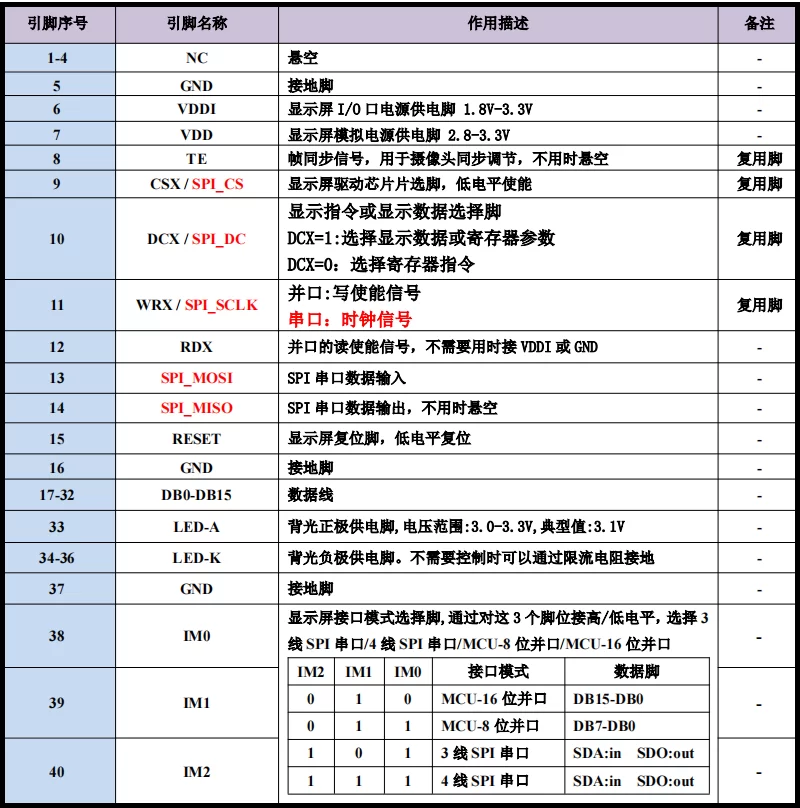

- Pins 1-4: NC
- Pin 5: GND
- Pin 6: VDDI
- Pin 7: VDD
- Pin 8: TE
- Pin 9: CSX/SPI_CS
- Pin 10: DCX/SPI_DC
- Pin 11: WRX/SPI_SCLK
- Pin 12: RDX
- Pin 13: SPI_MOSI
- Pin 14: SPI_MISO
- Pin 15: RESET
- Pin 16: GND
- Pins 17-32: DB0-DB15
- Pin 33: LED-A
- Pins 34-36: LED-K
- Pin 37: GND
- Pin 38: IM0
- Pin 39: IM1
- Pin 40: IM2

- Functions:
  - NC: No Connection
  - GND: Ground
  - VDDI, VDD: Power supply (1.8V-3.3V)
  - TE: Test Enable
  - CSX/SPI_CS, DCX/SPI_DC: SPI control
  - WRX/SPI_SCLK, RDX: Write/Read
  - SPI_MOSI, SPI_MISO: SPI data
  - RESET: Reset
  - DB0-DB15: Data bus
  - LED-A, LED-K: LED control
  - IM0, IM1, IM2: Interface mode (MCU-16, MCU-8, SPI)

Screen size: 3.5-inch TFT LCD + touch panel
Resolution: 320 x RGB x 480 pixels
Processor: RGB565
Interface: 3-wire SPI / 4-wire SPI / MCU-8-bit / MCU-16-bit
Memory: 12 KB
Controller: ILI9488 (with power) / ST7796U (with power)
Operating temperature: -20°C to 70°C
Storage temperature: -30°C to 80°C
Humidity: 55.2% (relative humidity) at 40°C
Long-term storage humidity: 55.2% (relative humidity) at 40°C
Short-term storage humidity: 55.2% (relative humidity) at 13°C

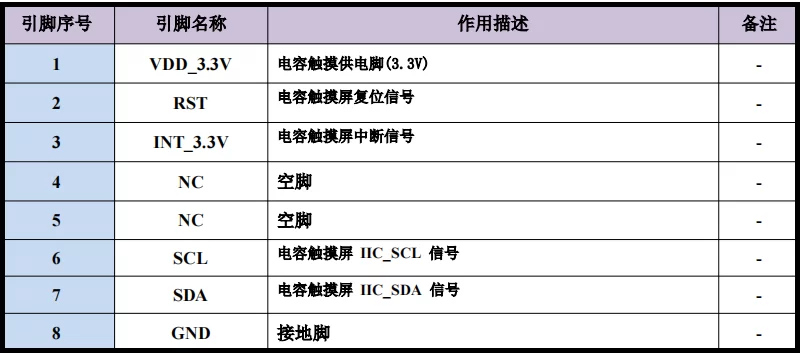

Pin 1: VDD_3.3V - Power supply (3.3V)
Pin 2: RST - Reset
Pin 3: INT_3.3V - Interrupt
Pin 4: NC - Not connected
Pin 5: NC - Not connected
Pin 6: SCL - I2C clock
Pin 7: SDA - I2C data
Pin 8: GND - Ground
