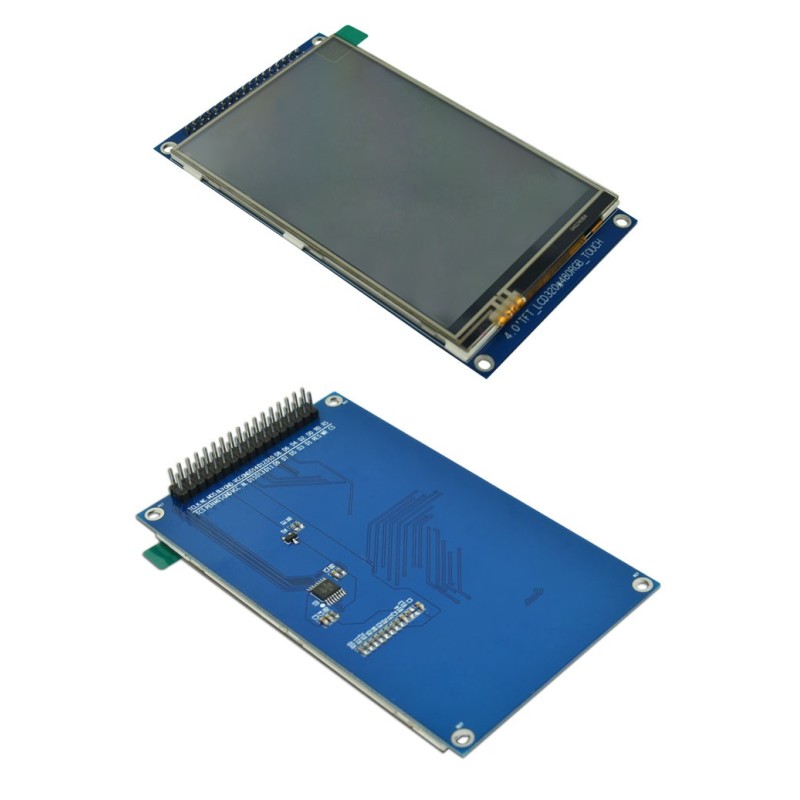

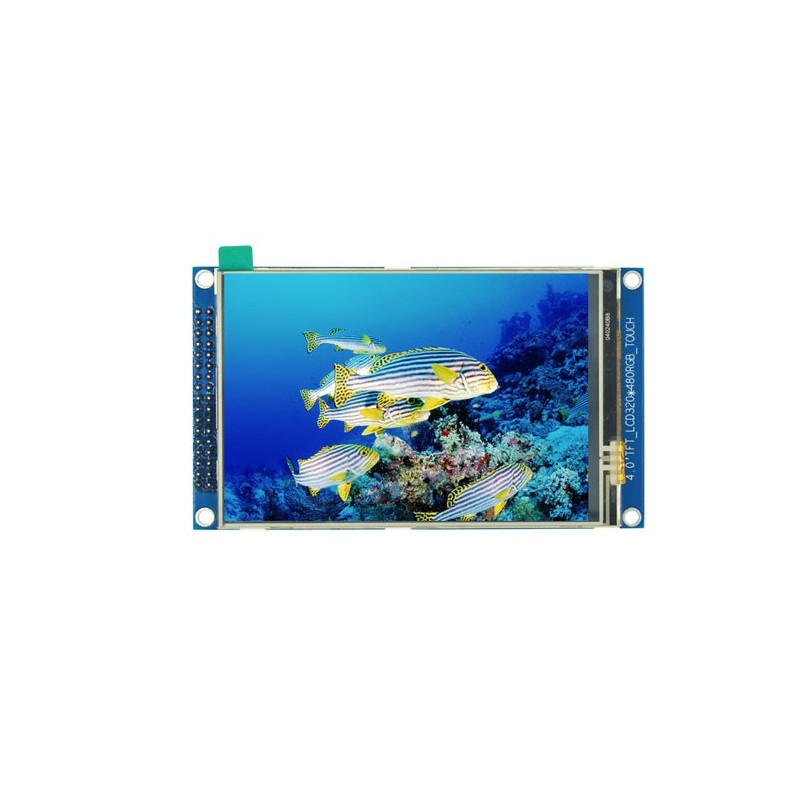

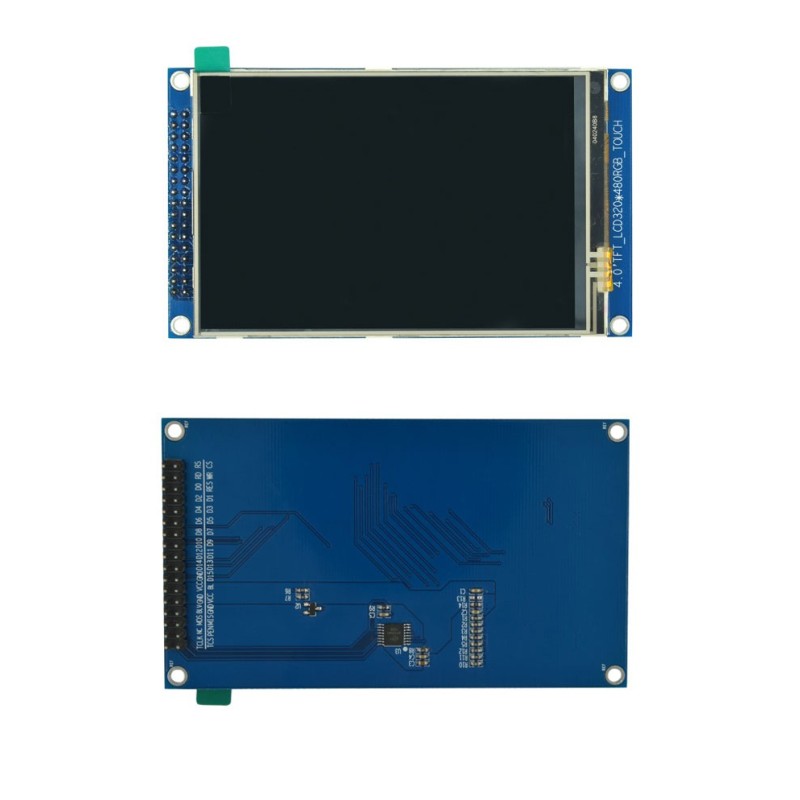

ماژول با تاچ 4.0 اینچ 4inch LCD display Module With Touch, 320x480- HD - Parallel - ILI9486L

ماژول 4.0 اینچ با تاچ 4.0inch LCD display Module, 320x480- HD ، با رزولیشن 320x480 و ILI9486L و 16Bits parallel interface

این ماژول با تاچ  می باشد.

Size: 4.0 inch
Control chip: ILI9486L
Touch control chip: XPT2046
Resolution: 320*480

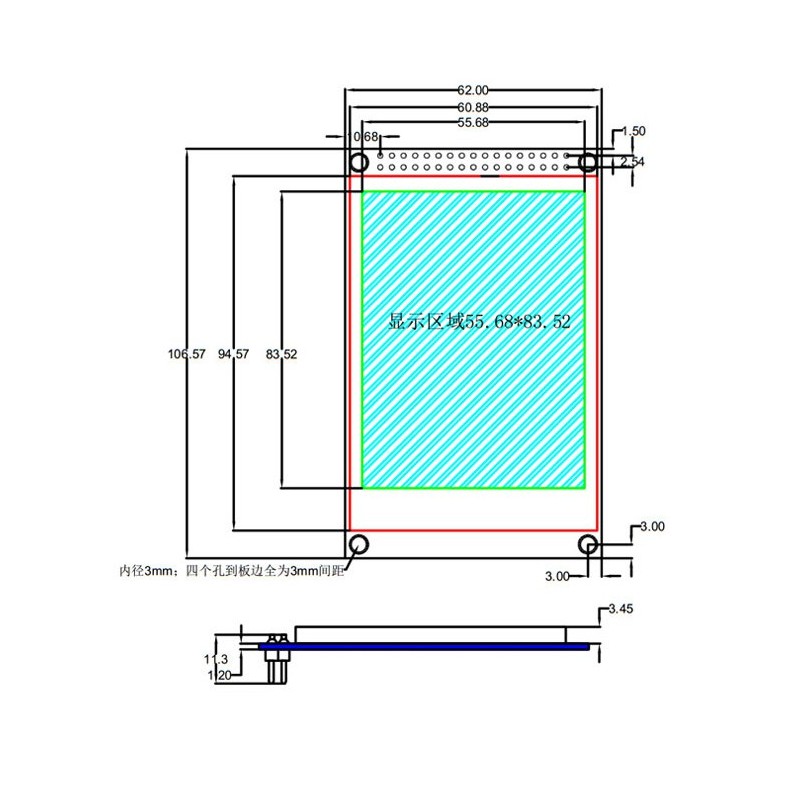

Display area: 55.68 x 83.52 (mm)
Physical size: 62  * 106.57 (mm)
Interface Type: 16Bits parallel interface
Number of pins: 34Pin
Display color: full color
Pixel size: 0.174 x 0.174 (mm)
temperature: -20~70  °c
voltage: 3.3V

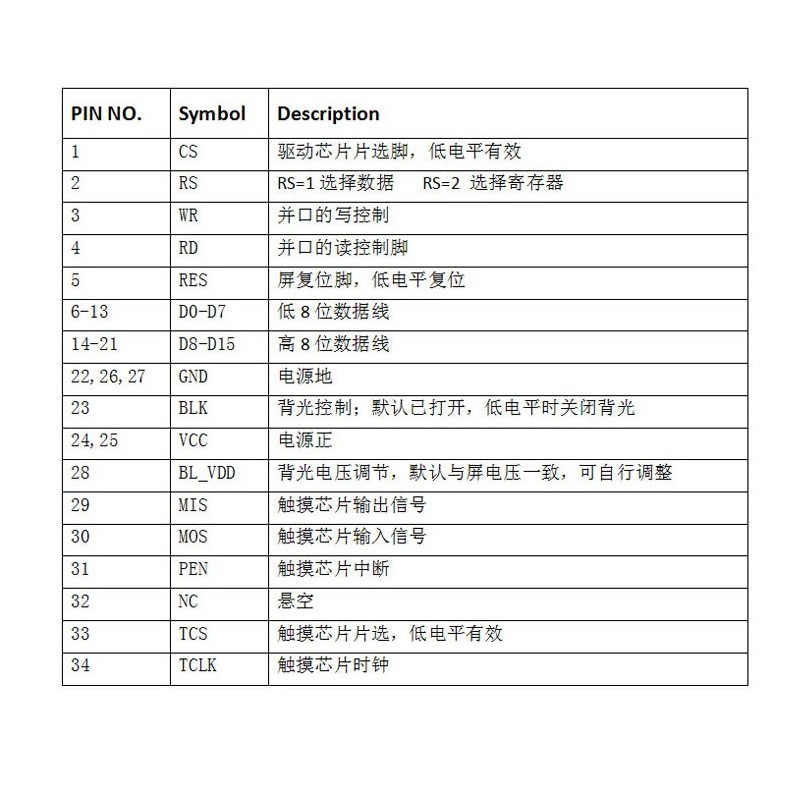

**Pin No.** | **Symbol** | **Description**
--- | --- | ---
1 | CS | Driver chip select pin, active low
2 | RS | Register select (1: data)
3 | WR | Write control for parallel interface
4 | RD | Read control for parallel interface
5 | RES | Screen reset pin, active low
6–13 | D0–D7 | Lower 8-bit data lines
14–21 | D8–D15 | Upper 8-bit data lines
22, 26, 27 | GND | Ground
23 | BLK | Backlight control (backlight is on by default; turns off when set to low level)
24, 25 | VCC | Positive power supply
28 | BL\_VDD | Backlight voltage adjustment (default matches screen voltage; can be adjusted)
29 | MIS | Touch chip output signal (MISO)
30 | MOS | Touch chip input signal (MOSI)
31 | PEN | Touch chip interrupt
32 | NC | No connection (floating)
33 | TCS | Touch chip select, active low
34 | TCLK | Touch chip clock

محتوای فایل مربوط به مثال و document:
