ماژول 1.8 اینچ با تاچ 1.8inch LCD display Module with Touch, 128x160 SPI - ST7735

ماژول 1.8 اینچ با تاچ  1.8inch LCD display Module with Touch ، با رزولیشن 128x160و ST7735 و SPI interface

Size: 1.8 inches with touch function
Material: TFT LCD full color
Resolution: 128*160 Display direction can be adjusted
Control chip: ST7735
Touch IC: XPT2046
Display area: 28.03 (W)*35.04 (H)
Physical size: 35.00(W)*56(H)
Interface type: SPI interface
Number of pins: 12PIN
Connection mode: 2.54 pitch double row pin header
Viewing direction: 12 O'CLOCK
Working temperature: -20~70 degrees

Pin number/Function Description
1.GND: The power ground
2.VCC:  power supply positive 3.3V
3.SCL:  serial clock line
4.SDA: Serial data line
5.RES: display reset pin, low level reset
6.DC: Register select pin (command/data register select pin)
    DC='o': Display data.(DC='o': select instruction register)
    DC='1':Display data.(DC='1':Select data register)
7.BLK: LCD backlight control, low level turns off the backlight
8.MISO: Serial clock line
9.CS1: Display SPI chip selection
10.CS2: Touch Screen SPI Chip Select
11.PEN: Touch trigger output
12.NC: Hanging

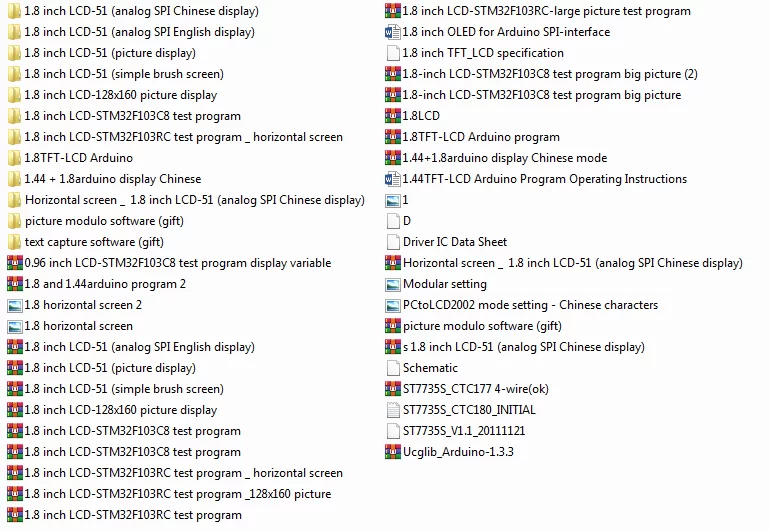

محتوای مربوط به مثال و document:
