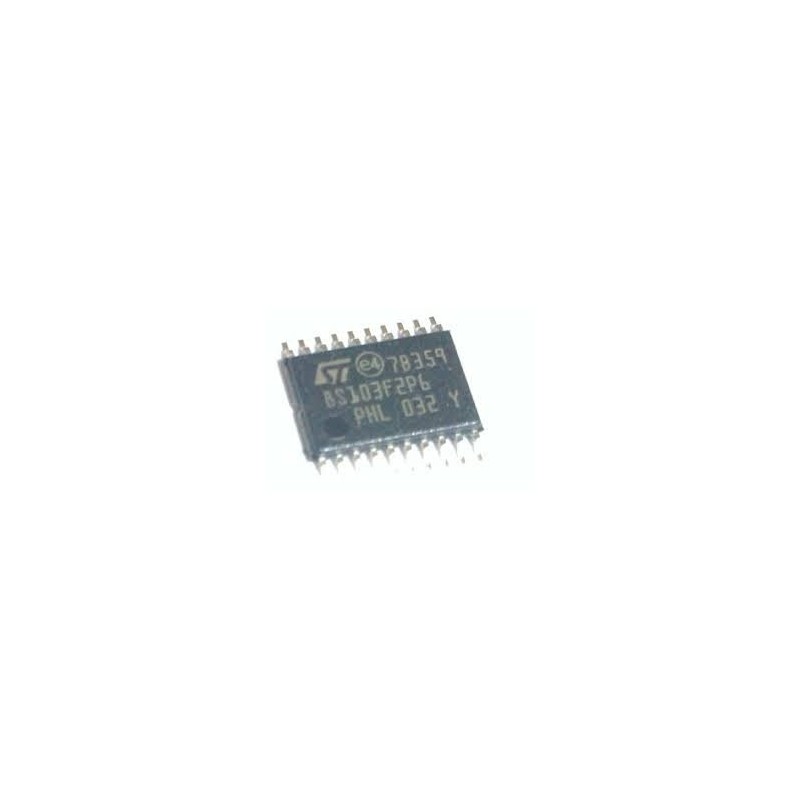

میکروکنترلر STM8S103F2P6 / اورجینال/New and original+گارانتی

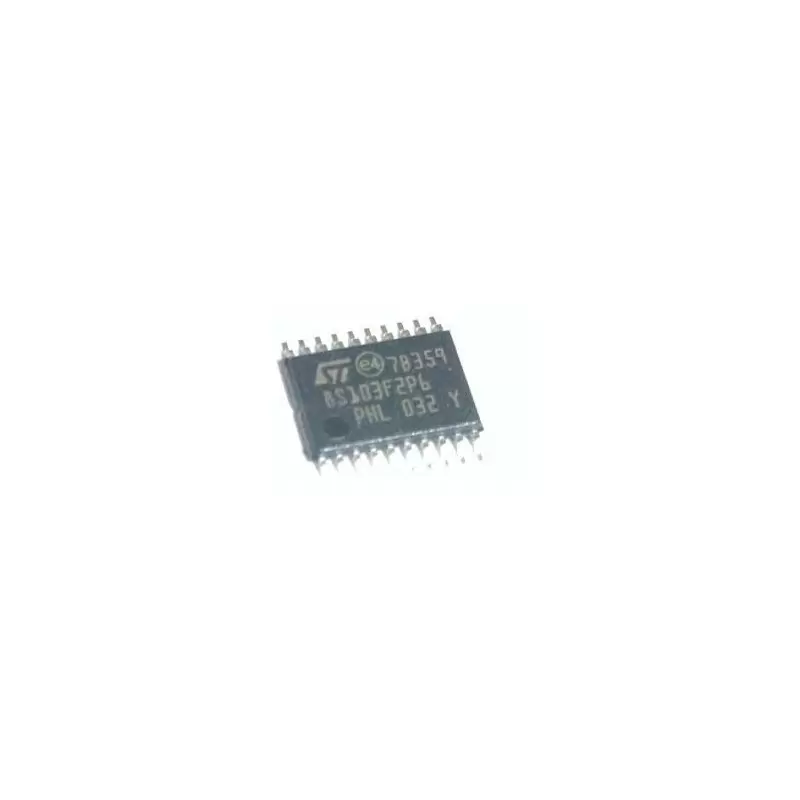

میکروکنترلر STM8S103F2P6/ اورجینال

Product Details
STM8S Series Mainstream 8-Bit Microcontrollers, STMicroelectronics

The STM8S series of general-purpose 8-bit Flash microcontrollers is an advanced core version of the STM8 featuring a 3-stage pipeline. The STM8S delivers up to 20MIPS at a clock rate of 24MHz.
STM8 8-Bit Microcontrollers, STMicroelectronics

The STM8 platform is implemented around a high-performance 8-bit core and a state-of-the-art set of peripherals. The 8-bit microcontroller operates at 16/24MHz, featuring flash memory up to 128kB, internal RAM and EEPROM, 8/16-bit timers, A/D Converters, D/A Converters, Comparators, Serial Interfaces and an optional Display controller.
Specifications

Attribute :
    Value
Family Name :
    STM8S
Package Type :
    TSSOP
Mounting Type :
    Surface Mount
Pin Count :
    20
Device Core :
    STM8
Data Bus Width:
     8bit
Program Memory Size:
     4 kB, 640 B
Maximum Frequency :
    16MHz
RAM Size :
    1 kB
Number of PWM Units:
     1
ADC Channels:
     5
Number of SPI Channels :
    1
Typical Operating Supply Voltage :
    2.95 → 5.5 V
Width :
    4.5mm
Number of Timers:
     5
ADC Resolution:
     10bit
Timer Resolution :
    8 bit, 16 bit
Timers:
     1 x 8 bit, 4 x 16 bit
Number of I2C Channels:
     1
PWM Channels :
    3
Program Memory Type:
     Flash
Number of ADC Units :
    1
PWM Resolution :
    16bit
ADCs :
    5 x 10 bit
Minimum Operating Temperature :
    -40 °C
Dimensions :
    6.6 x 4.5 x 1.05mm
Length :
    6.6mm
Pulse Width Modulation :
    3 x 16 bit
Number of UART Channels :
    1
Instruction Set Architecture :
    CISC
Maximum Operating Temperature:
     +85 °C
Height :
    1.05mm
