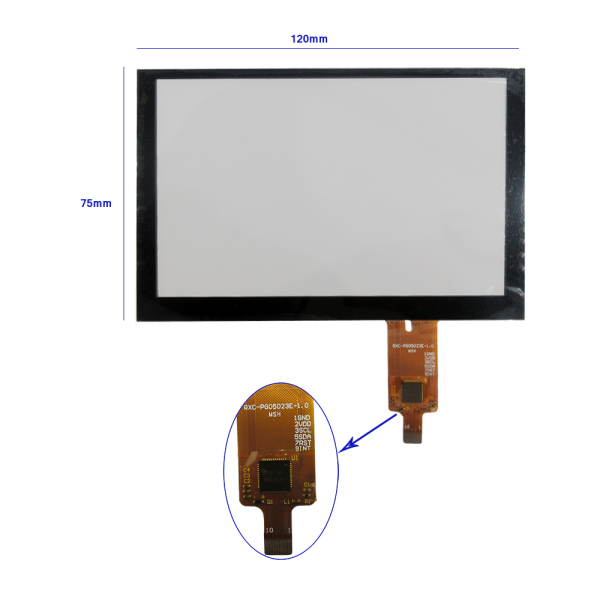

السیدی 5 اینچ کاملا نو

این محصول کیفیت خوبی دارا می باشد و جنس نو می باشد.

این السیدی گرید A+ میباشد. توضیحات در مورد مشخصات گرید بندی السیدی و ال ای دی ها را میتوانید در مقاله زیر مشاهده کنید.

برای مشاهده مقاله گرید اینجا کلیک کنید.

.Panel Type: a-Si TFT-LCD, LCD screen
Panel Size: 5.0 inches
Resolution: 800 (RGB) x480

Display Mode: TFT-LCD /Transmissive / IPS

Outline Dimension with FPC Folded 121(W) x 76(H)x 3(T) mm

Visual Area 11 (W)X67(H) mm

Active Area 10(W)x66(H) mm

Brightness:350 cd/m2 (Typ.)
Contrast Ratio: 500:1 (transmission)
Display Color: 65k/262k/16.7M
Response time: 15 ms
Viewing Angle: 80/80/80/80 (left / right / up / down) Deg
Signal Interface: RGB

IC Package COG

Controller ST7262

Panel voltage: 3.3V (Typ.) (VCC)
Operating Temperature: -20 ~ +70 ℃
Storage Temperature:-30 ~ +80 ℃
NO.   Symbol   Function
1 VLED    - LED Cathode
2 VLED    + LED Anode
3   GND   Ground
4   VDD   Power supply for digital interface
   R0~R7    Red Data 5-12
G0~G7 Green Data    13-20
B0~B7    Blue Data     21-28
29   GND   Ground
PCLK Clock 30

DISP   31   on/off
32   HSYNC Horizontal sync input in RGB mode. (Short to GND if not used)
33   VSYNC    Vertical sync input in RGB mode. (Short to GND if not used)
34 DE   Data enable
NC NC 35

36 GND Ground

XR 37 X_ Right (This pin is used for resistive touch panel and active when the FPC of touch panel isconnected with the FPC of display, otherwise it’s no connection)

YD 38 Y_ Down (This pin is used for resistive touch panel and active when the FPC of touch panel is connected with the FPC of display, otherwise it’s no connection)

XL 39 X_ Lef (This pin is used for resistive touch panel and active when the FPC of touch panel is connected with the FPC of display, otherwise it’s no connection)

YU 40 Y_ Up (This pin is used for resistive touch panel and active when the FPC of touch panel is connected with the FPC of display, otherwise it’s no connection)
