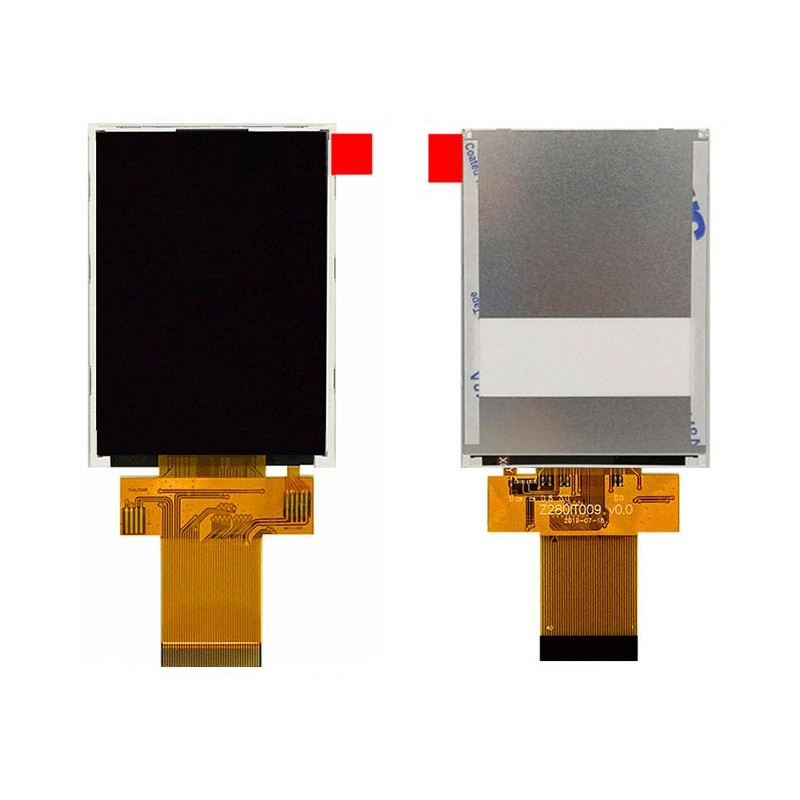

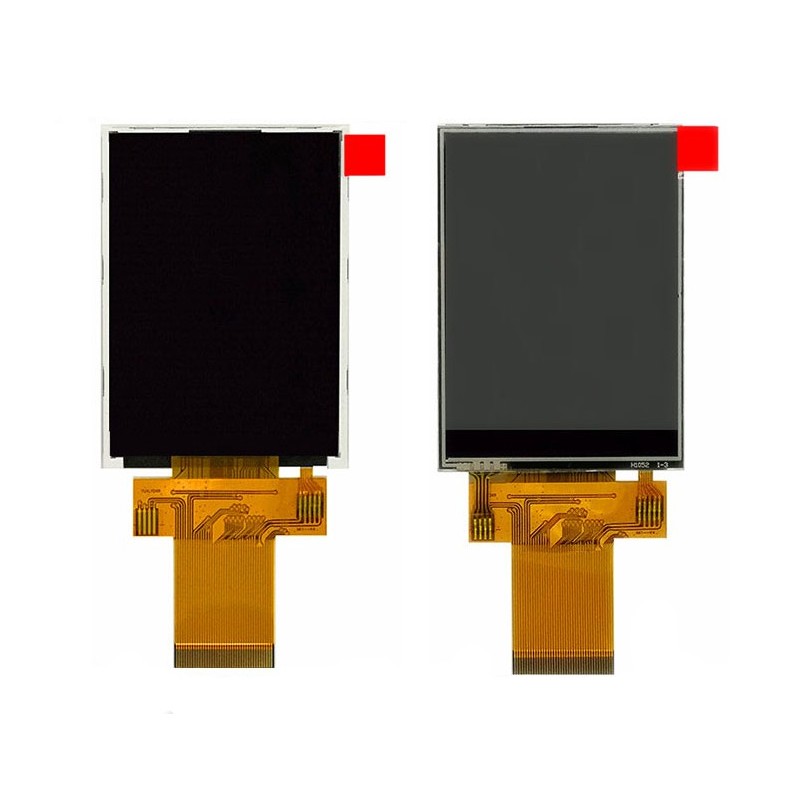

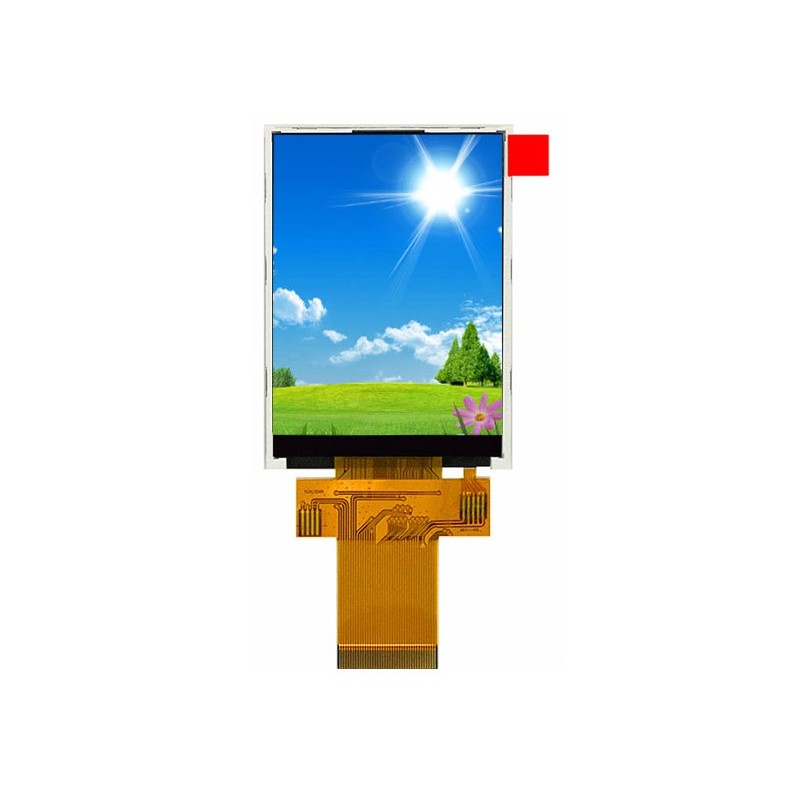

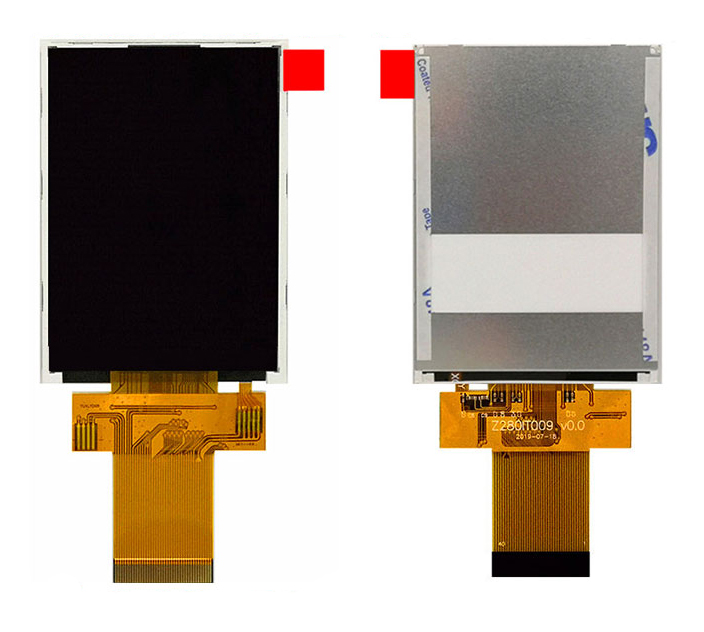

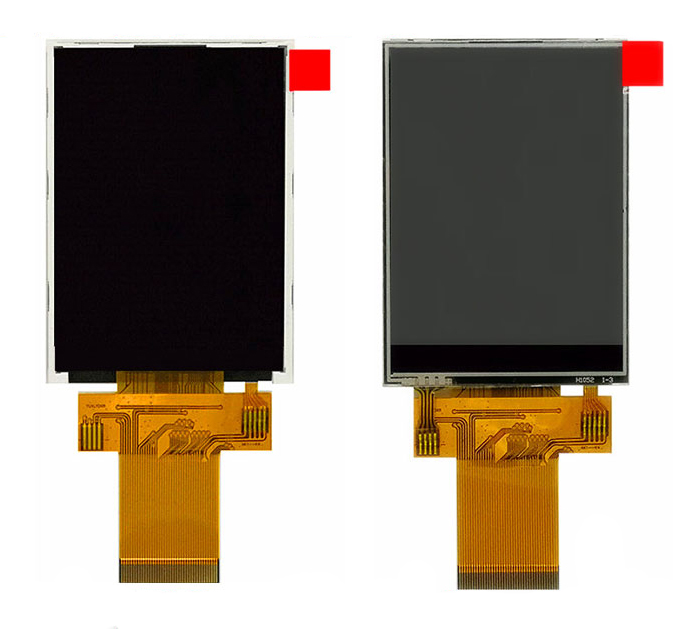

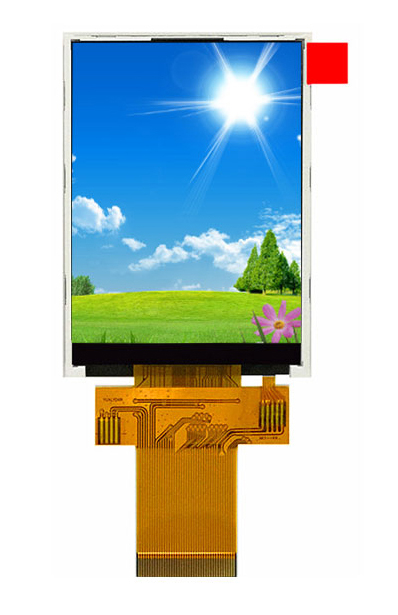

السیدی 2.8 اینچ بدون تاچ TFT LCD 2.8 inch without touch - 240x320 - SPI / Parallel - ILI9341

السیدی 2.8 اینچ بدون تاچ TFT LCD 2.8 inch without touch و با رزولیشن 240x320 و Control chip ILI9341 و SPI/Parallel Interface

Size: 2.8 inches
Material: TFT LCD
Resolution: 240xRGBx320 display direction can be adjusted, both horizontal and vertical screens
Control chip: ILI19341

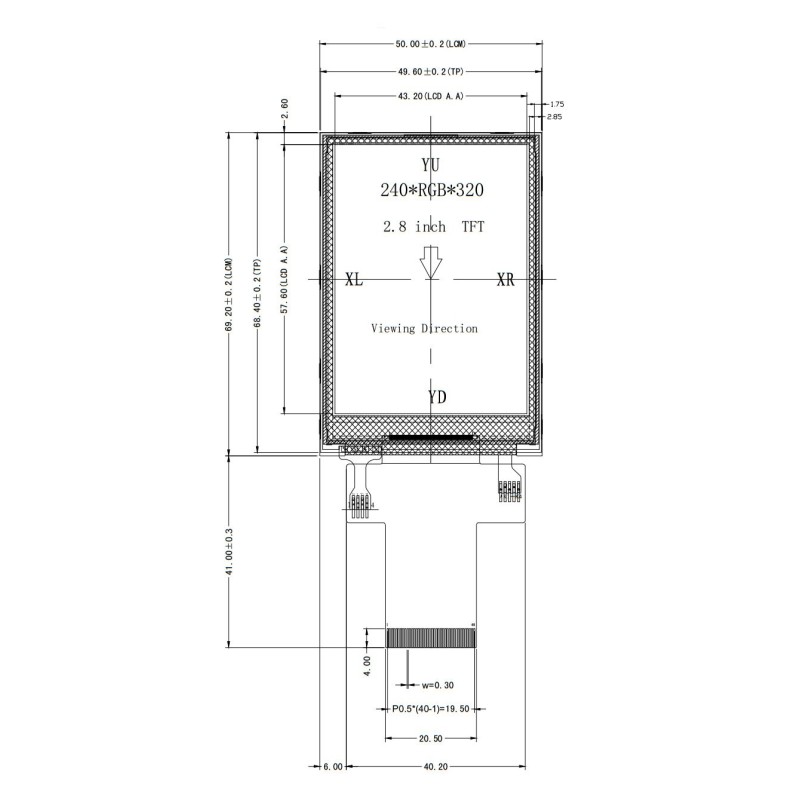

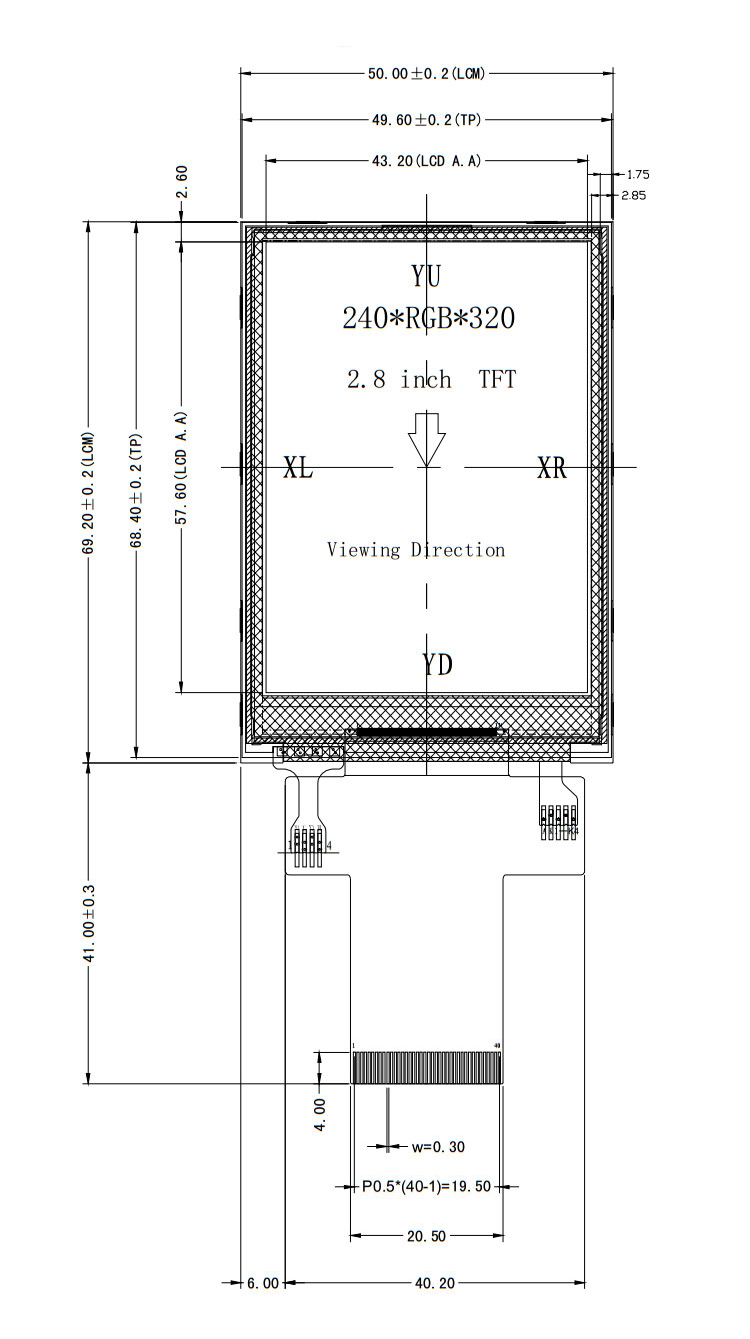

Display area: 43.20(W)*57.6(H)mm

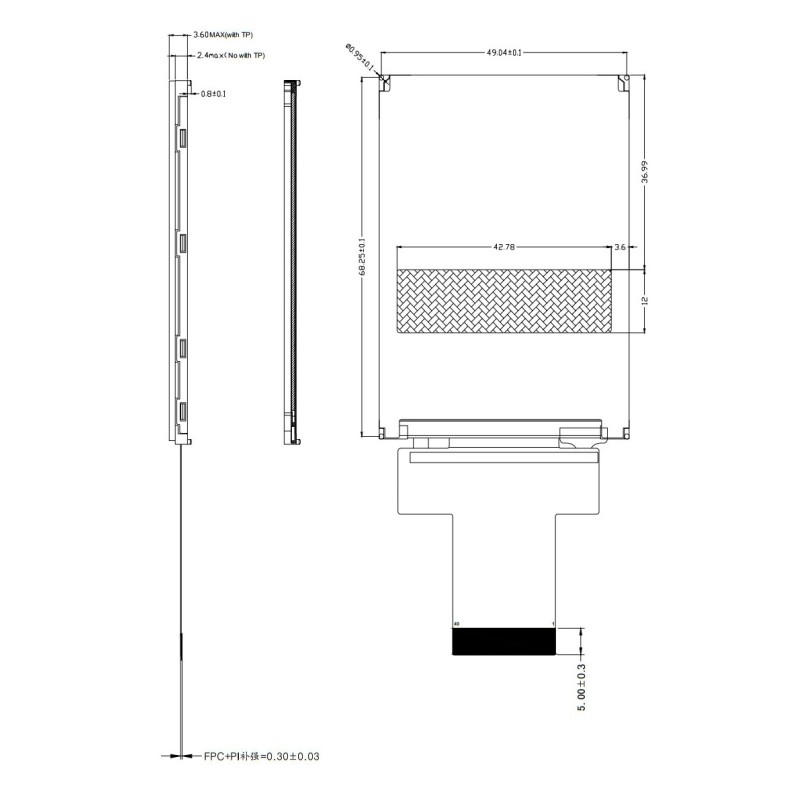

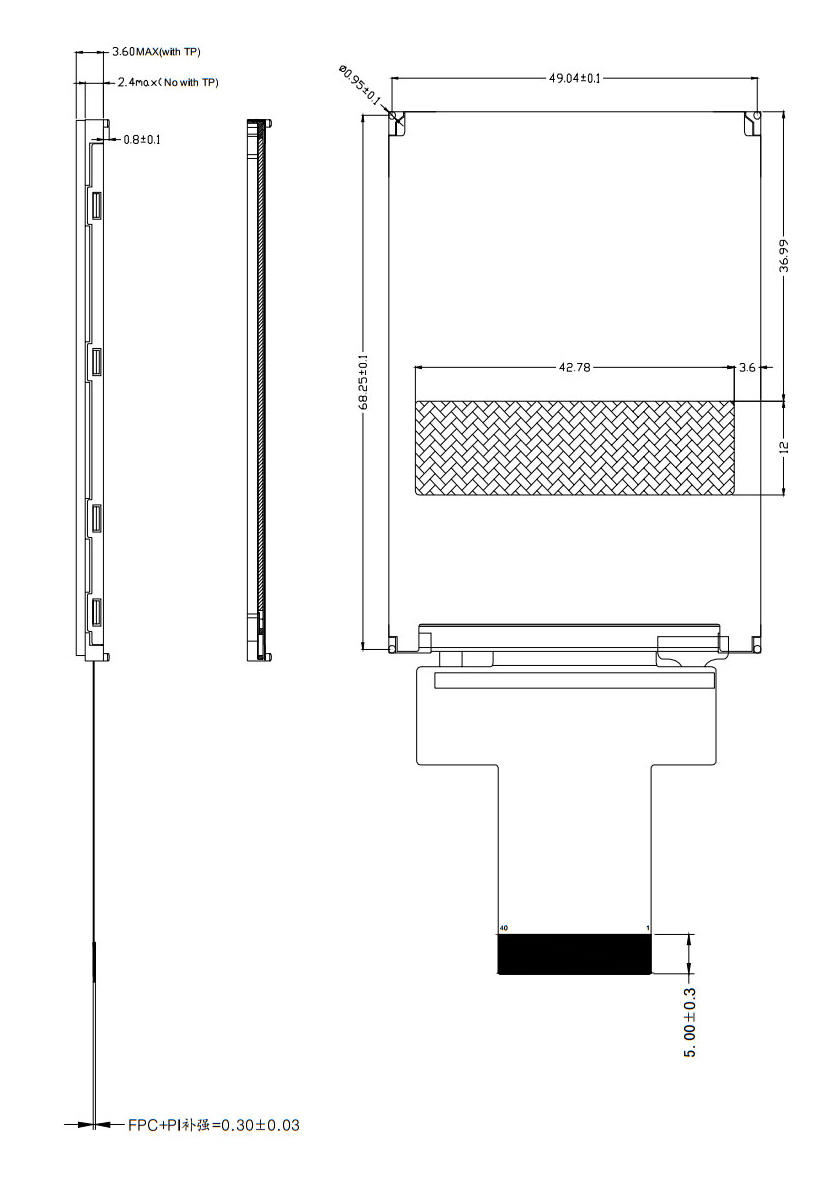

Dimensions:
                    50.00(W)*69.20(H)*2.60(T) (without touch)
                    50.00(W)*69.20(H)*3.80(T)(with touch)
                    (FPC not include)
Interface type: 3-wire serial port/4-wire serial port/8bits /16bits parallel interface
Backlight type: LED*4
Voltage: 2.8V~3.3V
Current: 60ma
Power consumption: 0.22W
Working temperature: -20~70 degrees
Viewing direction: 12 o'clock
Touch type: without touch

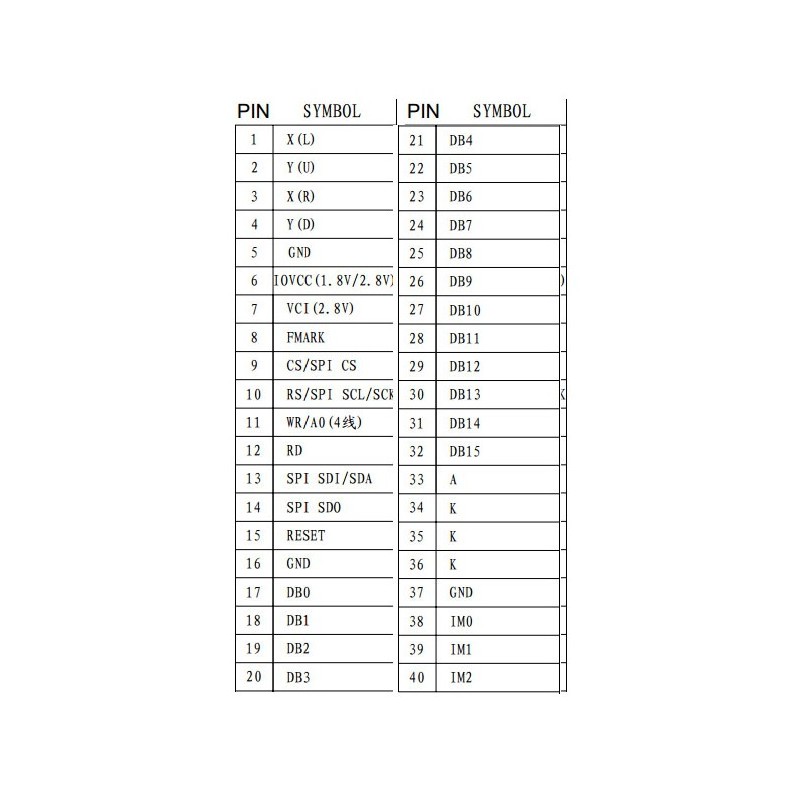

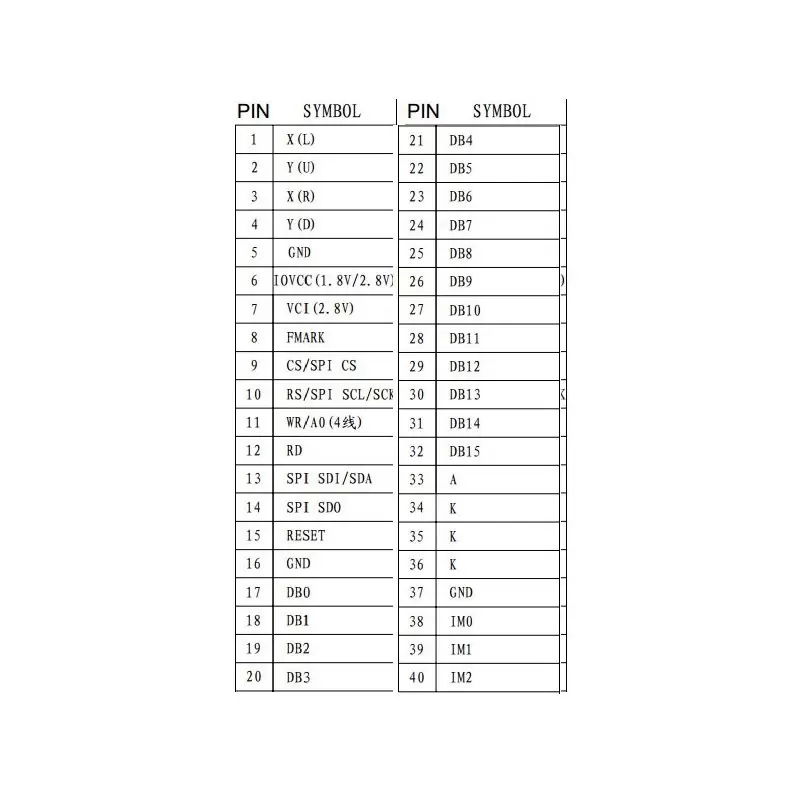

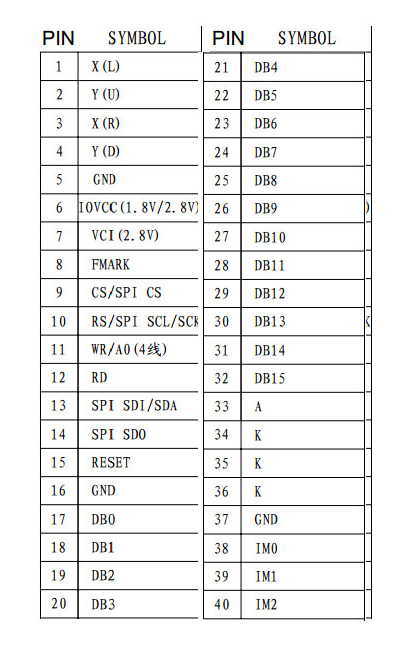

Number of pins: 40PIN(0.5mm pitch plug-in FPC)
Working temperature: -20~70 degrees

محتوای مربوط به مثال و document:
مثال های 2.4 و 2.8 و 3.2 با درایور ILI9341 و 40 پین با کدهای منبع (1109-1053-1055-1046-1347-1048-1108) یکسان هست.

03-2.4-2.8-3.2 LCD program source code (ILI9341)
