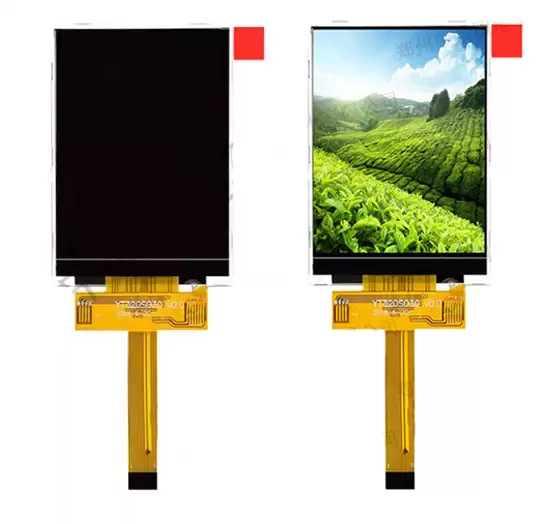

Size: 3.2 inches
Material: TFT LCD
Resolution: Resolution 240xRGBx320 display
Control chip: ILI19341
Display area: 48.6(W)*64.8(H)mm
Dimensions:
54.00(W)*77.40(H)*2.40(T)(without touch
54.00(W)*77.40(H)*3.70(T)(with touch)(FPC not include)
(FPC not include)
Interface type: 4-wire SPI interface
Backlight type: LED * 6 current 90mA
Voltage: working voltage VDD = 2.8V-3.3V
Total power consumption: 0.32W
Working temperature: -20 ℃ - + 70 ℃
Storage temperature: -30 ℃ - + 80 ℃
Connection type: plug-in
Viewing direction: 12 o'clock
Touch type: without touch

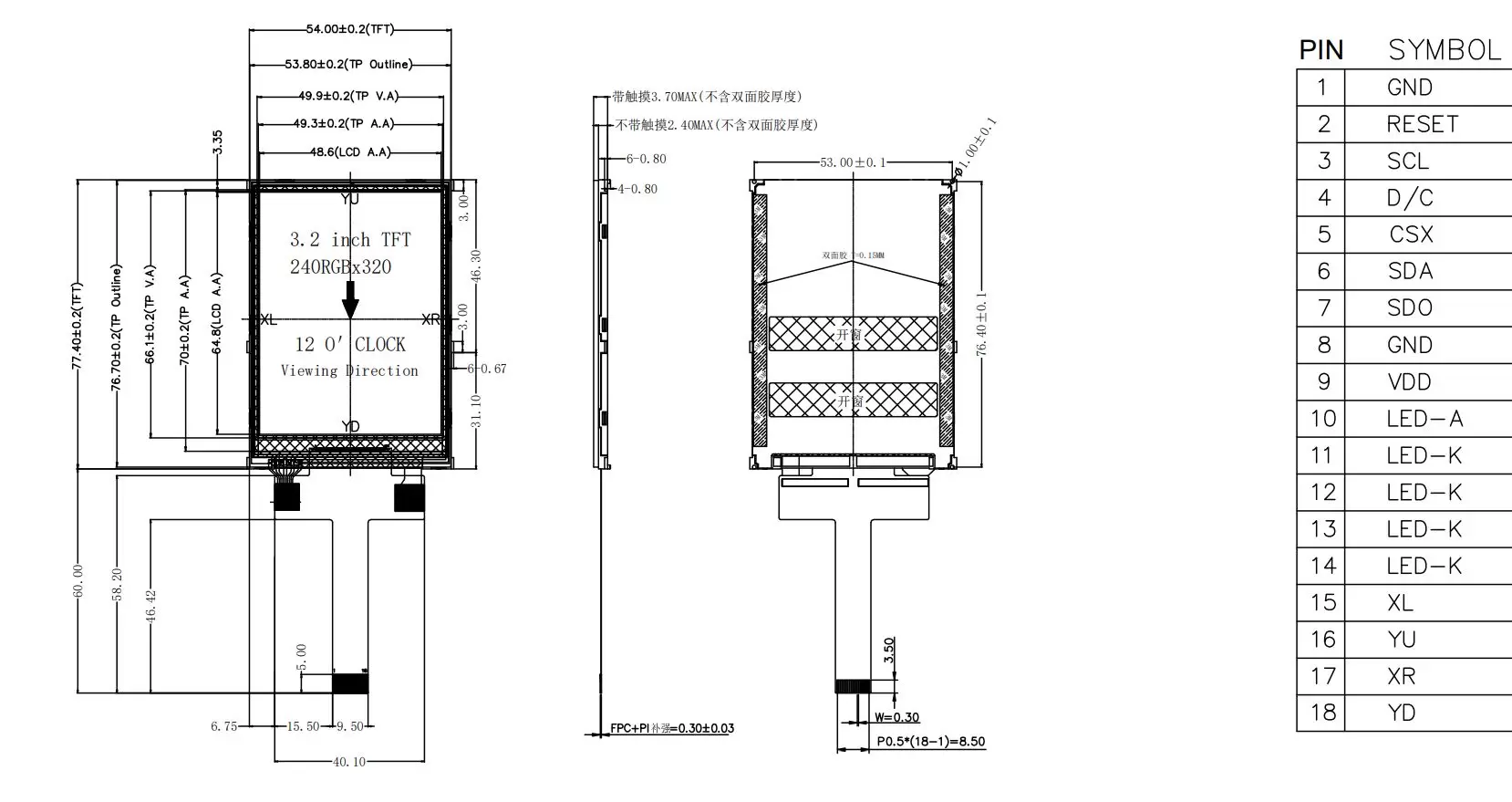

Number of pins: 18PIN(0.5mm pitch plug-in FPC)
Pin No/ Pin Name/ Function Description
1. GND: Power ground
2. RESET: Display reset pin, active low
3. SCL: 4-wire-SPI serial clock
4. D/C: 4-wire-SPI data/command selection selection pin
5. CSX: Display driver chip selection pin, low level enable
6. SDA: 4-wire - SPI data input
7. SDo: 4-wire - SPI data output
8. GND: Power ground
9. VDD: Power supply positive 2.8V~3.3V
10. LEDA: Backlight positive power supply pin, voltage range: 2.9-3.3V
11. LEDK1: Backlight Negative Power Supply Pin
12. LEDK2: Backlight Negative Power Supply Pin
13. LEDK3: Backlight Negative Power Supply Pin
14. LEDK4: Backlight Negative Power Supply Pin
15. XL(X-): Four-wire resistive touch screen logic pin
16. YU(Y-): Four-wire resistive touch screen logic pin
17. XR(X+): Four-wire resistive touch screen logic pin
18. YD(Y+): Four-wire resistive touch screen logic pin

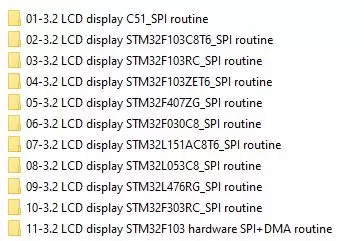

محتوای مربوط به مثال و document:
مشخصات
- سایز نمایشگر(اینچ)
- 3.2
- رزولیشین
- 240x320
- نمایش رنگ
- تمام رنگی
- نوع ارتباط (MCU)
- SPI
- چیپ راه انداز
- ILI9341
- نوع اتصال
- FPC
