سلف CD54 10UH 10%

سلف 10 میکرو هانری سایز  CD54 10UH 10% - 5x5x4

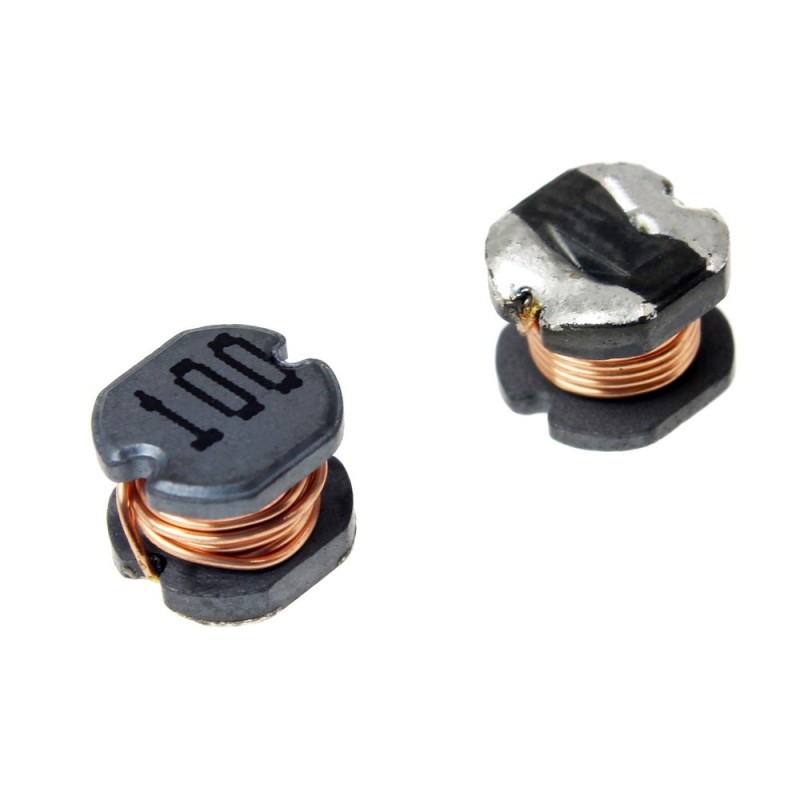

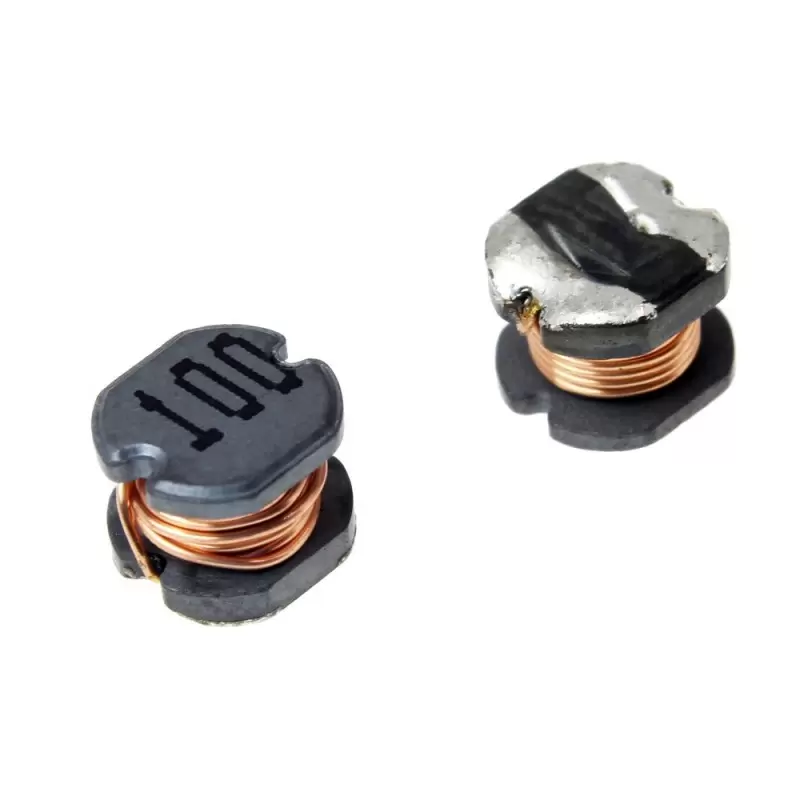

A CD54 10uH Surface Mount Power Inductor (10 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for surface mounting.
When we apply a current through the inductor, a magnetic field is generated around it.
The magnetic field generated by using a magnetic core will be much much stronger than others.

Applications:
Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors.

Features:
Ferrite drum core construction.
Magnetically unshield.
Moisture Sensitivity Level: 1
Halogen Free available.
Operating temperature range: -40°C+100°C
(including coils self temperature rise)
Storage temperature range: -40°C+100°C.
Solder reflow temperature: 260 peak.

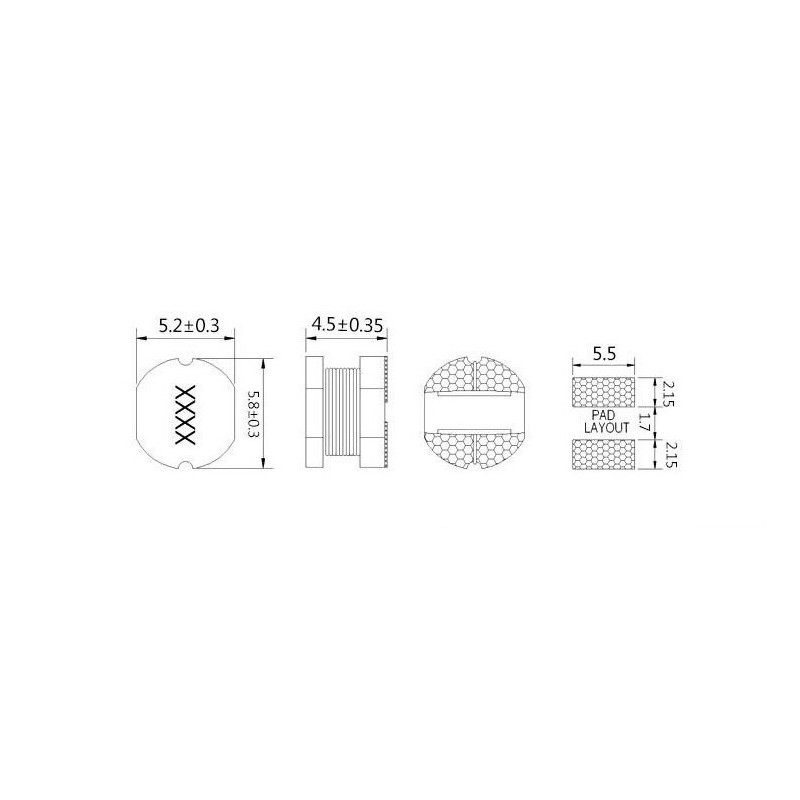

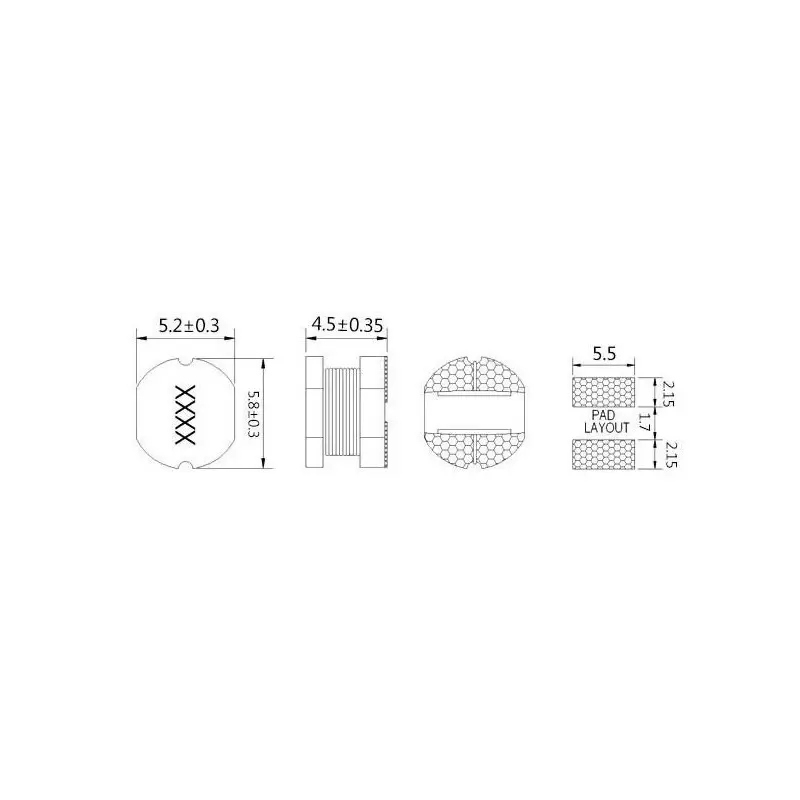

LxWxH: 5 x 5 x 4 mm
Product weight: 0.4 gm(Ref.)

Package Includes:

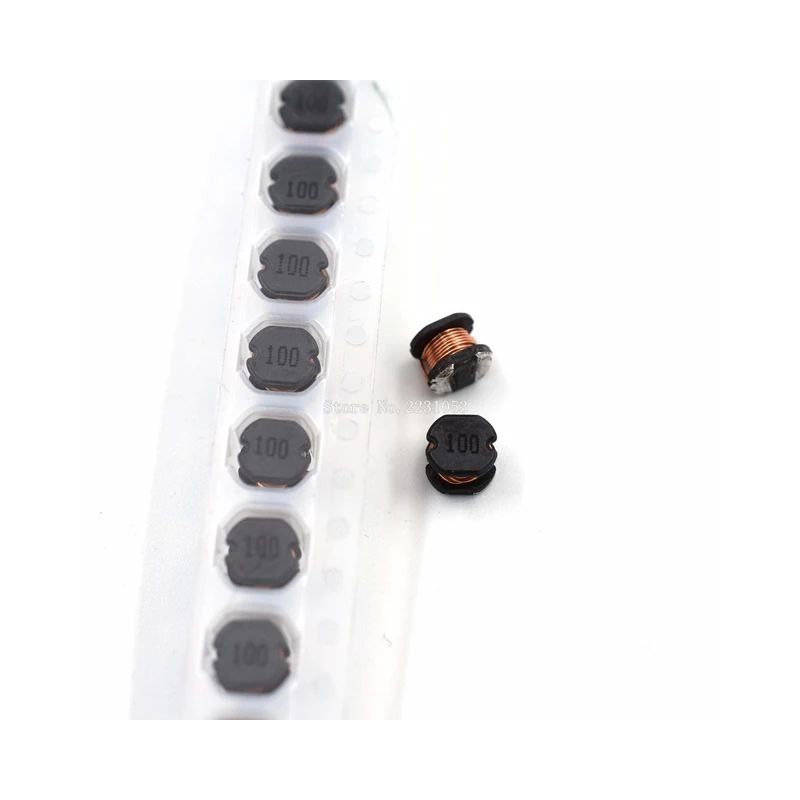

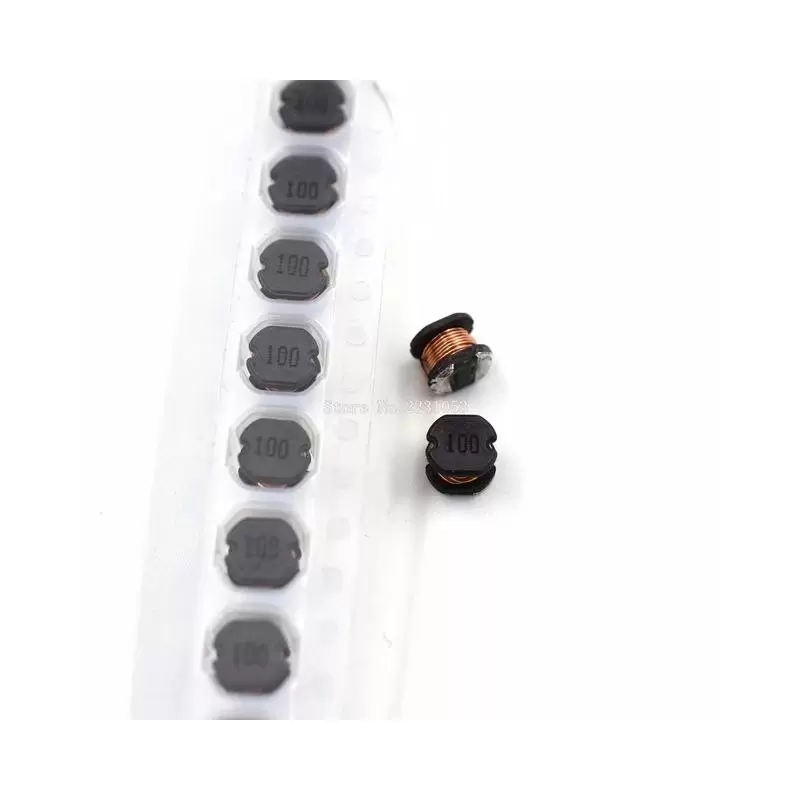

1 x CD54 10uH Surface Mount Power Inductor (10 microH)


Specifications:
Material Core: Ferrite
Inductance(uH): 10
Tolerance(%): 10
Current Rating (A): 1.44
Maximum DC Resistance: 87.9 Ω
DC Resistance (DCR)(mΩ) at 20°C: 100
Frequency (MHz): 2.52
Mount: Surface Mount.
Operating Temperature (°C): -40 ~ 100
