دیود شاتکی SM5822 SMB

دیود شاتکی SM5822 SMB

دیود شاتکی  RoHS:  RoHS Compliant Details
Product: Schottky Rectifiers
Mounting Style:  SMD/SMT
Package / Case:  SMA (DO-214AC)
If - Forward Current: 3 A
Vrrm - Repetitive Reverse Voltage: 40 V
Vf - Forward Voltage:  0.5 V
Ifsm - Forward Surge Current: 100 A
Configuration: Single
Technology:  Si
Ir - Reverse Current: 500 uA
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature:  + 150 C
Series: SS34

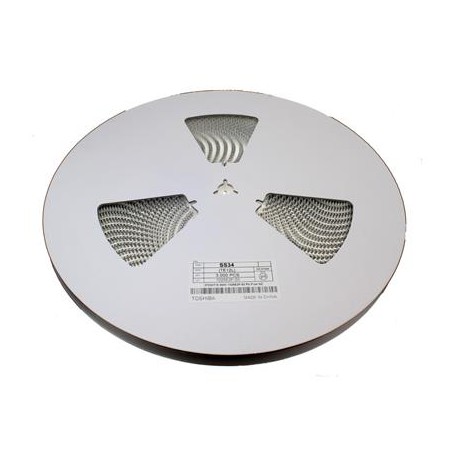

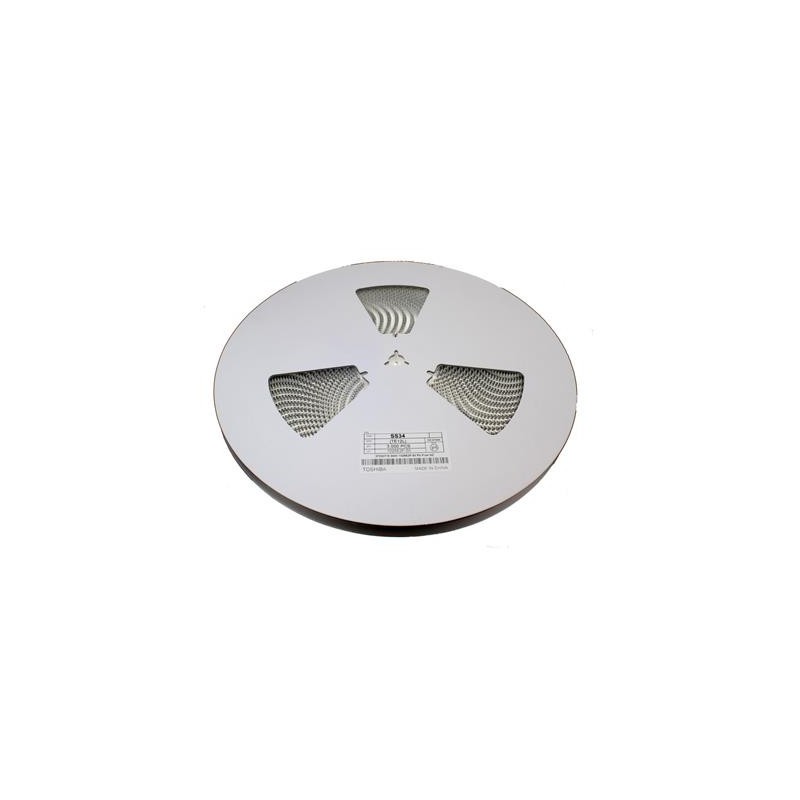

Packaging:  Reel
Height:  2.45 mm (Max)
Length:  7.15 mm (Max)
Operating Temperature Range: - 55 C to + 150 C
Type:  Schottky Diode
Width: 6.25 mm (Max)
Part # Aliases: SS34_NLSM5822 SMB
