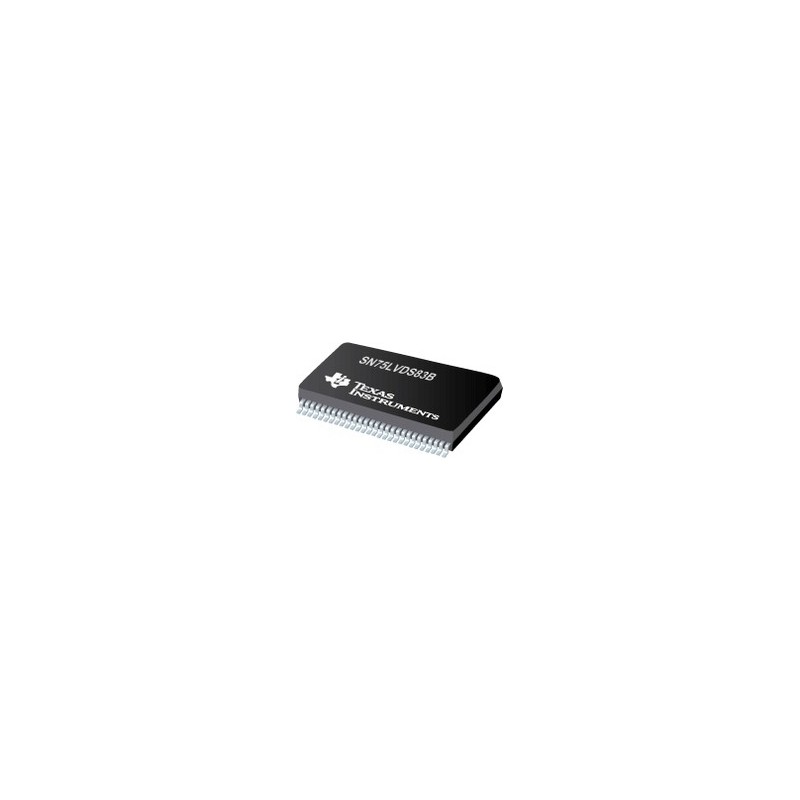

SN75LVDS83BDGGR تبدیل RGB به LVDS -اورجینال New and original+گارانتی

FEATURES Voltage Differential
• Consumes Less Than 1mW When Disabled 2• LVDS Display Serdes Interfaces Directly to
LCD Display Panels with Integrated LVDS • Selectable Rising or Falling Clock Edge
• Package Options: 4.5mm x 7mm BGA, and Triggered Inputs
8.1mm x 14mm TSSOP • ESD: 5kV HBM
• 1.8V up to 3.3V Tolerant Data Inputs to • Support Spread Spectrum Clocking (SSC)
Connect Directly to Low-Power, Low-Voltage • Compatible with all OMAP™2x, OMAP™3x,
Application and Graphic Processors and DaVinci™ Application Processors
• Transfer Rate up to 135Mpps (Mega Pixel Per
Second); Pixel Clock Frequency Range 10MHz APPLICATIONS
to 135MHz • LCD Display Panel Driver
• Suited for Display Resolutions Ranging From • UMPC and Netbook PC
HVGA up to HD With Low EMI
• Digital Picture Frame
• Operates From a Single 3.3V Supply and
170mW (typ.) at 75MHz
• 28 Data Channels Plus Clock In Low-Voltage
TTL to 4 Data Channels Plus Clock Out Low-
DESCRIPTION
The SN75LVDS83B FlatLink™ transmitter contains four 7-bit parallel-load serial-out shift registers, a 7X clock
synthesizer, and five Low-Voltage Differential Signaling (LVDS) line drivers in a single integrated circuit. These
functions allow 28 bits of single-ended LVTTL data to be synchronously transmitted over five balanced-pair
conductors for receipt by a compatible receiver, such as the SN75LVDS82 and LCD panels with integrated LVDS
receiver.
When transmitting, data bits D0 through D27 are each loaded into registers upon the edge of the input clock
signal (CLKIN). The rising or falling edge of the clock can be selected via the clock select (CLKSEL) pin. The
frequency of CLKIN is multiplied seven times, and then used to unload the data registers in 7-bit slices and
serially. The four serial streams and a phase-locked clock (CLKOUT)
