آیسی ADP160AUJZ-2.8 رگولاتور ولتاژ خطی - اورجینال -New and original+گارانتی

هیچ امتیاز پاداش برای این محصول وجود ندارد.


نظر و رتبه بندی مشتریان

9247000

محصول جدید

135,000 ریال

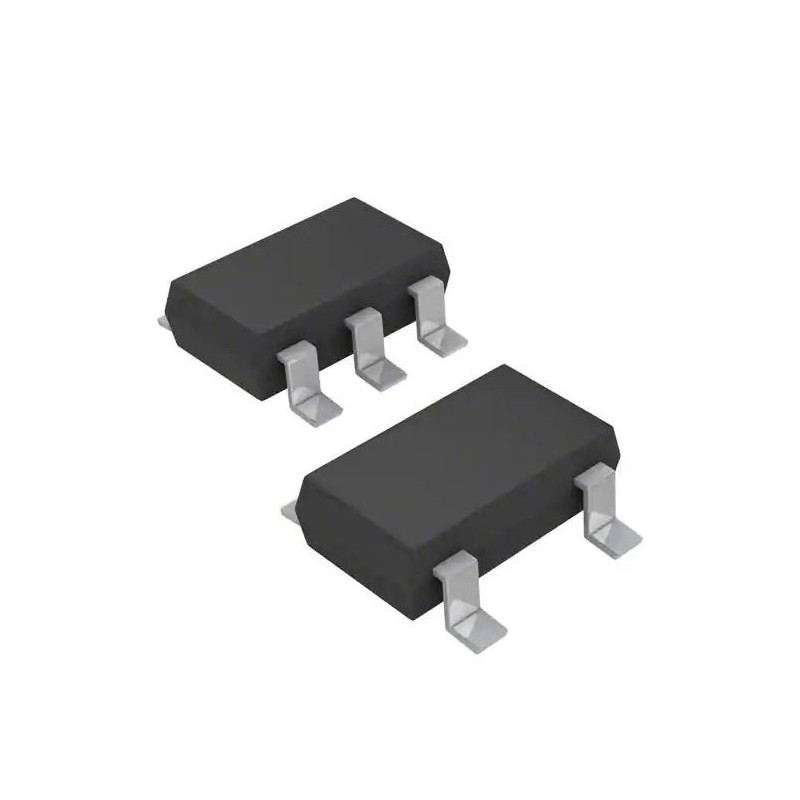

ADP160AUJZ-2.8 - IC Linear Voltage Regulators 2.8V 150MA TSOT5 -کویر الکترونیک

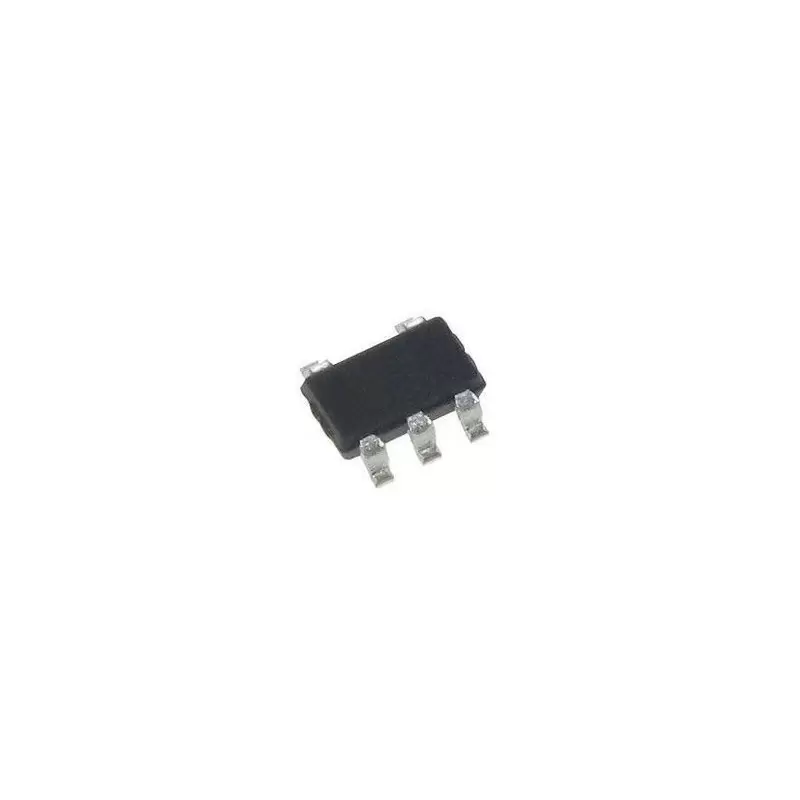

آیسی ADP160AUJZ-2.8 رگولاتور ولتاژ خطی - اورجینال -New and original+گارانتی

GENERAL DESCRIPTION:
The ADP160/ADP161/ADP162/ADP163 are ultralow quiescent current, low dropout,  linear regulators   that operate from 2.2 V to 5.5 V and provide up to 150 mA of output current. The low 195 mV dropout voltage at    150 mA load improves efficiency and allows operation over a wide input voltage range.The ADP16x are specifically designed for stable operation with a tiny 1 μF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.The ADP160 is available in 15 fixed output voltage options, ranging from 1.2 V to 4.2 V.  The ADP160/ADP161 also include a switched resistor to discharge the output automatically when the LDO is disabled. The ADP162 is identical to the ADP160but does not include the output discharge function.The ADP161 and ADP163 are available as adjustable output voltage regulators. They are only available in a 5-lead TSOT package.The ADP163 is identical to the ADP161 but does not includethe output discharge function.Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP160 and ADP162 areavailable in a tiny 5-lead TSOT and a 4-ball,  0.5 mm pitch WLCSP package for the smallest footprint solution to meet a variety of portable power applications.

FEATURES:
Ultralow quiescent current
    IQ = 560 nA with 0 μA load
    IQ = 860 nA with 1 μA load
Stable with 1 μF    ceramic input and output capacitors
Maximum output current: 150 mA
Input voltage range: 2.2 V to 5.5 V
Low shutdown current: <50 nA typical
Low dropout voltage: 195 mV at 150 mA load
Initial accuracy: ±1%
Accuracy over line, load, and temperature: ±3.5%
15 fixed output voltage options: 1.2 V to 4.2 V
Adjustable output available
PSRR performance of 72 dB at 100 Hz
Current limit and thermal overload protection
Logic-control enable
Integrated output discharge resistor
5-lead TSOT package
4-ball,  0.5 mm pitch WLCSP

Categories:
     Integrated Circuits (ICs)
    PMIC - Voltage Regulators - Linear
Manufacturer:
     Analog Devices Inc.
Series:
     -
Packaging:
     Cut Tape (CT)
Part Status:
     Active
Output Configuration:
     Positive
Output Type:
     Fixed
Number of Regulators:
     1
Voltage - Input (Max):
     5.5V
Voltage - Output (Min/Fixed):
     2.8V
Voltage - Output (Max):
     -
Voltage Dropout (Max):
     -
Current - Output:
     150mA
Current - Quiescent (Iq):
     1.25µA
Current - Supply (Max):
     65µA
PSRR:
     -
Control Features:
     Enable
Protection Features:
     Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:
     -40°C ~ 125°C
Mounting Type:
     Surface Mount
Package / Case:
     SOT-23-5 Thin, TSOT-23-5
Supplier Device Package:
     TSOT-5
Base Part Number:
     ADP160
