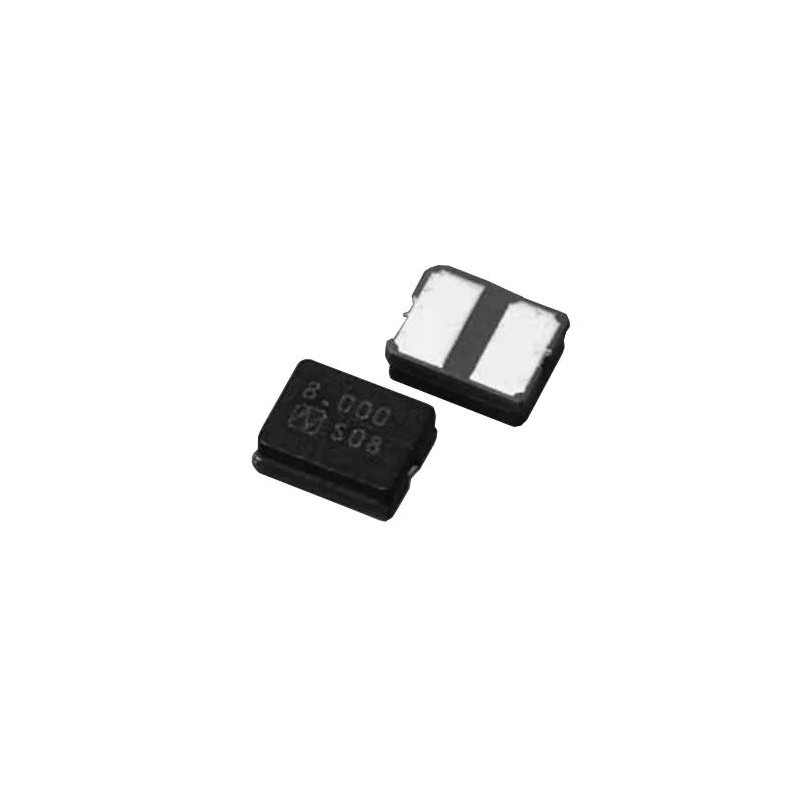

کریستال 8 مگاهرتز NX3225GD-8MHZ New and original+گارانتی

کریستال NX3225GD-8MHZ-Crystals CRYSTAL 8MHZ 8PF SMD

Category:
        Crystals, Oscillators, Resonators
        Crystals
Mfr:
        NDK America, Inc.
Series:
    NX3225GD
Product Status:
        Active
Type:
    MHz Crystal
Frequency:
    8 MHz
Frequency Stability:
    ±150ppm
Frequency Tolerance:
    ±50ppm
Load Capacitance:
    8pF
ESR (Equivalent Series Resistance):
        500 Ohms
Operating Mode:
    Fundamental
Operating Temperature
    -40°C ~ 150°C
Ratings:
    AEC-Q200
Mounting Type:
    Surface Mount
Package / Case
    2-SMD, No Lead
Size / Dimension:
    0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):
    0.039" (1.00mm)
