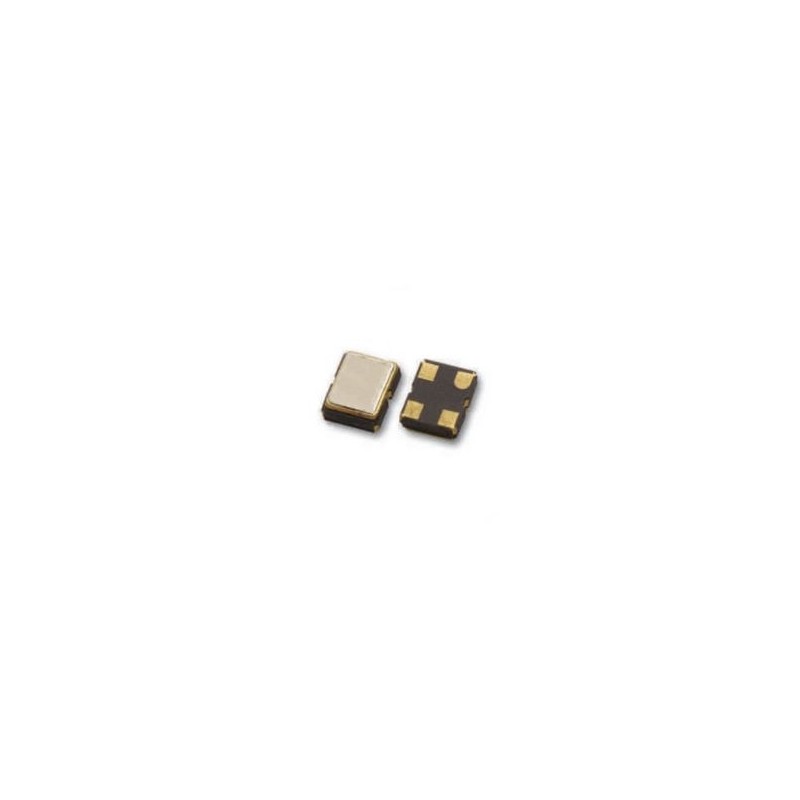

اسیلاتور 25 مگاهرتز 25 mhz SMD Crystal Oscillator 2520

اسیلاتور 25 مگاهرتز  25mhz SMD Crystal Oscillator 2520 - کویر الکترونیک

Frequency Range:
    4MHZ ~ 75MHZ
Brand Name:
    CREC
Model Number:
    SMD2520
Nominal Frequency:
    25MHZ
Frequency Tolerance:
    30PPM
Load Capacitance:
    15PF
Operating Temperature:
    -40+85℃

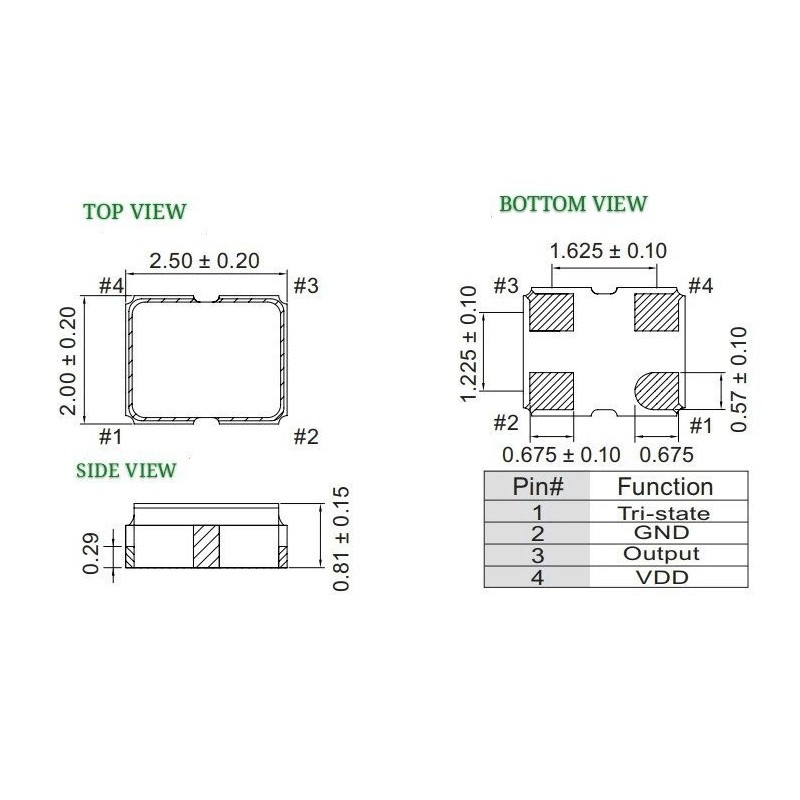

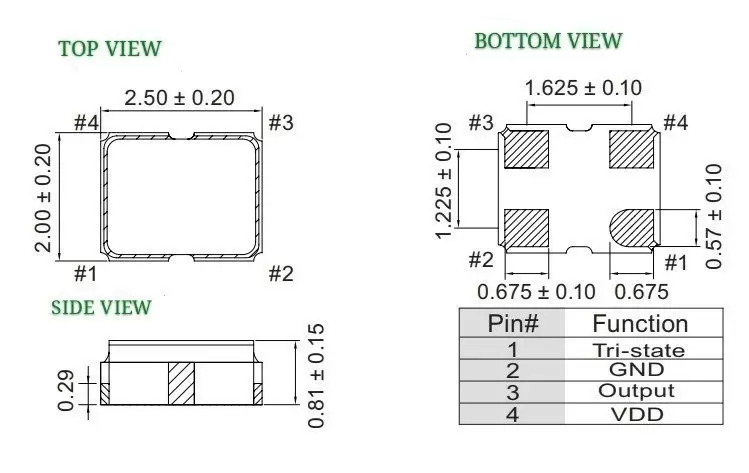

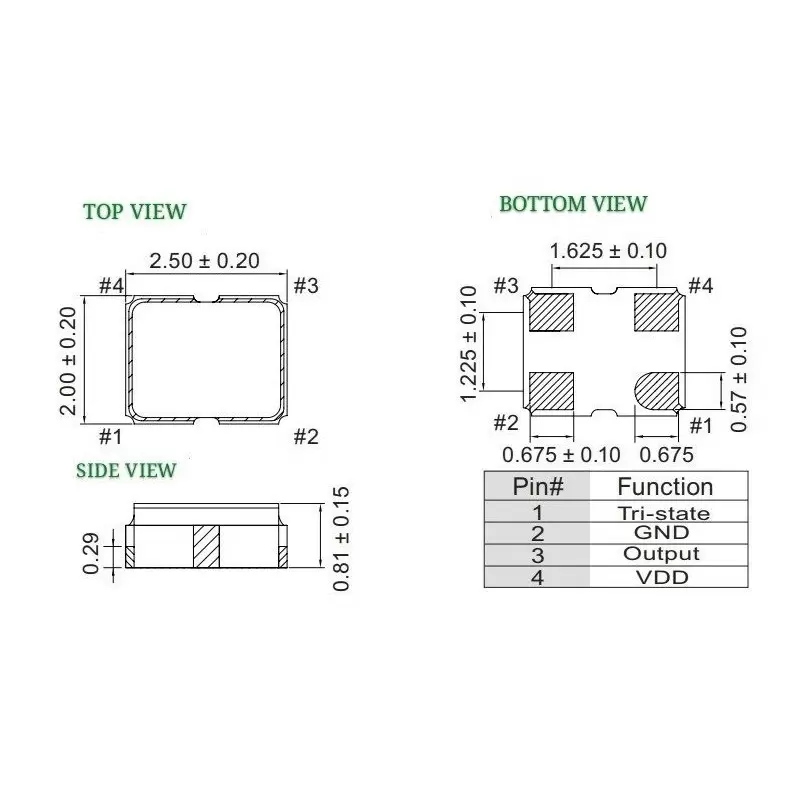

Dimensions:
    2.5*2.0mm
Description:
    SMD2520
Frequency Stability:
    25PPM, 50ppm
Current - Supply (Max):
    15mA
Base Resonator:
    Crystal
Frequency - Center:
    25mhz
Tuning Voltage (VDC):
    0.5 ~ 16V
Icc Max:
    35mA
Pushing (MHz/V):
    2
Power (dBm):
    2 ± 2
Phase Noise Typ (dBc/Hz):
    -105
Frequency:
    25mhz, 20 ~ 20000hz
frequency tolerance:
    30ppm
operating temperature range:
    -40+85
voltage:
    3.3V
2nd Harmonic, Typ (dBc):
    -15
Supply Voltage:
    3.3v
