دیود شاتکی BAT54C

دیود شاتکی BAT54C

Capacitance:10pF

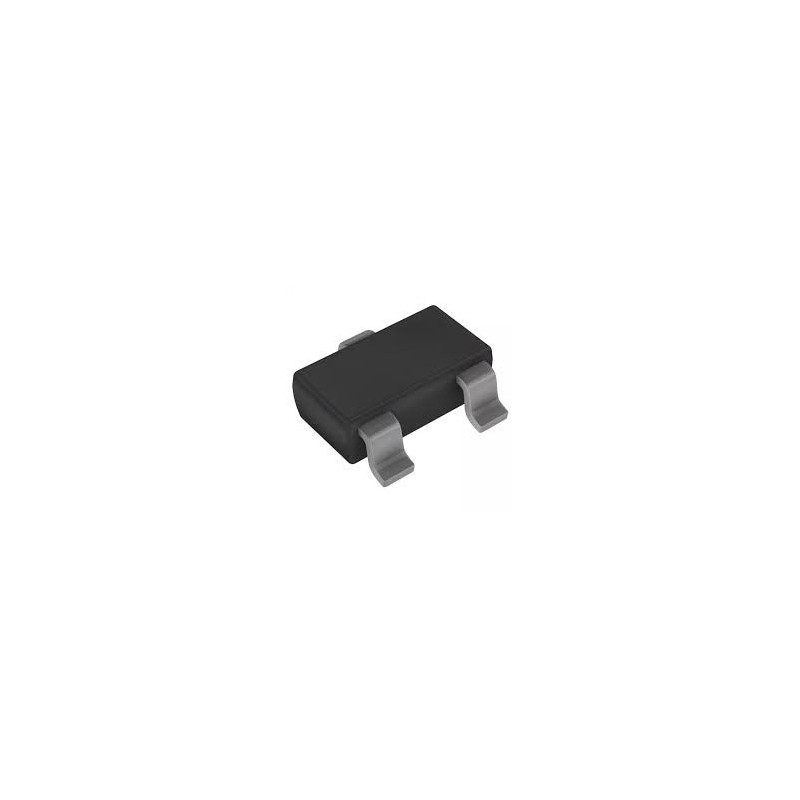

Case/Package:SOT-23-3
Current Rating    :200A
Element Configuration :    Common Cathode
Forward Current:200mA
Forward Voltage:800mV
Lead Free:Lead Free
Max Forward Surge Current (Ifsm):600mA
Max Operating Temperature:150°C
Min Operating Temperature:-55°C
Max Repetitive Reverse Voltage (Vrrm):    30V
Number of Pins    3
Packaging:Tape and Reel
Reach SVHC Compliant:    Yes
Reverse Recovery Time:    5ns
RoHS Compliant    :Yes
Termination:SMD/SMT
Voltage:30V
Voltage Rating (DC):30V
