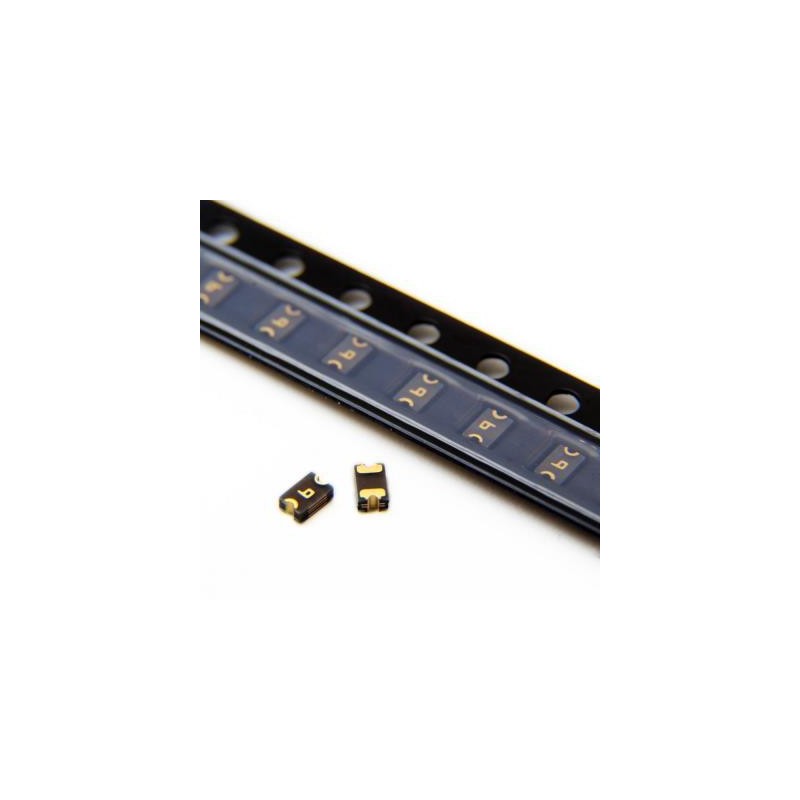

Fuse 1A 0805 self-recovery - فیوز فست SMD

Fuse 1.1A 0805 self-recovery

Current Hold Ih (A):1.1A
Current Trip It (A):2.2A
Voltage (VDC) – max.:6V
Current (A) – max.:100A
Operating Temperature:-40 ~ +85 degC
Package / Case:    0805
Applications:General Purpose
Mount, Concaveing Type:    Surface Mount, Concave
Power Pd (W) – typ.:0.6W
Time to Trip (A) – max    8A
Time to Trip (Sec) – max.0.2sec
Resistance (ohm): – min.0.05 ohms
Resistance (ohm)  :– max.0.17 ohms
Size (mm) – max.:2.30 x 1.50mm
Features:Faster Time to Trip
Series:    MPTS-R
Packaging:Tape and Reel
Part Status:Active
