ماژول السیدی 4.3 اینچ با تاچ خازنی رزولیشن 272*480 - LCD Module 4.3 inch with capasitive touch
ماژول السیدی 4.3 اینچ با تاچ خازنی رزولیشن 272*480 - کویرالکترونیک

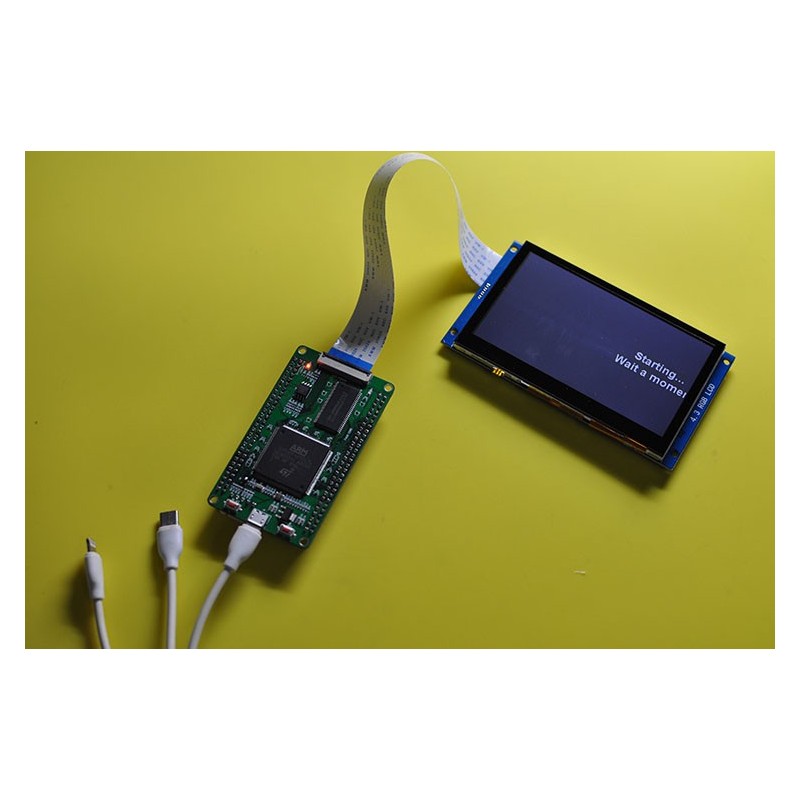

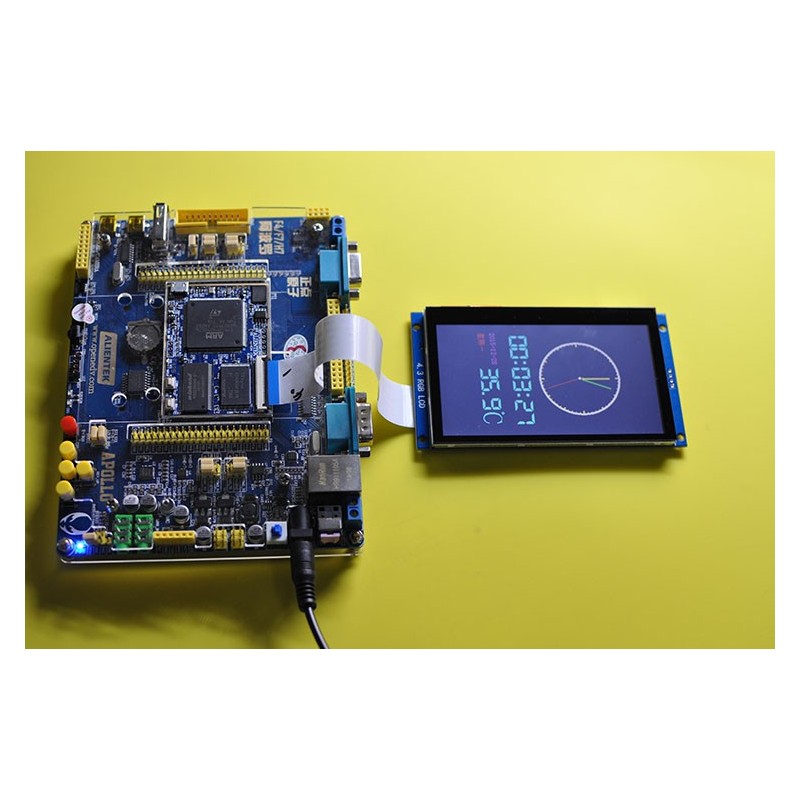

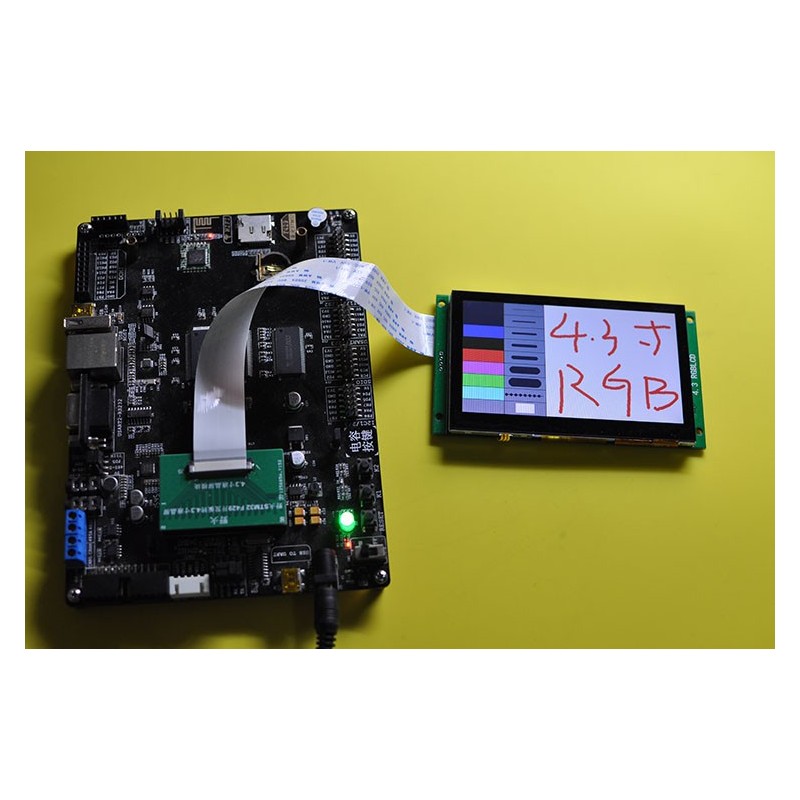

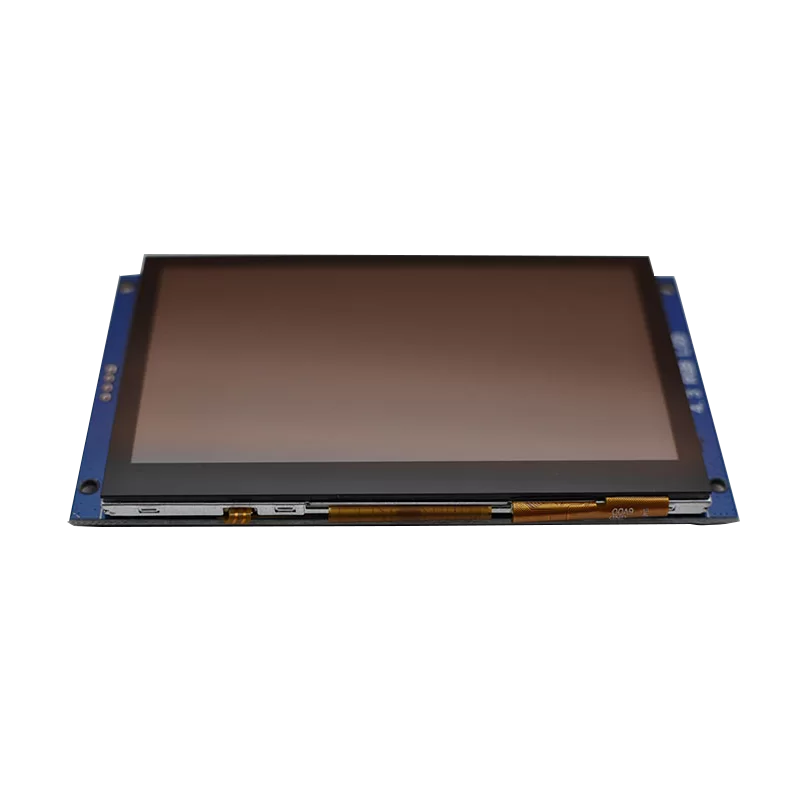

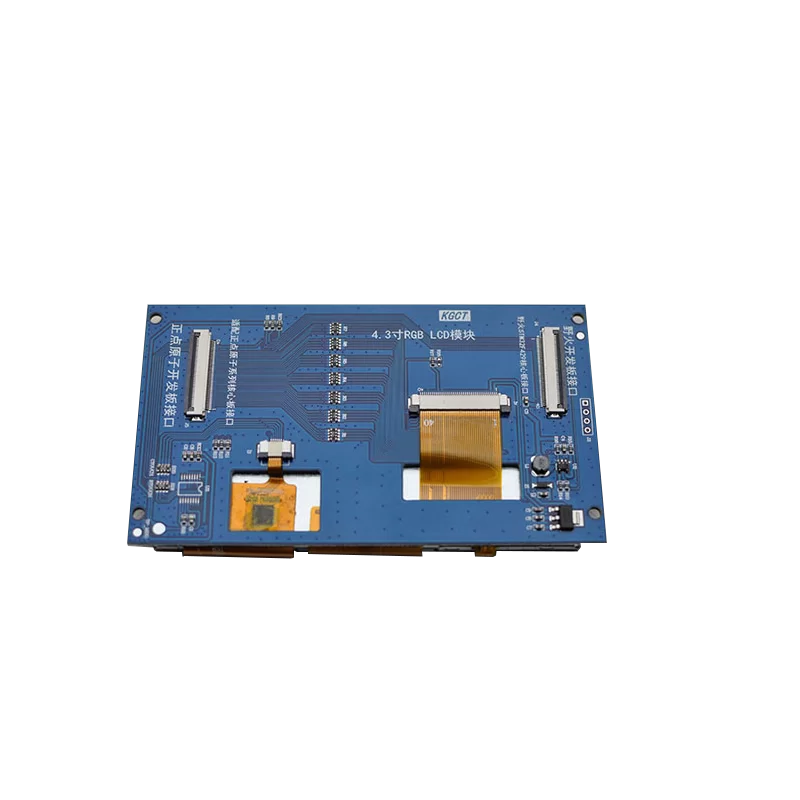

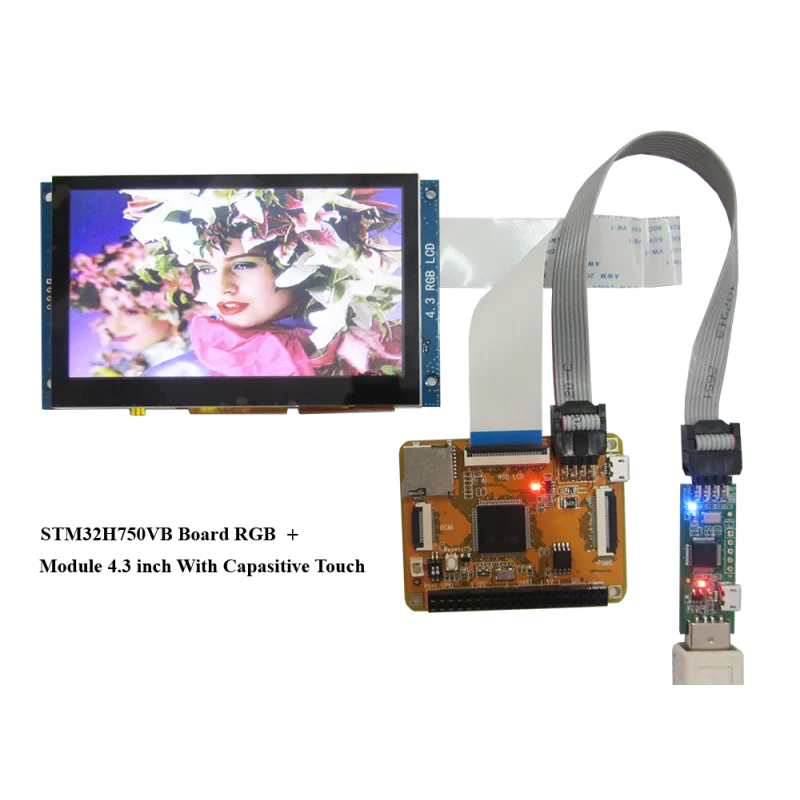

ماژول السیدی 4.3 اینچ با تاچ اسکرین خازنی
Brand: 4.3 inch LCD screen
LCD Type: TFT/TRANSMSSIVE
Viewing Direction: 6 O’Clock
Outline Dimension(W*H*T): 105.4*67.1*4.87 mm
Viewing area: 55.44(H)*98.64 (V) mm
Active area: 95.04*53.86 mm
Number of Dots: 480*RGB*272
Touch Driver IC: GT9147
Interface type: RGB888
Brightness: 400cdlm2
Input Votage: 3.0V
Colors: 262K
Backlight type: LED
INTERFACE PIN CONNECTIONS :
Touch Panel Control pin:
لیست موارد موجود در دانلود ویژه:

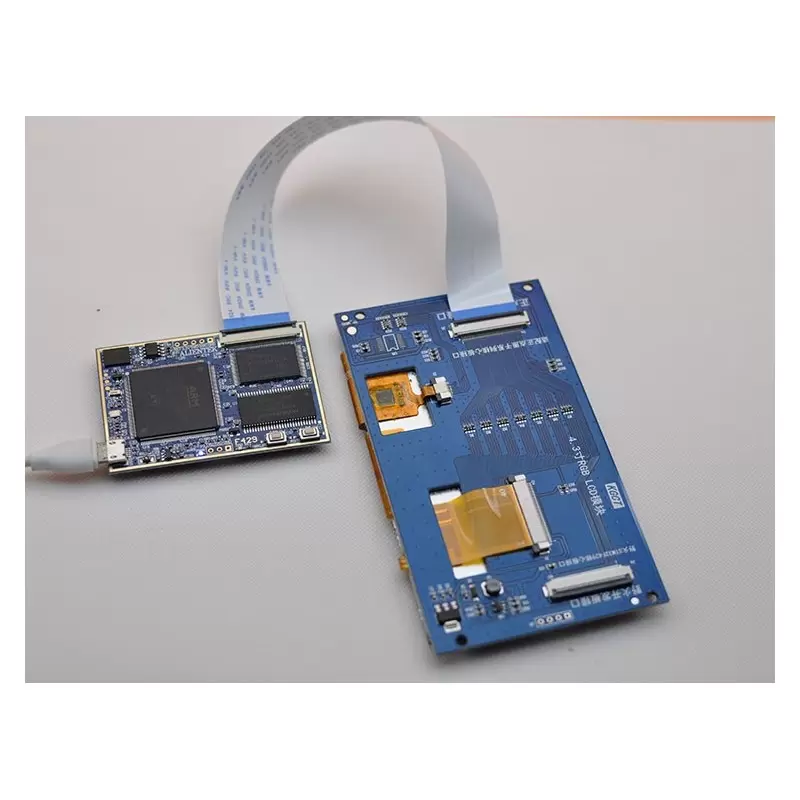

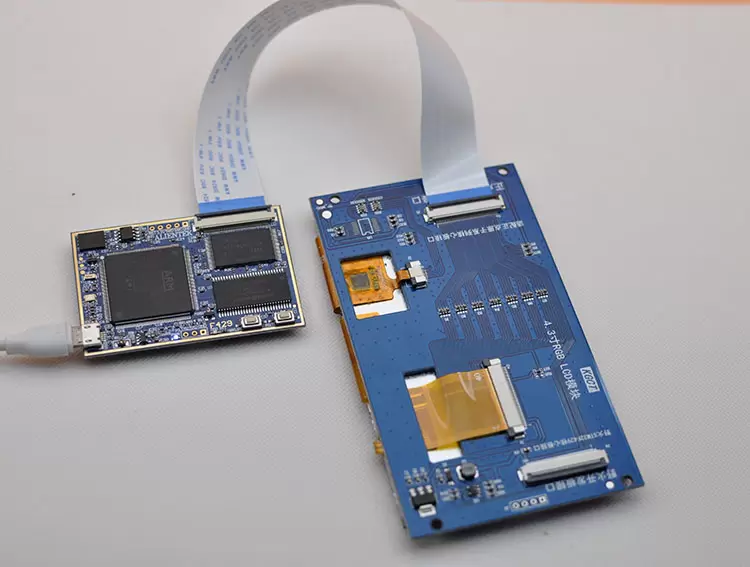

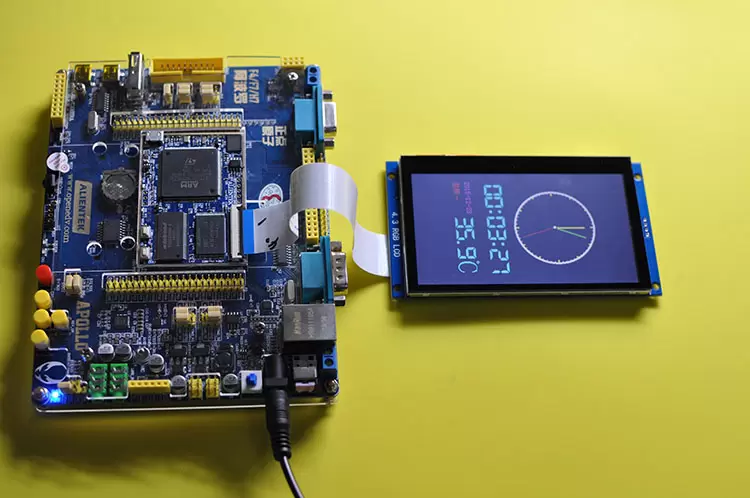

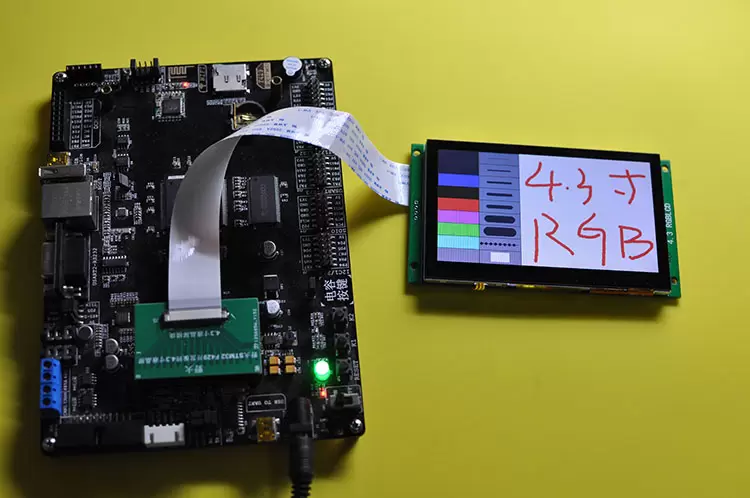

نمونه مثال تست برای بردSTM32F429
2. The program source code is punctuated by atoms, wildfire:
مشخصات
- سایز نمایشگر(اینچ)
- 4.3
- رزولیشین
- 480x272
- نمایش رنگ
- تمام رنگی
- نوع ارتباط (RGB)
- 40pin
- نوع اتصال
- FPC
