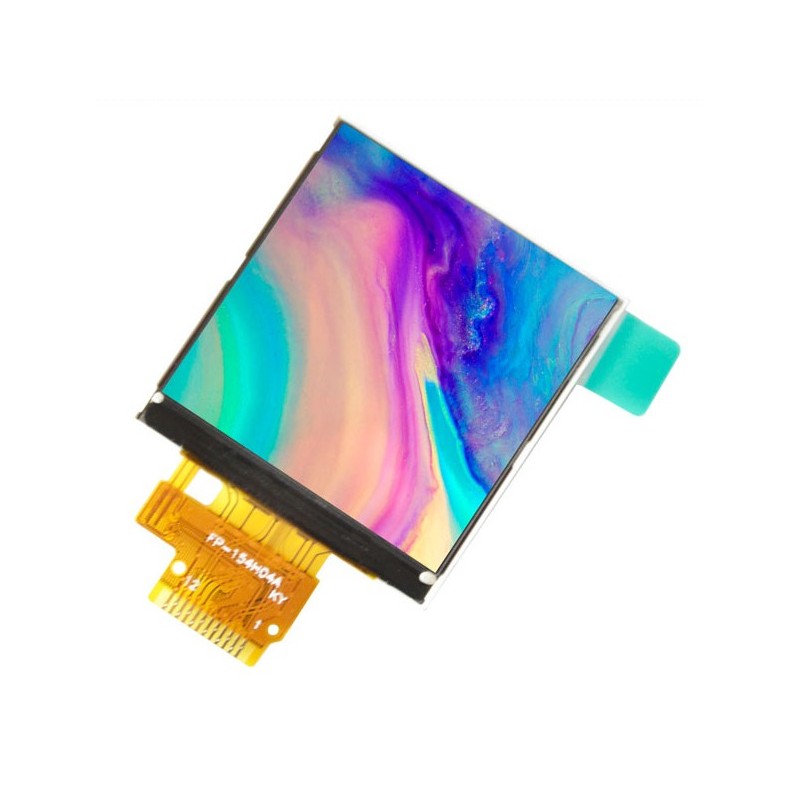

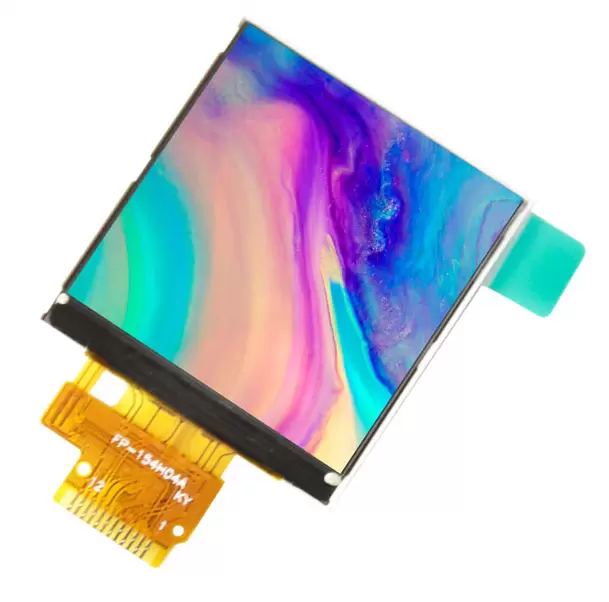

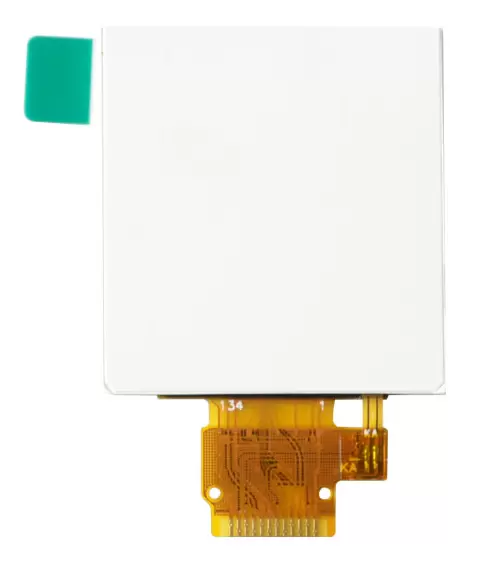

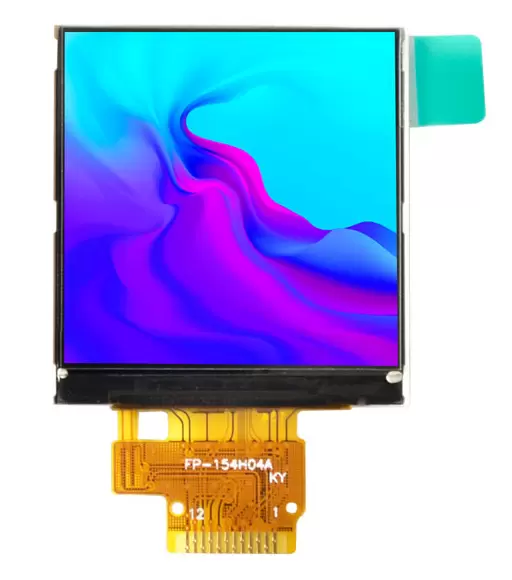

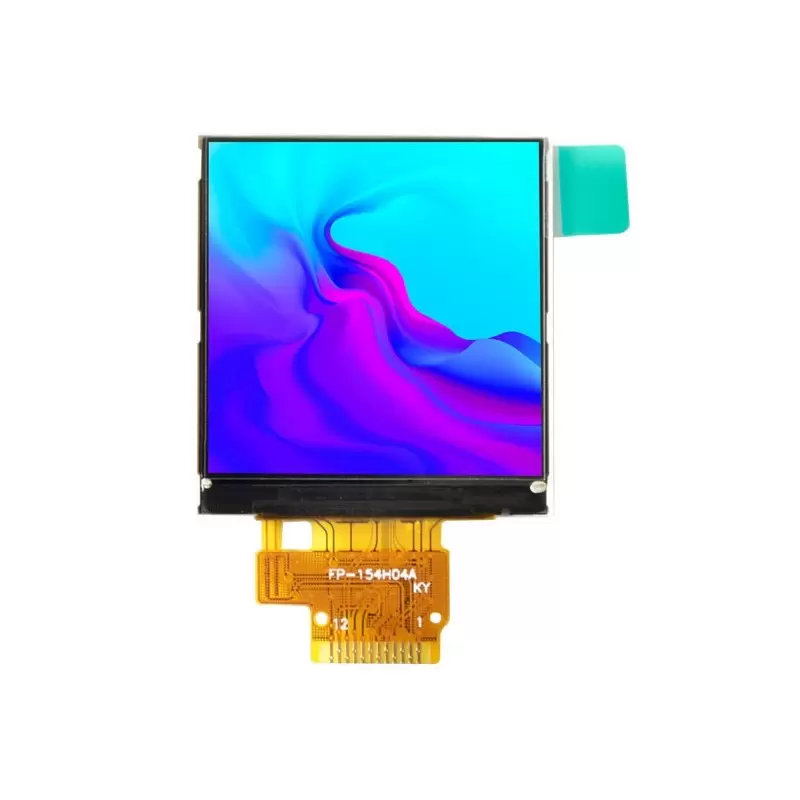

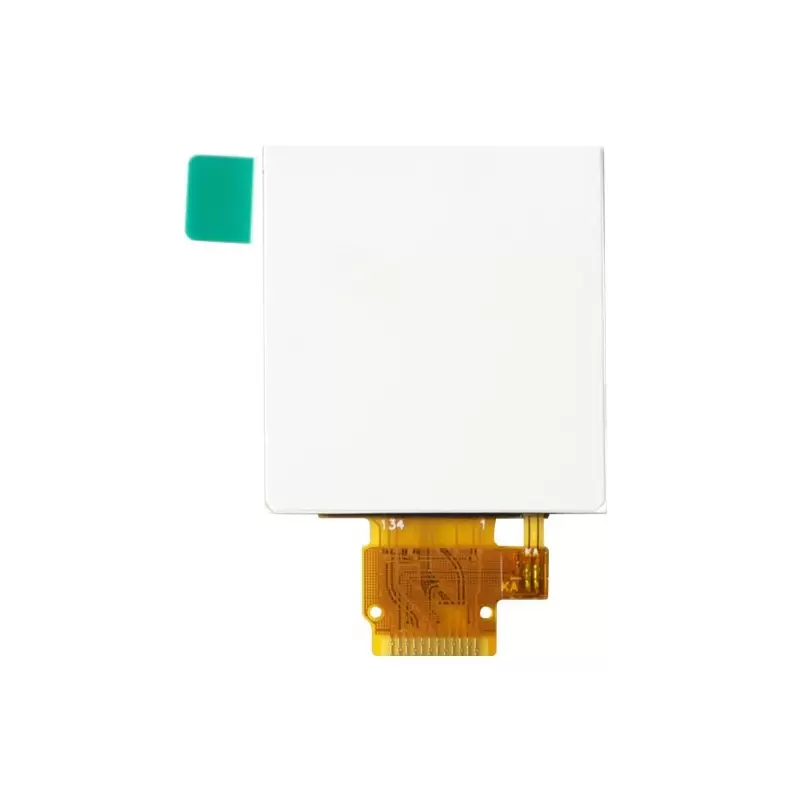

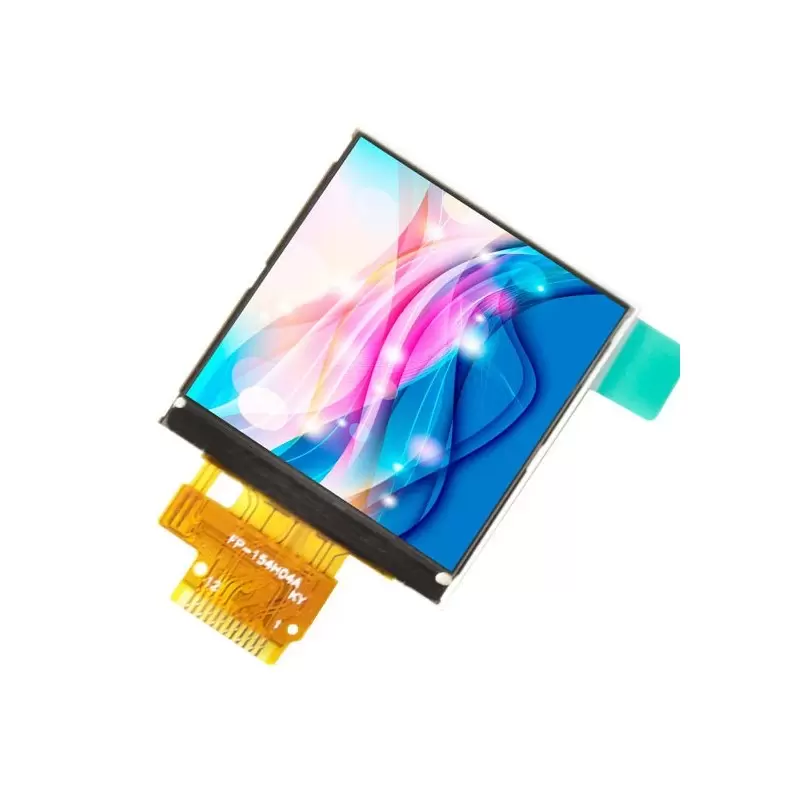

السیدی 1.54 اینچ TFT LCD 1.54 inch - 240x240 SPI - ST7789
السیدی 1.54 اینچ TFT LCD 1.54 inch - 240x240 SPI - ST7789- کویر الکترونیک
السیدی 1.54 اینچ TFT LCD 1.54 inch ، با رزولیشن 240x240 و ST7789 و SPI Interface
lcd size: 1.54 inch
data: material high-definition IPS color screen, the color is more vivid than ordinary
Resolution: 240(H) X 240(V)
(display direction can be adjusted, four directions can be rotated freely, square)
Control chip: ST7789

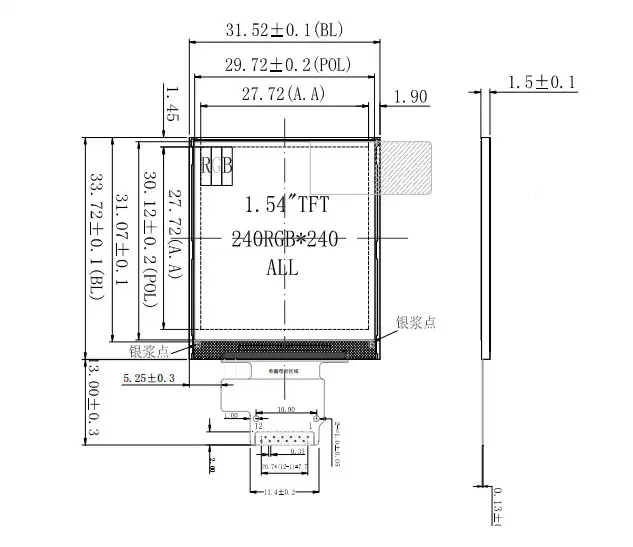

Display area: 27.72 (H) x 27.72 (V) mm

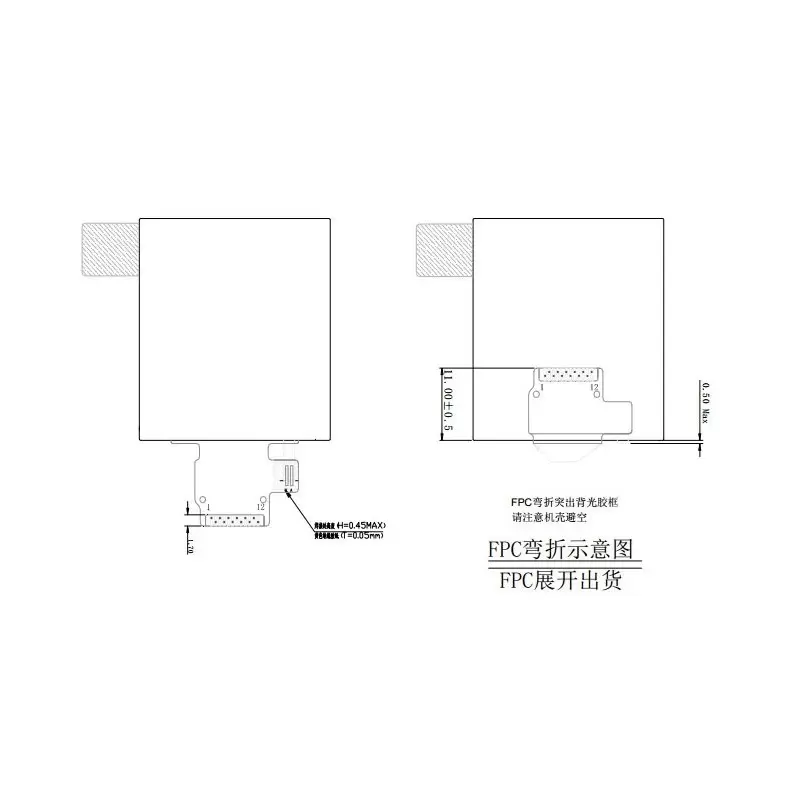

Physical size: 31.52 (H) x 33.72 (V) x1.5 (D) mm
Interface Type: 4-Wire SPI Interface

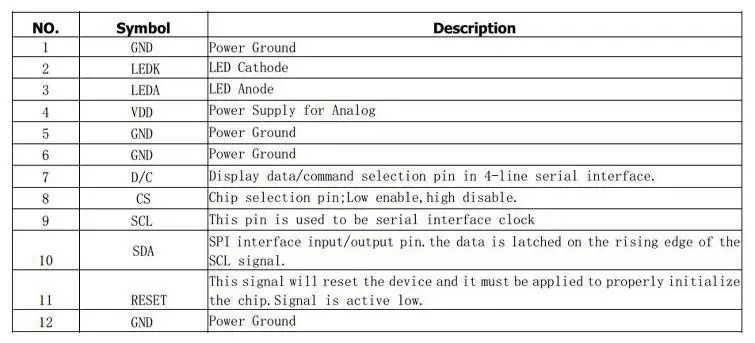

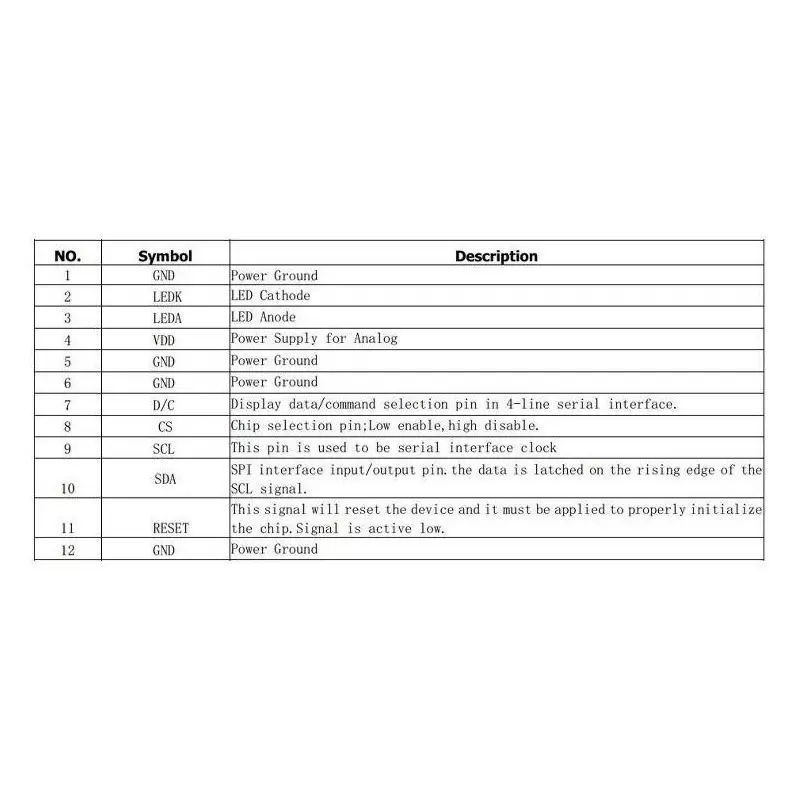

Number of pins: 12PIN
Viewing direction: Full viewing angle
operating temp: -20 ~ +70°c
Operating voltage: 3.3V
محتوای فایل مربوط به مثال و document:
1.54 IPS program source code:
مشخصات
- سایز نمایشگر(اینچ)
- 1.54
- رزولیشین
- 240x240
- نمایش رنگ
- تمام رنگی
- نوع ارتباط (MCU)
- SPI
- چیپ راه انداز
- ST7789
- نوع اتصال
- لحیمی
