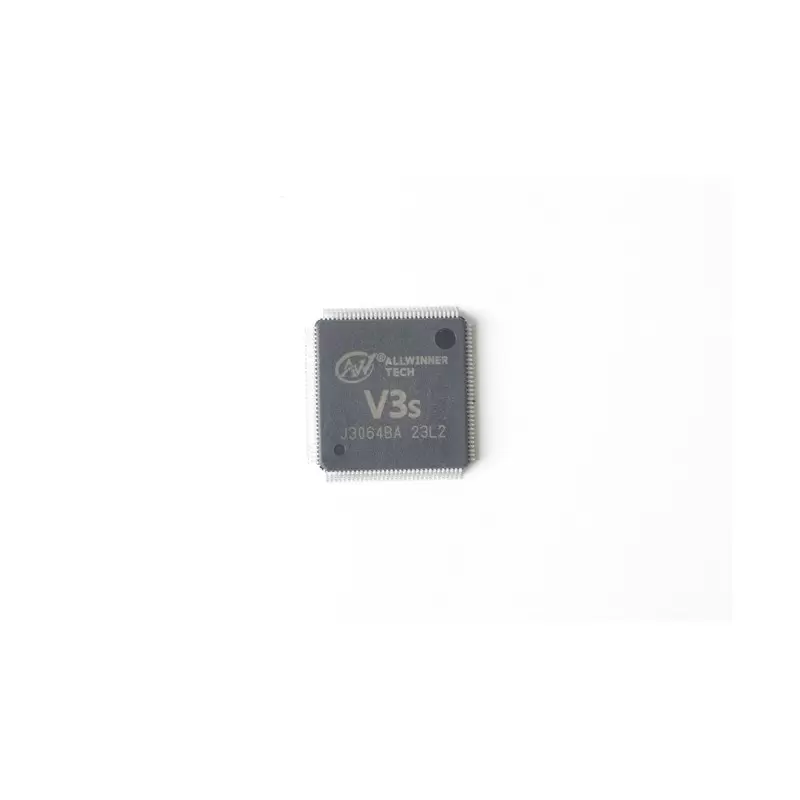

آیسی Allwinner V3S-اورجینال- New and original

آیسی Allwinner V3S

Allwinner V3 is SoC with build-in ARM Cortex A7 CPU designed for Car Digital Video Recording (DVR) and IP Camera (IPC) monitoring systems.

The V3s targets the Car Digital Video Record (DVR) and IP Camera (IPC) Monitor System market.

It comes in a hacker-friendly 128-pin eLQFP package.

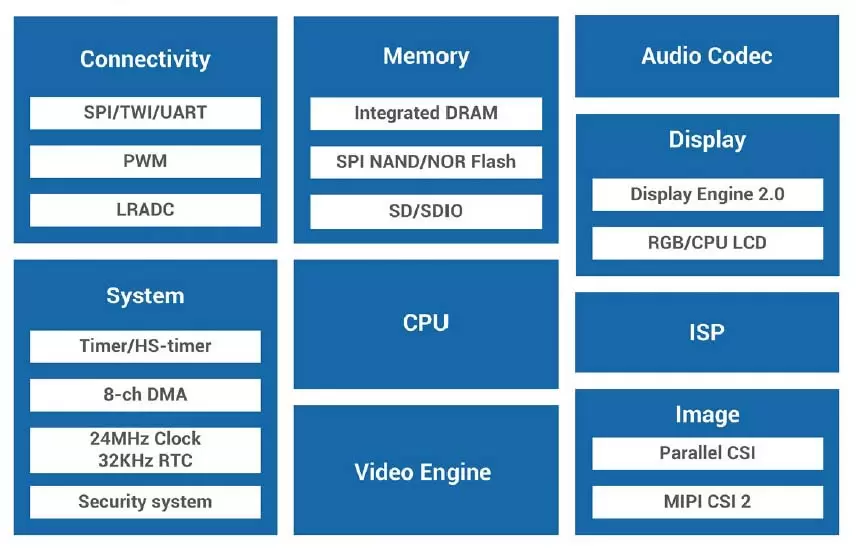

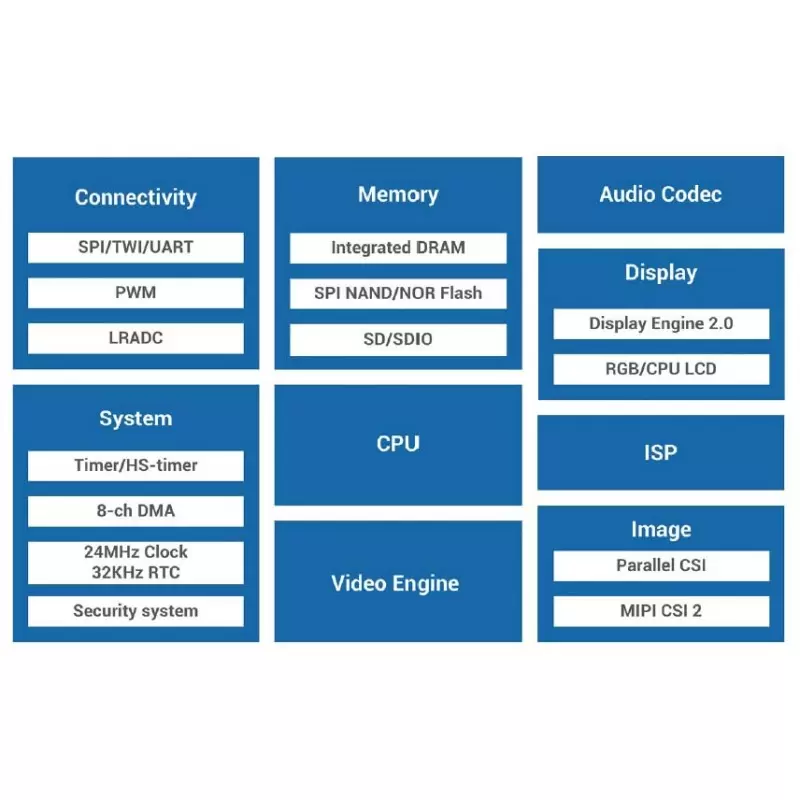

  Features
CPU:
      • ARM Cortex™-A7
Memory:
      • Integrated 64MB DRAM
Audio Codec:
      • Integrated 92dB audio codec

      • Supports two ADC channels and two DAC channels

      • Supports one low-noise analog microphone bias outputs

      • Supports one microphone input and one stereo microphone output
Package:
      • 128-pin eLQFP
Video:
      • Supports 1080p@40fps or 1080p@30fps+VGA@30fps H.264 video encoding,

      • Supports H.264 1080p@30fps decoding, MJPEG 1080@30fps decoding

Video Input/Output:
      • Supports 8/10/12-bit parallel CSI and 4-lane MIPI CSI2

      • Supports up to 5M CMOS sensor

      • Supports RGB/i80/LVDS LCD up to 1024x768 resolution
Connectivity:
      •  3 x SD card controllers

      •  LRADC/SPI/TWI/UART/PWM

      •  USB, EMAC+PHY
ISP:
      • Integrated ISP up to 5M pixels

      • Supports two channel outputs for display and encoding respectively

      • Supports various input and output formats

      • Supports AE/AF/AWB

      • Supports saturation adjustment/ noise reduction/ defect pixel correction/distortion correction
OS:

      • Supports Camdroid OS, an Android-lite operating system

      • Supports Linux OS
