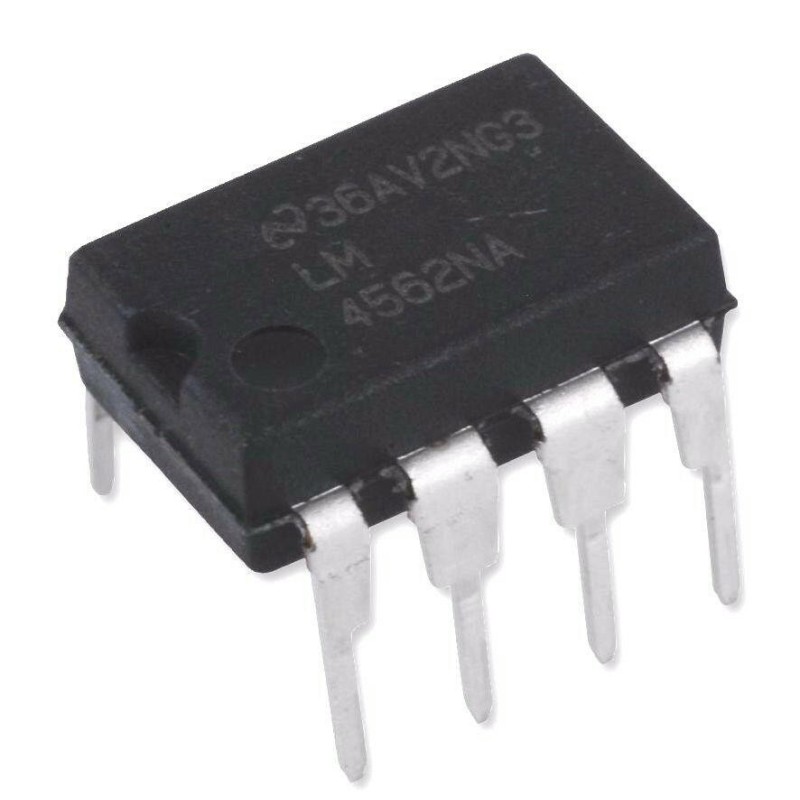

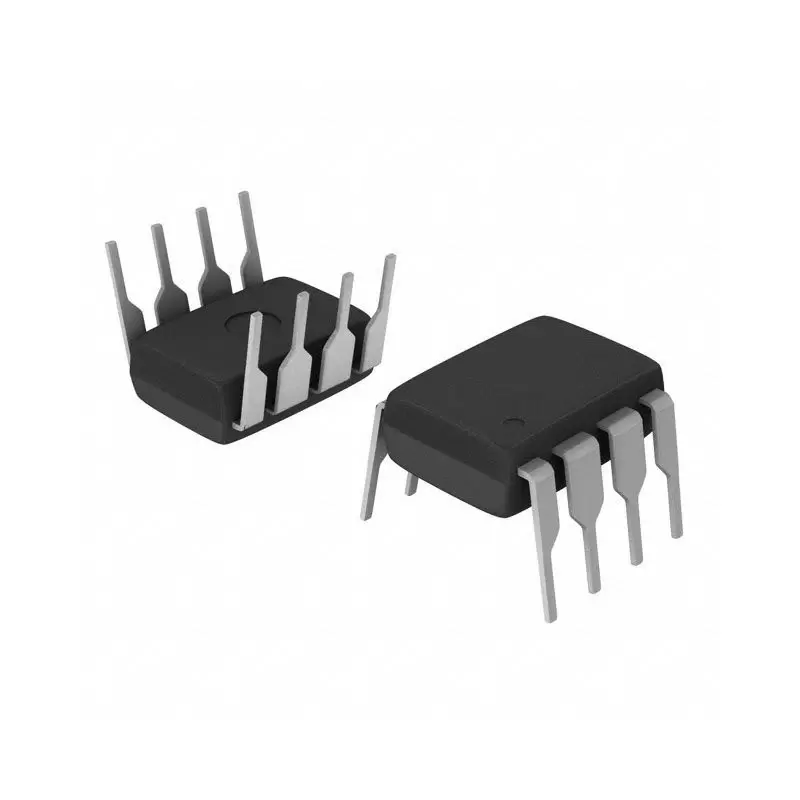

آیسی Audio Amplifiers LM4562NA - اورجینال - New and original+گارانتی

آیسی Audio Amplifiers LM4562NA - اورجینال -New and original+گارانتی

Manufacturer:
     Texas Instruments
Product Category:
     Audio Amplifiers
Product:
     Audio Amplifiers
Mounting Style:
     Through Hole
Type:
     2-Channel
Package/Case:
     MDIP-8
Minimum Operating Temperature:
     - 40 C
Maximum Operating Temperature:
     + 85 C
Amplifier Type:
     General Purpose Amplifier
Height:
     3.3 mm
Length:
     9.27 mm
Supply Type:
     Dual
Width:
     6.35 mm
Brand:
     Texas Instruments
Number of Channels:
     2 Channel
Shutdown:
     No Shutdown
Dual Supply Voltage:
     +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
en - Input Voltage Noise Density:
     6.4 nV/sqrt Hz
GBP - Gain Bandwidth Product:
     55 MHz
Ib - Input Bias Current:
     0.01 uA
In - Input Noise Current Density:
     3.1 pA/sqrt Hz
Maximum Dual Supply Voltage:
     +/- 17 V
Minimum Dual Supply Voltage:
     +/- 2.5 V
Product Type:
     Audio Amplifiers
PSRR - Power Supply Rejection Ratio:
     110 dB
SR - Slew Rate:
     20 V/us
Subcategory:
     Audio ICs
Vos - Input Offset Voltage:
     700 uV
