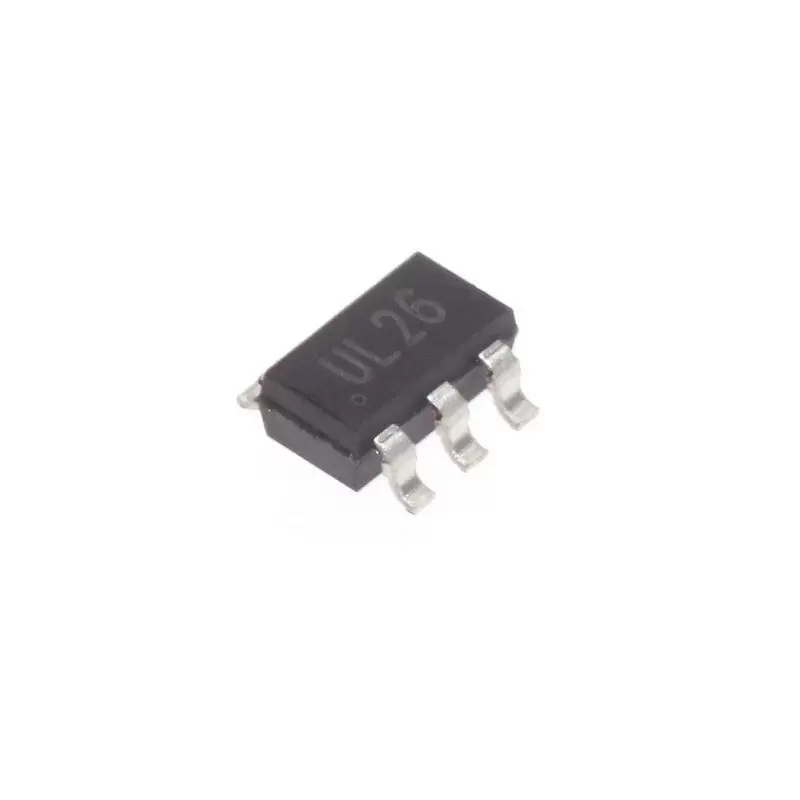

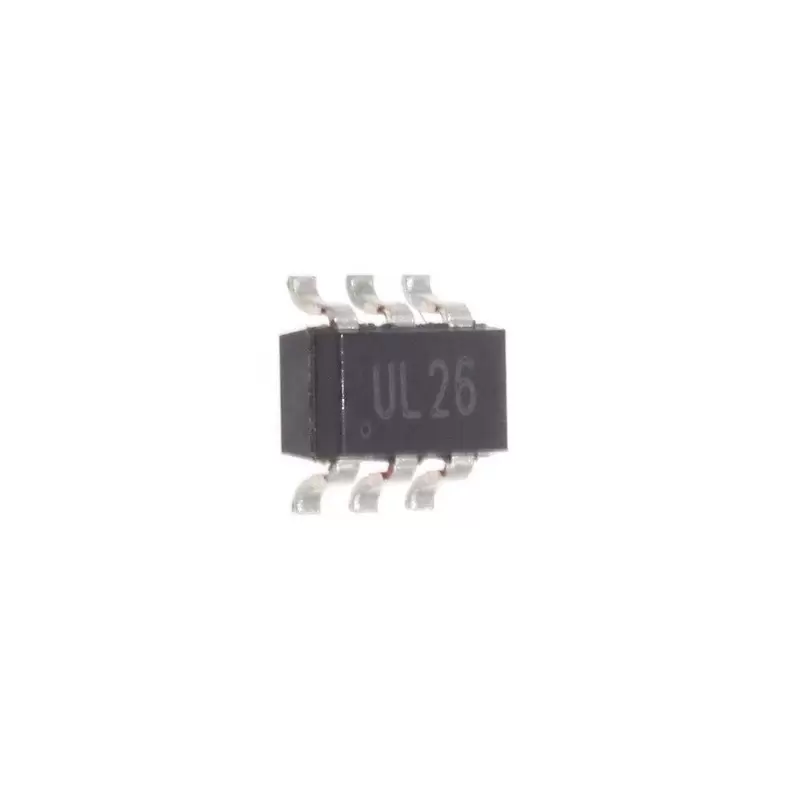

دیود TVS Diodes 5.25V - USBLC6-2SC6 - محافظ ESD - اورجینال -New and original+گارانتی

دیود TVS Diodes 5.25V - USBLC6-2SC6 - محافظ ESD - اورجینال -New and original+گارانتی

Description:
The USBLC6-2SC6 and USBLC6-2P6 are monolithic application specific devices dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet links and video lines.The very low line capacitance secures a high level of signal integrity without compromising in protecting sensitive chips against the most stringently characterized ESD strikes.

Features:
2 data-line protection
Protects VBUS
Very low capacitance: 3.5 pF max.
Very low leakage current: 150 nA max.
SOT-666 and SOT23-6L packages
RoHS compliant

Applications:
USB 2.0 ports up to 480 Mb/s (high speed)
Compatible with USB 1.1 low and full speed
Ethernet port: 10/100 Mb/s
SIM card protection
Video line protection
Portable electronics

Specifications:
Manufacturer:
     STMicroelectronics
Product Category:
     ESD Suppressors / TVS Diodes
Product Type:
     ESD Suppressors
Polarity:
     Unidirectional
Working Voltage:
     5.25 V
Number of Channels:
     2 Channel
Termination Style:
     SMD/SMT
Package/Case:
     SOT-23-6
Breakdown Voltage:
     6 V
Clamping Voltage:
     17 V
Vesd - Voltage ESD Contact:
     8 kV
Vesd - Voltage ESD Air Gap:
     15 kV
Cd - Diode Capacitance:
     2.5 pF
Ipp - Peak Pulse Current:
     5 A
Minimum Operating Temperature:
     - 40 C
Maximum Operating Temperature:
     + 125 C
Series:
     USBLC6-2
Brand:
     STMicroelectronics
Operating Supply Voltage:
     5 V
Subcategory:
     TVS Diodes / ESD Suppression Diodes
