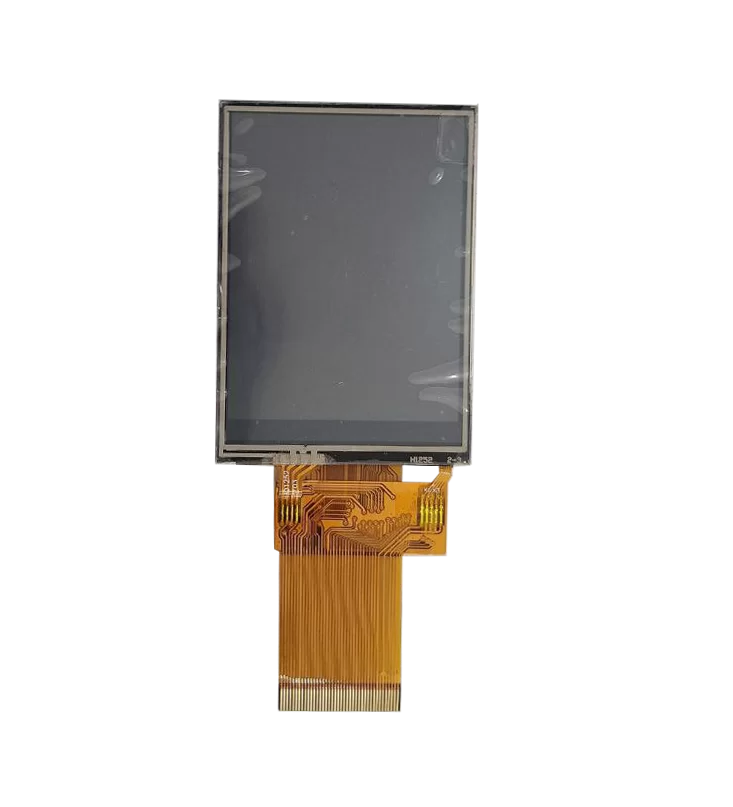

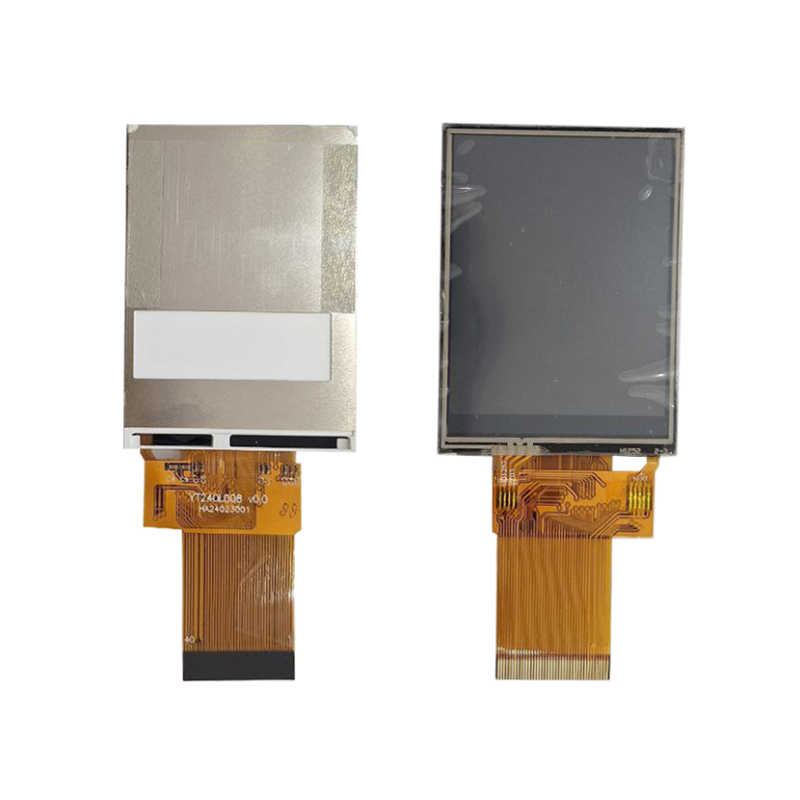

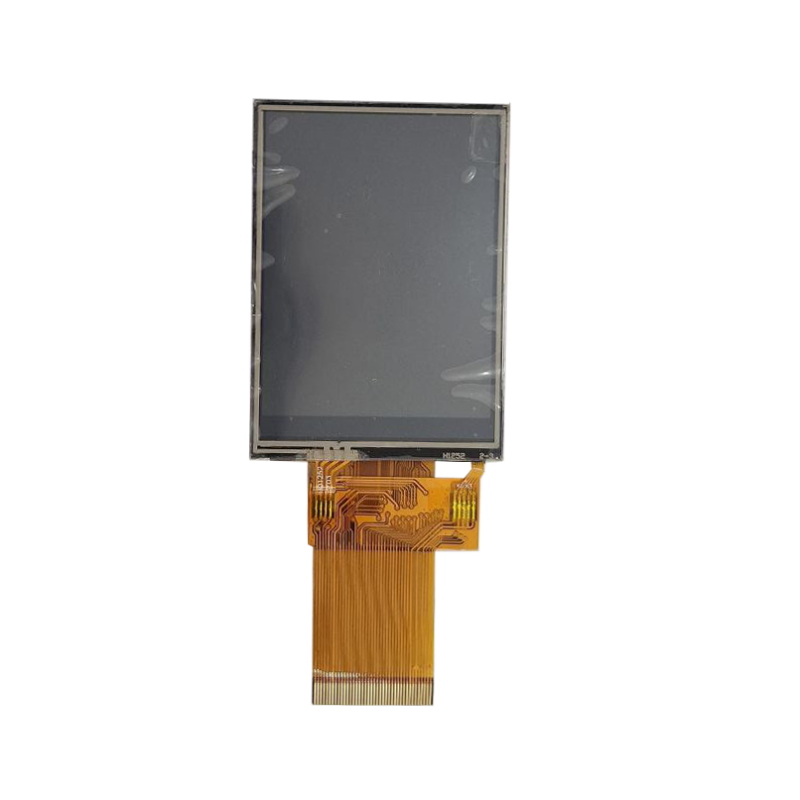

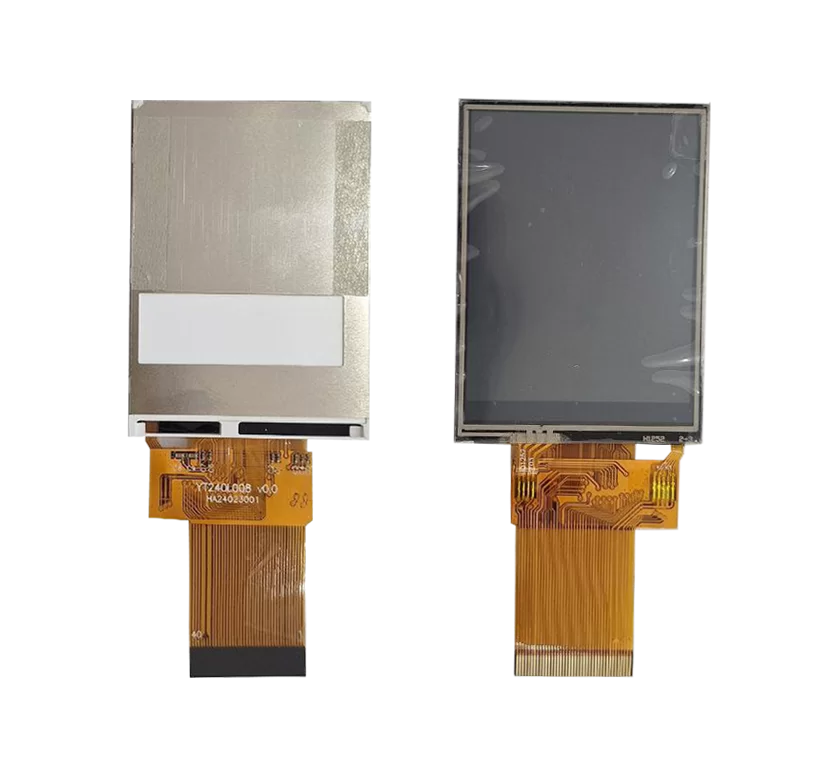

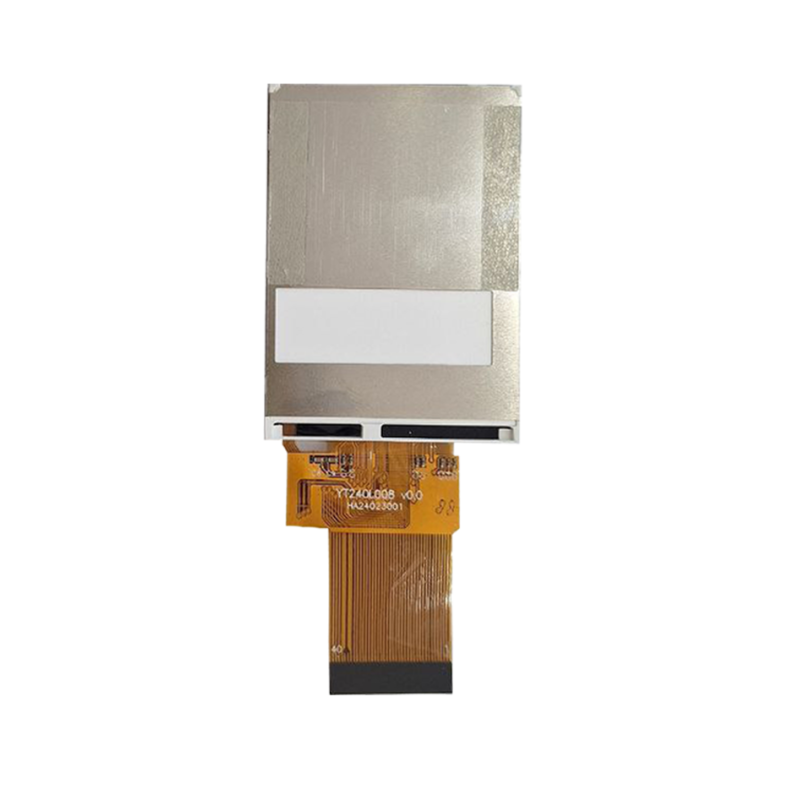

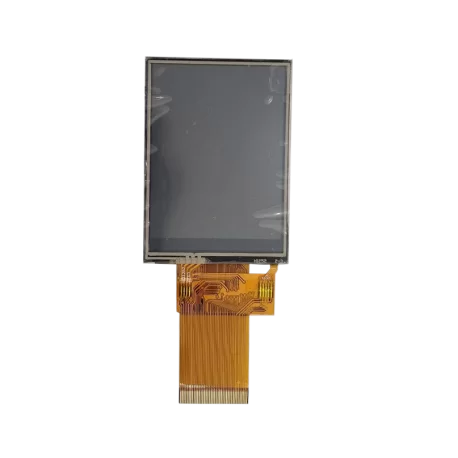

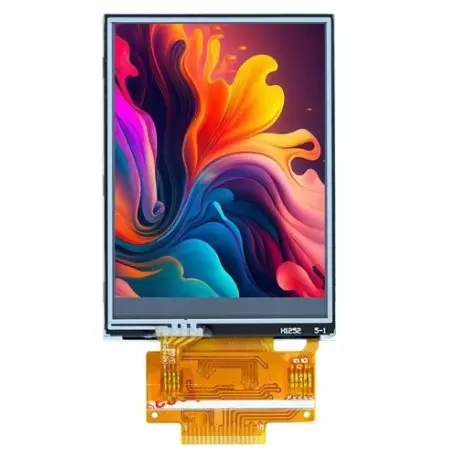

السیدی 2.4 اینچ با تاچ TFT LCD 2.4 inch with touch - 240x320 - SPI / Parallel - ILI9341

السیدی 2.4 اینچ با تاچ TFT LCD 2.4 inch  with touch و با رزولیشن 240x320 و Control chip ILI9341 و SPI/Parallel Interface

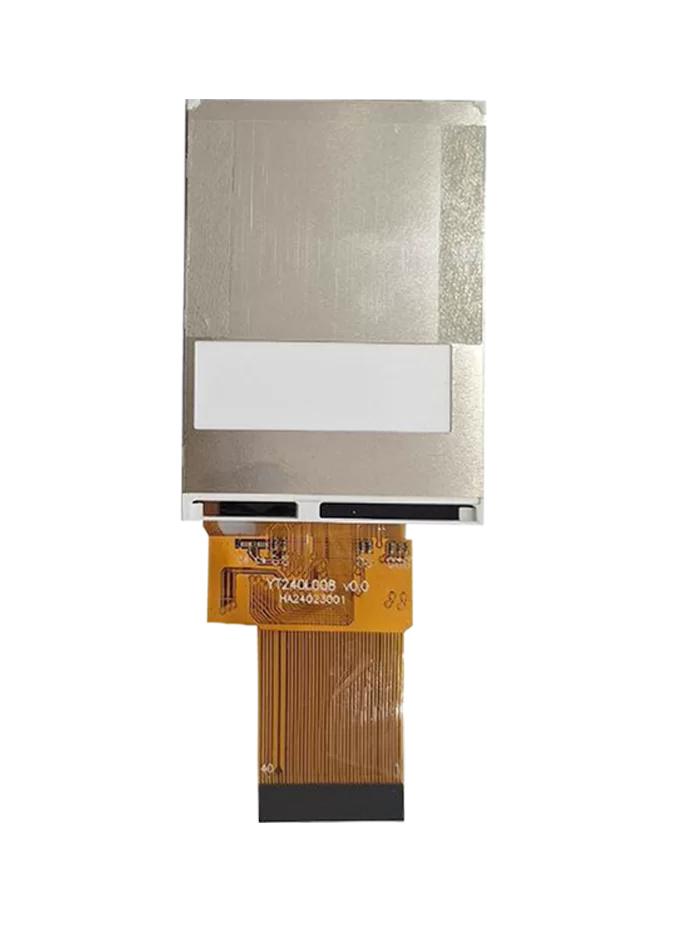

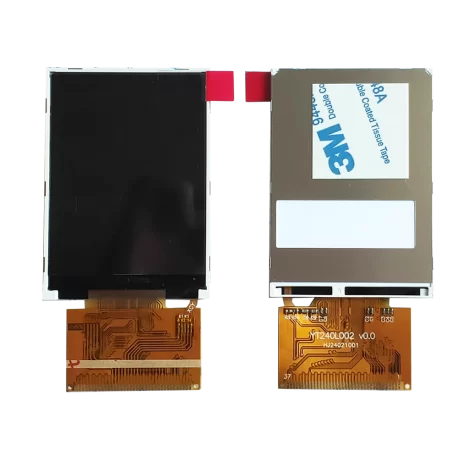

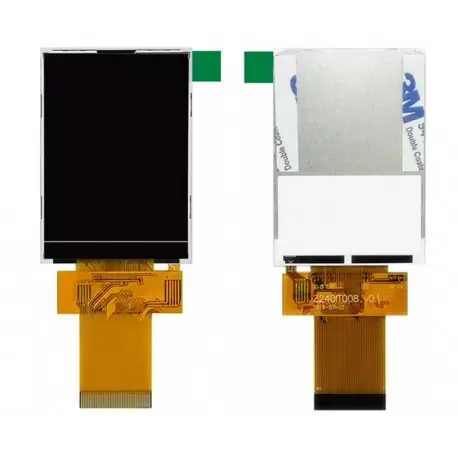

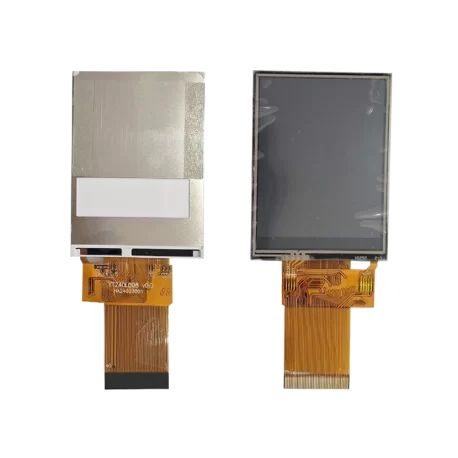

Part Number: YT240L008  v0.0
Size: 2.4 inches
Material: TFT LCD
Resolution: 240xRGBx320 display direction can be adjusted, both horizontal and vertical screens
Control chip: IL19341

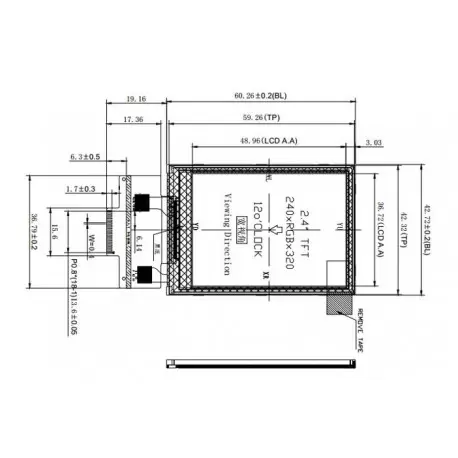

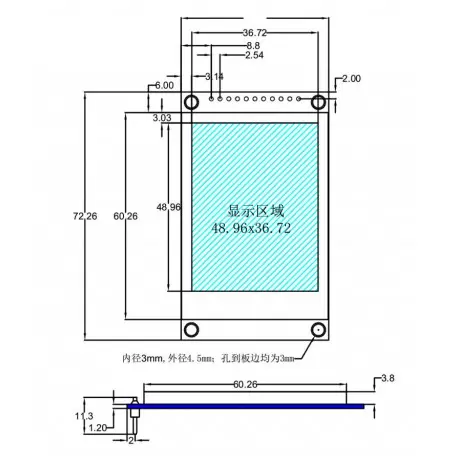

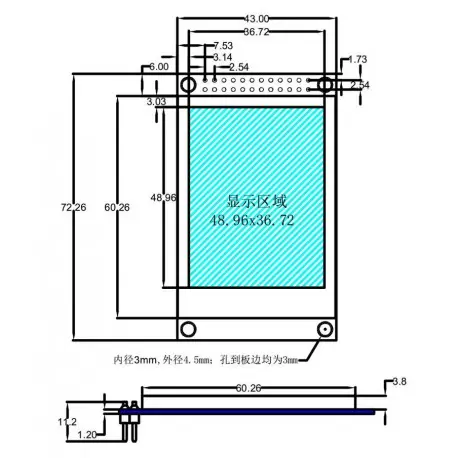

Display area: 36.72(W)*48.96 (H)mm

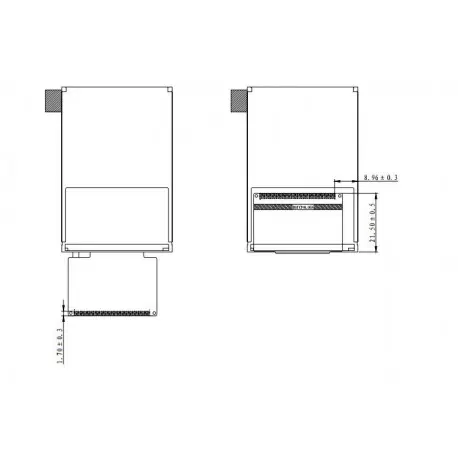

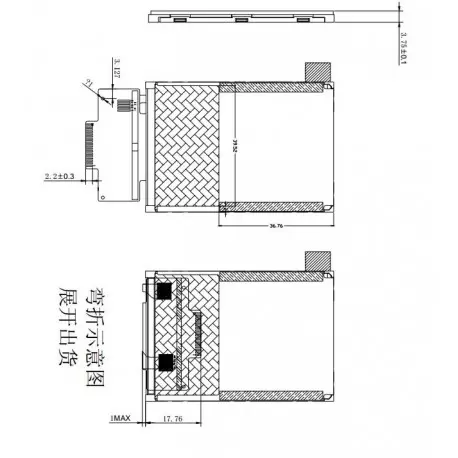

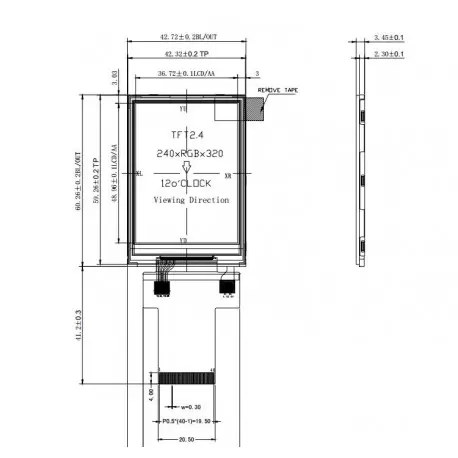

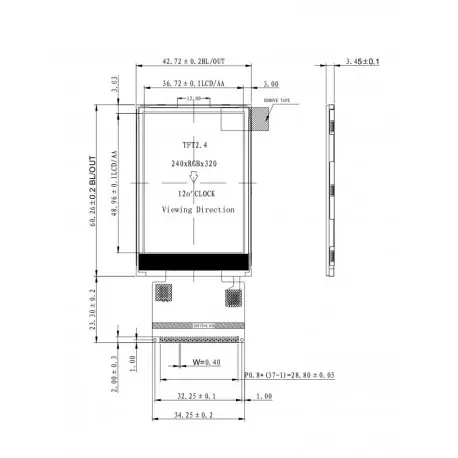

Dimensions:
                    42.72(W)*60.26(H)*2.55(T) mm (without touch)
                    42.72(W)*60.26(H)*3.75(T) mm (with touch)
                    (FPC not include)
Interface type: 3-wire serial/4-wire serial/8bits /16bits parallel interface
Backlight type: LED*4
Voltage: 2.8V~3.3V
Current: 60ma
Power consumption: 0.22W
Working temperature: -20~70 degrees
Viewing direction: 12 o'clock
Touch type: with touch

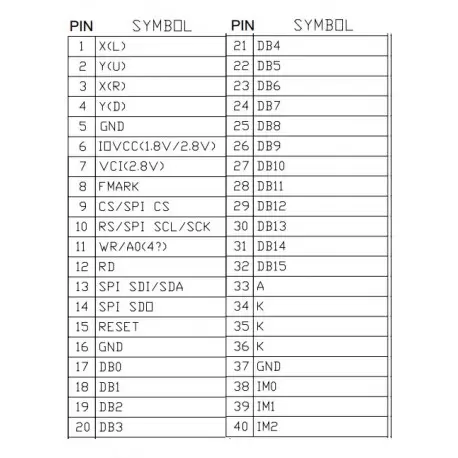

Number of pins: 40PIN(0.5mm pitch plug-in FPC)
Working temperature: -20~70 degrees

محتوای مربوط به مثال و document:
مثال های 2.4 و 2.8 و 3.2 با درایور ILI9341 و 40 پین با کدهای منبع (1109-1053-1055-1046-1347-1048-1108) یکسان هست.

03-2.4-2.8-3.2 LCD program source code (ILI9341)
