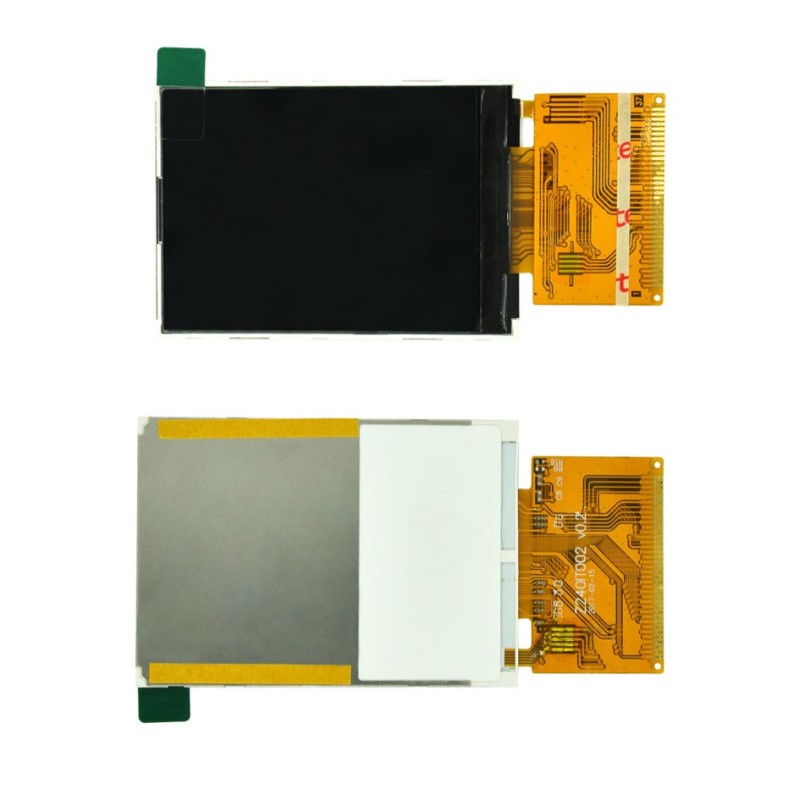

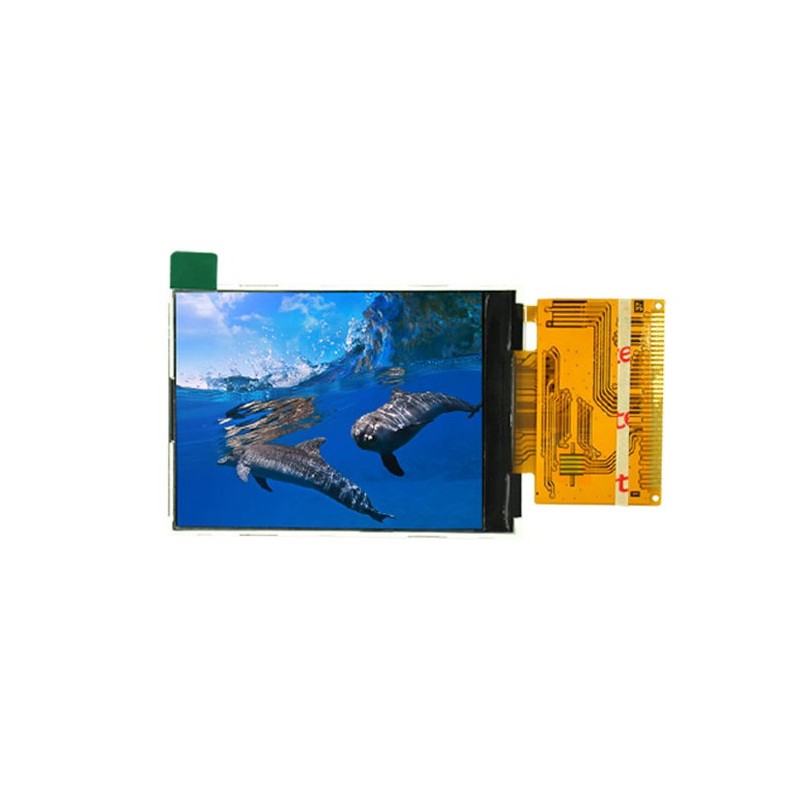

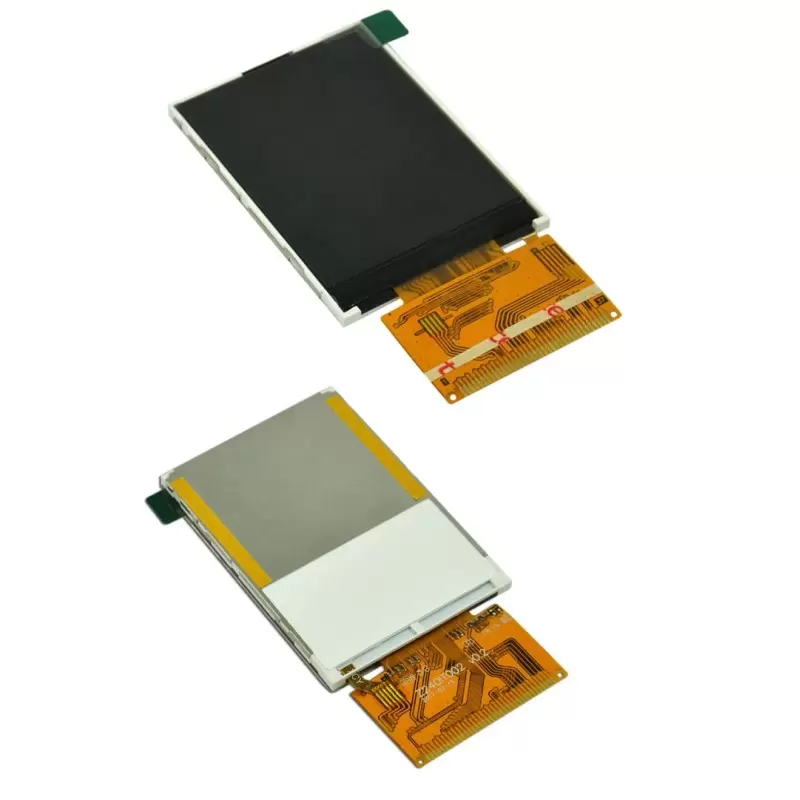

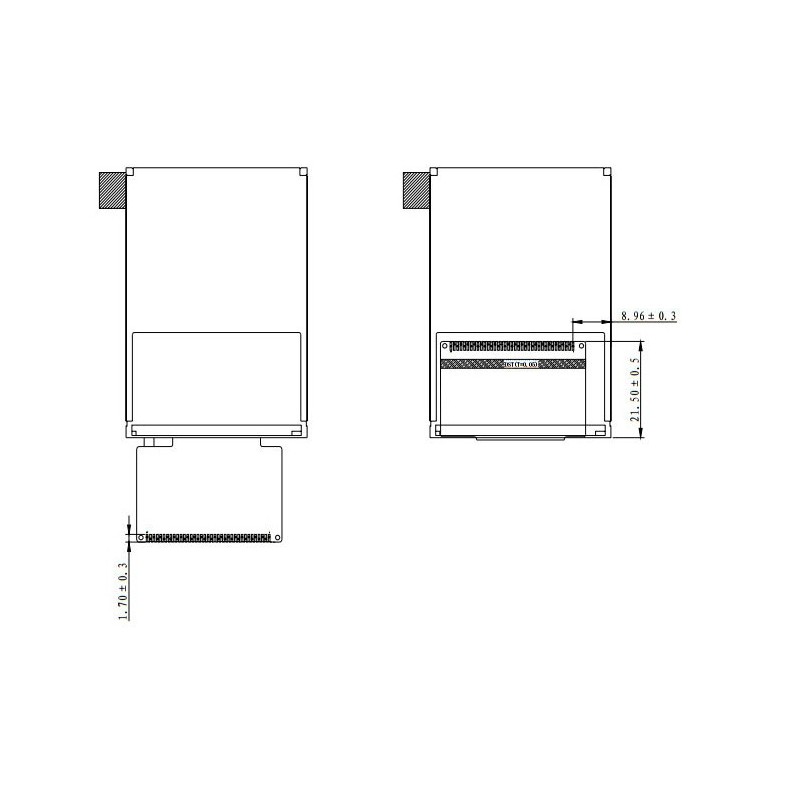

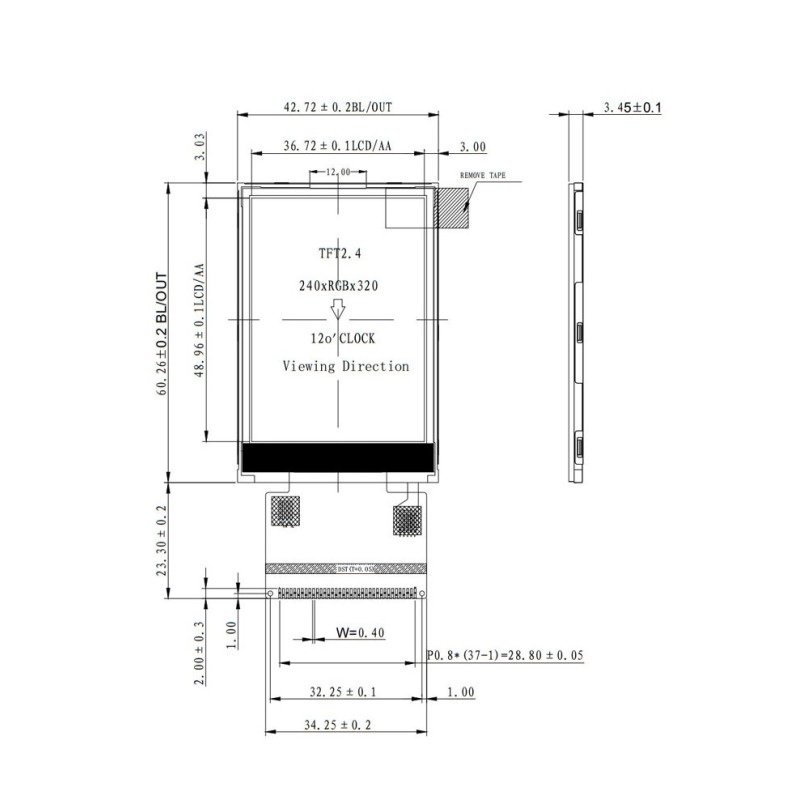

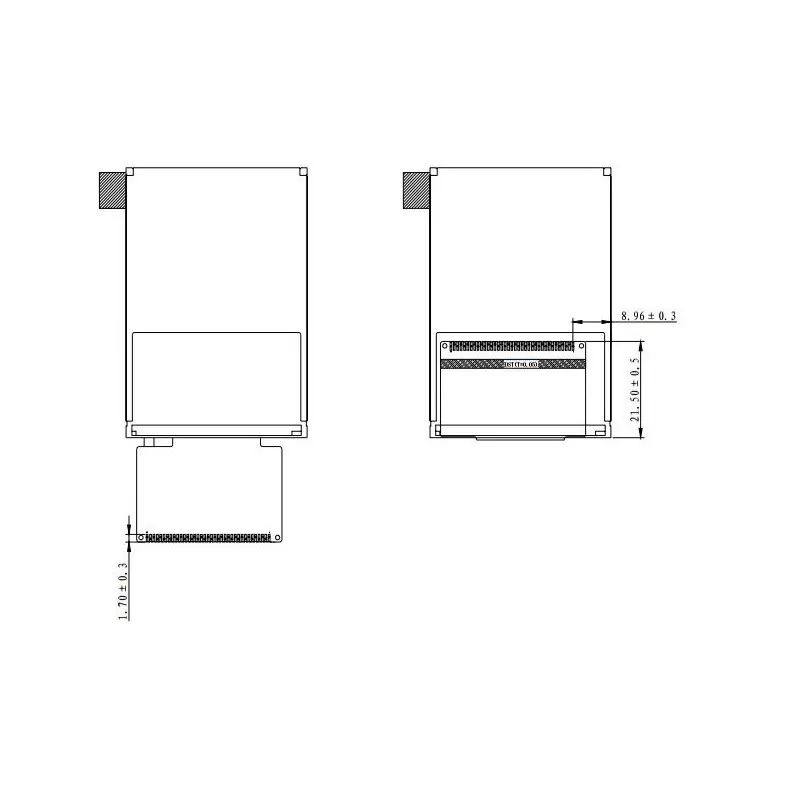

السیدی 2.4 اینچ TFT LCD 2.4 inch without touch, 240x320 Parallel - ILI9341

1. PIN No. 1 - Symbol: DBO/DB3 - Description: Data bus level (not in use)
2. PIN No. 2 - Symbol: Ground - Description: Ground
3. PIN No. 3 - Symbol: NC - Description: No connection
4. PIN No. 4 - Symbol: VCC - Description: Power supply for low (2.8V-3.3V)
5. PIN No. 5 - Symbol: /CS - Description: Chip select pin (/Low enable)
6. PIN No. 6 - Symbol: RS - Description: This pin is used to select "Data" or "Command" in the parallel interface (H: Data, L: Command)
7. PIN No. 7 - Symbol: WR - Description: Write pin (when RS = "1", data is selected); /Write signal (active low)
8. PIN No. 8 - Symbol: /RD - Description: Read pin (not in use)
9. PIN No. 9 - Symbol: /RESET - Description: Reset pin (active low)
10. PIN No. 10 - Symbol: /RD - Description: Read data at the rising edge
11. PIN No. 11 - Symbol: NC - Description: No connection
12. PIN No. 12 - Symbol: XL - Description: Touch panel control pin (X left)
13. PIN No. 13 - Symbol: YU - Description: Touch panel control pin (Y up)
14. PIN No. 14 - Symbol: XR - Description: Touch panel control pin (X right)
15. PIN No. 15 - Symbol: YD - Description: Touch panel control pin (Y down)

16. PIN No. 16 - Symbol: LEDA - Description: Anode of backlight (0.9V to 3.8V typical, 2.9V)
17. PIN No. 17 - Symbol: LEDK1 - Description: Cathode of backlight
18. PIN No. 18 - Symbol  LEDK2 - Description: Cathode of backlight
19. PIN No. 19 - Symbol: LEDK3 - Description: Cathode of backlight
20. PIN No. 20 - Symbol: LEDK4 - Description: Cathode of backlight
21. PIN No. 21 - Symbol: PWMK - Description: PWM signal output pin to synchronize MPU to frame writing;
activated by SW command. When this pin is not activated, this pin is low (0.1mA max, input pull-down)
22. PIN No. 22 - Symbol: DB4 - Description: Data bus (Fix to GND level when not in use)
23-30. PIN No. 23-30 - Symbol: DB5-DB15 - Description: Data bus (Fix to GND level when not in use)
31. PIN No. 31 - Symbol: /RESET - Description: Reset pin (active low)
32. PIN No. 32 - Symbol: VCC - Description: Power supply for LCM (2.8V-3.3V)
33. PIN No. 33 - Symbol: VCC - Description: Power supply for LCM (2.8V-3.3V)
34. PIN No. 34 - Symbol: GND - Description: Ground
35-37. PIN No. 35-37 - Symbol: DB16-DB17 - Description: Data bus (Fix to GND level when not in use)
