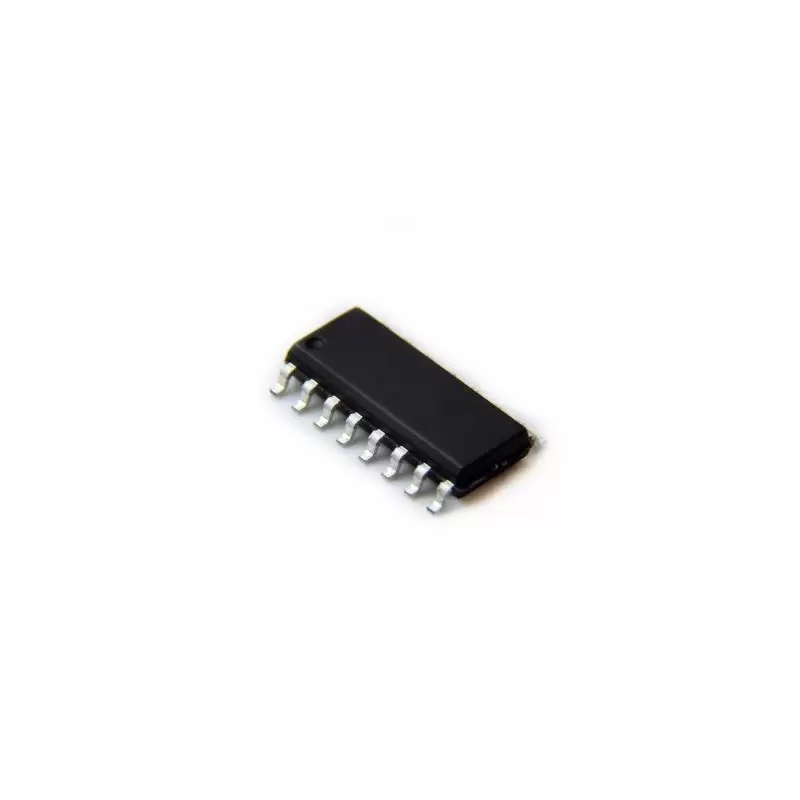

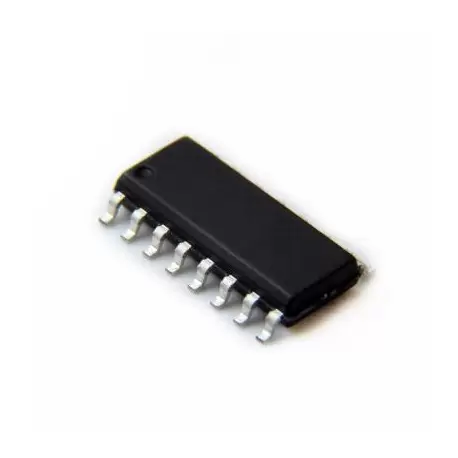

آیسی SP3232EEN/TR اورجینال -New and original+گارانتی

آیسی SP3232EEN/TR اورجینال -New and original+گارانتی

True 3.0V to 5.5V RS-232 Transceivers

Description:
The SP3222E and SP3232E series are RS-232 transceiver solutions intended  for  portable  or  hand-held  applications  such  as  notebook  or  palmtop  computers.  The  SP3222E  /  SP3232E  series  has  a  high-efficiency,   charge-pump   power   supply   that   requires   only   0.1μF   capacitors in 3.3V operation. This charge pump allows the SP3222E /  SP3232E  series  to  deliver  true  RS-232  performance  from  a  single  power  supply  ranging  from  3.0V  to  5.5V.  The  SP3222E /  SP3232E  are  2-driver  /  2-receiver  devices.  This  series  is  ideal  for  portable  or  hand-held applications such as notebook or palmtop computers. The ESD  tolerance  of  the  SP3222E  /  SP3232E devices  are  over  ±15kV  for  both  Human  Body  Model  and  IEC61000-4-2  Air  discharge  test  methods.  The  SP3222E  device  has  a  low-power  shutdown  mode  where  the  devices’  driver  outputs  and  charge  pumps  are  disabled.  During shutdown, the supply current falls to less than 1μA.

FEATURES:
Meets true EIA/TIA-232-F standards from a 3.0V to 5.5V power supply
Minimum 120kbps data rate under full load
1μA low power shutdown with receivers active (SP3222E)
Interoperable with RS-232 down to a 2.7V power source
Enhanced ESD specifications:
    ±15kV Human Body Model
    ±15kV IEC61000-4-2 Air Discharge
    ±8kV IEC61000-4-2 Contact Discharge

Manufacturer:
    MaxLinear
Product Category:
    RS-232 Interface IC
Mounting Style:
    SMD/SMT
Package / Case:
    SOIC-16
Series:
    SP3232E
Function:
    Transceiver
Data Rate:
    120 kb/s
Number of Drivers:
    2 Driver
Number of Receivers:
    2 Receiver
Duplex:
    Full Duplex
Supply Voltage - Max:
    5.5 V
Supply Voltage - Min:
    3 V
Operating Supply Current:
    0.3 mA
Minimum Operating Temperature:
    - 40 C
Maximum Operating Temperature:
    + 85 C
Height:
    1.65 mm
Length:
    9.9 mm
Output Current:
    35 mA
Product:
    RS-232 Transceivers
Supply Type:
    Single Supply
Width:
    3.9 mm
Shutdown:
    Without Shutdown
ESD Protection:
    15 kV
Moisture Sensitive:
    Yes
Operating Supply Voltage:
    3.3 V/5 V
Pd - Power Dissipation:
    1086 mW
Product Type:
    RS-232 Interface IC
Propagation Delay Time:
    1 us, 0.3 us
Protocol Supported:
    RS-232
Subcategory:
    Interface ICs
