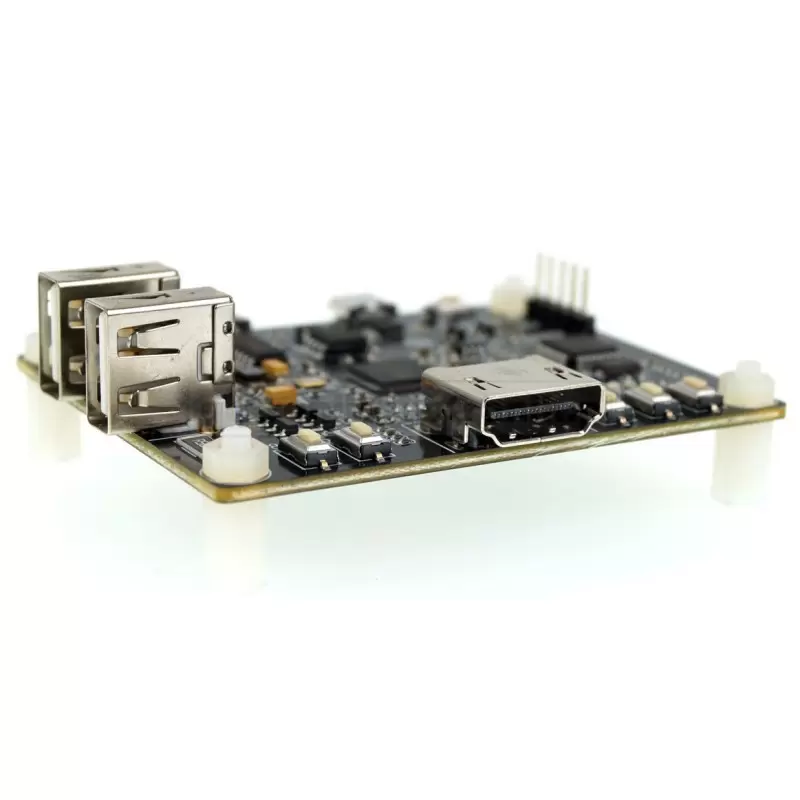

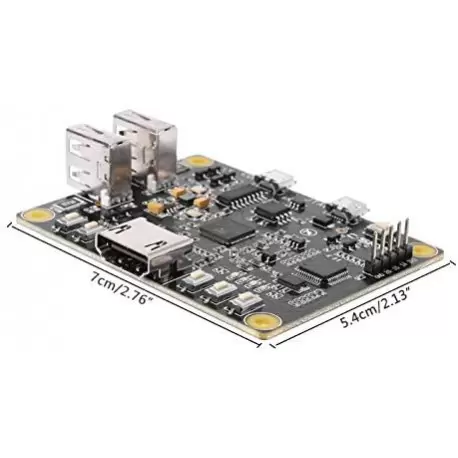

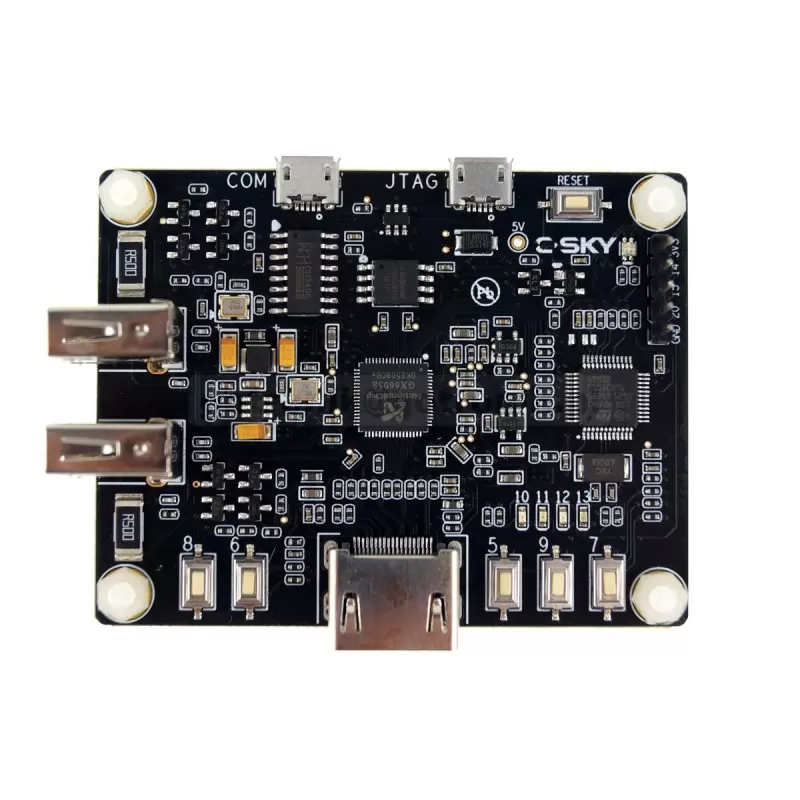

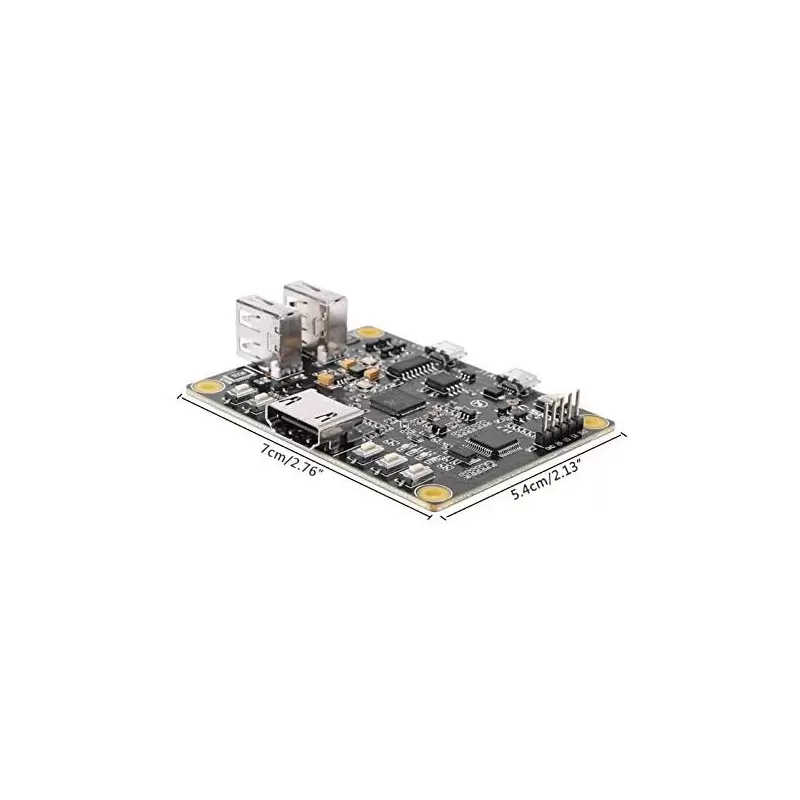

C-SKY Linux Development Board
C-SKY Linux Development Board is a mini computer that is an alternative to the Oragne Pi / Nano Pi or Rasberry sets

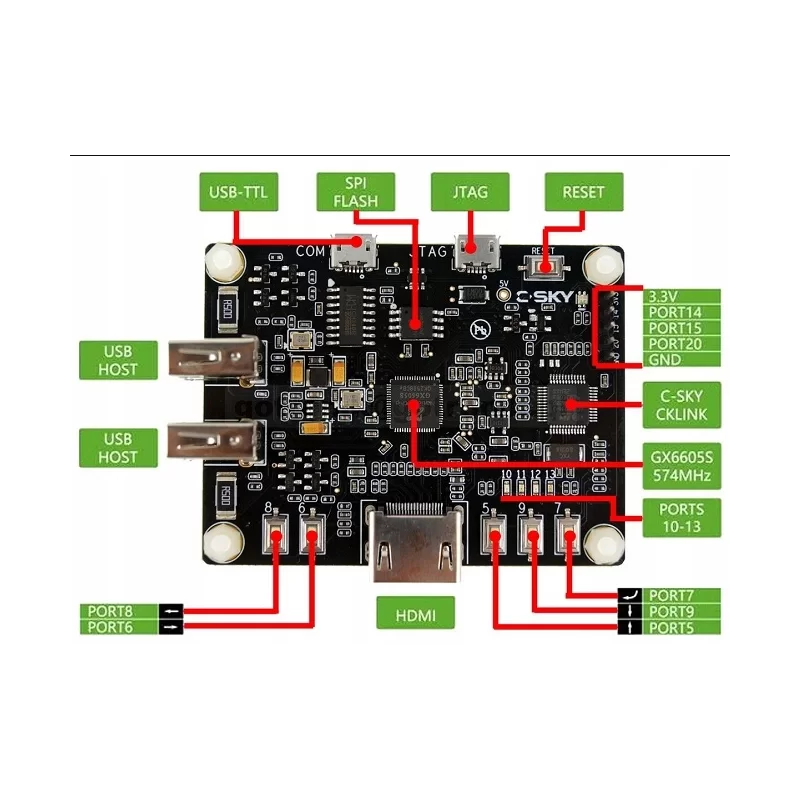

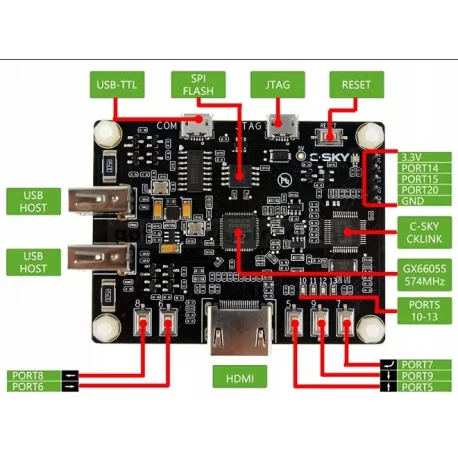

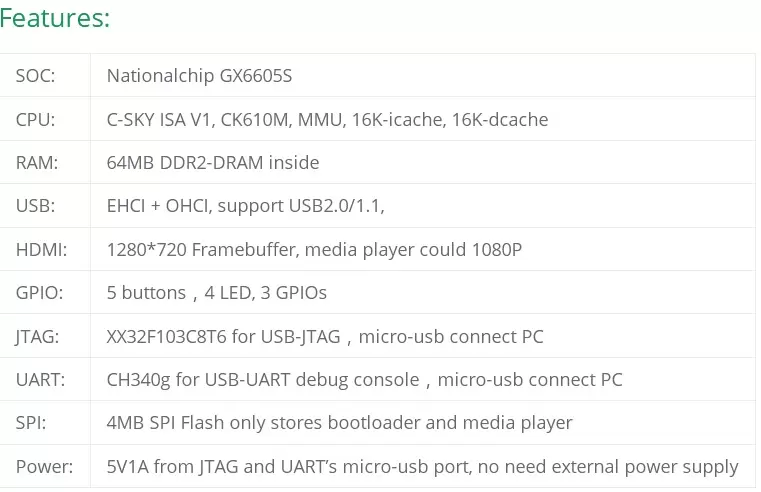

technical data:
32 bit SoC Nationalchip GX6605C C-SKY ISA V1 CK610M processor with 574 MHz
single core processor
DVB-S2 / S demodulator
DDR2 64MB RAM memory
4MB SPI Flash memory

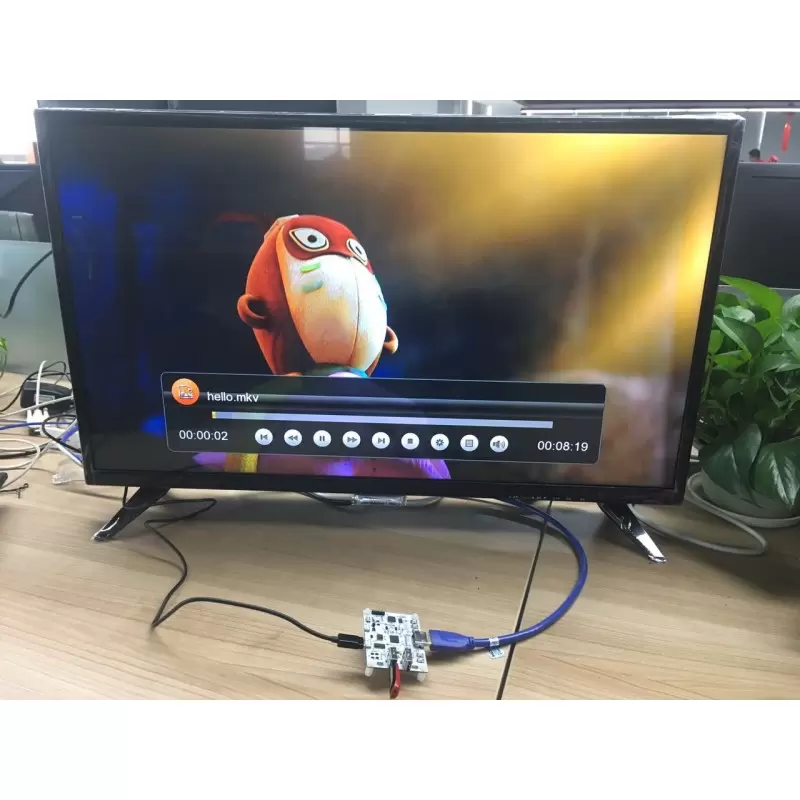

HDMI connector for displaying video with resolution up to 1080p
2 USB HOST ports
JTAG and UART debug connectors
5 use buttons
4 LEDs

برای اطلاعت بیشتر میتوانید به سایت زیر مراجعه فرمایید.

Introduction to development resources
· Https://c-sky.github.io/docs/gx6605s.html

   Development guidance

· Https://c-sky.github.io

   Introduction of Pingtou Linux Arch

· Https://github.com/c-sky/forum/issues

   Technical Support Forum

   Technical support is on the forum, Taobao customer service sister does not provide technical support

c-sky.github.io
C-SKY gx6605s dev board | C-SKY Linux Arch by c-sky
A Chinese CPU ISA from www.c-sky.com
