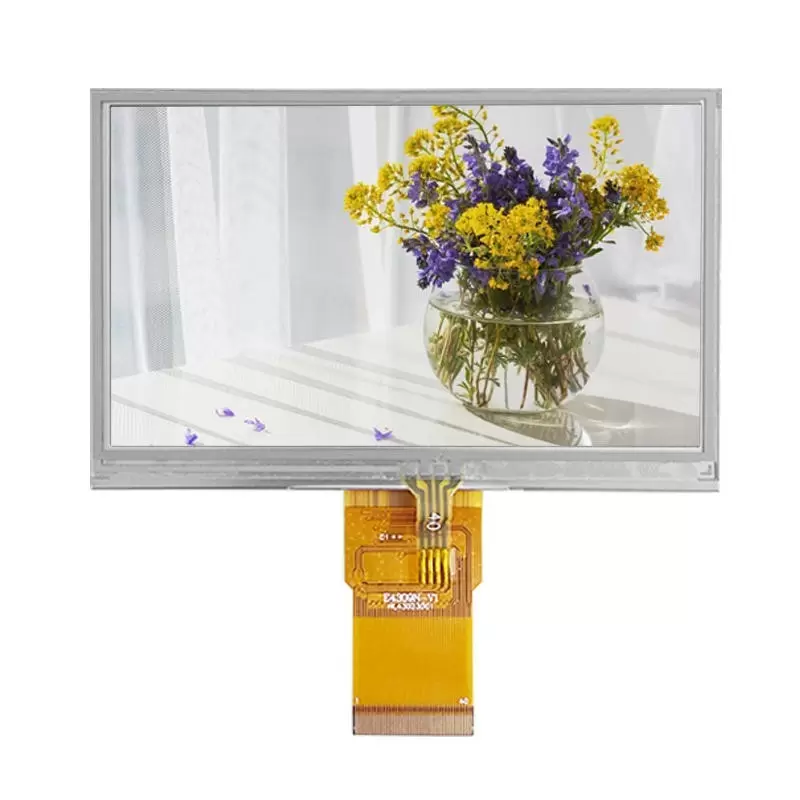

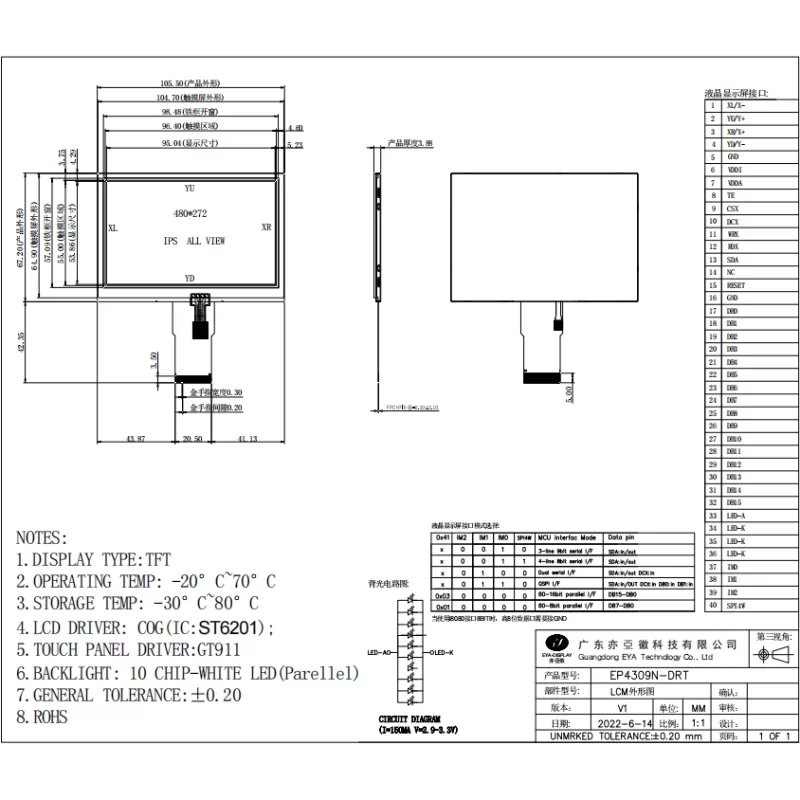

السیدی 4.3 اینچ با تاچ 4.3inch TFT LCD display MCU +RST touch - 480x272 - SPI / Pararllel

السیدی 4.3 اینچ با تاچ 4.3inch TFT LCD display MCU +RST touch - 480x272 -SPI / Pararllel

این السیدی قابلیت راه اندازی با تمامی میکروکنترلر ها دارد و درایور السیدی ST6201 می باشد و مثال همراه آن با stm32f1x نوشته شده است.

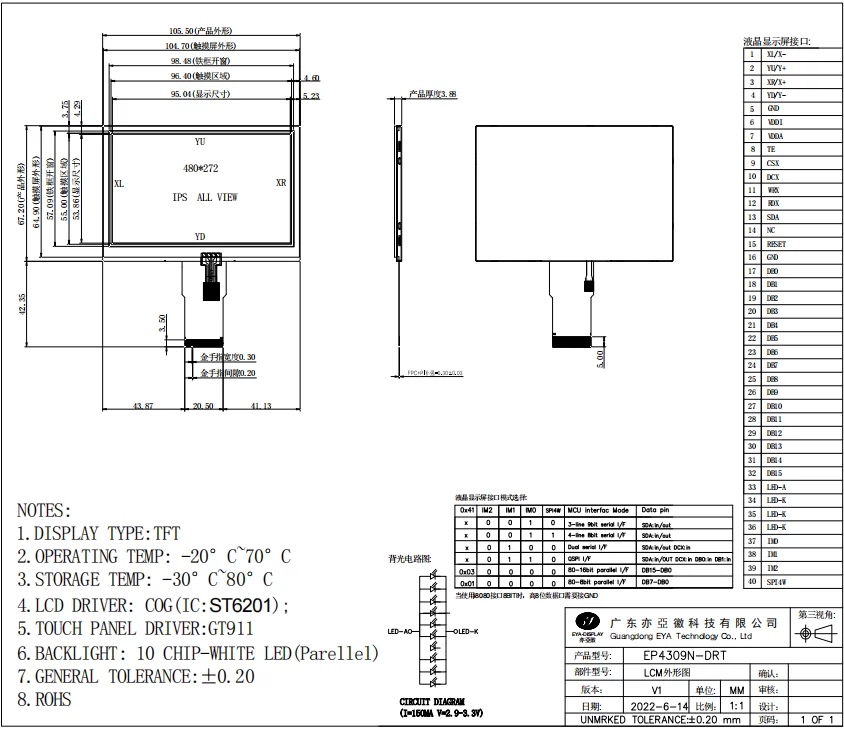

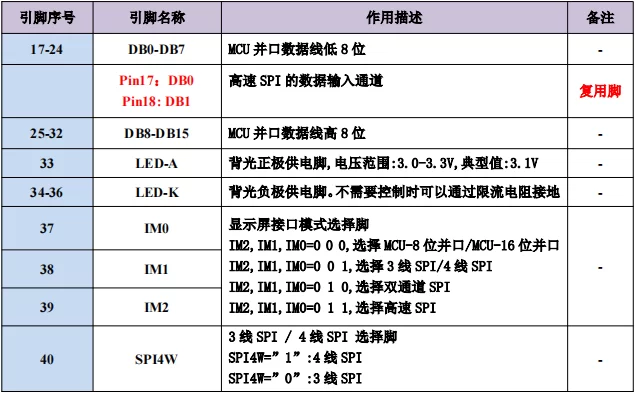

- 17:24: DB0-DB7, MCU pins connected to 8 bits, high-speed SPI interface
- 25:32: DB8-DB15, MCU pins connected to 8 bits
- 33: LED-A, LED-K, MCU pins connected to LED display, current limit: 3.0-3.3V, maximum: 3.1V
- 34-36: IM0, IM1, IM2, MCU pins connected to 3-bit configuration
- 37: MCU pins connected to 16-bit configuration
- 38: MCU pins connected to 1-bit configuration
- 39: MCU pins connected to SPI
- 40: SPI4W, SPI4W="1": 4-bit SPI, SPI4W="0": 3-bit SPI

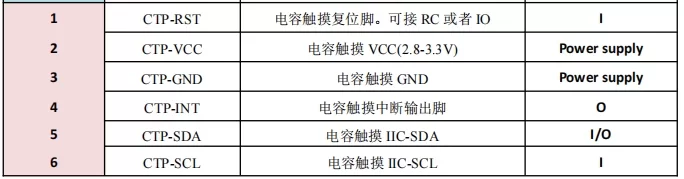

- 1: CTP-RST, touch panel reset pin, connected to RC circuit IO
- 2: CTP-VCC, touch panel power supply VCC (2.8-3.3V)
- 3: CTP-GND, touch panel ground
- 4: CTP-INT, touch panel interrupt pin
- 5: CTP-SDA, touch panel I2C-SDA
- 6: CTP-SCL, touch panel I2C-SCL

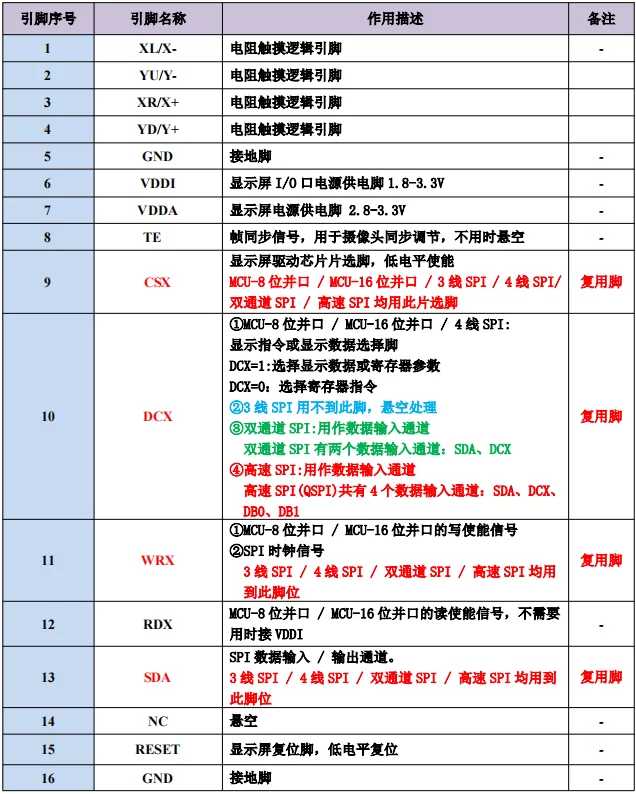

- 1: XL/X-, touch panel X-left or X-negative input
- 2: YU/Y+, touch panel Y-up or Y-positive input
- 3: XR/X+, touch panel X-right or X-positive input
- 4: YD/Y+, touch panel Y-down or Y-positive input
- 5: GND, ground
- 6: VDDI, internal power supply, 1.8-3.3V
- 7: VDDA, analog power supply, 2.8-3.3V
- 8: TE, touch detection pin, active low
- 9: CSX, MCU chip select pin / MCU-16 mode select / 3-wire SPI / 4-wire SPI / touch panel control, active low
- 10: DCX, MCU data/command select pin, active low
- 11: WRX, MCU write pin / 4-wire SPI / 8-wire SPI / touch panel control
- 12: RDX, MCU read pin / MCU-16 mode select, active low
- 13: SDA, 3-wire SPI / 4-wire SPI / touch panel data line
- 14: NC, no connection
- 15: RESET, reset pin, active low
- 16: GND, ground

example:
01 :8 bit Parallel Interface

 4.3 inch IPS Display STM32F103RCT6 Parallel Port IO Simulation Example
 4.3 inch IPS Display STM32F103ZET6 Parallel Port FSMC Example
 4.3 inch IPS Display STM32F407ZGT6 Parallel Port FSMC Example

02: 16 bit Parallel Interface

 4.3 inch IPS Display STM32F103RCT6 Parallel Port IO Simulation Example
 4.3 inch IPS Display STM32F103ZET6 Parallel Port FSMC Example
 4.3 inch IPS Display STM32F407ZGT6 Parallel Port FSMC Example
