OLED HD 0.95 inch OLED Display Color 96x64 SPI / SSD1331 / Full Color

OLED HD 0.95 inch OLED Display Color 96x64/ SPI Interface/ SSD1331/ Full Color

Size: 0.95 inch
Control chip: SSD1331
Resolution: 96*64

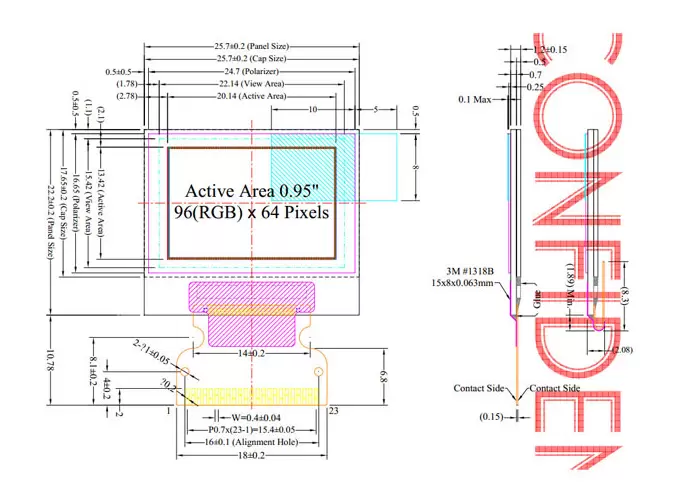

Display area: 20.14*13.42 (mm)

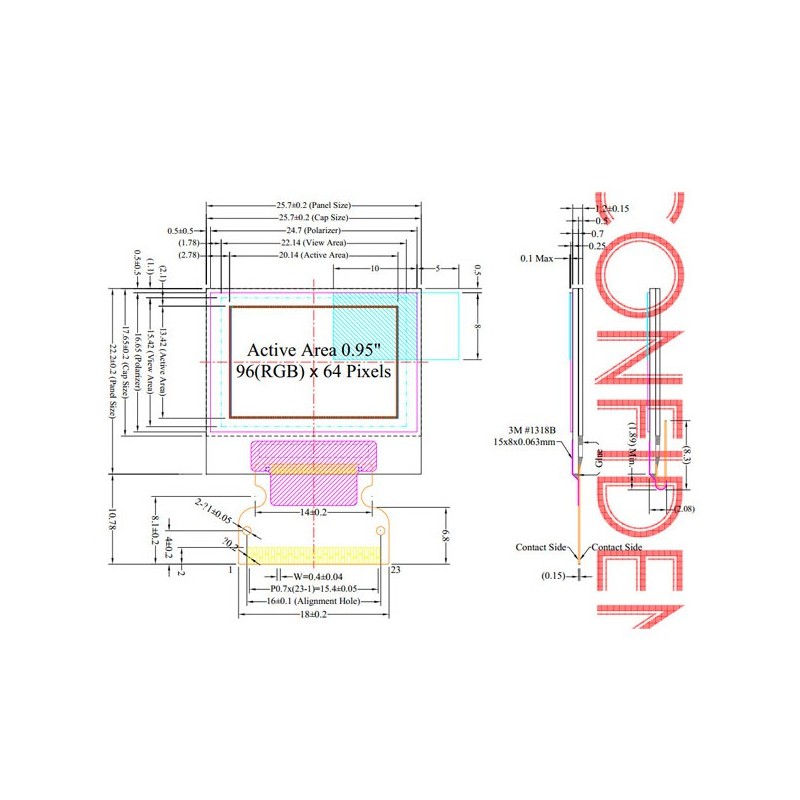

Physical size: 25.7*22.2*1.5(mm)
Interface Type: SPI/68XX-Series/80XX-Series Interface

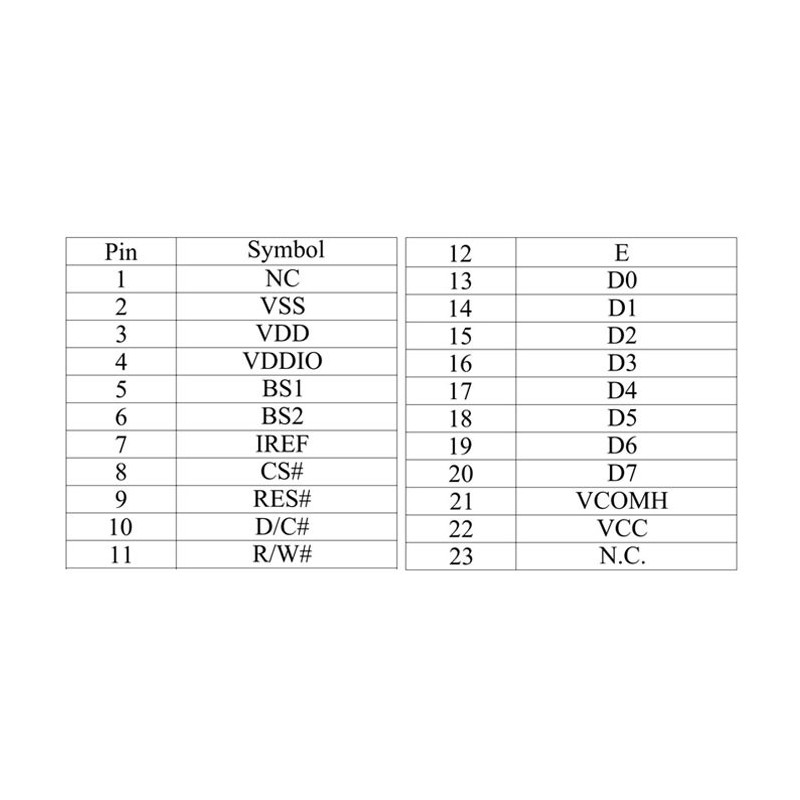

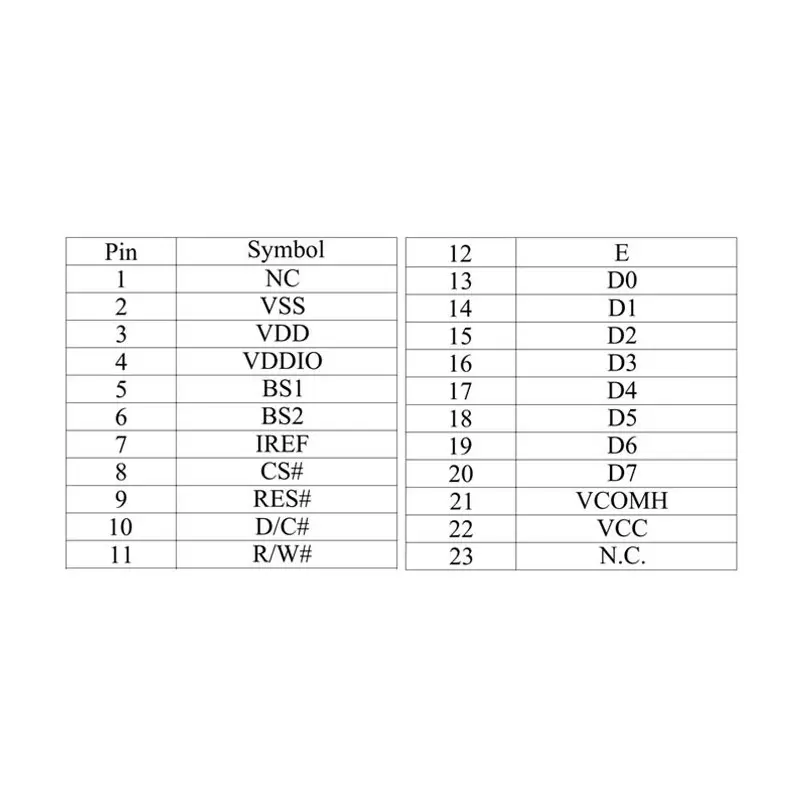

Number of pins: 23 Pin
Display color: full color
Pixel size: 0.05*0.19 (mm)
Working temperature: -30~70 degrees
Working voltage: 3.3V

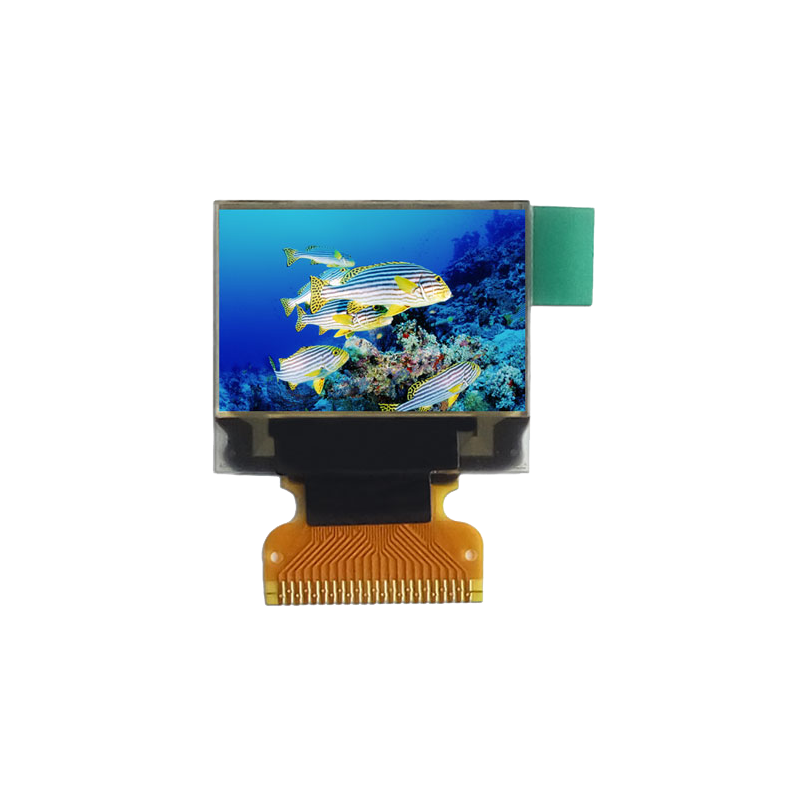

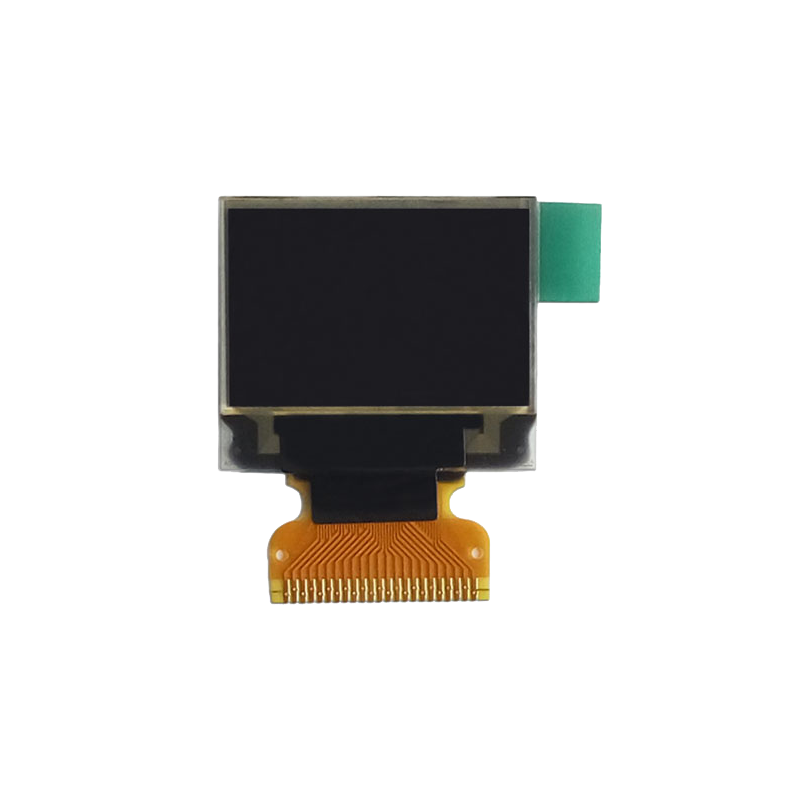

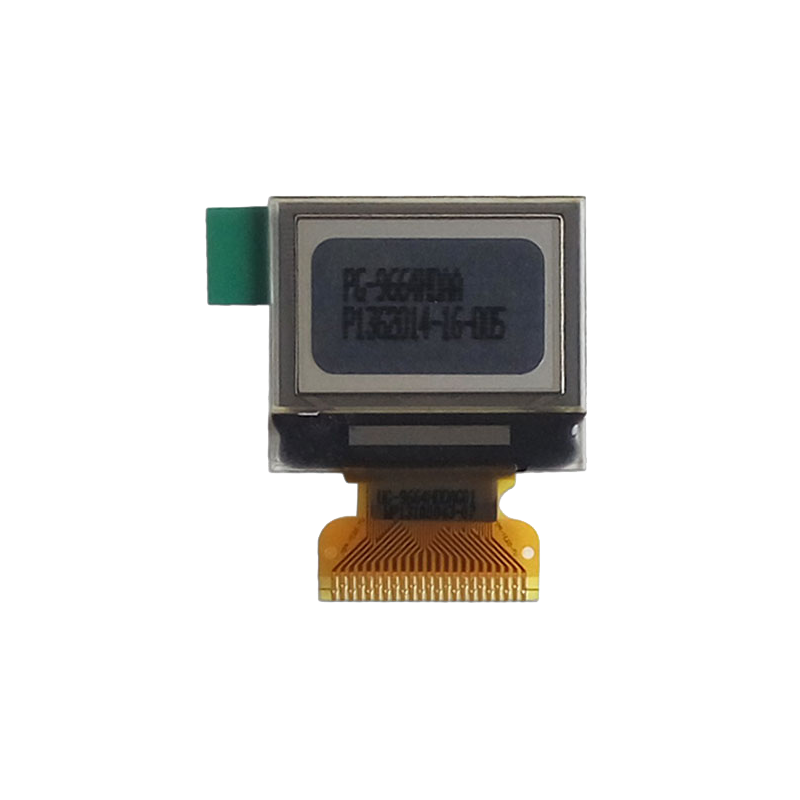

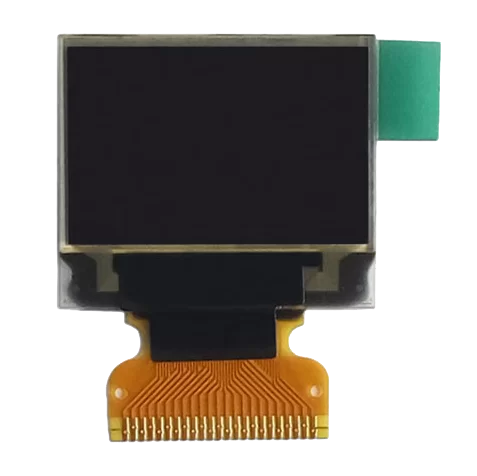

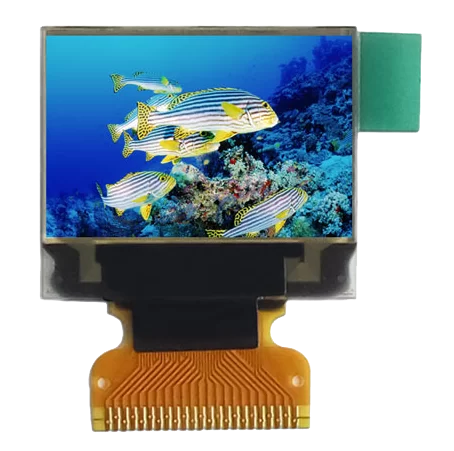

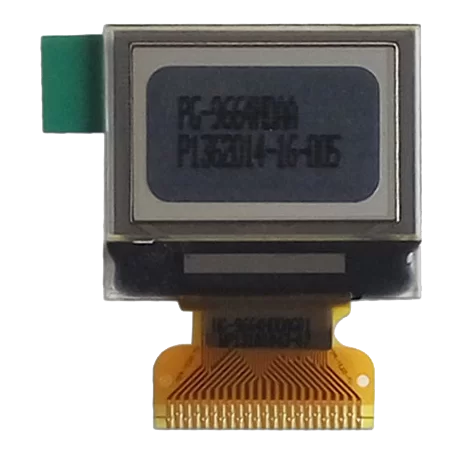

Product display

محتوای فایل مربوط به مثال و Document:

C095 module data:
